- < 5ppm of oil residual at discharge, to meet stringent environmental standards
- Uncomplicated, efficient and clean installation and maintenance
- Effective separation of mineral oil, synthetic oil and stable condensate emulsions
- Solid constructed bracket for convenient wall mounting available as an option (up to size 4.5)
- Brass hose connectors ensure swift and secure installation
- Housing and lids made out of up to 100% recycled plastic (up to size 4.5)
- All the sizes feature a test drain and a sample bottle, to easily check discharge status
- Sizes 4.5 - 30 m3/min feature a sealed red lightbulb, to inform about imminent overflow (batteries not included)
- Sizes 10 - 30 m3/min feature a further sealed red lightbulb, to inform about the need to replace elements (batteries not included)
The SSM / SPG is an oil/water separator range designed for efficient condensate treatment for, capable of aligning with stringent environmental standards.
As condensate enters the SSM / SPG oil/water separators, it undergoes a multi-stage filtration process to effectively remove oil. Engineered to meet the latest ecological standards, SSM / SPG oil/water separator range boasts a residual oil content of less than 5 ppm at discharge. The newly integrated high-performance elements not only ensure optimal environmental compliance but also facilitate user-friendly operation. Replacing the elements of the SSM / SPG oil/water separators is a remarkably simple operation, and for some sizes the products can even be conveniently installed using the optional mounting bracket (up to size 4.5).
- Any type and design of condensate drain can be utilized
- Newly designed elements specifically available to treat “stable condensate emulsions” and polyglycol lubricated compressed air system
- Exceptional value for money
- Compact dimensions facilitate easy handling and installation
- Ready for installation of IOT requirements (reed switch) on overflow side
- No formation of bacteria-related deposits through water calming (compared to gravity separators)
Model Name | Oil | Wall mounting bracket | Oil residue output value | Capacity FAD [m3/min] | Inlet Connections [gas inches] | Outlet Connections [gas inches] | Connections Type | Max oil adsorption element's (lt) | DIBT Certified | Filter element (nr) | Carbon element (nr) | Min Inlet Temperature [°C] | Max Inlet Temperature [°C] | Min Ambient Temperature [°C] | Max Ambient Temperature [°C] | Dimension Length [mm] | Dimension Height [mm] | Dimension Depth [mm] | Weight [kg] |
SSM2 | Mineral/Syntetic | Included | <5 ppm | 2 | 1/2" | 1/2" | BSP | 1.5 | Yes | 1 | 1 | 2 | 65 | 2 | 65 | 270 | 240 | 249 | 3.5 |
SSM2 WB | Mineral/Syntetic | No | <5 ppm | 2 | 1/2" | 1/2" | BSP | 1.5 | Yes | 1 | 1 | 2 | 65 | 2 | 65 | 270 | 240 | 249 | 3.5 |
SPG2 | Polyglycol | Included | <5 ppm | 2 | 1/2" | 1/2" | BSP | 1.5 | Yes | 1 | 1 | 2 | 65 | 2 | 65 | 270 | 240 | 249 | 3.5 |
SPG2 WB | Polyglycol | No | <5 ppm | 2 | 1/2" | 1/2" | BSP | 1.5 | Yes | 1 | 1 | 2 | 65 | 2 | 65 | 270 | 240 | 249 | 3.5 |

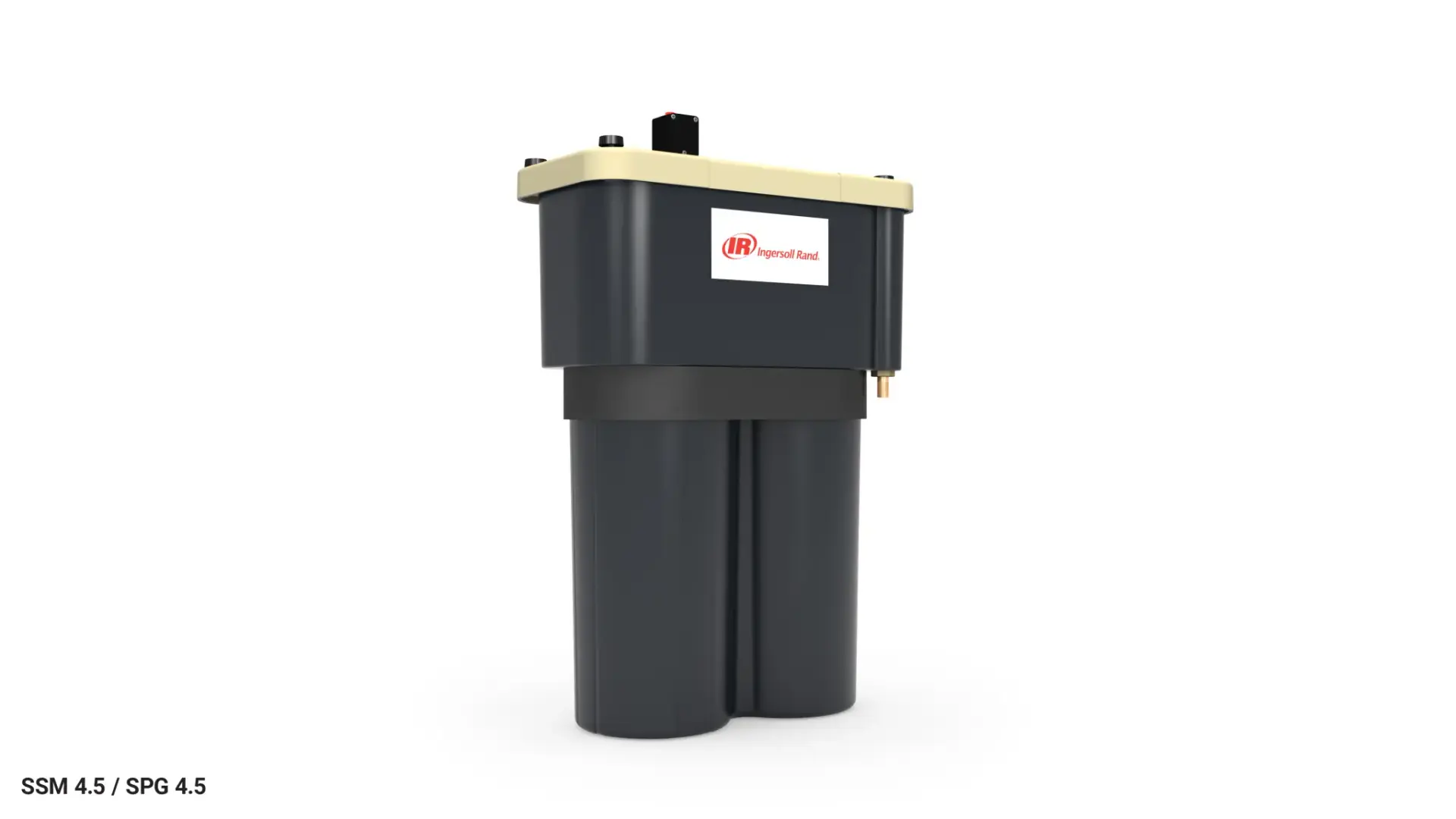

SSM 4.5 | Mineral/Syntetic | No (available as optional) | <5 ppm | 4.5 | 1/2" | 1/2" | BSP | 3.5 | Yes | 1 | 1 | 2 | 65 | 2 | 65 | 392 | 569 | 191 | 7.5 |
SPG 4.5 | Polyglycol | No (available as optional) | <5 ppm | 4.5 | 1/2" | 1/2" | BSP | 3.5 | Yes | 1 | 1 | 2 | 65 | 2 | 65 | 392 | 569 | 191 | 7.5 |
SSM 10 | Mineral/Syntetic | No | <5 ppm | 10 | 1/2" | 1" | BSP | 9.8 | Yes | 2 | 1 | 2 | 65 | 2 | 65 | 650 | 240 | 749 | 17 |
SPG 10 | Polyglycol | No | <5 ppm | 10 | 1/2" | 1" | BSP | 9.8 | Yes | 2 | 1 | 2 | 65 | 2 | 65 | 650 | 240 | 749 | 17 |
SSM 20 | Mineral/Syntetic | No | <5 ppm | 20 | 1/2" | 1" | BSP | 15.14 | Yes | 2 | 1 | 2 | 65 | 2 | 65 | 780 | 305 | 900 | 28 |
SPG 20 | Polyglycol | No | <5 ppm | 20 | 1/2" | 1" | BSP | 15.14 | Yes | 2 | 1 | 2 | 65 | 2 | 65 | 780 | 305 | 900 | 28 |
SSM 30 | Mineral/Syntetic | No | <5 ppm | 30 | 1/2" | 1" | BSP | 24.98 | Yes | 2 | 1 | 2 | 65 | 2 | 65 | 970 | 380 | 900 | 42 |
SPG 30 | Polyglycol | No | <5 ppm | 30 | 1/2" | 1" | BSP | 24.98 | Yes | 2 | 1 | 2 | 65 | 2 | 65 | 970 | 380 | 900 | 42 |
SSM 60 | Mineral/Syntetic | No | <5 ppm | 60 | 1/2" | 1" | BSP | 49.21 | Yes | 2 | 1 | 2 | 65 | 2 | 65 | 1156 | 481 | 1040 | 78 |
SPG 60 | Polyglycol | No | <5 ppm | 60 | 1/2" | 1" | BSP | 49.21 | Yes | 2 | 1 | 2 | 65 | 2 | 65 | 1156 | 481 | 1040 | 78 |
