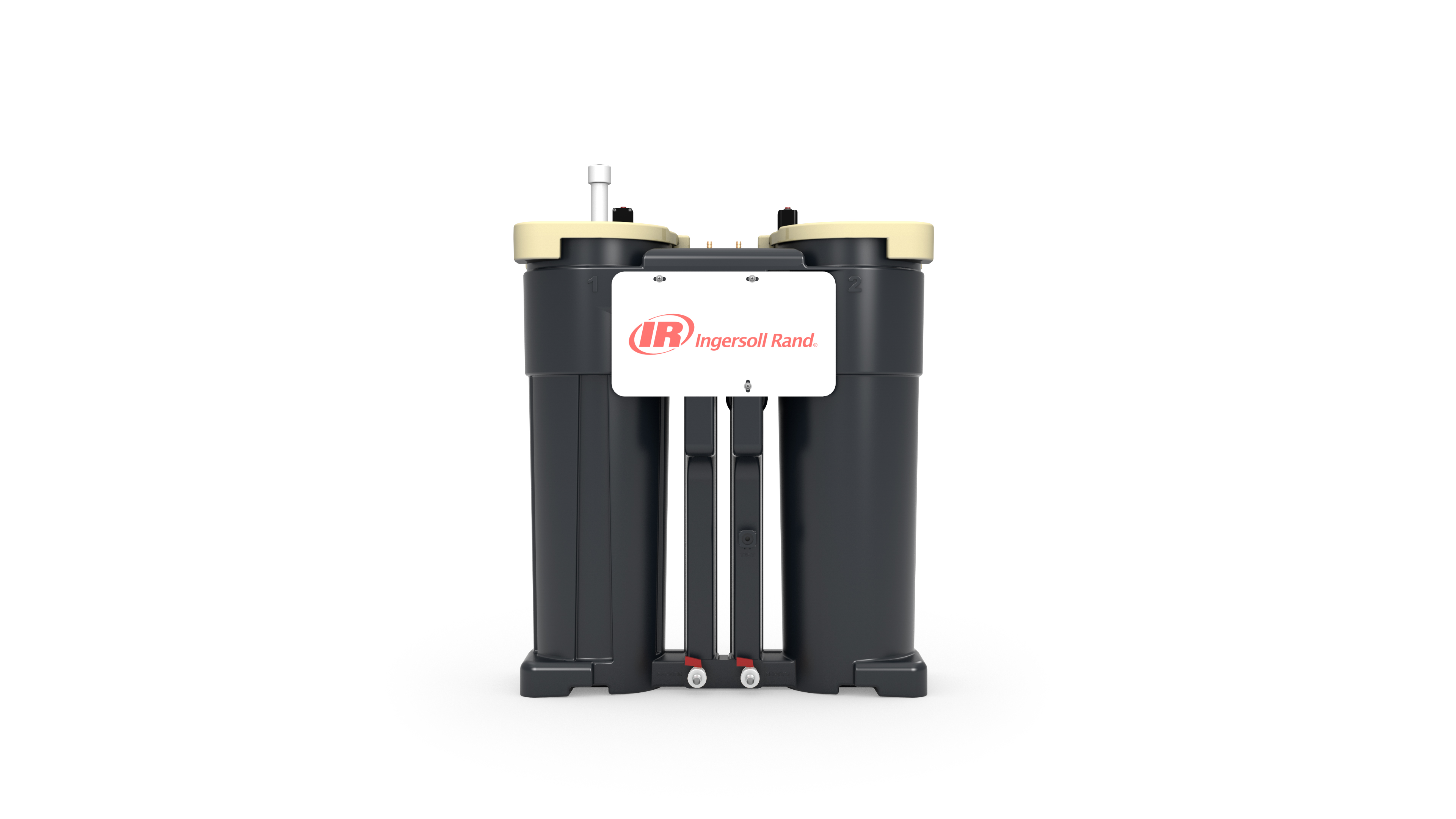

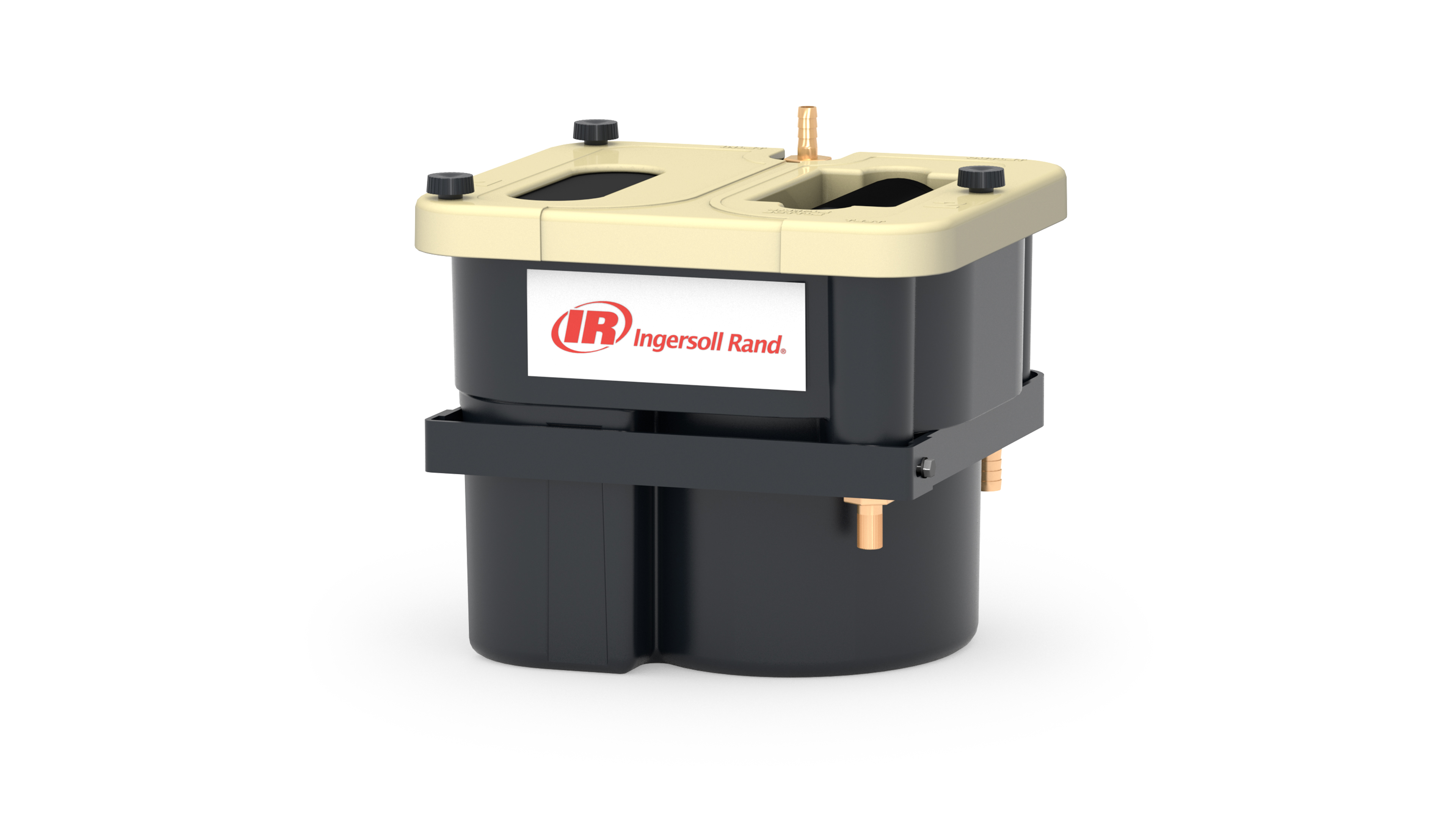

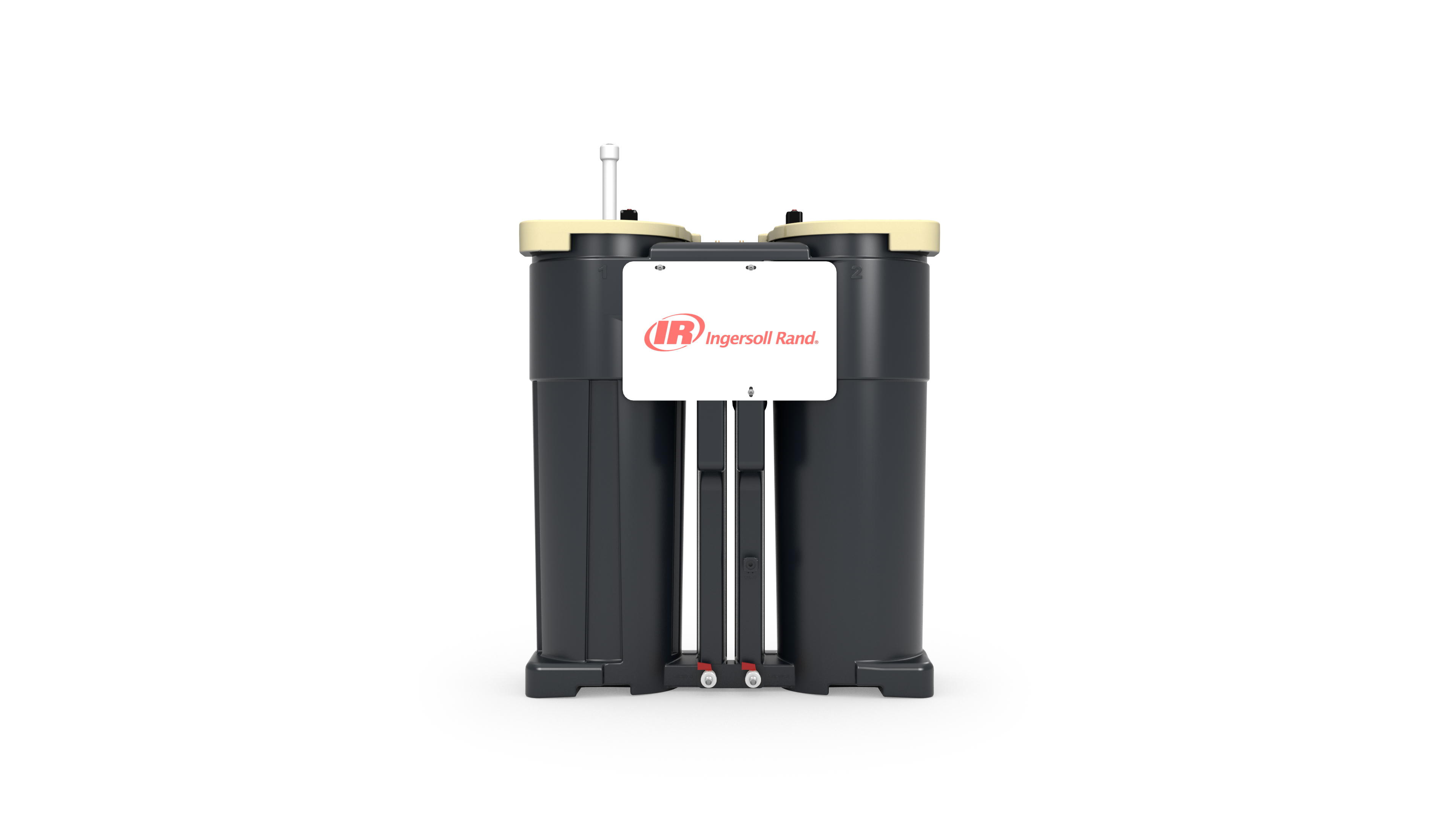

SSM / SPG 2 to 60 - Oil/Water Separators

The SSM / SPG is an oil/water separator range designed for efficient condensate treatment for, capable of aligning with stringent environmental standards.

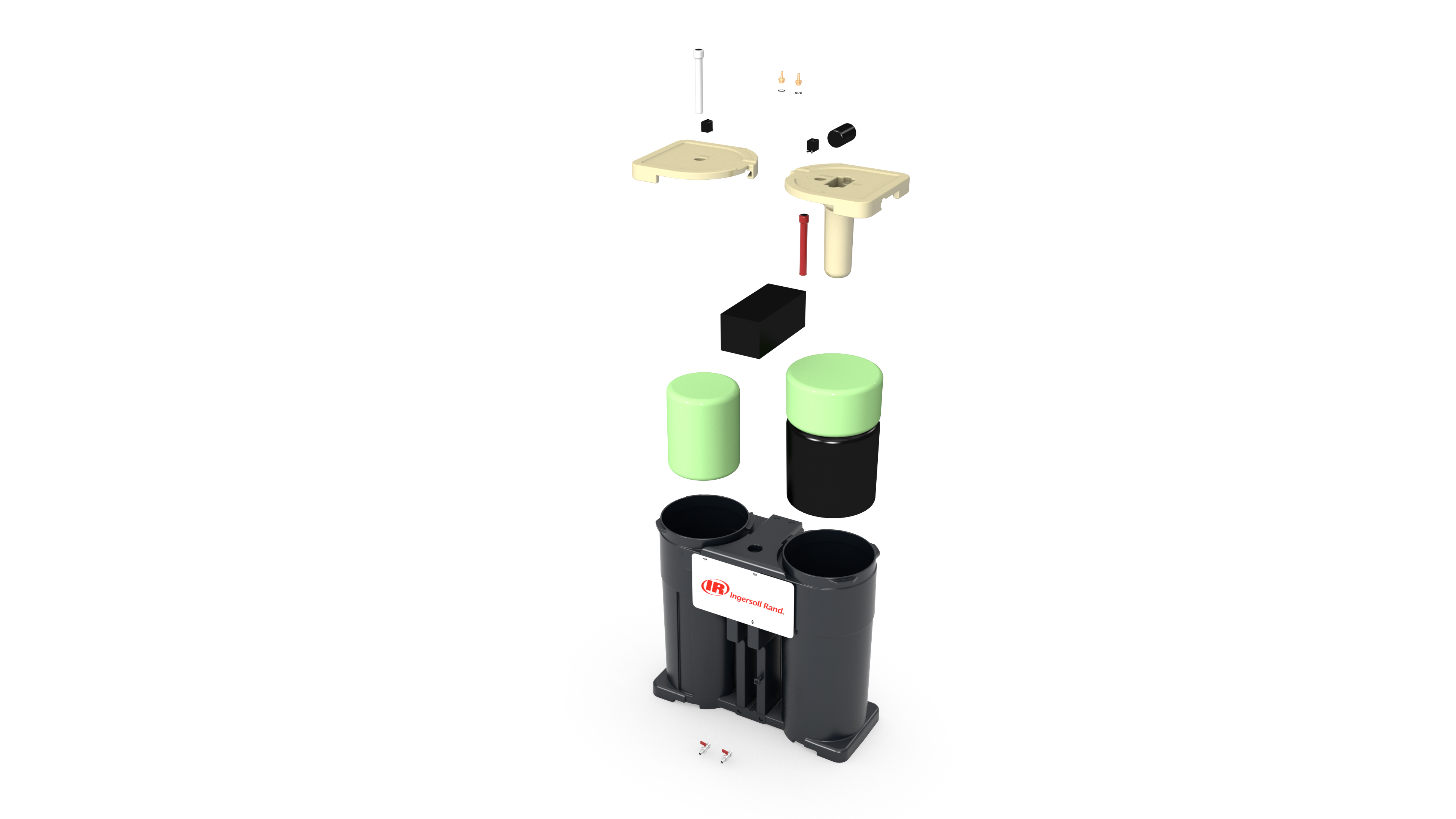

As condensate enters the SSM / SPG oil/water separators, it undergoes a multi-stage filtration process to effectively remove oil. Engineered to meet the latest ecological standards, SSM / SPG oil/water separator range boasts a residual oil content of less than 5 ppm at discharge. The newly integrated high-performance elements not only ensure optimal environmental compliance but also facilitate user-friendly operation. Replacing the elements of the SSM / SPG oil/water separators is a remarkably simple operation, and for some sizes the products can even be conveniently installed using the optional mounting bracket (up to size 4.5).

< 5ppm of oil residual at discharge, to meet stringent environmental standards
Uncomplicated, efficient and clean installation and maintenance
Effective separation of mineral oil, synthetic oil and stable condensate emulsions
Solid constructed bracket for convenient wall mounting available as an option (up to size 4.5)
Brass hose connectors ensure swift and secure installation
Housing and lids made out of up to 100% recycled plastic (up to size 4.5)
All the sizes feature a test drain and a sample bottle, to easily check discharge status
Sizes 4.5 - 60 m3/min feature a sealed red lightbulb, to inform about imminent overflow (batteries not included)
Sizes 10 - 60 m3/min feature a further sealed red lightbulb, to inform about the need to replace elements (batteries not included)

Any type and design of condensate drain can be utilized
Newly designed elements specifically available to treat “stable condensate emulsions” and polyglycol lubricated compressed air system
Exceptional value for money
Compact dimensions facilitate easy handling and installation
Ready for installation of IOT requirements (reed switch) on overflow side
No formation of bacteria-related deposits through water calming (compared to gravity separators)

Main parameters - mineral & synthetic oils

Models	Air Flow m³/min	Max. oil absorption volume l	Inlet Connection* inches	Outlet Connection* inches
SSM 2	2	2	1/2" (10mm)	1/2" (14mm)
SSM 2 WB	2	2	1/2" (10mm)	1/2" (14mm)
SSM 4.5	4,5	4,5	1/2" (10mm)	1/2" (14mm)
SSM 10	10	10	1/2" (10mm)	1" (26mm)
SSM 20	20	20	1/2" (10mm)	1" (26mm)
SSM 30	30	30	1/2" (10mm)	1" (26mm)
SSM 60	60	60	1/2" (10mm)	1" (26mm)

Main parameters - polyglycol oils

Models	Air Flow m³/min	Max. oil absorption volume l	Inlet Connection* inches	Outlet Connection* inches
SPG 2	2	2	1/2" (10mm)	1/2" (14mm)
SPG 2 WB	2	2	1/2" (10mm)	1/2" (14mm)
SPG 4.5	4,5	4,5	1/2" (10mm)	1/2" (14mm)
SPG 10	10	10	1/2" (10mm)	1" (26mm)
SPG 20	20	20	1/2" (10mm)	1" (26mm)
SPG 30	30	30	1/2" (10mm)	1" (26mm)
SPG 60	60	60	1/2" (10mm)	1" (26mm)

SSM / SPG 2 to 60 Oil/water separators for compressor capacities up to 60 m3/min
