DA-IN Series Non-Cycling Refrigerated Dryers

Elevate your compressed air treatment with the next generation of non-cycling dryers. The Ingersoll Rand DA-IN Series is designed for industrial applications and built to utilize R513A refrigerant, supporting your sustainability goals while delivering reliable, energy-efficient performance. The DA-IN Series is the perfect addition to new and existing systems, offering versatility and ease of maintenance for a wide range of applications.

Environmental Compliance: Incorporates R513A refrigerant with low Global Warming Potential (GWP) meeting sustainability and regulatory requirements.
Energy Efficiency: Low pressure drop enhances energy efficiency, reducing operational costs.

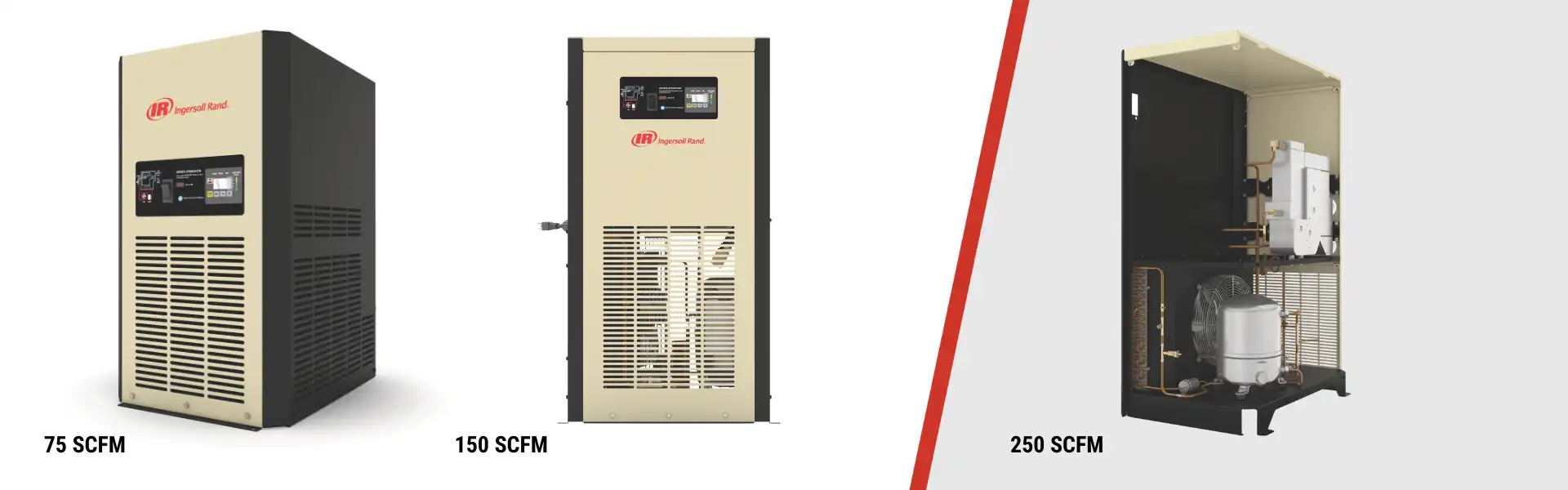

Reliable Performance: High-quality components, including a constant pressure valve and brazed aluminum heat exchanger (75-250cfm), ensure durability and dependable operation.
Comprehensive Testing: Extensive prototype and field testing under various load conditions guarantees reliable performance.
Ease of Maintenance: Simple, serviceable design reduces downtime and simplifies upkeep.
Safety Standards Compliance: Certified to UL 60335-1, UL 60335-2-40, CSA 22.2 #60335-1, and CSA 22.2 #60335-2-40 for maximum safety and reliability.
Process Protection: Includes general purpose and high-efficiency pre- and post-filters to safeguard the dryer and downstream equipment. Applies to 75-250 SCFM models.

Model	Inlet Flow SCFM*	Inlet Flow NM³/H	Pressure Drop PSID	VOLTAGES	IN/OUT AIR CONNECT SIZE	Power Consumption KW	Refrigerant	W (IN.)	D (IN.)	H (IN.)	W (MM)	D (MM)	H (MM)	SHIP Weight LBS.
DA12INA100	7	11.9	3.5	115/1/60	3/8" MNPT	0.15	R513A	14.4	16.7	17.5	365.8	424.2	444.5	47
DA18INA100	11	18.7	0.6	115/1/60	3/8" MNPT	0.16	R513A	14.4	16.7	17.5	365.8	424.2	444.5	47
DA25INA100	15	25.5	0.8	115/1/60	3/8" MNPT	0.16	R513A	14.4	16.7	17.5	365.8	424.2	444.5	47
DA42INA100	25	42.5	0.5	115/1/60	1/2" FNPT	0.27	R513A	17.9	20.2	21.0	454.7	513.1	533.4	63
DA54INA100	32	54.4	0.6	115/1/60	1/2" FNPT	0.27	R513A	17.9	20.2	21.0	454.7	513.1	533.4	63
DA72INA100	42	71.4	1.0	115/1/60	1 1/2" FNPT	0.51	R513A	17.9	20.2	21.0	454.7	513.1	533.4	74
DA85INA100	50	85.0	1.0	115/1/60	1/2" FNPT	0.52	R513A	17.9	20.2	21.0	454.7	513.1	533.4	74

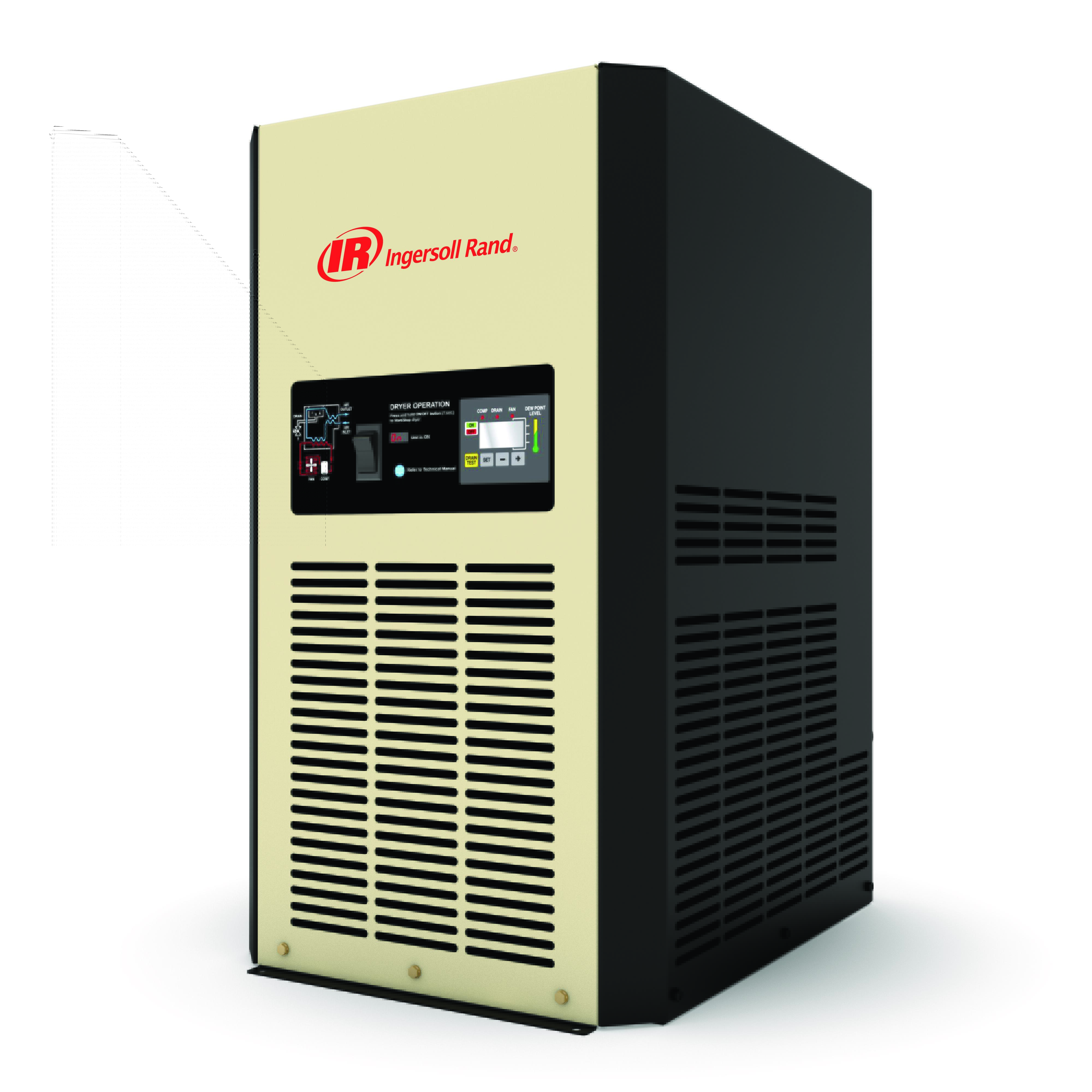

DB127INA	75	127.5	2.94	115/1/60	3/4" FNPT	0.62	R513A	15.2	19.7	24.3	386.1	500.4	617.3	99
DB170INA	100	160.0	3.5	115/1/60	3/4" FPT	0.85	R513A	15.2	19.7	24.3	386.1	500.4	617.3	99
DB255INA	150	240.0	4.5	115/1/60	1" FPT	0.88	R513A	19.7	30.7	37.5	500.4	779.8	952.5	170
DB340INA	200	320.0	4.4	115/1/60	1 1/2"FPT	1.12	R513A	19.7	30.7	37.5	500.4	779.7	952.5	170

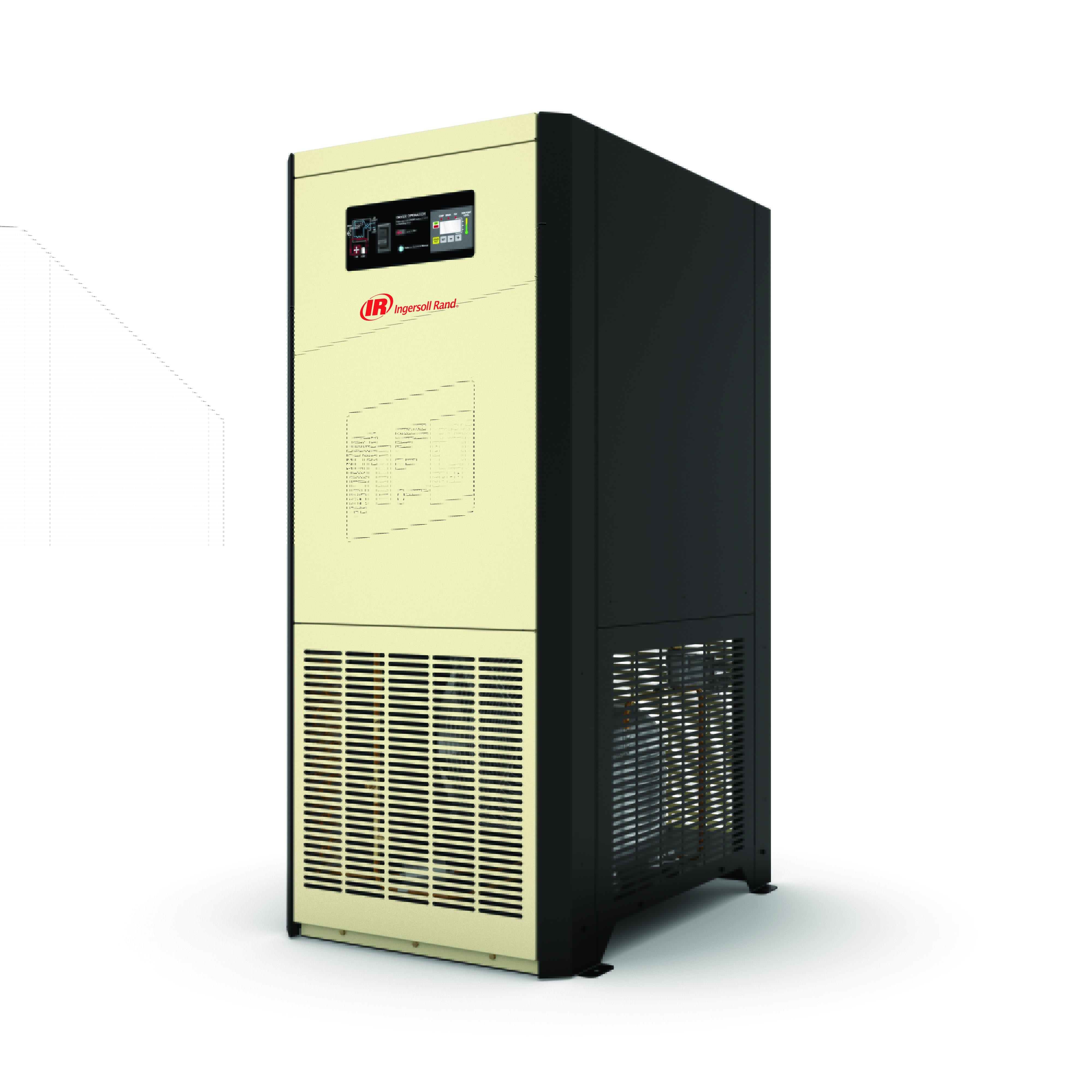

DA420INA	250	420.0	5.71	115/1/60	1 1/2"FNPT	1.52	R513A	20.9	31.8	49.3	530.9	530.9	1252.3	440
