- Ultimate Energy Efficiency: HOC dryers use heat already generated by the air compression process, which would normally be considered waste, making them the most energy-efficient type of desiccant dryer on the market
- High-Quality Clean, Dry Air: With its unique stripping and cooling cycles, the HC Series provides continuous -40°F (-40°C) pressure dew point air under all load conditions
- Flexible Design: H-Series dryers can be installed with multiple compressors, allowing maximum flexibility without sacrificing the integrity of the compressed air system
- Smart Control: Microprocessor-based control system that maintains performance and monitors the health of the unit, maximizing uptime
- Reliability You Can Count On: Proven high-performance two-way valves provide years of trouble-free operation

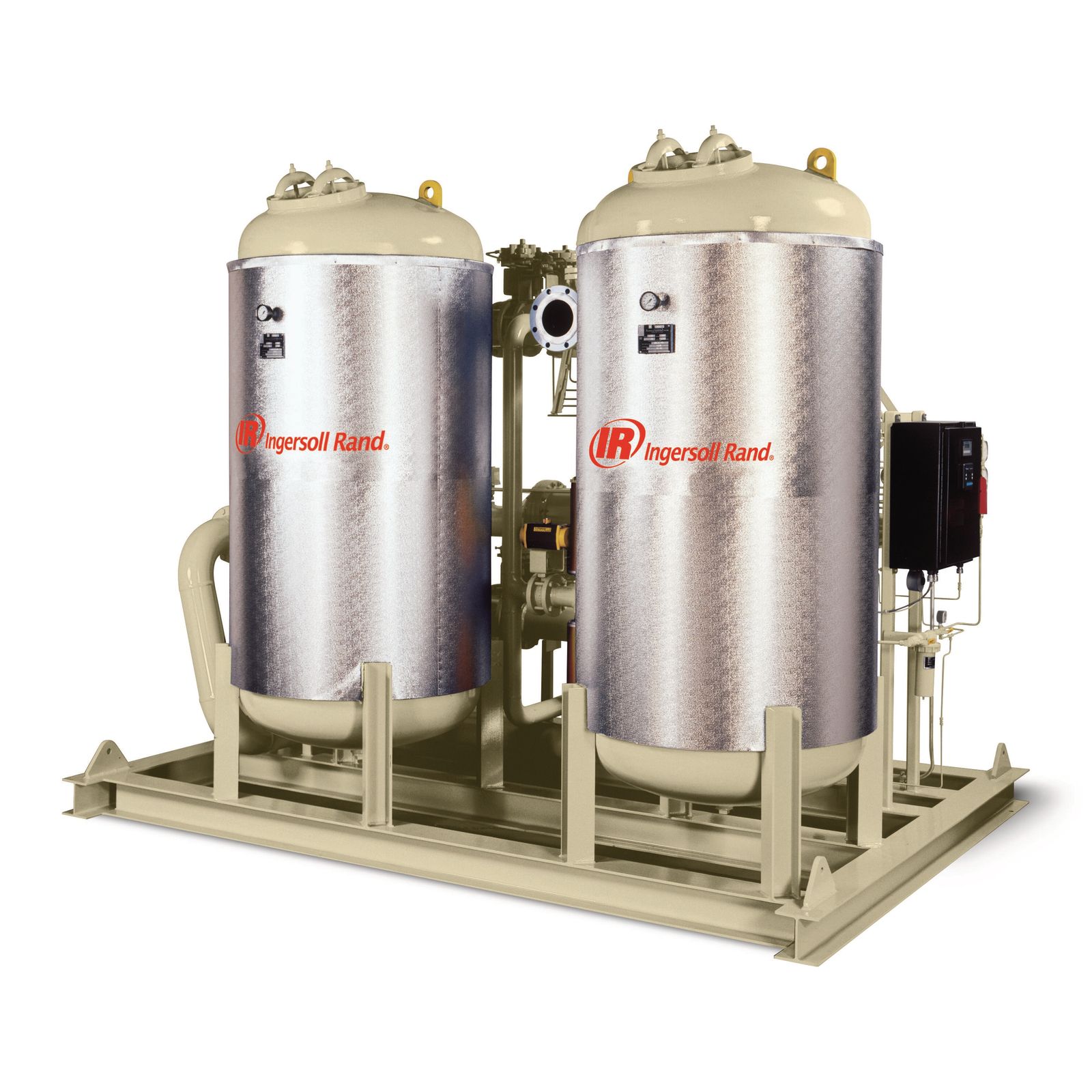

Heat-of-compression (HOC) dryers feature dual-tower, desiccant design technology with the most energy-efficient design available for oil-free applications. HOC dryers recover heat that is a natural by-product of the compression process to offset virtually all electricity costs other than operating the controller -- the cost of powering a light bulb! The HC Series delivers -40°F (-40°C) pressure dew point air consistently under all load conditions at operating costs well below those of typical desiccant dryer designs.
MODEL NAME | CAPACITY (M³/HR / SCFM) | HEIGHT (CM / IN) | WIDTH (CM / IN) | LENGTH (CM / IN) | WEIGHT (KG / LBS) |
H-10 | 1508 / 938 | 213 / 84 | 158 / 62 | 229 / 90 | 1980 / 4380 |
H-118 | 16749 / 10418 | 269 / 106 | 307 / 121 | 549 / 216 | 10860 / 23950 |
H-13 | 1862 / 1158 | 218 / 86 | 170 / 67 | 287 / 113 | 2150 / 4750 |
H-142 | 20267 / 12606 | 272 / 107 | 340 / 134 | 602 / 237 | 11840 / 26100 |
H-170 | 24119 / 15002 | 295 / 116 | 361 / 142 | 617 / 243 | 15010 / 33100 |
H-19 | 2680 / 1667 | 218 / 86 | 183 / 72 | 274 / 108 | 2290 / 5050 |
H-30 | 4187 / 2604 | 226 / 89 | 183 / 72 | 305 / 120 | 3130 / 6900 |
H-43 | 6029 / 3750 | 239 / 94 | 229 / 90 | 396 / 156 | 5320 / 12400 |
H-58 | 8208 / 5105 | 246 / 97 | 241 / 95 | 417 / 164 | 5810 / 12800 |
H-75 | 10719 / 6667 | 249 / 98 | 287 / 113 | 462 / 182 | 7890 / 17400 |
H-8 | 1191 / 741 | 213 / 84 | 158 / 62 | 224 / 88 | 1840 / 4050 |
H-95 | 13566 / 8438 | 267 / 105 | 305 / 120 | 533 / 210 | 10110 / 22300 |
HC-103 | 14632 / 9101 | 330 / 130 | 396 / 156 | 490 / 193 | 13380 / 29500 |
HC-122 | 17415 / 10832 | 340 / 134 | 406 / 160 | 546 / 215 | 15100 / 33300 |
HC-14 | 1936 / 1204 | 257 / 101 | 178 / 70 | 277 / 109 | 2720 / 6000 |
HC-143 | 20438 / 12712 | 340 / 134 | 422 / 166 | 554 / 218 | 16920 / 37300 |
HC-166 | 23703 / 14743 | 356 / 140 | 437 / 172 | 615 / 242 | 19410 / 42800 |
HC-21 | 3023 / 1880 | 267 / 105 | 198 / 78 | 282 / 111 | 4490 / 9900 |
HC-30 | 4354 / 2708 | 277 / 109 | 264 / 104 | 320 / 126 | 4570 / 10080 |
HC-41 | 5926 / 3500 | 285 / 112 | 274 / 108 | 333 / 131 | 5530 / 12200 |
HC-54 | 7740 / 4814 | 292 / 115 | 285 / 112 | 356 / 140 | 7850 / 17300 |
HC-69 | 9796 / 6093 | 300 / 118 | 300 / 118 | 42 / 174 | 9200 / 20280 |
HC-7 | 1088 / 677 | 252 / 99 | 147 / 58 | 203 / 80 | 2110 / 4650 |
HC-85 | 12093 / 7522 | 323 / 127 | 378 / 148 | 498 / 196 | 10570 / 23300 |
HC-9 | 1344 / 836 | 254 / 100 | 155 / 61 | 244 / 96 | 2340 / 5150 |
