- Enhanced Reliability- Electronic timer ensures automatic removal of condensate from your compressed air systems to protect your downstream equipment and critical processes
- Robust Design- High grade components like stainless steel moving parts, IP65 insulation protection, and FPM seals ensure longevity and peace of mind
- Simple and Serviceable- Intuitive design offers quick installation and minimal maintenance to simplify operations and keep your operation running

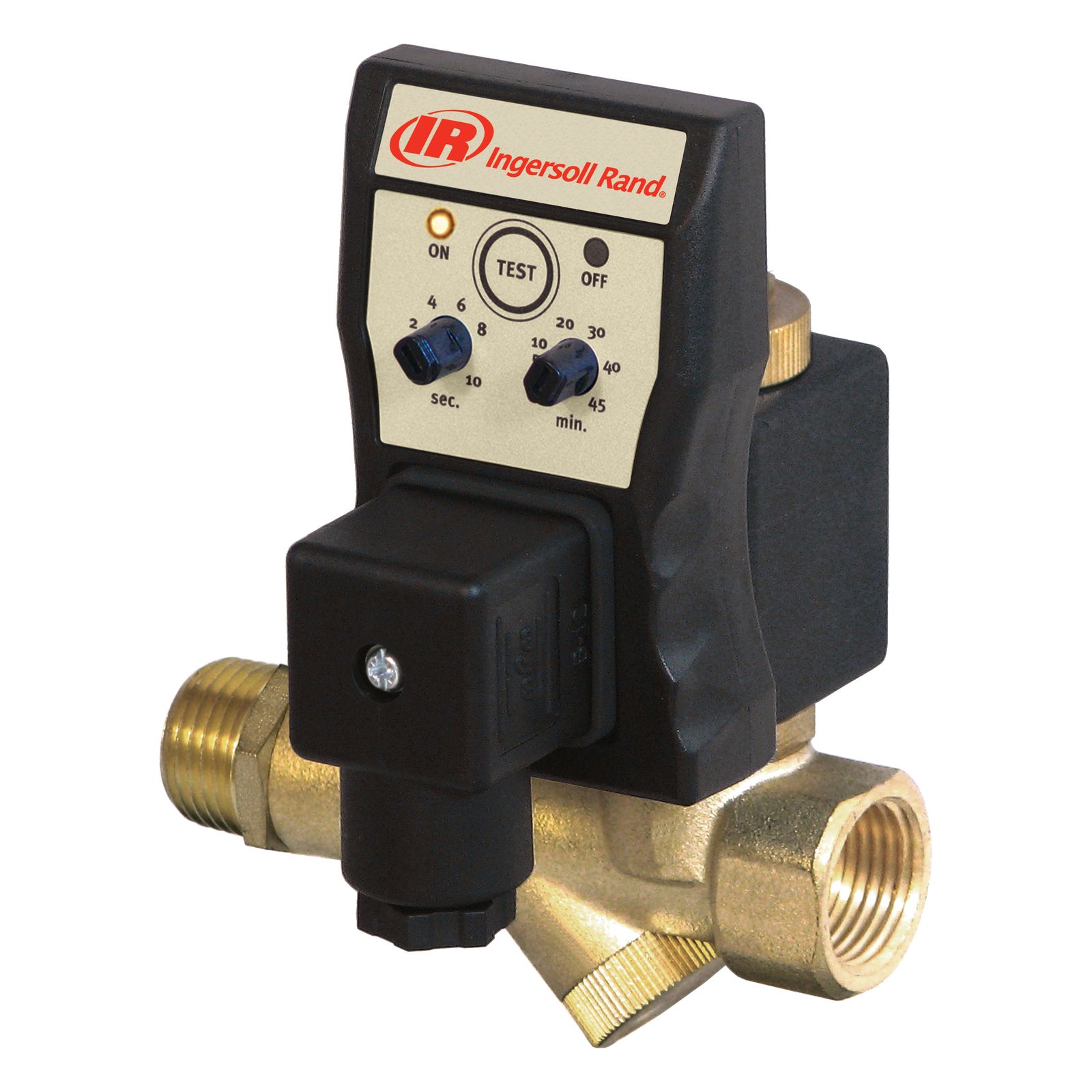

The Ingersoll Rand Timer Drain Valves (TDVs) are full-feature electronic timer controlled drain valves that remove condensate from compressors, receivers, dryers, aftercoolers, filters and drip legs. With a simple, elegant design, they offer unmatched reliability and easy installation to ensure you receive clean, dry compressed air for your critical applications.
Model | Compressor capacity (m3/min) | Inlet Size BSP (inches) | Outlet Size BSP | Operating Pressure (barg) | Operating temperature (°C) | Enclosure protection rating | Orifice diameter (mm) | Timer cycle range (on/off) |
TDV 3/8" | Any size | 3/8 " | 3/8 " | 0 - 16 | 1 - 55 | IP65 (NEMA4) | 4.5 | 0.5-10seg / 0.5-45min |
TDV 1/2 | Any size | 1/2" | 1/2" | 0 - 16 | 1 - 55 | IP65 (NEMA4) | 4.5 | 0.5-10seg / 0,5-45min |
TDV-HP 1/4 | Any size | 1/4" | 1/4" | 0 - 80 | 1 - 55 | IP65 (NEMA4) | 2 | 0.5-10seg / 0,5-45min |
TDC 1/2" | Any size | 1/2" | 1/2" | 0 - 16 | 1 - 55 | IP65 (NEMA4) | 4 | 0.5-10seg / 0,5-45min |
