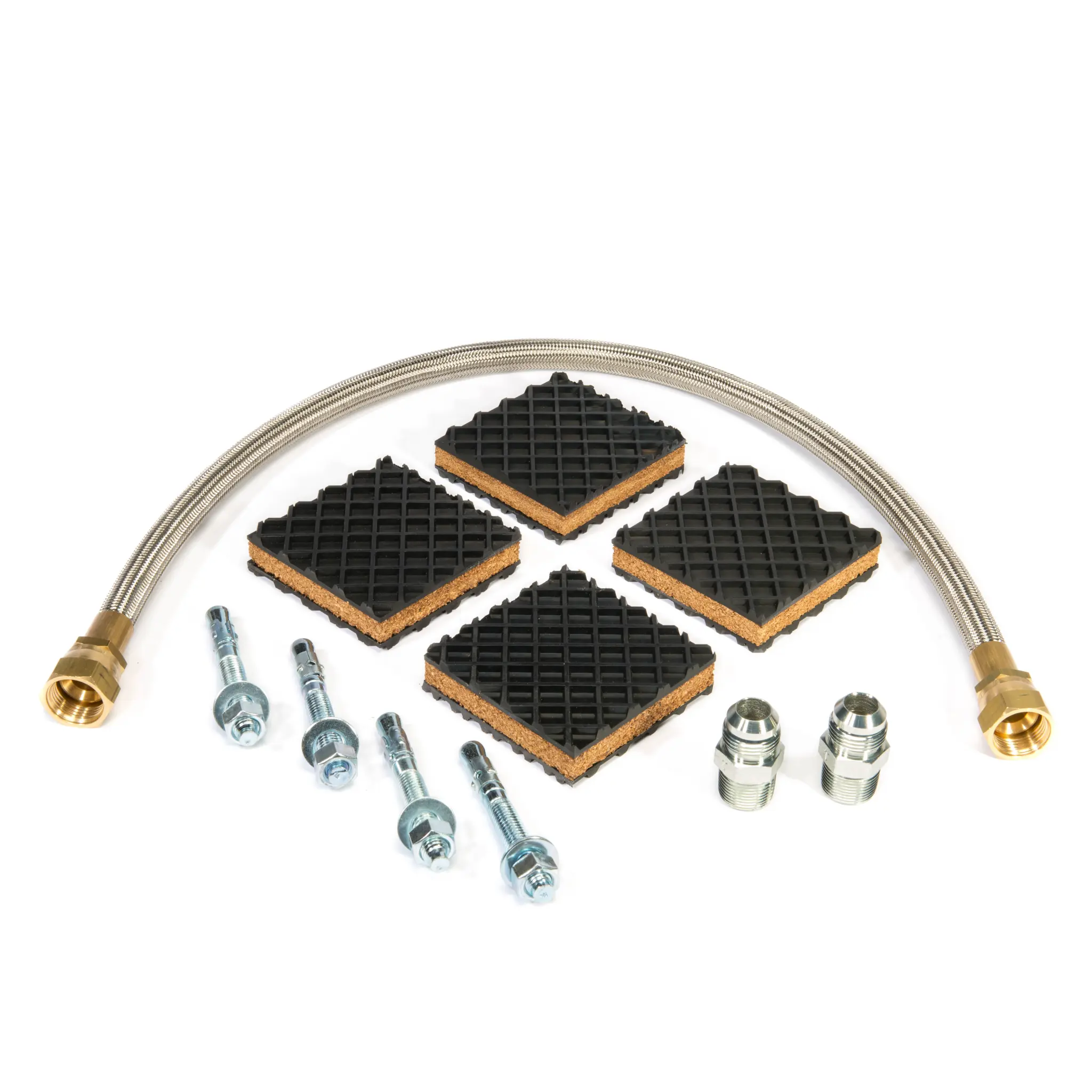

- Contains all necessary parts to install your air compressor correctly
- Includes vibration pads which lessen noise & vibration created by air compressor operation
- Includes braided hose
Model | 7T2X10 | 15T2X15 | H15T4X20 |
Max Pressure (psig) | 500 | 1,000 | 5,000 |
Nominal Power (hp) | 10 | 15 | 20 |
Flow at Max Pressure (cfm) | 21.6 | 30.8 | 20.9 |
Base Length (in) | 49 | 56 | 58 |
Base Width (in) | 35 | 39 | 32 |
Base Height (in) | 34 | 34 | 43 |
NPT Outlet (in) | 3/8 | 1/2 | 1/4 |
Voltage/Engine | 200, 230, 460, 575/3/60 | 200, 230, 460, 575/3/60 | 200, 230, 460, 575/3/60 |
Tank (gal) | Baseplate | Baseplate | Baseplate |
Weight (lbs) | 650 | 950 | 1,300 |
