Dew Point Performance: The V-Series non-cycling dryers are meticulously engineered to ensure continuous refrigerant circulation, which is ideal for applications that require a constant demand. The air treated by these dryers meets ISO 8573-1 Air Quality Class 5-6 pressure dew point standards, guaranteeing reliable operation for your facility. This top-notch performance is validated by the Compressed Air and Gas Institute (CAGI).
Moisture Removal: Integrated moisture separators and drains within the dryer efficiently remove liquids from the compressed air stream, ensuring the delivery of dry air.
Ease of Use: These compact dryers exemplify the perfect union of state-of-the-art technology and user-friendly design. For models ranging from 25 to 150 CFM, analog dew point indicators are included, whereas models from the 200-1200 CFM range come equipped with LED dew point displays. These indicators enable continuous monitoring of air quality. Prompt detection of any deviation from the desired dew point allows for proactive maintenance and intervention, thus preventing potential equipment damage and operational downtime.
5-50 cfm
- Smooth bore, copper tube-on-tube heat exchangers deliver consistent low pressure dew point performance
- Static condenser design – simplicity by design - contributes to reliable, hassle free, quiet operation
- Models 5-15 scfm: Pneumatically operated internal float drain
- Models 25-50 scfm: Electronic drain valve
- CFC free R134a refrigerant
- CSA approved

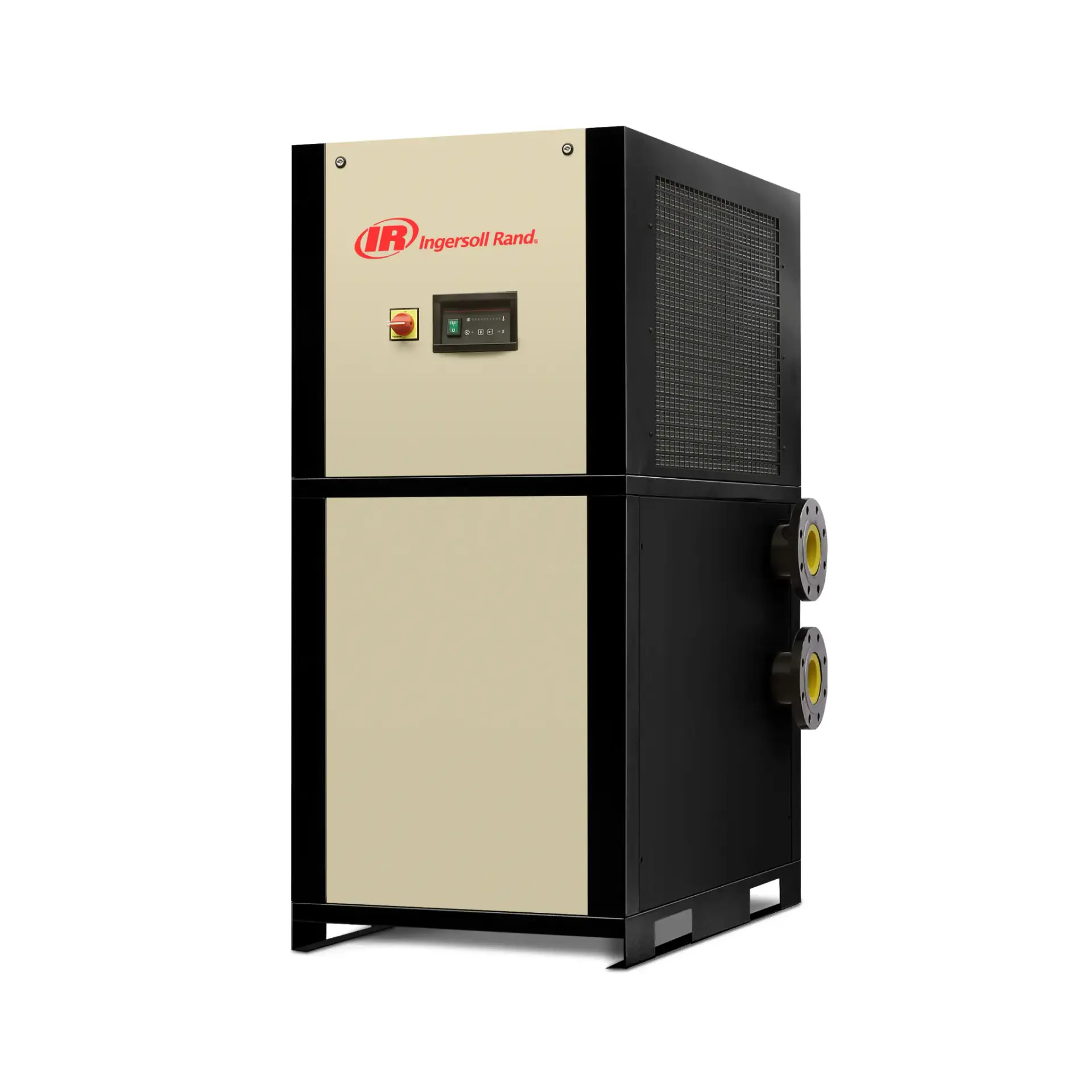

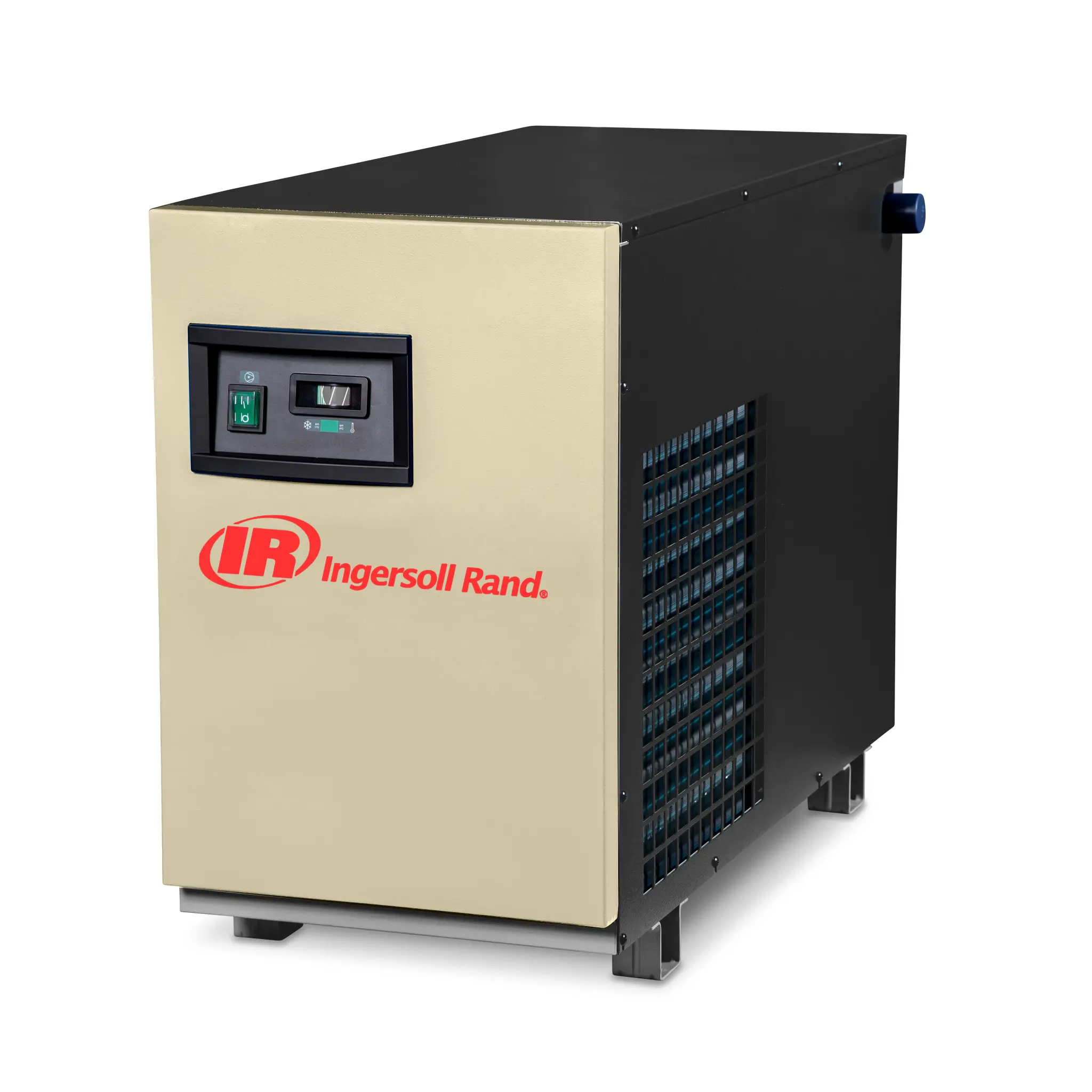

75–1200 cfm
- Stainless steel heat exchangers optimize heat transfer and are designed to create a turbulent, self-cleaning air flow.
- Moisture separator effectively removes condensate from 0 to 100% flow conditions
- Adjustable Timed Electric Drain (strainer included to increase drain reliability)
- Models 75-150 scfm: Illuminated On/Off Switch; dew point temperature display indicator to monitor inlet load conditions
- Models 200-1200 scfm: Illuminated On/Off Switch; LED dew point temperature display; dry alarm contact, Equipped with panel mounted drain timer control
- Models 75-125 scfm: CFC free R134a
- Models 150-1200 scfm: R407c refrigerant
- CSA approved
