- Efficient Design: Precision long-life valves, intelligent controls and high efficiency CMS packing provide industry-leading air-to-nitrogen utilization and maximize efficiency
- Flexible Performance: Tailor nitrogen production to meet your precise needs with purities ranging from 95% to 99.999%
- Enhanced Reliability: Superior quality CMS media extends product life, simplifies maintenance requirements and reduces replacement costs
- Trouble-Free Operation: One-touch operation, plug-and-play design, and standard skid mount ensure out of the box operation to simplify installation and commissioning and maximize productivity
- Advanced Safety: ASME-certified pressure vessels ensure safe operation
- Extended Warranty: Standard extended warranty keeps you protected for 24 months

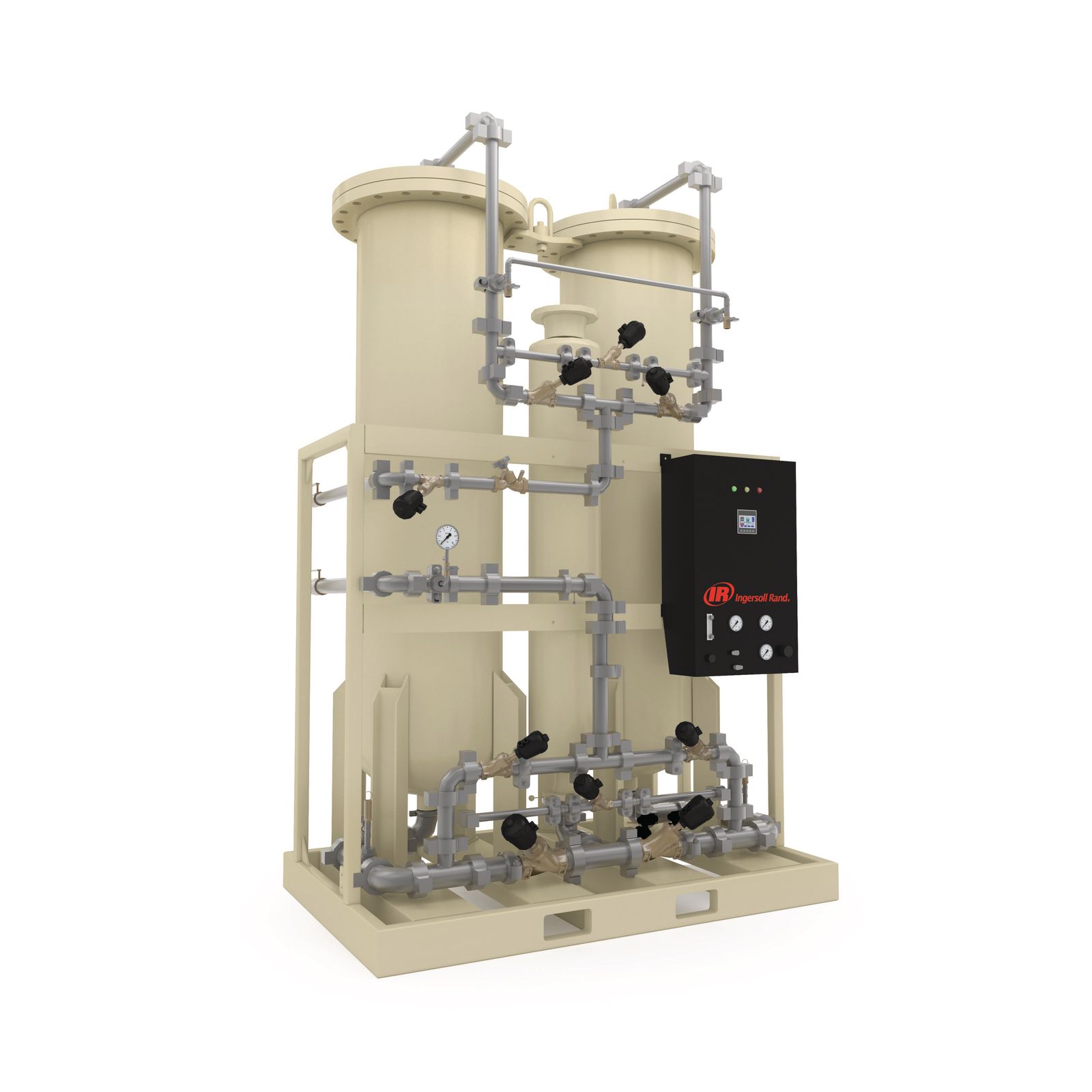

Ingersoll Rand's on-site nitrogen generators offer quality and reliability built-in, so that you can focus on maximizing the productivity of your operations. Our efficient designs generate nitrogen from freely available air and allow you to forgo traditional nitrogen delivery to simplify your business processes. Combined with our line of complementary products, you get that peace of mind that your entire nitrogen production process is backed by a trusted partner from start to finish.
Model specifications
Model | 95% | 99% | 99.50% | 99.90% | 99.95% | 99.99% | 99.999% | Inlet NPT | Outlet NPT | Dimensions (LxWxH) in | Weight lb |
|---|---|---|---|---|---|---|---|---|---|---|---|
NG132HS | 119.5 | 67.9 | 60.0 | 45.2 | 40.0 | 30.1 | 19.6 | 1-1/2" FNPT | 1" FNPT | 35x39x116 | 3,450 |
NG159HS | 143.3 | 81.5 | 71.9 | 54.2 | 47.9 | 36.1 | 23.5 | 1-1/2" FNPT | 1" FNPT | 64x34x134 | 3,810 |
NG191HS | 163.8 | 93.1 | 82.2 | 61.9 | 54.8 | 41.2 | 26.9 | 2" FNPT | 1-1/2" FNPT | 76x48x117 | 4,520 |
NG232HS | 200.6 | 114.0 | 100.7 | 75.8 | 67.1 | 50.5 | 32.9 | 2" FNPT | 1-1/2" FNPT | 76x48x135 | 4,990 |
NG285HS | 245.0 | 139.3 | 123.0 | 92.6 | 81.9 | 61.6 | 40.2 | 2" FNPT | 1-1/2" FNPT | 76x48x119 | 6,120 |
NG347HS | 298.6 | 169.8 | 149.9 | 112.9 | 99.9 | 75.1 | 49.0 | 2" FNPT | 1-1/2" FNPT | 76x48x137 | 6,760 |
NG382HS | 328.4 | 186.7 | 164.9 | 124.1 | 109.8 | 82.6 | 53.9 | 2" FNPT | 1-1/2" FNPT | 76x48x147 | 7,120 |
NG456HS | 392.3 | 223.0 | 196.9 | 148.3 | 131.2 | 98.7 | 64.4 | 3" FNPT | 2" FNPT | 95x53x125 | 8,030 |
NG550HS | 477.2 | 271.3 | 239.5 | 180.4 | 159.6 | 120.1 | 78.4 | 3" FNPT | 2" FNPT | 95x53x143 | 8,990 |
NG668HS | 576.2 | 327.6 | 289.2 | 217.8 | 192.7 | 145.0 | 94.6 | 3" FNPT | 2" FNPT | 95x53x164 | 10,170 |
NG809HS | 697.0 | 396.2 | 349.9 | 263.5 | 233.1 | 175.4 | 114.5 | 3/4" FLG | 2/3" FLG | 111x60x148 | 14,090 |
NG982HS | 852.3 | 484.5 | 427.8 | 322.2 | 285.0 | 214.4 | 140.0 | 3/4" FLG | 2/3" FLG | 111x60x171 | 15,980 |
NG1176HS | 1017.9 | 578.7 | 511.0 | 384.8 | 340.4 | 256.1 | 167.2 | 3/4" FLG | 3" FLG | 120x66x158 | 17,430 |
NG1306HS | 1129.1 | 641.9 | 566.8 | 426.8 | 377.6 | 284.1 | 185.4 | 3/4" FLG | 3" FLG | 120x66x170 | 19,200 |
NG1588HS | 1379.3 | 784.1 | 692.4 | 521.4 | 461.3 | 347.0 | 226.5 | 3/4" FLG | 3" FLG | 120x66x197 | 22,030 |
NG1765HS | 1528.5 | 868.9 | 767.3 | 577.8 | 511.2 | 384.6 | 251.0 | 3/4" FLG | 3" FLG | 120x66x213 | 23,760 |
NG2130HS | 1841.7 | 1047.0 | 924.5 | 696.2 | 615.9 | 463.4 | 302.4 | 4/6" FLG | 3" FLG | 135x76x204 | 30,650 |
NG2353HS | 2034.5 | 1156.6 | 1021.3 | 769.1 | 680.4 | 511.9 | 3341.0 | 4/6" FLG | 3" FLG | 135x76x220 | 32,950 |
