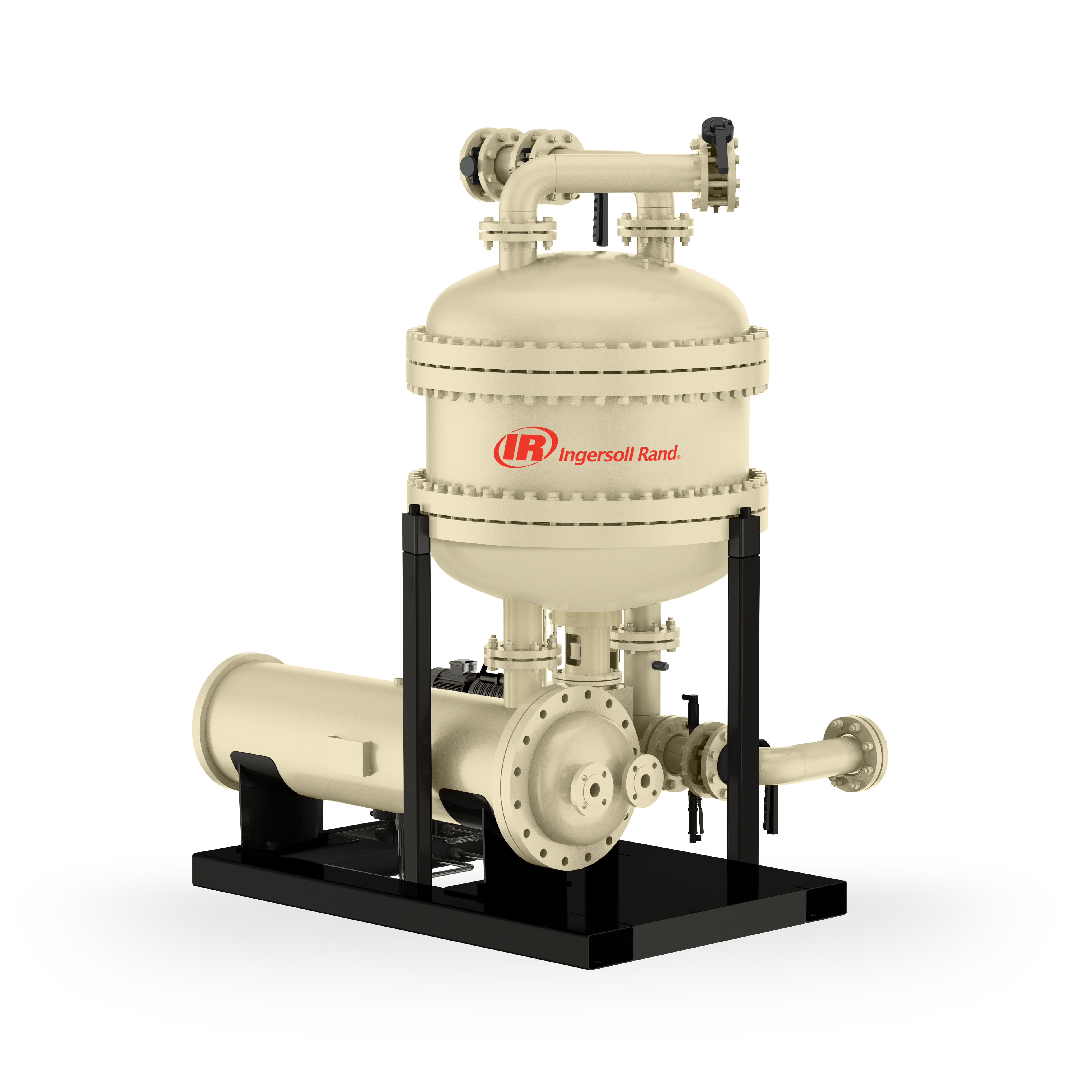

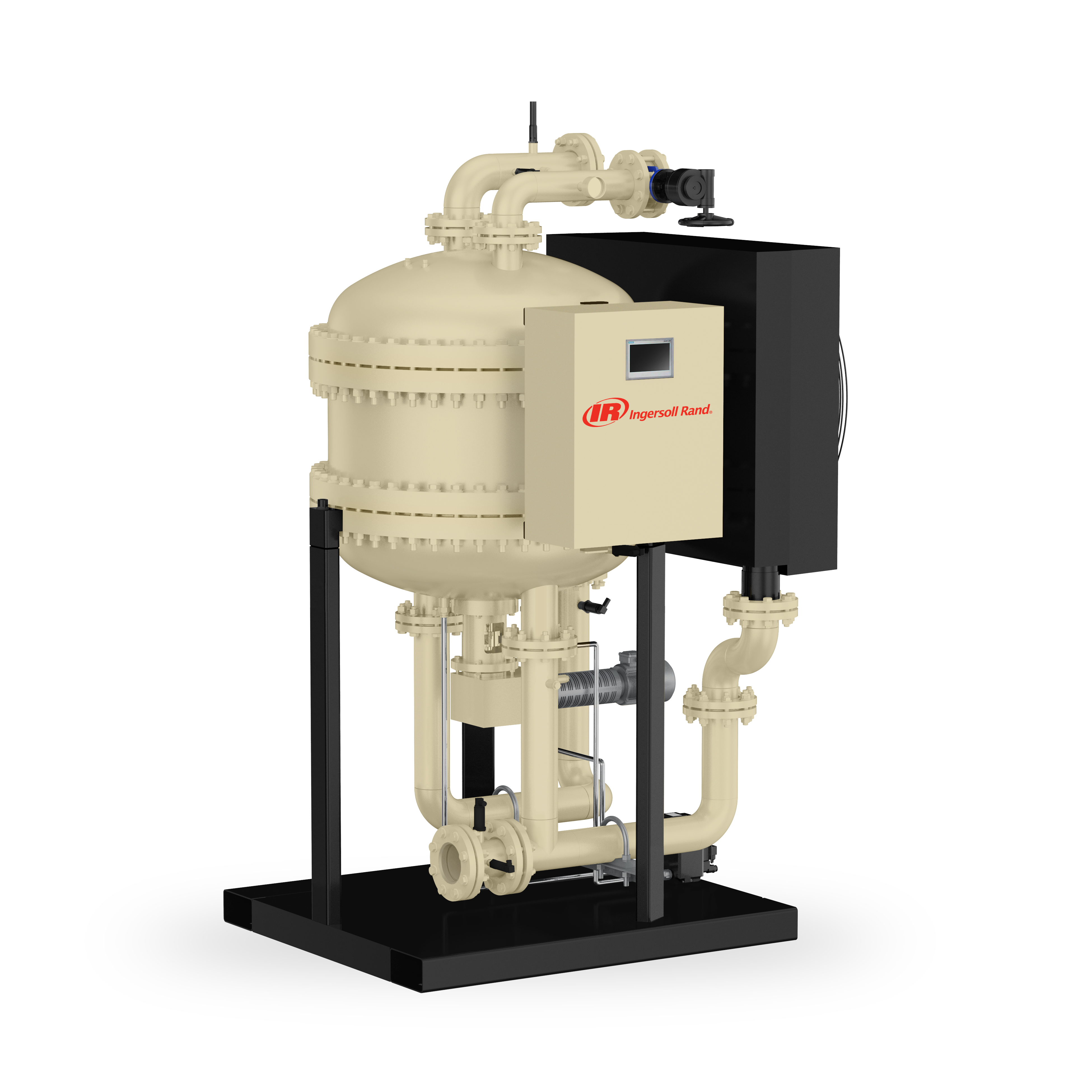

IRDR-Drum-Dryers

Ingersoll Rand IRDR-Drum-Dryers adopts heatless and micro-heat technology, in combination with double drying towers and valve control, to achieve highly efficient after-treatment of compressed air and outstanding product reliability.

No Consumables

No alumina molecular sieve, no dust, environmental protection
No electric pneumatic switch valve, no consumable
Low speed swing, low noise

Zero Energy Consumption Design

Use oil-free compressor residual heat
Regeneration process, zero gas consumption and micro power consumption (0.12kW)
Air flow is smooth and pressure loss is small

Continuous and Efficient Purification

No switching required, dew point stability
Single towers have the smallest footprint and fewer components
Hard substrates, composite silicones, cellular structures, and high-efficiency adsorption
External separator to improve water separation

Model	Capacity CFM or m'/min	Rated flowpressure Mpa	Ambient temperature °C	inlet temperature °C	High Temp. inlet temperature °C	heater kW	Package Weight kg	Width x Depth x Height cm
Air Cooled
IRDR5-8.5	5.1	0.85	1-40	≤38	≥110	/	700	110 x 130 × 200
IRDR10-7	9.6	0.7	1-40	≤38	≥110	/	700	110 x 130 × 200
IRDR16-7	161	0.7	1-40	≤38	≥110	/	950	125 x 160 x 230
IRDR20-10	20.3	1	1-40	≤38	≥110	/	800	120 x 130 x 200
IRDR25-8.5	24.6	0.85	1-40	≤38	≥110	/	1000	130 x 160 x 230
IRDR32-10	31.8	1.05	1-40	≤38	≥110	/	1050	135 x 160 x 230
IRDR35-8.5	35	0.85	1-40	≤38	≥110	/	1100	140 x 160 x 230
IRDR41-10	40.6	1.05	1-40	≤38	≥110	/	1100	140 x 160 x 230
IRDR45-7.5	45.2	0.75	1-40	≤38	≥110	/	1400	160 x 190 x 240
IRDR51-10	50.9	1.07	1-40	≤38	≥110	/	1400	160 x 190 x 240
Water Cooled
IRDR5W-8.5	5.2	0.85	1-40	≤38	≥110	/	650	80 x 120 x 200
IRDRIOW-7	9.6	0.7	1-40	≤38	≥110	/	650	80 x 120 x 200
IRDR16W-7	16.1	0.7	1-40	≤38	≥110	/	800	90 x 130 x 210
IRDR2OW-10	20.3	1	1-40	≤38	≥110	/	650	80 x 130 x 200
IRDR25W-8.5	24.6	0.85	1-40	≤38	≥110	/	800	90 x 140 x 210
IRDR32W-10	31.8	1.05	1-40	≤38	≥110	/	850	90 x 150 x 220
IRDR35W-8.5	35.1	0.85	1-40	≤38	≥110	/	900	90 x 160 x 220
IRDR41W-10	41.1	1.05	1-40	≤38	≥110	/	900	90 x 160 x 220
IRDR45W-7.5	45.2	0.75	1-40	≤38	≥110	/	1600	150 x 200 x 230
IRDR51W-10	50.9	1.07	1-40	≤38	≥110	/	1600	150 x 200 x 230
IRDR54W-7.5	53.3	0.75	1-40	≤38	≥110	/	1600	150 x 200 x 230
IRDR6OW-7.5	62.1	0.75	1-40	≤38	≥110	/	1700	150 x 200 x 250
IRDR65W-8.5	65	0.85	1-40	≤38	≥110	/	1800	150 x 190 x 250
IRDR7OW-8.5	72.5	0.85	1-40	≤38	≥110	/	1800	150 x 190 x 250
IRDRBOW-8 5	80.1	0.85	1-40	≤38	≥110	/	1900	150 x 200 x 250
IRDROW*	90	0.7	1-40	≤38	≥110	/	2200	160 x 210 x 280
IRDR100W*	100	0.7	1-40	≤38	≥110	/	2200	160 x 210 x 280
IRDR125W*	125	0.7	1-40	≤38	≥110	/	2300	160 x 210 x 280
IRDR150W*	150	0.7	1-40	≤38	≥110	/	3000	175 x 240 x 300
IRDR200W*	200	0.7	1-40	≤38	≥110	/	4000	210 x 260 x 310
IRDR250W*	50	0.7	1-40	≤38	≥110	/	4800	240 x 280 x 320
IRDR300W*	300	7	1-40	≤38	≥110	/	5400	260 x 310 x 330
