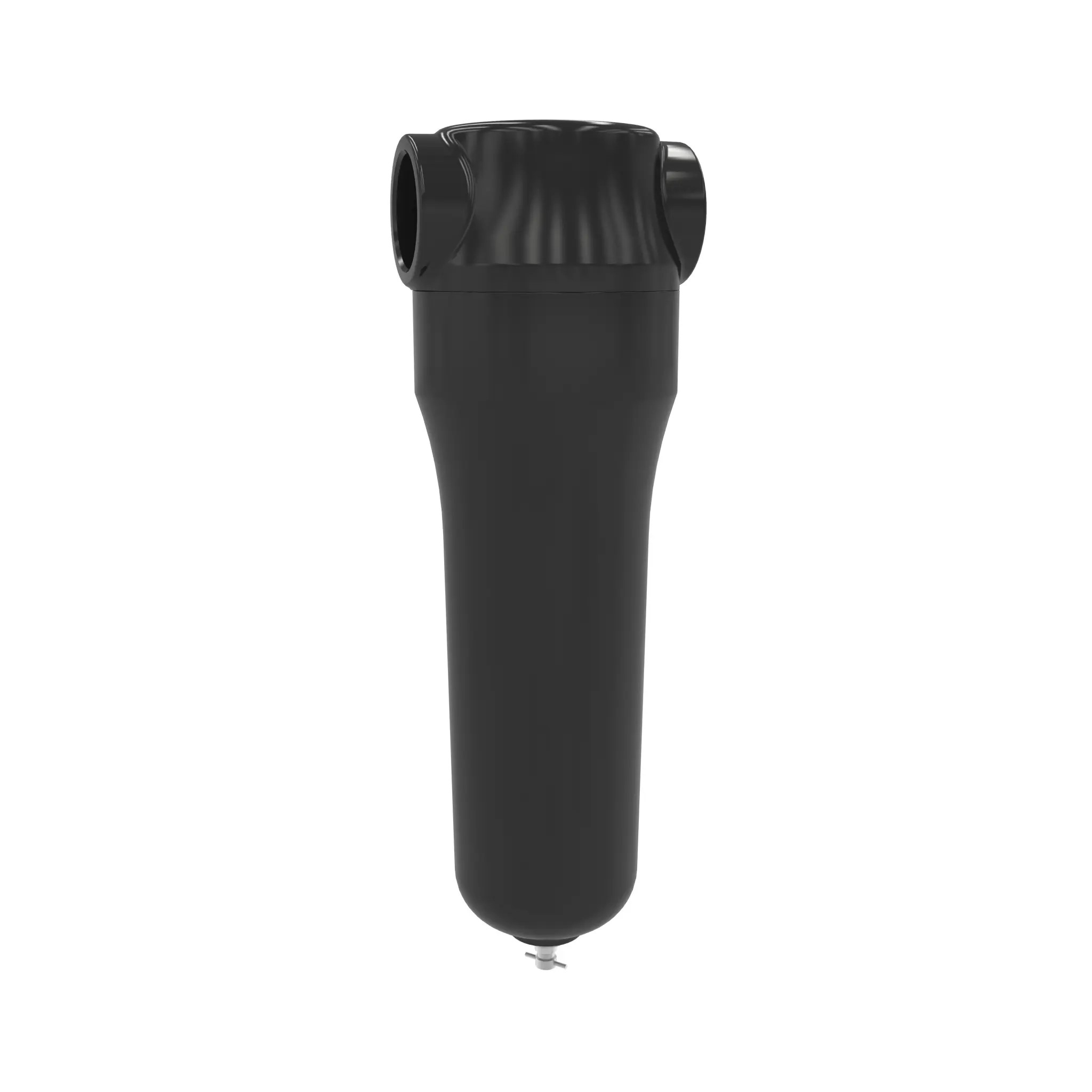

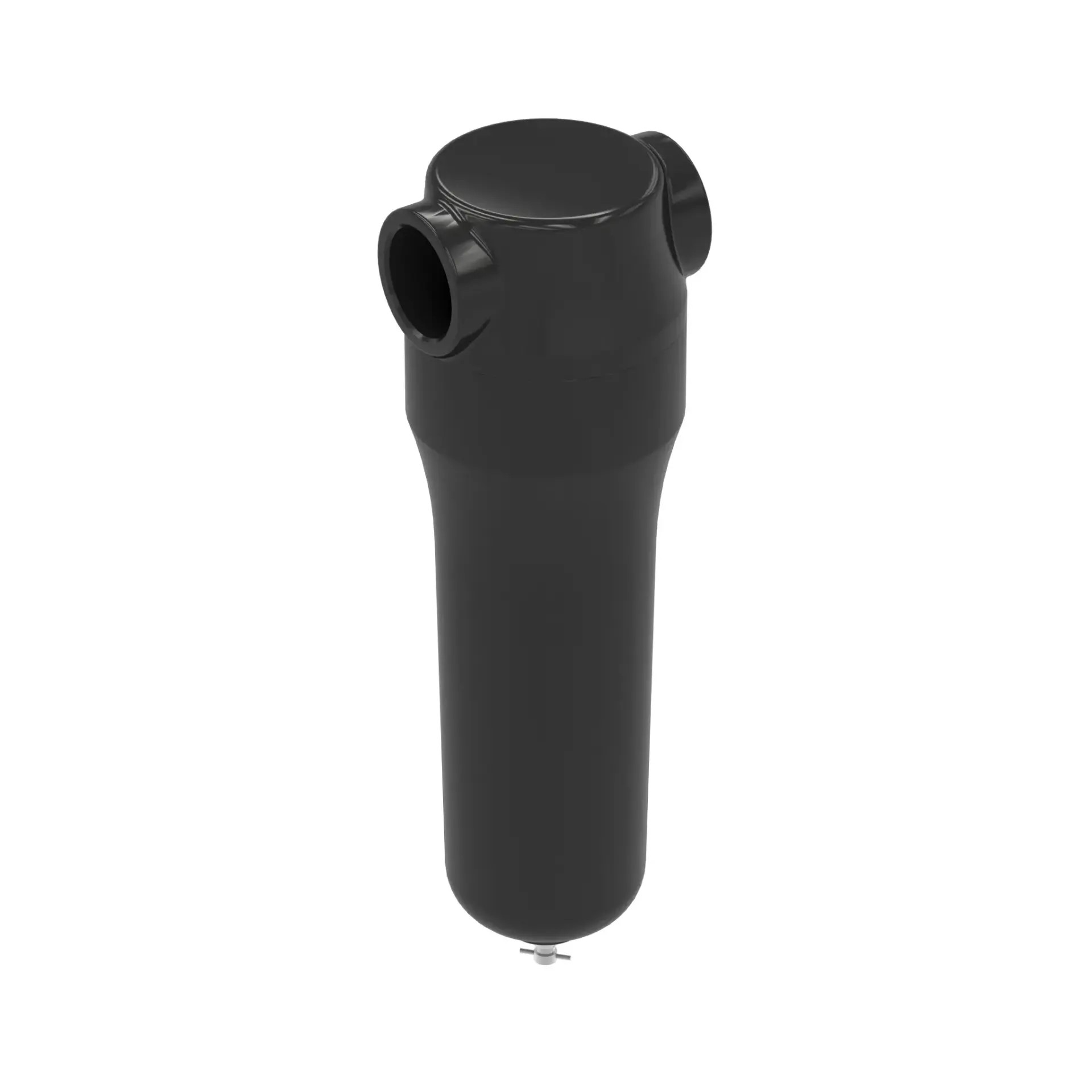

High Pressure Filters | Ingersoll Rand

The Ingersoll Rand High Pressure advanced compressed air filters reduce contamination to help protect critical processes and valuable equipment. The strong mechanical resistance makes these filters the ideal protection for high-pressure compressed air systems. Rigorously tested and engineered with superior components, these filters provide years of reliable performance and consistently high quality air.

Reliable Operation:  withstands high pressure up to 45bar to match with the dryer max pressure
Wide application versatility: compatible with a wider range of connection sizes from 3/8” to 1”1/2
Superior performance: highly effective for a variety of filtration grades including – activated carbon, dust, general purpose and high efficiency

Activated Carbon

FILTER MODEL	FILTER CPN	m3/h	SCFM	l/min	Connections [Inches]	Height [mm]	Width [mm]	Weight [kg]	PED Category	Fluid group	Max Working pressure [bar]	Max Working temp [°C]	Grade of filtration
F110IA-HP	47818085001	110	65	1833	3/8 BSPP	194	94	1.35	art.4.3	2	45	100	Activated Carbon
F215IA-HP	47818089001	215	127	3583	1/2 BSPP	194	94	1.4	art.4.3	2	45	100	Activated Carbon<
F435IA-HP	47818093001	435	256	7250	3/4 BSPP	256	94	1.5	art.4.3	2	45	100	Activated Carbon
F750IA-HP	47818097001	750	441	12500	1 BSPP	358	120	3.1	cat.I	2	45	100	Activated Carbon
F1500IA-HP	47818101001	1500	883	25000	1 BSPP	358	120	3.1	cat.I	2	45	100	Activated Carbon
F2500IA-HP	47818105001	2500	1472	41667	1 1/2 BSPP	358	120	3.3	cat.I	2	45	100	Activated Carbon

Dust

FILTER MODEL	FILTER CPN	m3/h	SCFM	l/min	Connections [Inches]	Height [mm]	Width [mm]	Weight [kg]	PED Category	Fluid group	Max Working pressure [bar]	Max Working temp [°C]	Grade of filtration
F110ID-HP	47818082001	110	65	1833	3/8 BSPP	194	94	1.35	art.4.3	2	45	100	Dust
F215ID-HP	47818086001	215	127	3583	1/2 BSPP	194	94	1.4	art.4.3	2	45	100	Dust
F435ID-HP	47818090001	435	256	7250	3/4 BSPP	256	94	1.5	art.4.3	2	45	100	Dust
F750ID-HP	47818094001	750	441	12500	1 BSPP	358	120	3.1	cat.I	2	45	100	Dust
F1500ID-HP	47818098001	1500	883	25000	1 BSPP	358	120	3.1	cat.I	2	45	100	Dust
F2500ID-HP	47818102001	2500	1472	41667	1 1/2 BSPP	358	120	3.3	cat.I	2	45	100	Dust

General Purpose

FILTER MODEL	FILTER CPN	m3/h	SCFM	l/min	Connections [Inches]	Height [mm]	Width [mm]	Weight [kg]	PED Category	Fluid group	Max Working pressure [bar]	Max Working temp [°C]	Grade of filtration
F110IG-HP	47818083001	110	65	1833	3/8 BSPP	194	94	1.35	art.4.3	2	45	100	General purpose
F215IG-HP	47818087001	215	127	3583	1/2 BSPP	194	94	1.4	art.4.3	2	45	100	General purpose<
F435IG-HP	47818091001	435	256	7250	3/4 BSPP	256	94	1.5	art.4.3	2	45	100	General purpose
F750IG-HP	47818095001	750	441	12500	1 BSPP	358	120	3.1	cat.I	2	45	100	General purpose
F1500IG-HP	47818099001	1500	883	25000	1 BSPP	358	120	3.1	cat.I	2	45	100	General purpose
F2500IG-HP	47818103001	2500	1472	41667	1 1/2 BSPP	358	120	3.3	cat.I	2	45	100	General purpose

High Efficiency

FILTER MODEL	FILTER CPN	m3/h	SCFM	l/min	Connections [Inches]	Height [mm]	Width [mm]	Weight [kg]	PED Category	Fluid group	Max Working pressure [bar]	Max Working temp [°C]	Grade of filtration
F110IH-HP	47818084001	110	65	1833	3/8 BSPP	194	94	1.35	art.4.3	2	45	100	High efficiency
F215IH-HP	47818088001	215	127	3583	1/2 BSPP	194	94	1.4	art.4.3	2	45	100	High efficiency<
F435IH-HP	47818092001	435	256	7250	3/4 BSPP	256	94	1.5	art.4.3	2	45	100	High efficiency
F750IH-HP	47818096001	750	441	12500	1 BSPP	358	120	3.1	cat.I	2	45	100	High efficiency
F1500IH-HP	47818100001	1500	883	25000	1 BSPP	358	120	3.1	cat.I	2	45	100	High efficiency
F2500IH-HP	47818104001	2500	1472	41667	1 1/2 BSPP	358	120	3.3	cat.I	2	45	100	High efficiency
