Oil-Injected Air Ends

  • Complete portfolio - single and double stage, direct, belt and gear driven screw compressors
  • Maximum performance and high efficiency
  • Compact size
  • Suitable for continuous operation 24 hours a day in extreme and challenging conditions
  • Low specific power demand throughout the operating range
  • Our air ends offer exceptional efficiency across a wide speed range, making them adaptable to a diverse range of OEM applications

Ingersoll Rand OEM Solutions offers air ends of the highest quality, designed for durability and efficiency. Our air ends are engineered for reliability and ease of maintenance, ensuring minimal downtime. With decades of experience, they have proven to be exceptionally durable. Their cost-effective operation in a wide range of applications, including industrial compressor packages, firefighting equipment, mining, and construction, establishes them as among the world's most popular and reliable air ends.

Oil-Injected Air Ends

Our range of GHH RAND and Ingersoll Rand oil-injected air ends includes belt-driven, direct-drive, and gear-driven screw compressors. With optional accessories like inlet valves, filters, and oil tanks, you can easily configure your system to fit your equipment layout. Proven in demanding environments worldwide, these air ends deliver reliable performance and efficiency.

Model name

Max. power consumption (kW / hp)

Max. volume flow (m3/min / cfm)

Max. pressure (bar(A) / psi(A))

Weight (kg / lbs)

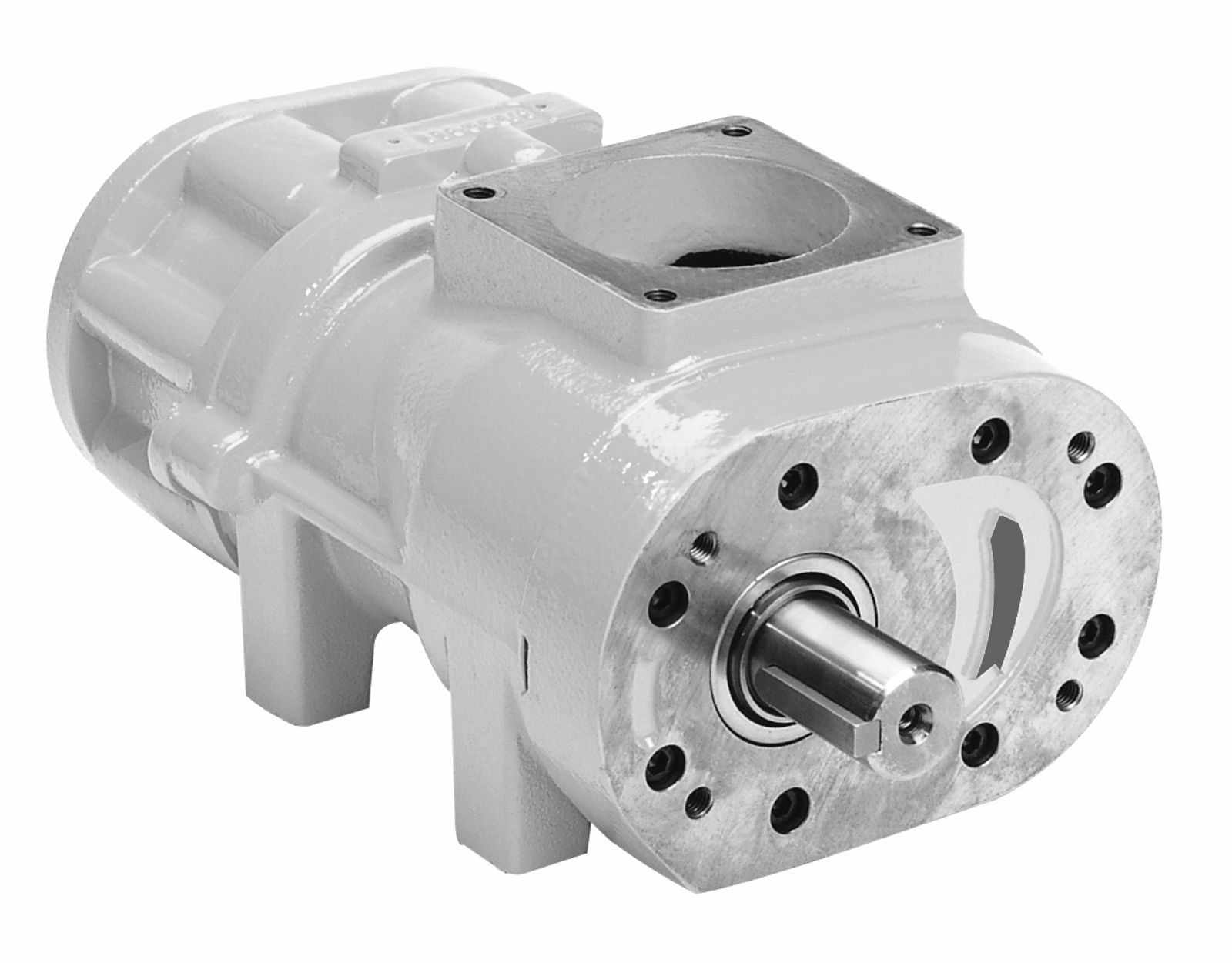

CE55RW

22 / 29.5

2.5 / 88

14.5 / 210

21.5 / 47.4

CE55G/G1/G2

23 / 30.8

2.5 / 88

14.5 / 210

30.9 / 68

OS70R

44.3 / 59.4

4.7 / 165

16 / 232

43 / 94.8

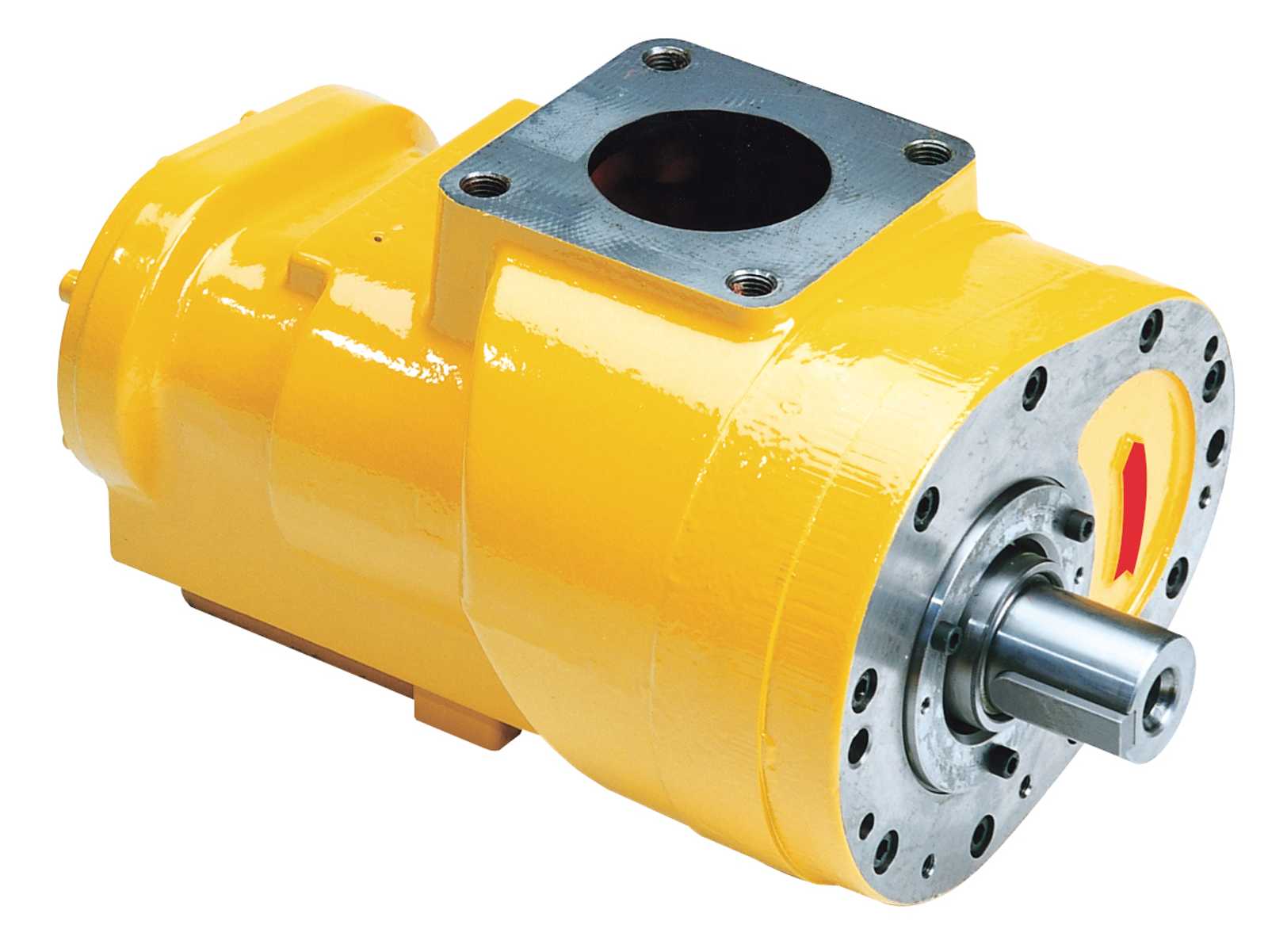

CF75D8

61.3 / 82.2

6.2 / 219

16 / 232

57 / 125.5

CF75G

73 / 97.9

6.9 / 244

16 / 232

70 / 154

CF90D4

101 / 135.4

10 / 353

16 / 232

85 / 187

CF90G5

101 / 135.4

10 / 353

16 / 232

105 / 231.5

CF90LG3

104.7 / 140.4

12.6 / 445

11.5 / 167

115 / 253.5

CE140G

120 / 160

15.2 / 535.2

13 / 189

211 / 465

IR178.5

123 / 165

18 / 640

15.82 / 229

317 / 698

OS110G

139.3 / 186.8

14.5 / 512

16 / 232

252 / 555.5

OS110R

139.3 / 186.8

14.5 / 512

16 / 232

150 / 330.7

CF128R

198 / 265.5

20.8 / 735

16 / 232

265 / 577.6

CF128G

198 / 265.5

20.8 / 735

16 / 232

280 / 617.3

CE177G

200 / 268.2

36.4 / 1285

14 / 203

565 / 1245.6

IR226

220 / 295

35.4 / 1250

15.82 / 229

565 / 1245.6

CF128HG

215 / 288.3

21 / 742

18 / 261

280 / 617.3

IR226/182

220 / 295.0

37 / 1307

15.5 / 225

981 / 2163

CF128LGR

222.4 / 298.2

29 / 1024

11.5 / 167

330 / 727.5

HR2.0

270 / 362.1

27.2 / 961

25 / 363

771 / 1699

HR2.5

350 / 469.4

36 / 1271

25 / 363

884 / 1949

CF1000H

354 / 474.7

29 / 1024

36 / 522

645 / 1422

CE224G

355 / 476.1

62.2 / 2197

14 / 203

1190 / 2623

IR285

365 / 496

61 / 2154

13 / 189

1182 / 2606

CF180G2

385.3 / 516.7

41.4 / 1462

16 / 232

783 / 1726

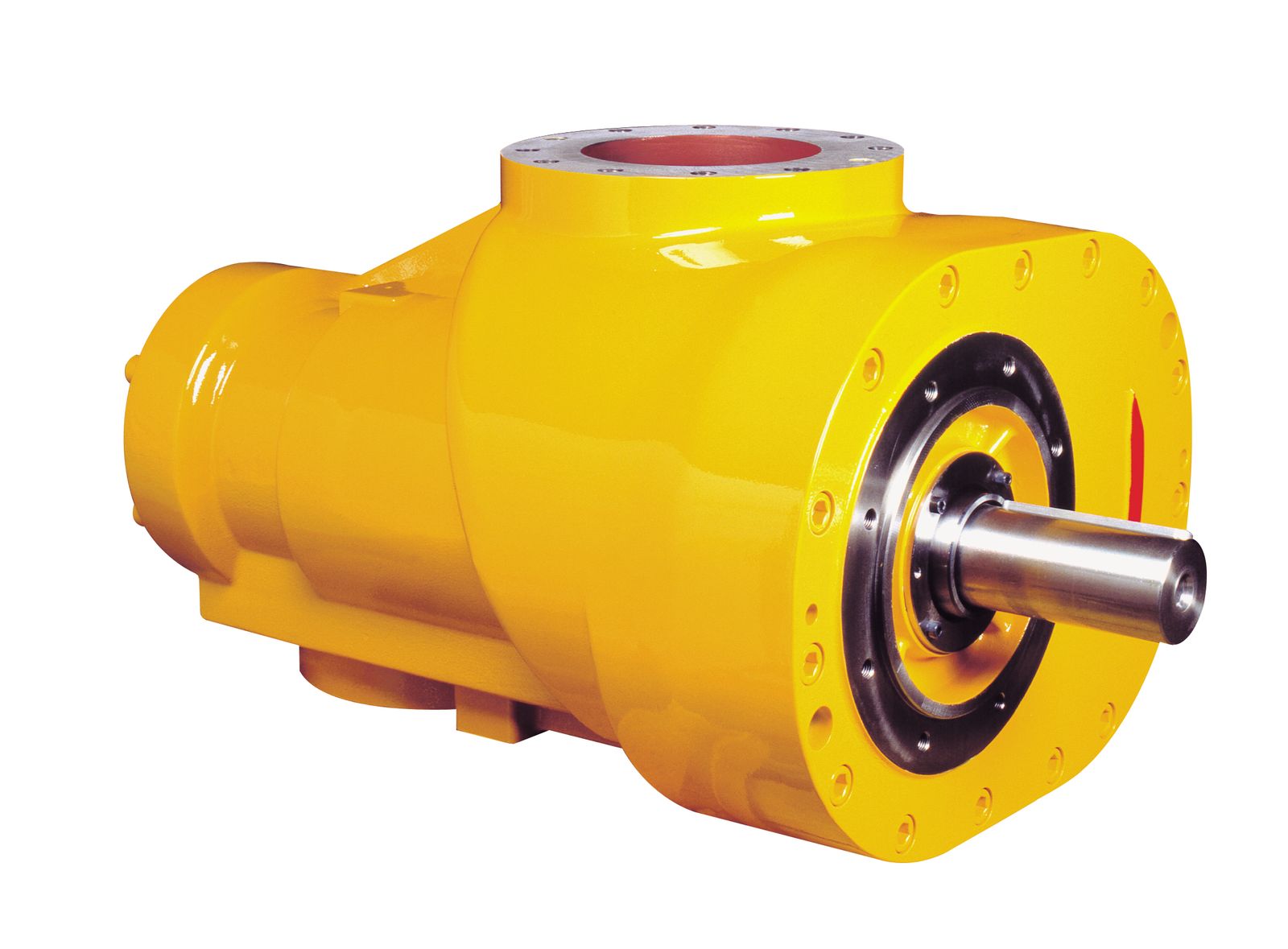

CF180R

385.4 / 516.8

41.4 / 1462

16 / 232

725 / 1598

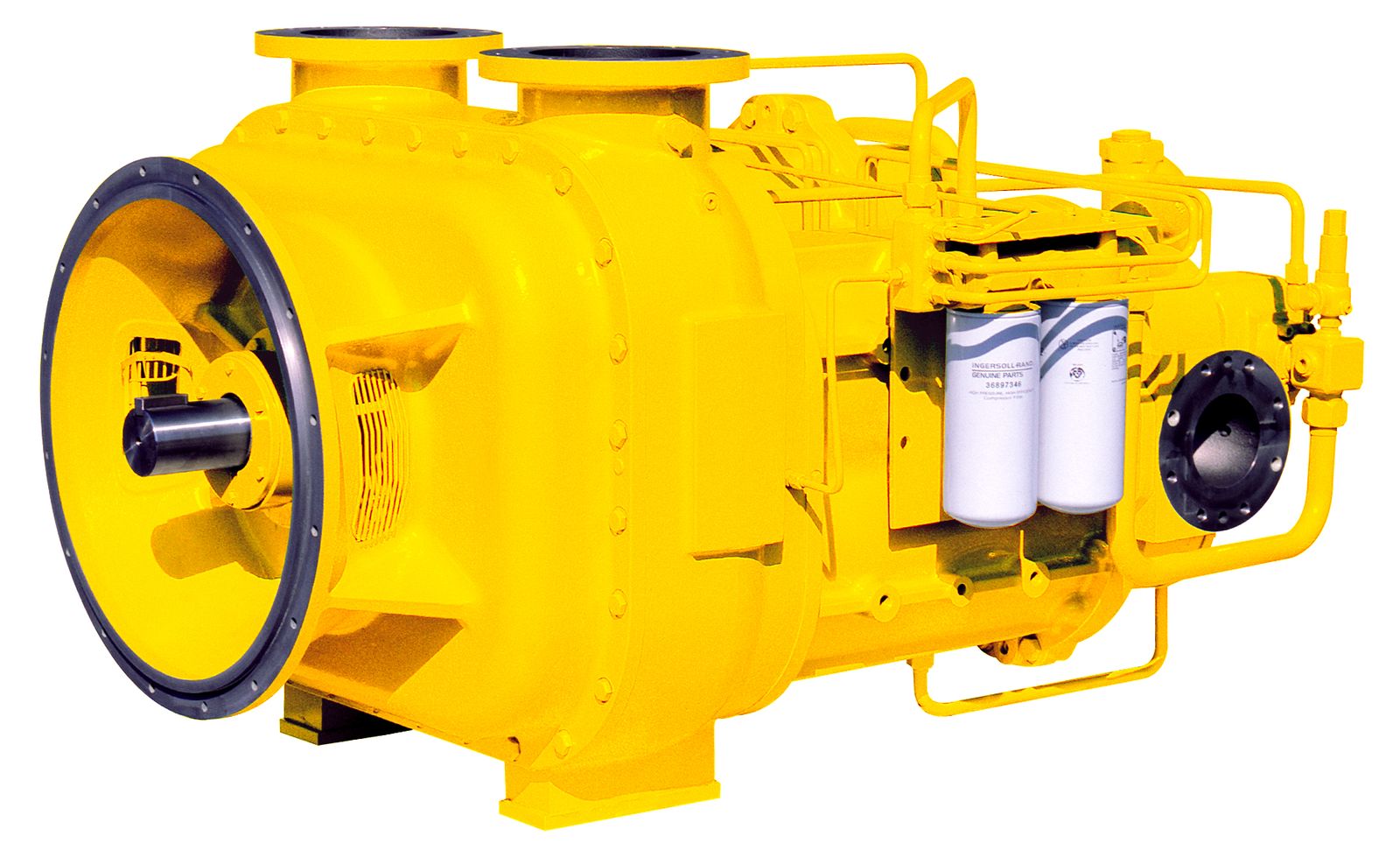

IR2x285

680 / 911.9

116 / 4097

11.5 / 167

2744 / 6050

IR350

559 / 750

84.95 / 3000

9.65 / 140

2014 / 4440
