- Long-Life: Durable cast iron frame and cylinder, heavy-duty steel base construction.
- Superior Pump Efficiency: Separately cast cylinders with deep radial fins for improved cooling and efficiency.
- Smooth Starting: Auto start/stop regulation by pressure switch; centrifugal unloader ensures loadless starts for maximum protection.
- Advanced Safety Features: Standard low oil-level switch to provide constant protection of the compressor.
- Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between changeouts, it performs four times longer than petroleum-based lubricants.
- One-Year Warranty Available: Purchase an All-Season Select lubricant start-up kit, and receive all the parts you need for start-up and the first year of maintenance, along with an extended pump warranty.

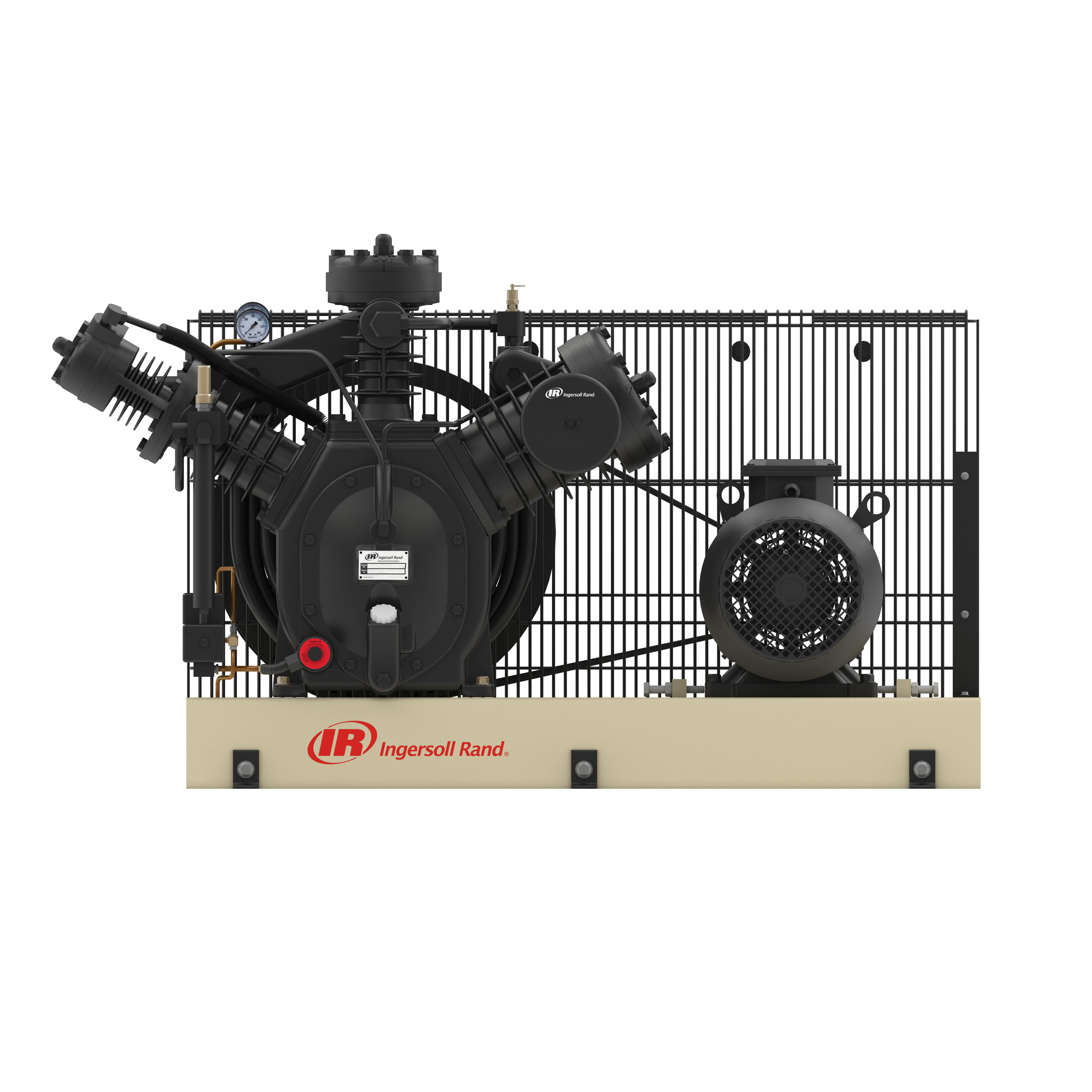

The Ingersoll Rand T30 high-pressure units, used in industries such as refuelling stations, beverage plants, power stations and engine starting, are a series of base-mounted piston compressors that can provide your customer with pressures as high as 345 bar g. Consistent with the 2-stage lubricated range, the high-pressure units offer reliability, durability and ease of maintenance.
Model | Nominal Power kW (hp) | Max Pressure barg (psig) | FAD L/min (CFM) | L x W x H MM (IN) | Weight KG (LB) |
231X30 | 2.2 (3) | 35 (500) | 140 (4.9) | 867 x 515 x 510 (34 x 20 x 20) | 100 (220) |
7T4X55 | 4 (5.5) | 70 (1 000) | 180 (6.4) | 1 219 x 720 x 813 (48 x 28 x 32) | 240 (529) |
7T4X55 LOL | 4 (5.5) | 70 (1 000) | 180 (6.4) | 1 219 x 720 x 813 (48 x 28 x 32) | 240 (529) |
7T2X100 S/D | 8.5 (12) | 35 (500) | 630 (22.2) | 1 238 x 670 x 840 (49 x 26 x 33) | 275 ( 606) |
15T2X200-35 | 15 (20) | 35 (500) | 1 120 (39.5) | 1 432 x 840 x 868 (56 x 33 x 34) | 406 (895) |
15T2X200-35 S/D | 15 (20) | 35 (500) | 1 120 (39.5) | 1 432 x 840 x 868 (56 x 33 x 34) | 406 (895) |
15T2X200-35 S/D LOL | 15 (20) | 35 (500) | 1 120 (39.5) | 1 432 x 840 x 868 (56 x 33 x 34) | 406 (895) |
15T2X200-35 S/D LOL Vidange automatique | 15 (20) | 35 (500) | 1 120 (39.5) | 1 432 x 840 x 868 (56 x 33 x 34) | 406 (895) |
15T2X200-70 | 15 (20) | 70 (1 000) | 920 (32.5) | 1 432 x 840 x 868 (56 x 33 x 34) | 415 (915) |
15T2X200-70 S/D LOL | 15 (20) | 70 (1 000) | 920 (32.5) | 1 432 x 840 x 868 (56 x 33 x 34) | 415 (915) |
