- Utilizes superb quality high pressure switches for error-free operation.
- Automatic pressure loading and purging cycles, ensuring operation safety.
- High pressure desiccant materials used provides efficient drying and resistant to breakdown in order to guarantee a long lifespan.
- High efficiency silencers are used in conjunction with flow limiters to significantly lower job site noise.
- PLC automatic controller for ease of end customer operation.
- Reliable robust pneumatic valves ensure no sudden pressure swings and maintains a stable outlet pressure.
- Combination filtration plus desiccant dryer design, small footprint with visually appealing compact design.

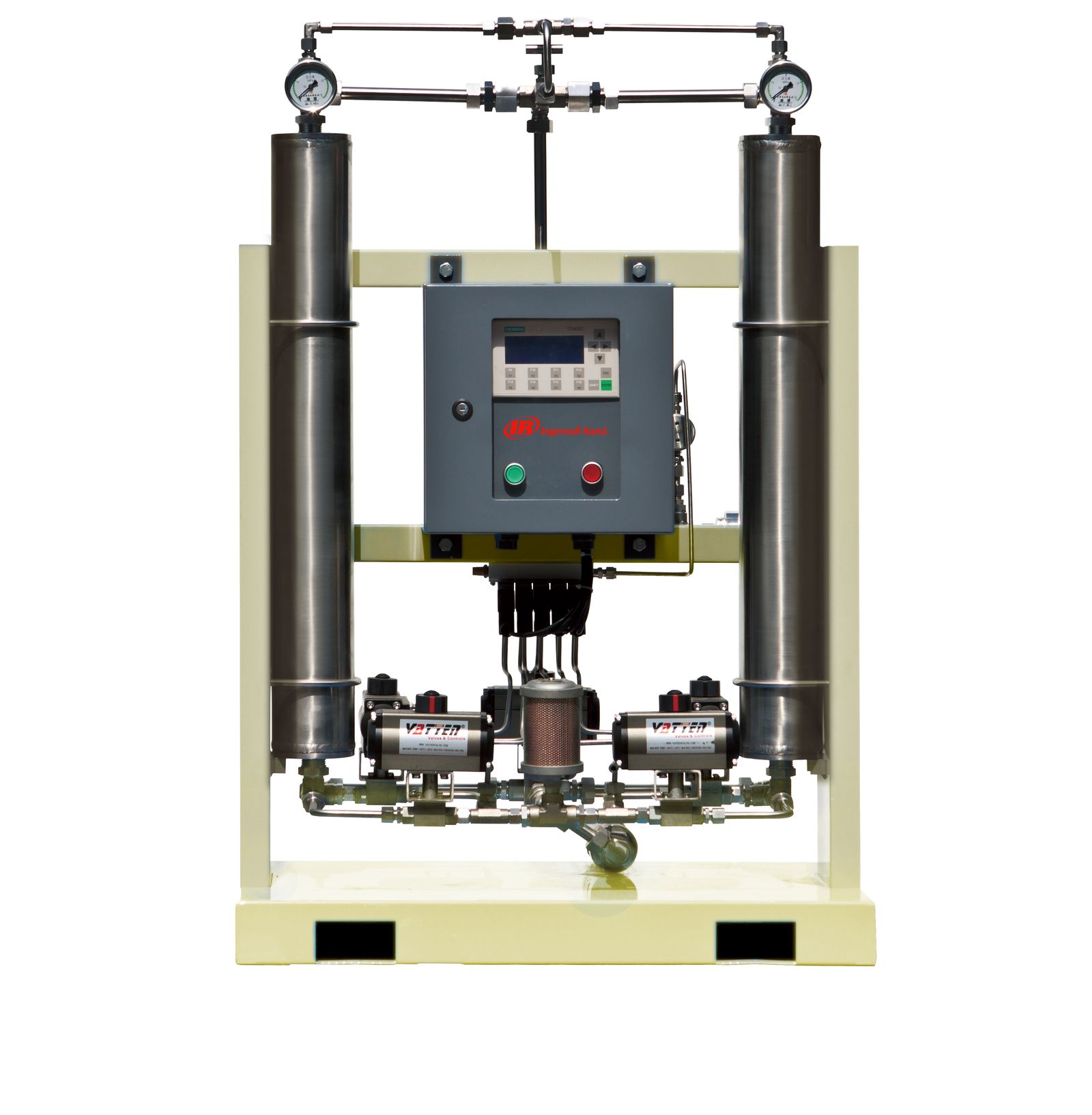

Ingersoll Rand high pressure desiccant dryer with steel component provides intelligent features to realize maximum operation reliability. While one stainless steel vessel is drying the incoming air, the other vessel is regenerating the desiccant material, and this process cycles throughout the operating period to provide high quality clean air.
Model | Capacity m3/hr | Max Working Pressure bar | Power V/Ph/hz | Air Connections (In/out) | Dimensions (mm) (L x W x H) | Weight kg |
D42IHPD035 | 42 | 35 | 220/1/50 | 1/4" | 800 x 500 x 1300 | 120 |
D66IHPD035 | 66 | 35 | 220/1/50 | 1/4" | 800 x 500 x 1500 | 124 |
D126IHPD035 | 126 | 35 | 220/1/50 | 1/2" | 800 x 500 x 1500 | 147 |
D198IHPD035 | 198 | 35 | 220/1/50 | 1/2" | 860 x 550 x 1600 | 163 |
D282IHPD035 | 282 | 35 | 220/1/50 | 1/2" | 860 x 550 x 1600 | 195 |
D312IHPD035 | 312 | 35 | 220/1/50 | 1" | 860 x 550 x 1600 | 228 |
D408IHPD035 | 408 | 35 | 220/1/50 | 1" | 1000 x 600 x 1700 | 260 |
D42IHPD055 | 42 | 55 | 220/1/50 | 1/4" | 800 x 500 x 1300 | 120 |
D66IHPD055 | 66 | 55 | 220/1/50 | 1/4" | 800 x 500 x 1500 | 123 |
D126IHPD055 | 126 | 55 | 220/1/50 | 1/2" | 800 x 500 x 1500 | 148 |
D198IHPD055 | 198 | 55 | 220/1/50 | 1/2" | 860 x 550 x 1600 | 172 |
D282IHPD055 | 282 | 55 | 220/1/50 | 1/2" | 860 x 550 x 1600 | 204 |
D312IHPD055 | 312 | 55 | 220/1/50 | 1" | 860 x 550 x 1600 | 230 |
D408IHPD055 | 408 | 55 | 220/1/50 | 1" | 1000 x 600 x 1700 | 265 |
D42IHPD080 | 42 | 80 | 220/1/50 | 1/4" | 800 x 500 x 1200 | 102 |
D66IHPD080 | 66 | 80 | 220/1/50 | 1/4" | 800 x 500 x 1200 | 106 |
D126IHPD080 | 126 | 80 | 220/1/50 | 1/2" | 800 x 500 x 1300 | 128 |
D198IHPD080 | 198 | 80 | 220/1/50 | 1/2" | 800 x 500 x 1300 | 154 |
D282IHPD080 | 282 | 80 | 220/1/50 | 1/2" | 800 x 500 x 1300 | 185 |
D42IHPD120 | 42 | 120 | 220/1/50 | 1/4" | 800 x 500 x 1200 | 102 |
D66IHPD120 | 66 | 120 | 220/1/50 | 1/4" | 800 x 500 x 1200 | 104 |
D126IHPD120 | 126 | 120 | 220/1/50 | 1/4" | 800 x 500 x 1300 | 126 |
D198IHPD120 | 198 | 120 | 220/1/50 | 1/4" | 800 x 500 x 1300 | 150 |
D42IHPD250 | 42 | 250 | 220/1/50 | 1/4" | 800 x 500 x 1200 | 96 |
D661HPD250 | 66 | 250 | 220/1/50 | 1/4" | 800 x 500 x 1200 | 100 |
D126IHPD250 | 126 | 250 | 220/1/50 | 1/4" | 800 x 500 x 1300 | 135 |
D42IHPD360 | 42 | 360 | 220/1/50 | 1/4e | 800 x 500 x 1200 | 92 |
D66IHPD360 | 66 | 360 | 220/1/50 | 1/4" | 800 x 500 x 1200 | 95 |
D126IHPD360 | 126 | 360 | 220/1/50 | 1/4" | 800 x 500 x 1300 | 128 |
