- Compact: The combination of the motor and cylinder delivers an integrated design and a much smaller size.
- Lightweight: The light compressor with an aluminum motor helps to reduce power consumption.
- Low noise: An advanced design effectively reduces the noise level below 72 decibels, providing a quiet operation environment.
- Ultra coating: The cylinder internal surface covered with Ultra coating, extended maintenance interval, high sealing performance and less wear, prolonging the service interval of compressor.
- Non-oil emulsification: This lubricant-free compressor completely solves the common oil emulsification problems in the automotive industry, helping you save the cost of lubricating oil replacement and eliminating the potential danger of oil emulsification.
- High adaptability: Excellent temperature adaptability and reliability.

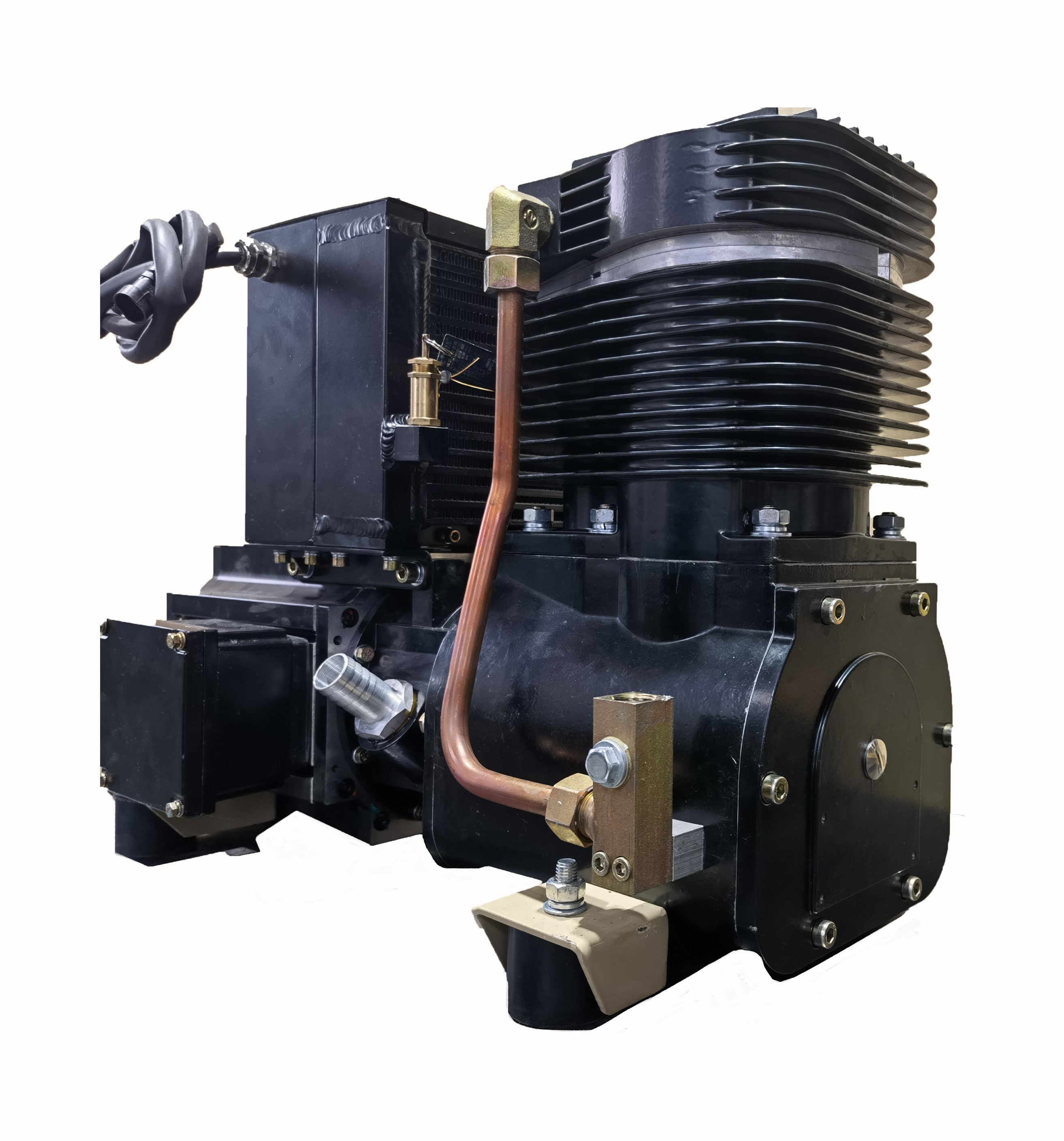

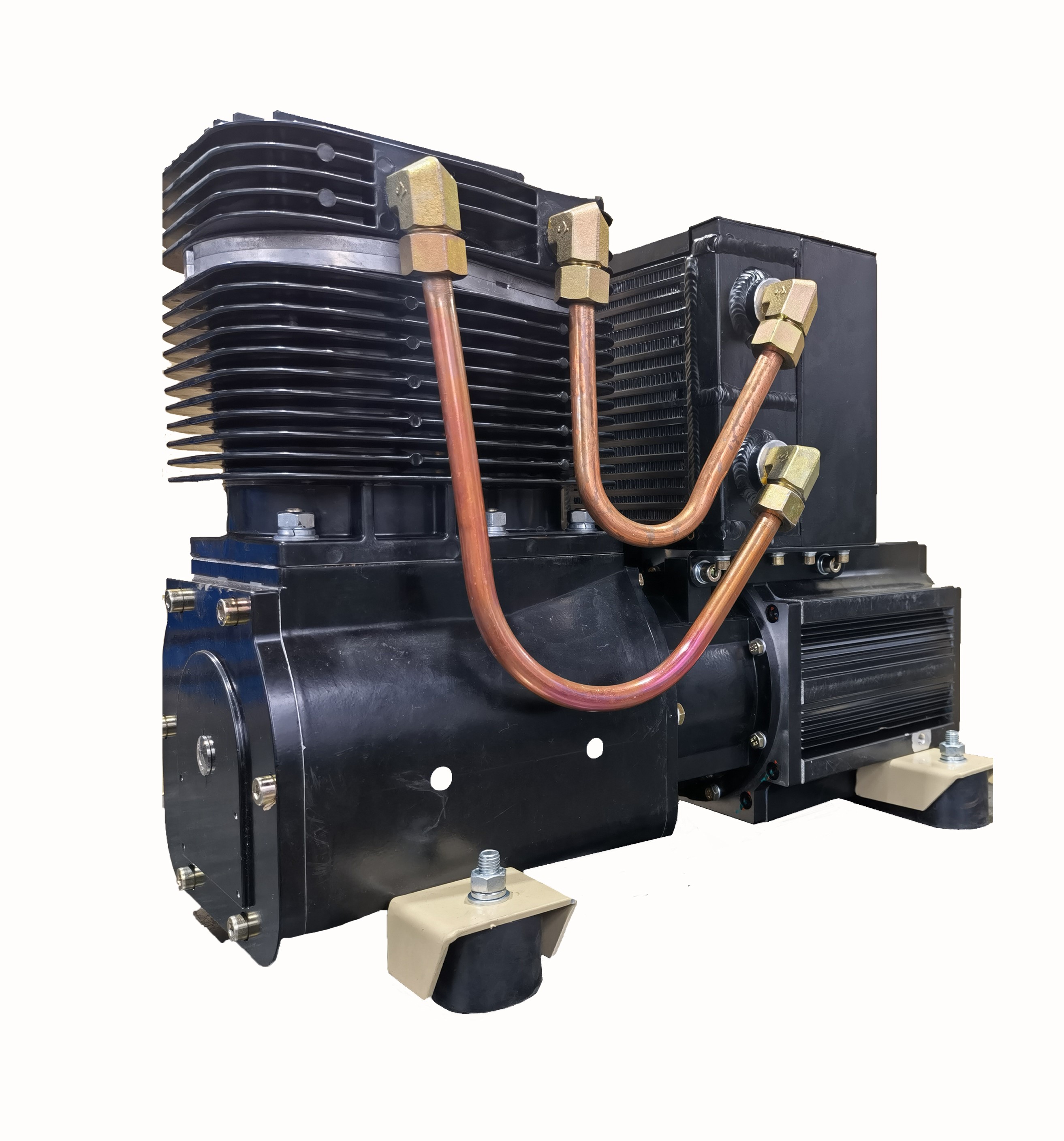

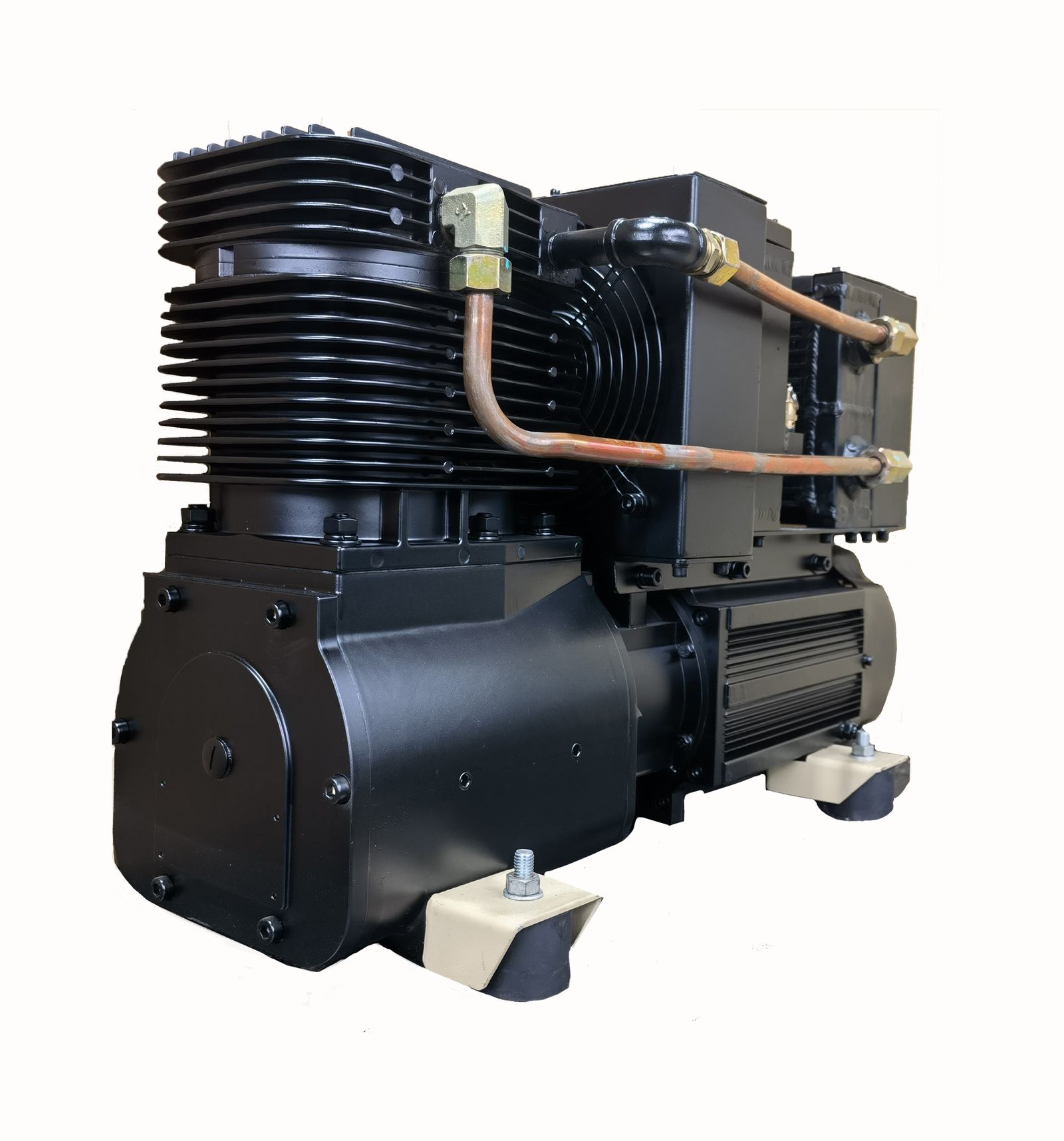

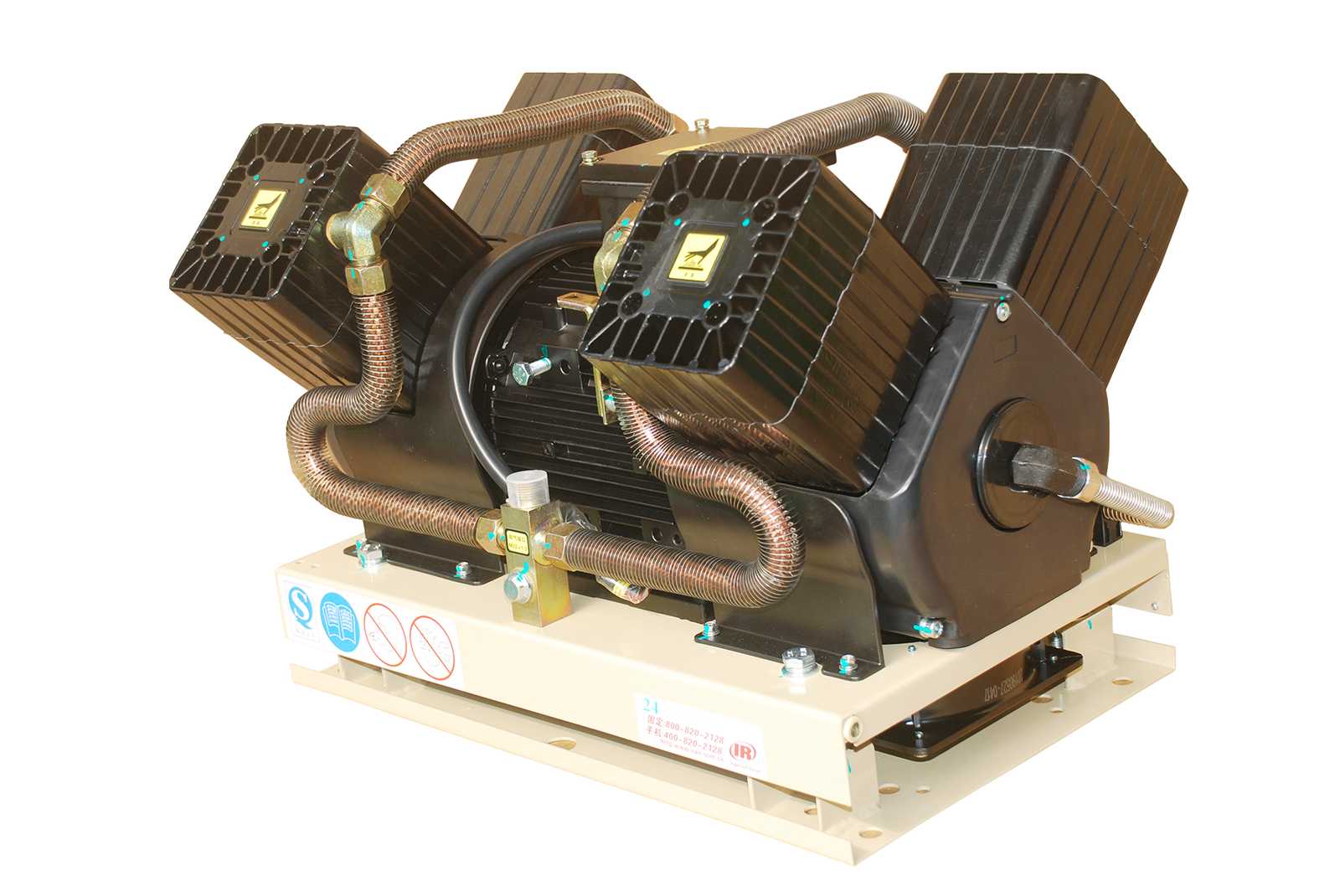

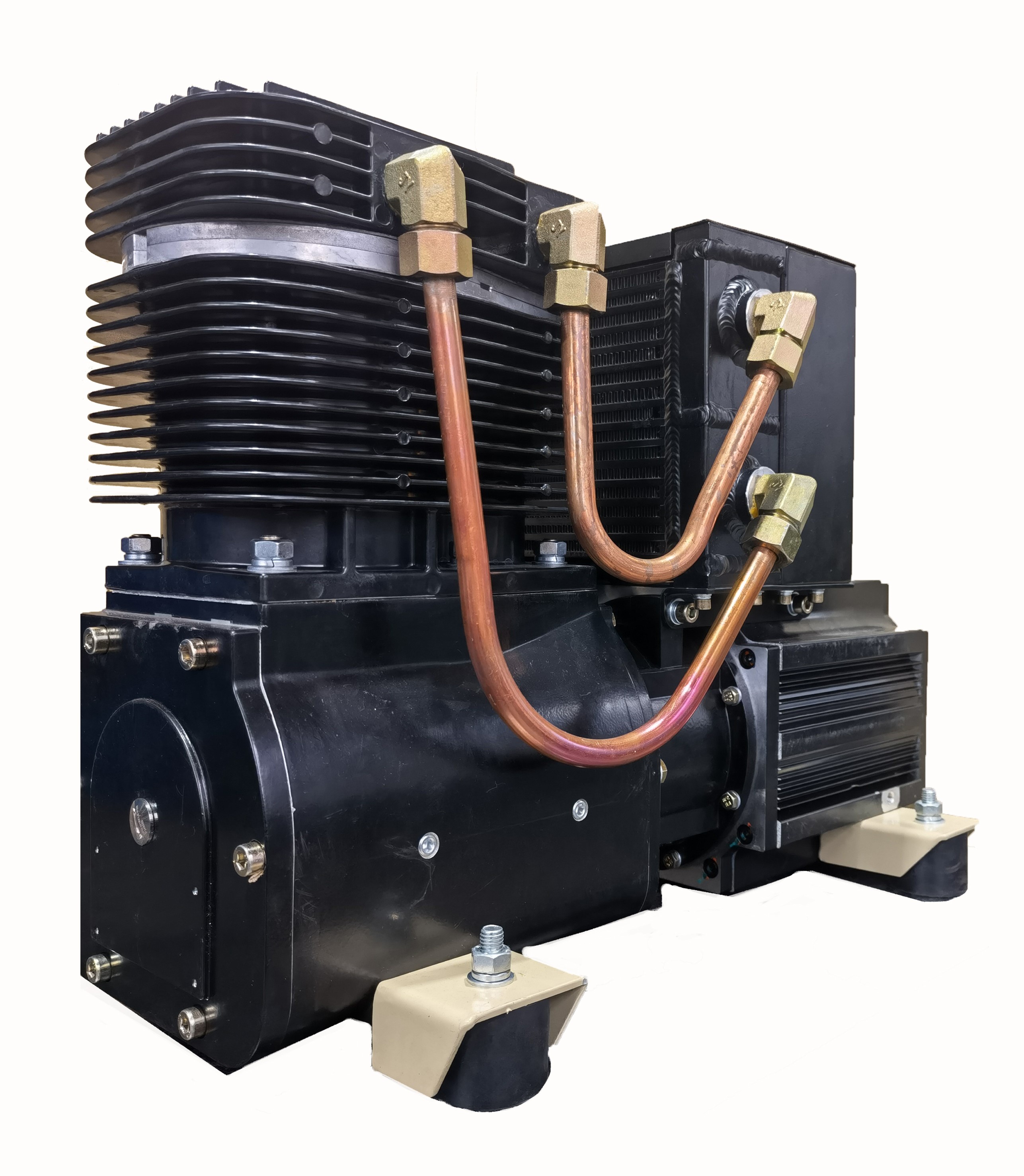

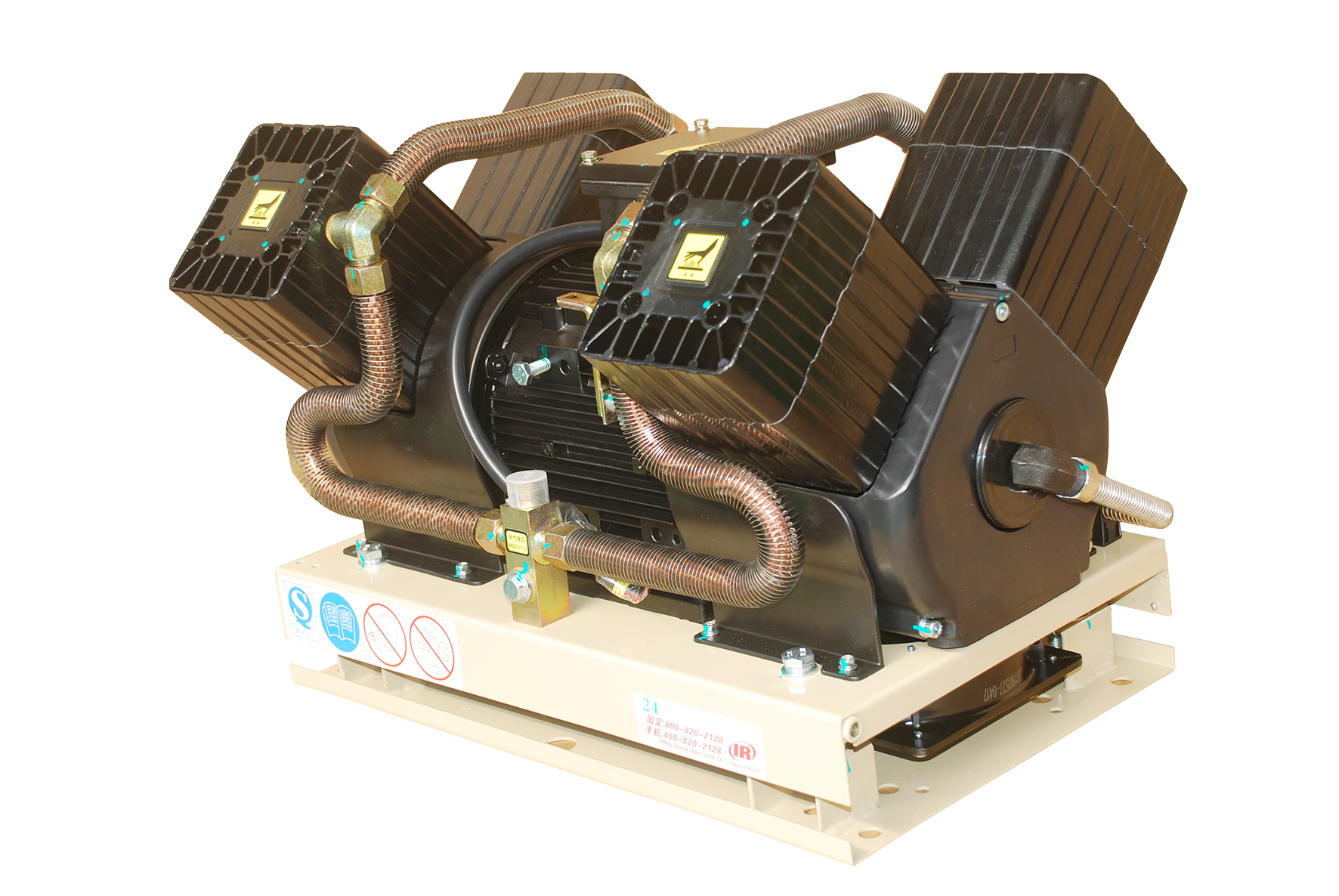

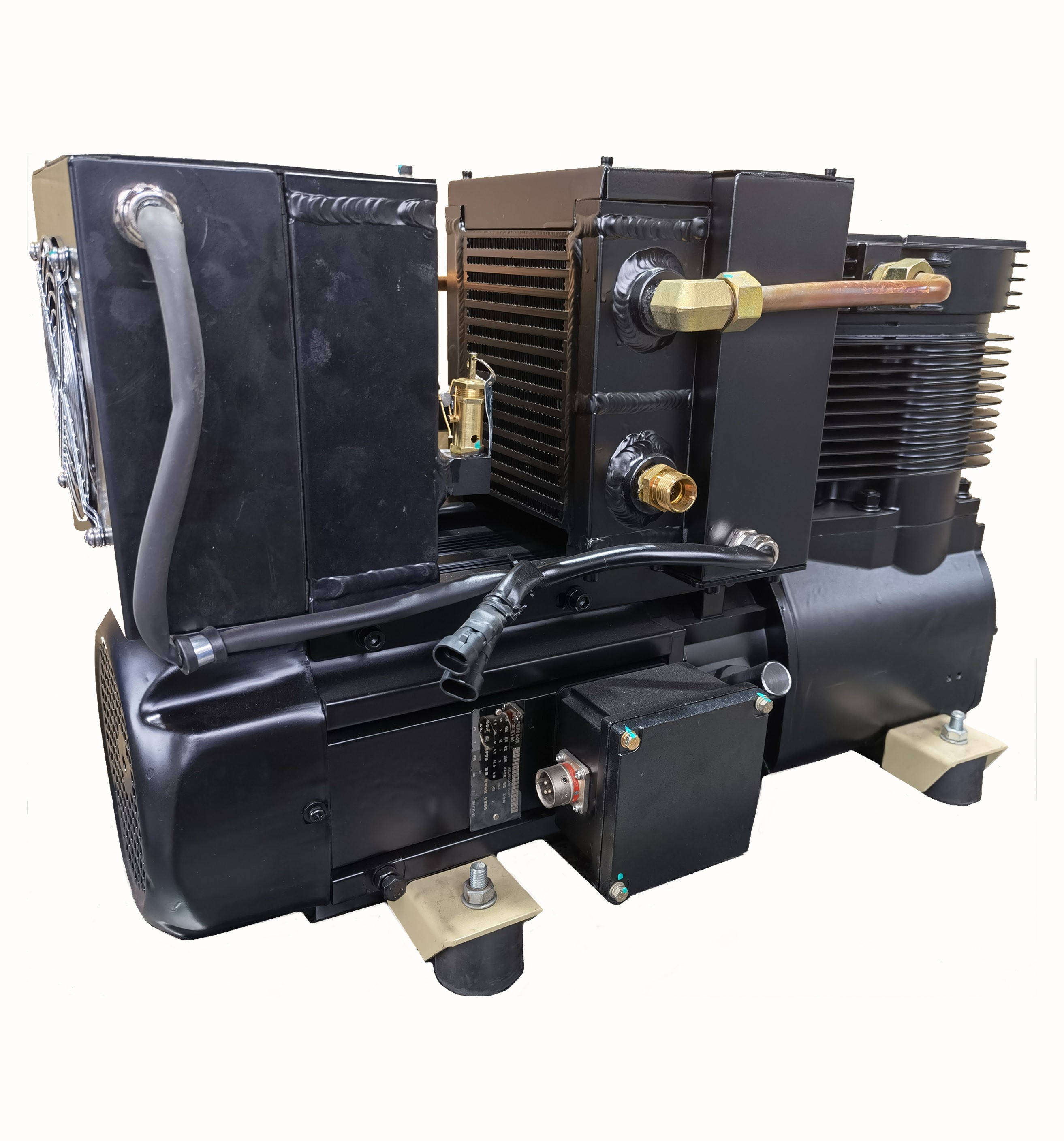

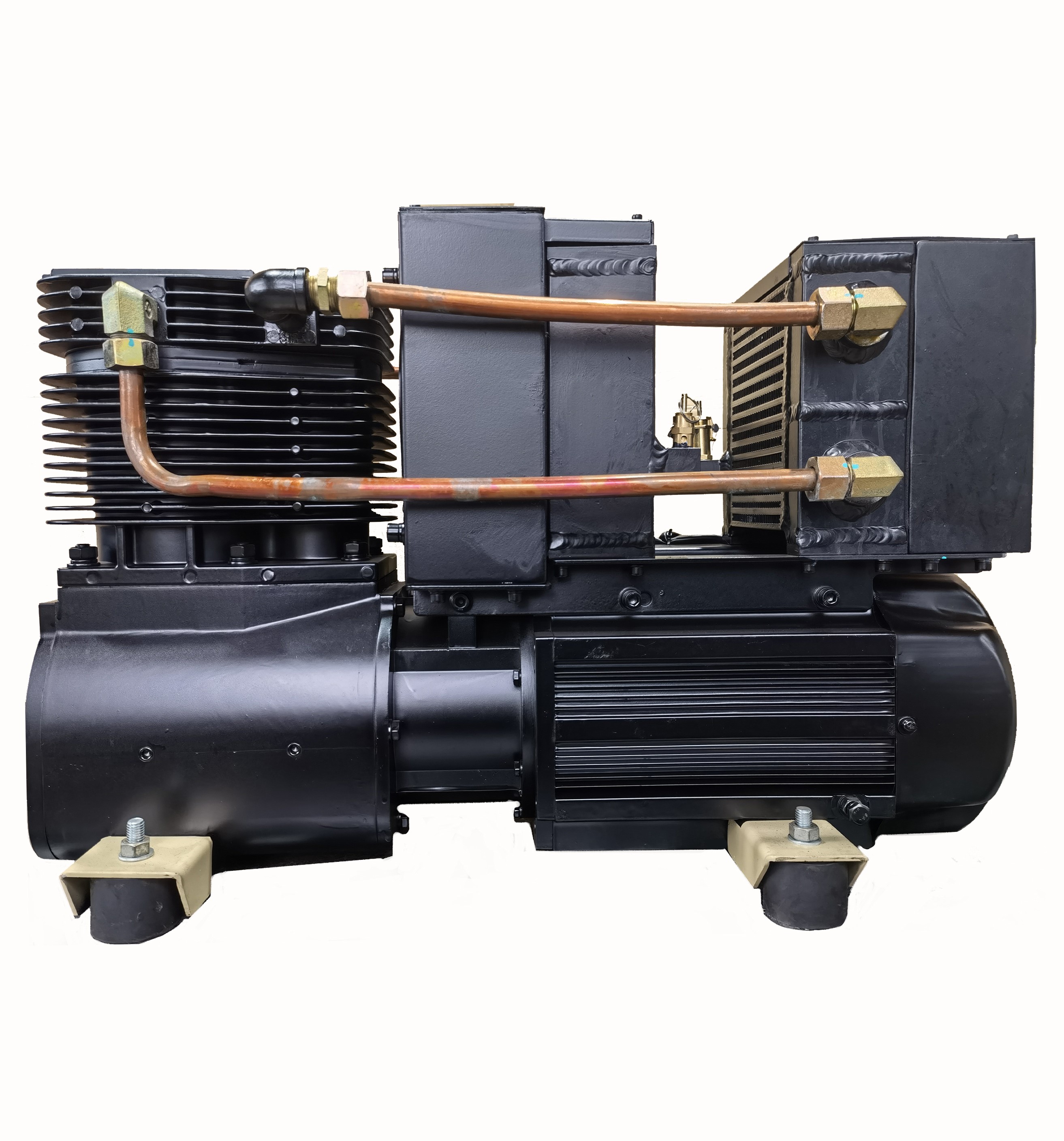

With the rapid change of public transport systems and the development of the new energy vehicle industry, the conceptual design of air compressors needs to be integrated with advanced concepts including compactness, light weight, low noise, and easy installation. The automotive air compressor developed and manufactured by Ingersoll Rand is a system specially designed to meet the strict requirements of the public transport sector. Featuring high reliability and convenient maintenance, the compressed air system will help you save much cost.
B16XB3/ 10-Y | B16VXB3/ 10-Y | B16VXB4/ 10-Y | B16VXB3/ 12-Y | B1 5VXB4/ 12-Y | B16VXB 3/ 12-MY | B16VXB4/ 12-MY | B1 6VXB5A/ 1 2 -M Y | |
Motor Type | Three-phase Asynchronous | Three-phase Asynchronous | Three-phase Asynchronous | Three-phase Asynchronous | Three-phase Asynchronous | Permanent Magnet Synchronous | Permanent Magnet Synchronous | Permanent Magnet Synchronous |
Rated Voltage V | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 |
Rated Pressure Mpa | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1 |
Max. Pressure Mpa | 1 | 1 | 1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
Rated Power kW | 1.5 | 2.2 | 3 | 2.2 | 3 | 2.2 | 3.3 | 4 |
Drive Type | Direct Connection | Direct Connection | Direct Connection | Direct Connection | Direct Connection | Direct Connection | Direct Connection | Direct Connection |
Rated Displacement m2/min | 0.15 | 0.23 | 0.28 | 0.25 | 0.28 | 0.28 | 0.32 | 0.45 |
Net Weight kg | 40 | 51 | 53 | 51 | 53 | 51 | 53 | 60 |
Dimensions (L*W*H mm) | 452*377*360 | 557*374*370 | 557*374*370 | 557*374*370 | 557*374*370 | 557*374*370 | 557*374*370 | 661*338*437 |
Min. Space Reserved for Installation (L*W*H mm) | 650*650*550 | 750*650*550 | 750*650*550 | 750*650*550 | 750*650*550 | 750*650*550 | 750*650*550 | 860*650*650 |
Exhaust Port Dimensions | Outer Screw M22*1.5, internal 24° tapered seal |
