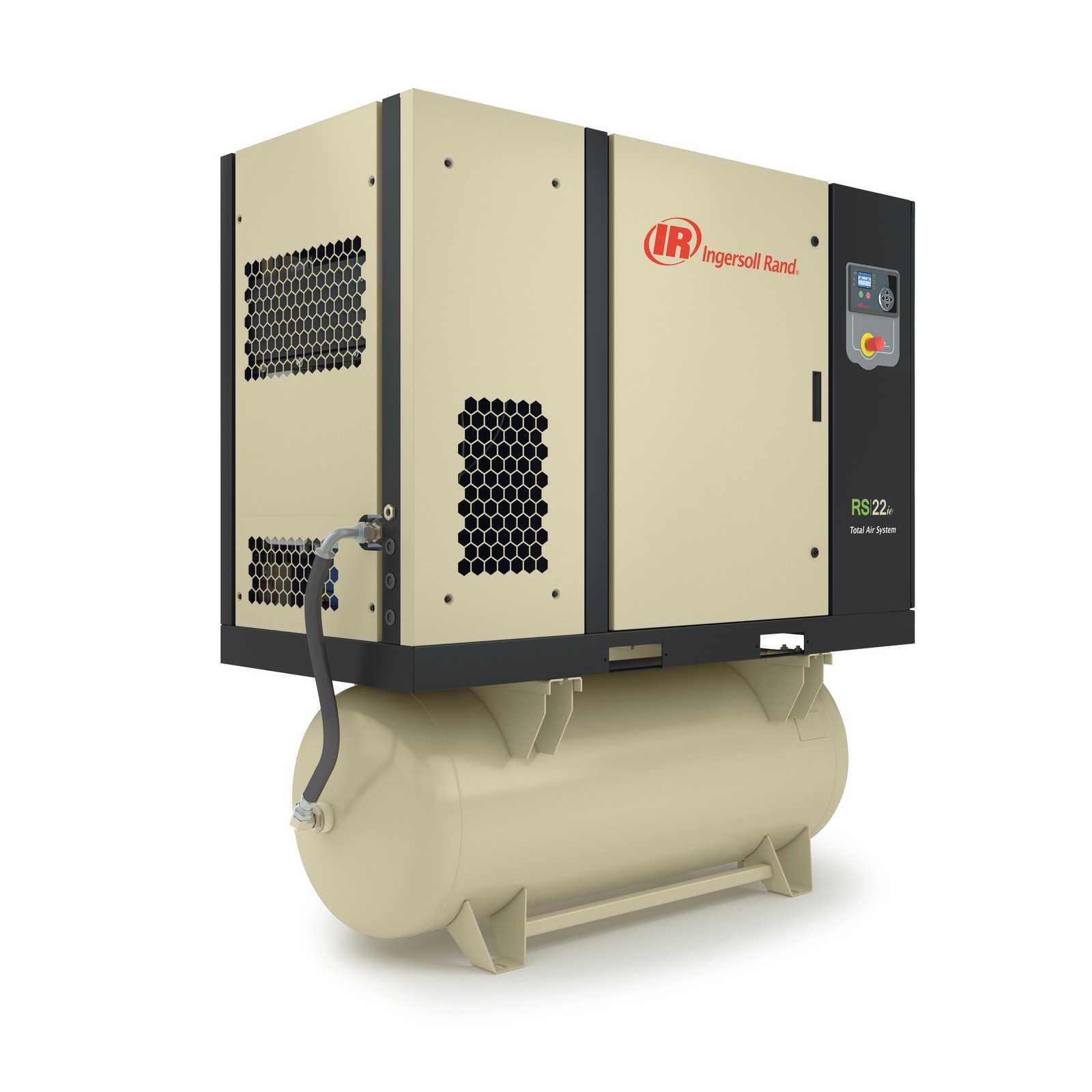

Next Generation R-Series Oil-Flooded Rotary Screw Air Compressors 15-22kw (20-30 hp) Premium Efficiency

Ingersoll Rand works to keep you ahead of your competition with Next Generation R-Series air compressors that lower total cost of ownership through industry leading energy efficiency, reliable components and best-in-class delivered capacity.
Contact Us
Request a Quote Request Support
Share
Download

Features

  • State-of the-art airend delivers up to 17.5% improved efficiency and 18% more airflow capacity
  • IE3/NEMA Premium® TEFC motor and optional variable speed drive (VSD) decrease energy demands
  • V-Shield™ technology provides a totally integrated, leak-free design, featuring PTFE stainless steel braided oil hoses and O-ring face seals
  • Components that provide reliable air for life, including a free-floating cooling system, two-stage air filters and elastomeric O-rings
  • PartsCARE™ service program ensures proper maintenance and longer product life, as well as extends your warranty
  • Enhanced serviceability ensures increased uptime with two-stage filtration, easy maintenance and Ingersoll Rand extended life, premium grade coolant
  • Xe-70M controller provides full control and connectivity with easy-to-read diagnostics, resulting in less down time and increased productivity for your compressed air system
  • Hinged-door service access with integrated handles provides quick, easy access to all user-maintainable components
  • Optional Total Air System (TAS) with integrated dryer and 3-in-1 heat exchanger provides clean, dry air in a single package that minimises installation costs, reduces footprint and improves ISO air quality

Model Specifications

Technical Data

Model
Max pressure (psig)
Nominal power (hp)
Capacity (FAD)* cfm
Dimensions (L) in
Dimensions (W) in
Dimensions (H) in
Weight (Aircooled) lb
RS15ie
110
20
100
51
33.5
51
1356
RS15ie
125
20
94
51
33.5
51
1356
RS15ie
145
20
85
51
33.5
51
1367
RS15ie
200
20
63
51
33.5
51
1367
RS18ie
110
25
123
51
33.5
51
1413
RS18ie
125
25
116
51
33.5
51
1413
RS18ie
145
25
106
51
33.5
51
1424
RS18ie
200
25
83
51
33.5
51
1424
RS22ie
110
30
144
51
33.5
51
1413
RS22ie
125
30
137
51
33.5
51
1413
RS22ie
145
30
123
51
33.5
51
1424
RS22ie
200
30
100
51
33.5
51
1424
RS15ne
145
20
83
51
33.5
51
1592
RS18ne
145
25
101
51
33.5
51
1623
RS22ne
145
30
121
51
33.5
51
1651
RS15ie TAS
103
20
100
71
33.5
51
1739
RS15ie TAS
118
20
94
71
33.5
51
1739
RS15ie TAS
138
20
85
71
33.5
51
1750
RS15ie TAS
193
20
63
71
33.5
51
1750
RS18ie TAS
103
25
123
71
33.5
51
1825
RS18ie TAS
118
25
116
71
33.5
51
1825
RS18ie TAS
138
25
106
71
33.5
51
1836
RS18ie TAS
193
25
83
71
33.5
51
1836
RS22ie TAS
103
30
144
71
33.5
51
1825
RS22ie TAS
118
30
137
71
33.5
51
1825
RS22ie TAS
138
30
123
71
33.5
51
1836
RS22ie TAS
193
30
100
71
33.5
51
1836
RS15ne TAS
135
20
87
71
33.5
51
2004
RS18ne TAS
135
25
106
71
33.5
51
2035
RS22ne TAS
135
30
125
71
33.5
51
2064

Documents

irits0818080euenoilflooded437kwbrochurea4screen

Oil-Flooded Rotary Screw Compressed Air Systems 4-37 kW (5.5-50 hp)

irits0119005euen0319oilflooded1522kwdatasheet50hzienea4

Next Generation R-Series Oil-Flooded Rotary Screw Air Compressors 15-22kw (20-30 hp), 50 Hz ie and ne Premium Efficiency
