- Efficient Operation: Advanced high-efficiency combination cooler with roof-mount package exhaust enables easy ducting
- Easy to Use: Simple diagnostics, auto start/stop and a spacious design to maximize serviceability makes the UP6 Series easy to operate
- Safer Work Environment: Whisper quiet operation allows for installation closer to point-of-use, reducing costs and ensuring a better and safer work environment
- Enhanced Reliability: Fewer connections and smart integration eliminates leaks and pressure drops maximizing reliability
- Extend Equipment Life: Closely maintained discharge pressure avoids excessive pressure bands increasing downstream tool and equipment life
- Compact Footprint: Small footprint frees up valuable floor space and reduces install costs

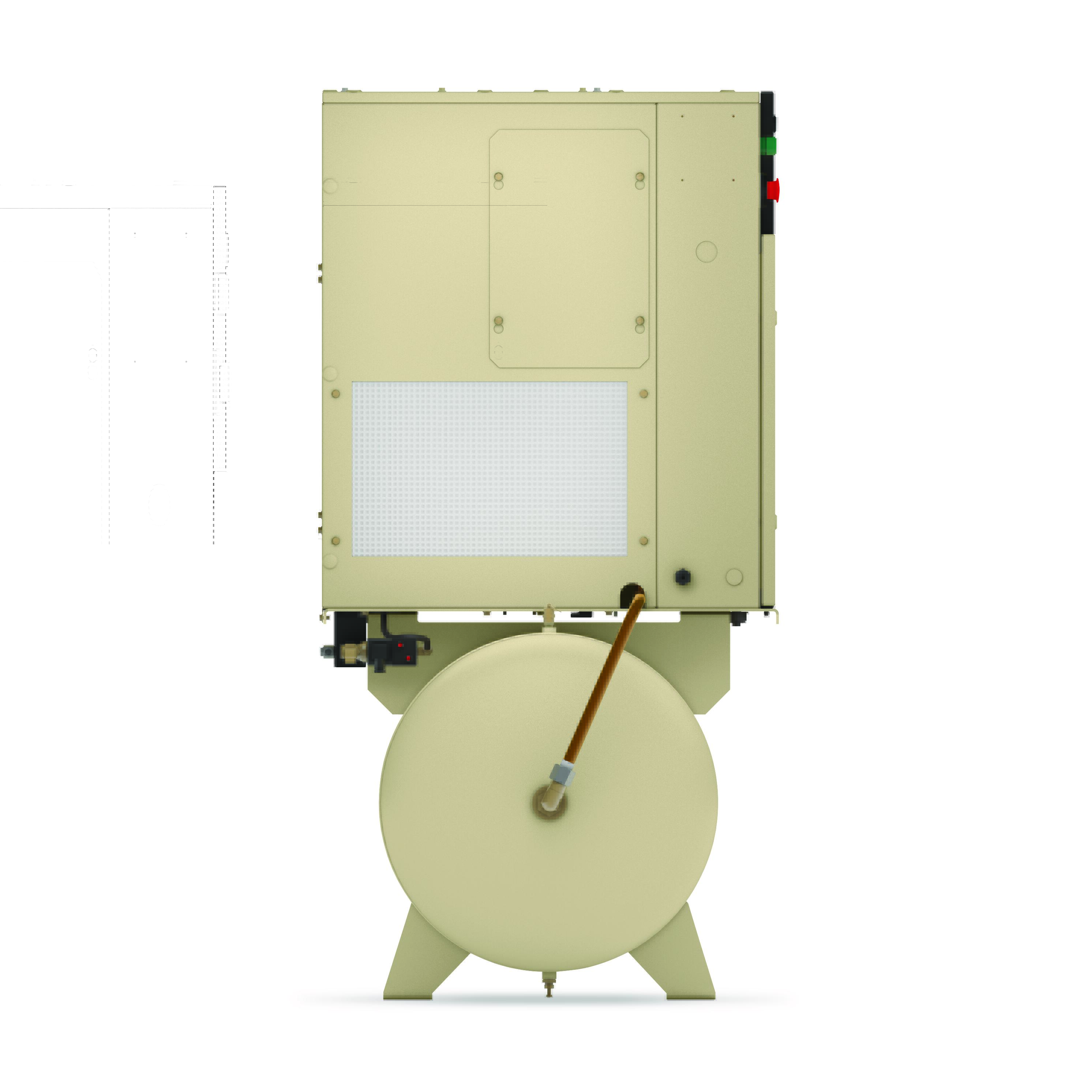

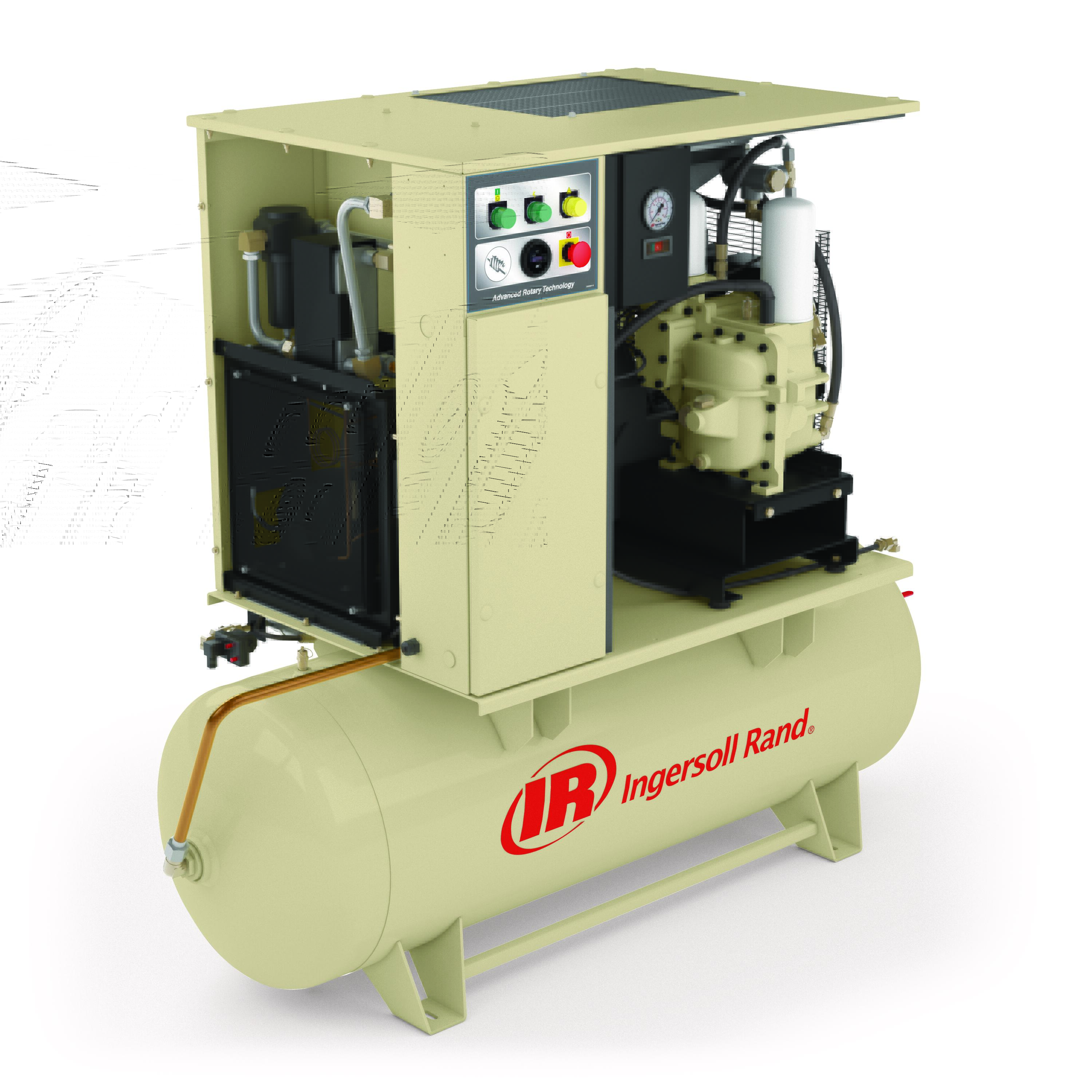

Offering an exceptional value without sacrificing the reliability you’ve come to expect from Ingersoll Rand, the UP6 Series of oil-flooded rotary screw compressors provides a complete air solution in an easy to use, easy to access compact package, delivering efficient performance.
Additional Option:

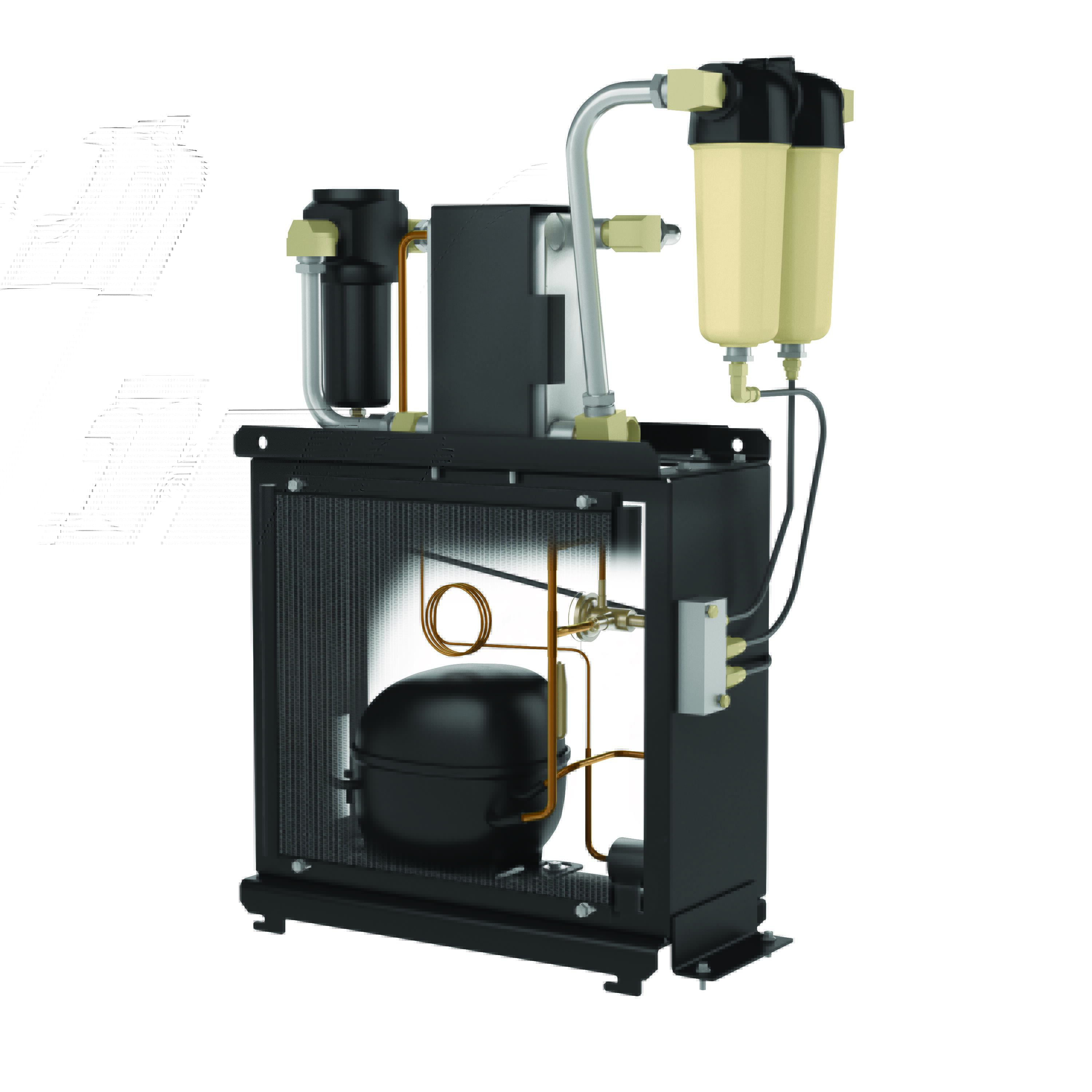

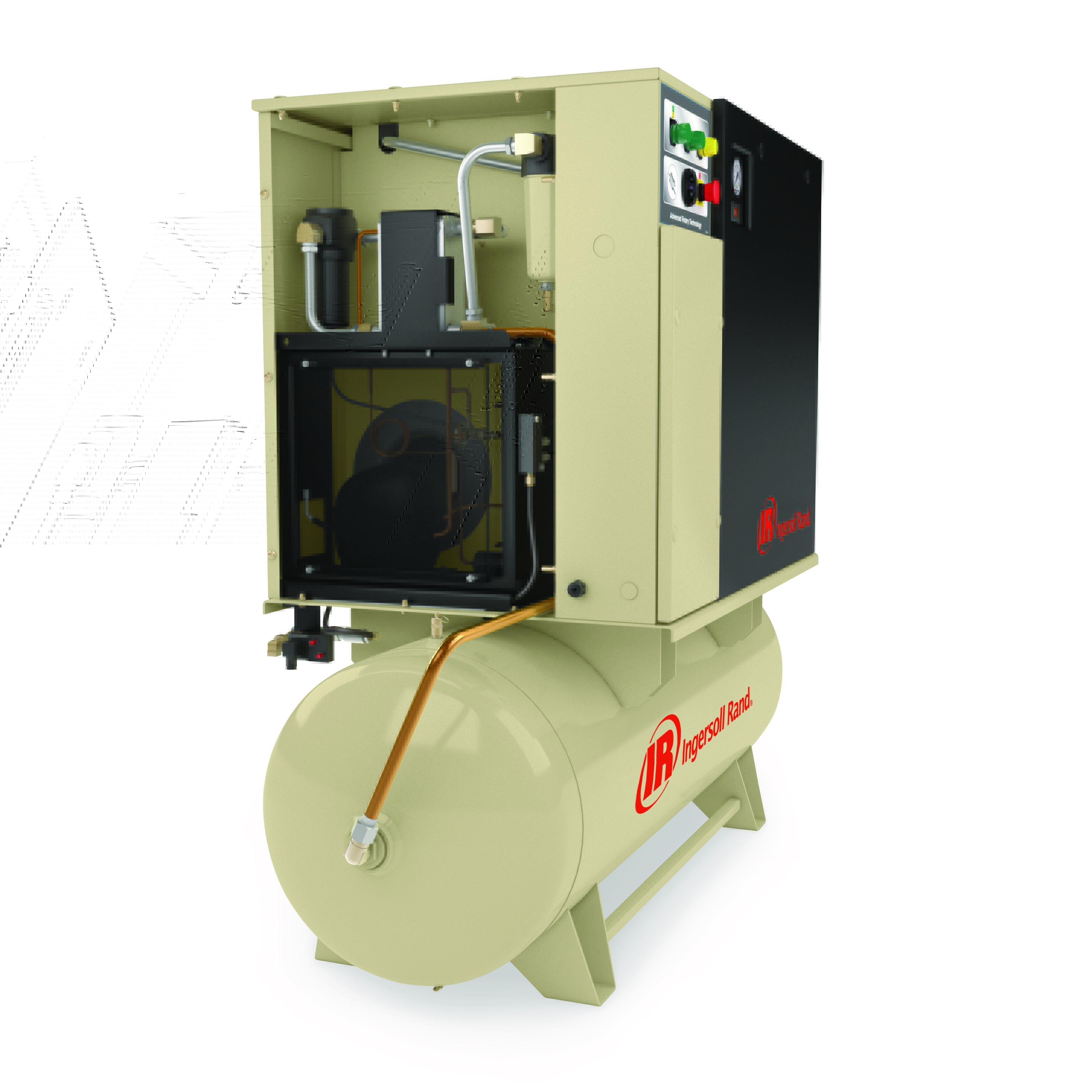

- Total Air System (TAS) with refrigerated dryer and filter system for clean, dry air in a single package
Model | Nominal Power (hp) | Max Pressure (psig) | Flow (cfm) | Dimensions (L) in | Dimensions (W) in | Dimensions (H) in | Weight (Air-cooled) lb |
UP6-5-125 | 5 | 125 | 14.9 | 40.9 | 28.7 | 36.9 | 655 |
UP6-5-150 | 5 | 150 | 12.9 | 40.9 | 28.7 | 36.9 | 655 |
UP6-7.5-125 | 7.5 | 125 | 26.3 | 40.9 | 28.7 | 36.9 | 655 |
UP6-7.5-150 | 7.5 | 150 | 23.1 | 40.9 | 28.7 | 36.9 | 655 |
UP6-10-125 | 10 | 125 | 36.1 | 40.9 | 28.7 | 36.9 | 655 |
UP6-10-150 | 10 | 150 | 32.3 | 40.9 | 28.7 | 36.9 | 655 |
UP6-15-125 | 15 | 125 | 52 | 40.9 | 28.7 | 36.9 | 655 |
UP6-15-150 | 15 | 150 | 47.3 | 40.9 | 28.7 | 36.9 | 655 |
UP6-5TAS-125 | 5 | 125 | 14.9 | 40.9 | 28.7 | 36.9 | 725 |
UP6-5TAS-150 | 5 | 150 | 12.9 | 40.9 | 28.7 | 36.9 | 725 |
UP6-7.5TAS-125 | 7.5 | 125 | 26.3 | 40.9 | 28.7 | 36.9 | 725 |
UP6-7.5TAS-150 | 7.5 | 150 | 23.1 | 40.9 | 28.7 | 36.9 | 725 |
UP6-10TAS-125 | 10 | 125 | 36.1 | 40.9 | 28.7 | 36.9 | 725 |
UP6-10TAS-150 | 10 | 150 | 32.3 | 40.9 | 28.7 | 36.9 | 725 |
UP6-15cTAS-125 | 15 | 125 | 52 | 40.9 | 28.7 | 36.9 | 725 |
UP6-15cTAS-150 | 15 | 150 | 47.3 | 40.9 | 28.7 | 36.9 | 725 |
