Large Cycling Refrigerated Dryers

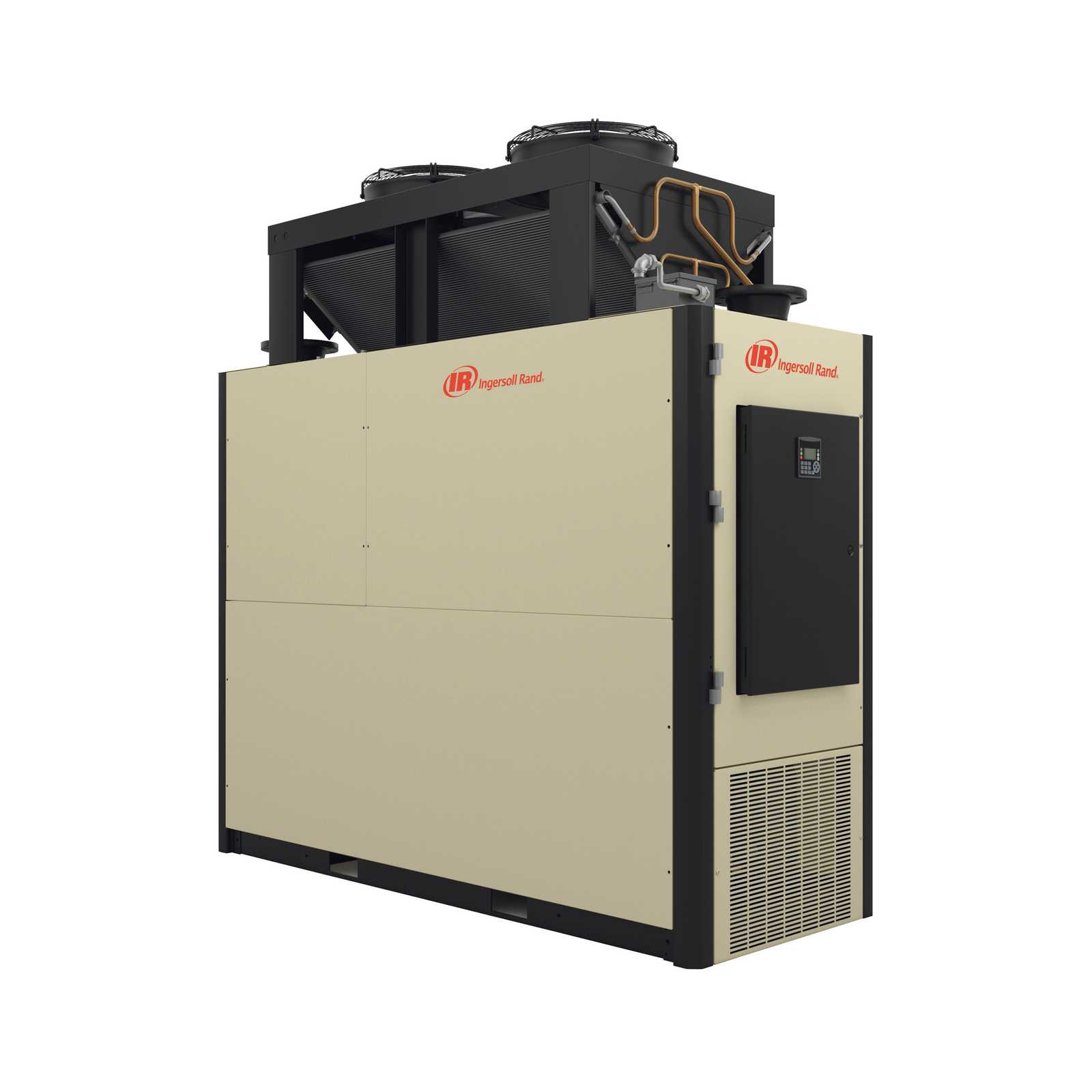

Product Photo Exterior side LargeCapacity Cycling_Refrigerated_Dryer

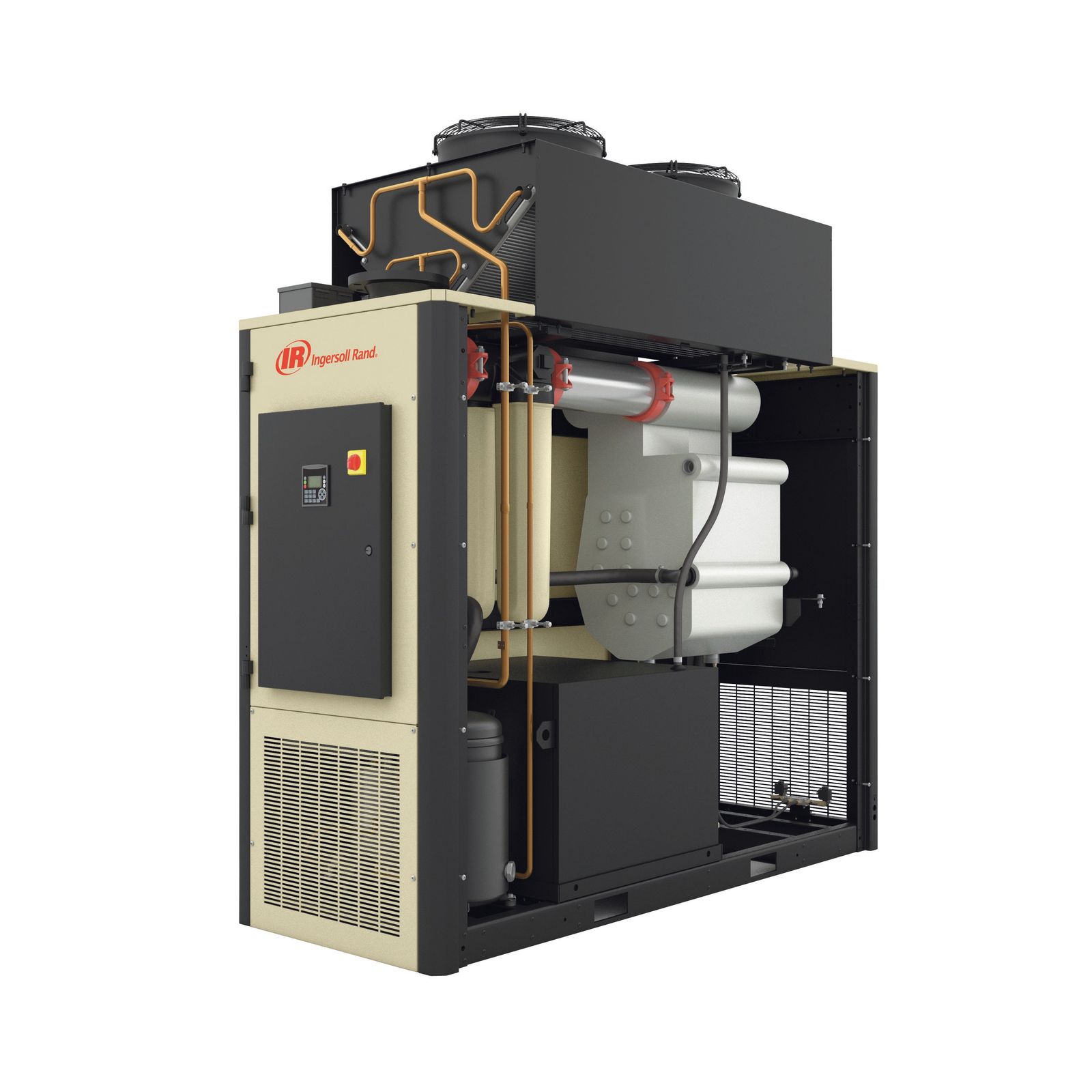

Product Photo Interior side Large_Capacity_Cycling_Refrigerated_Dryer

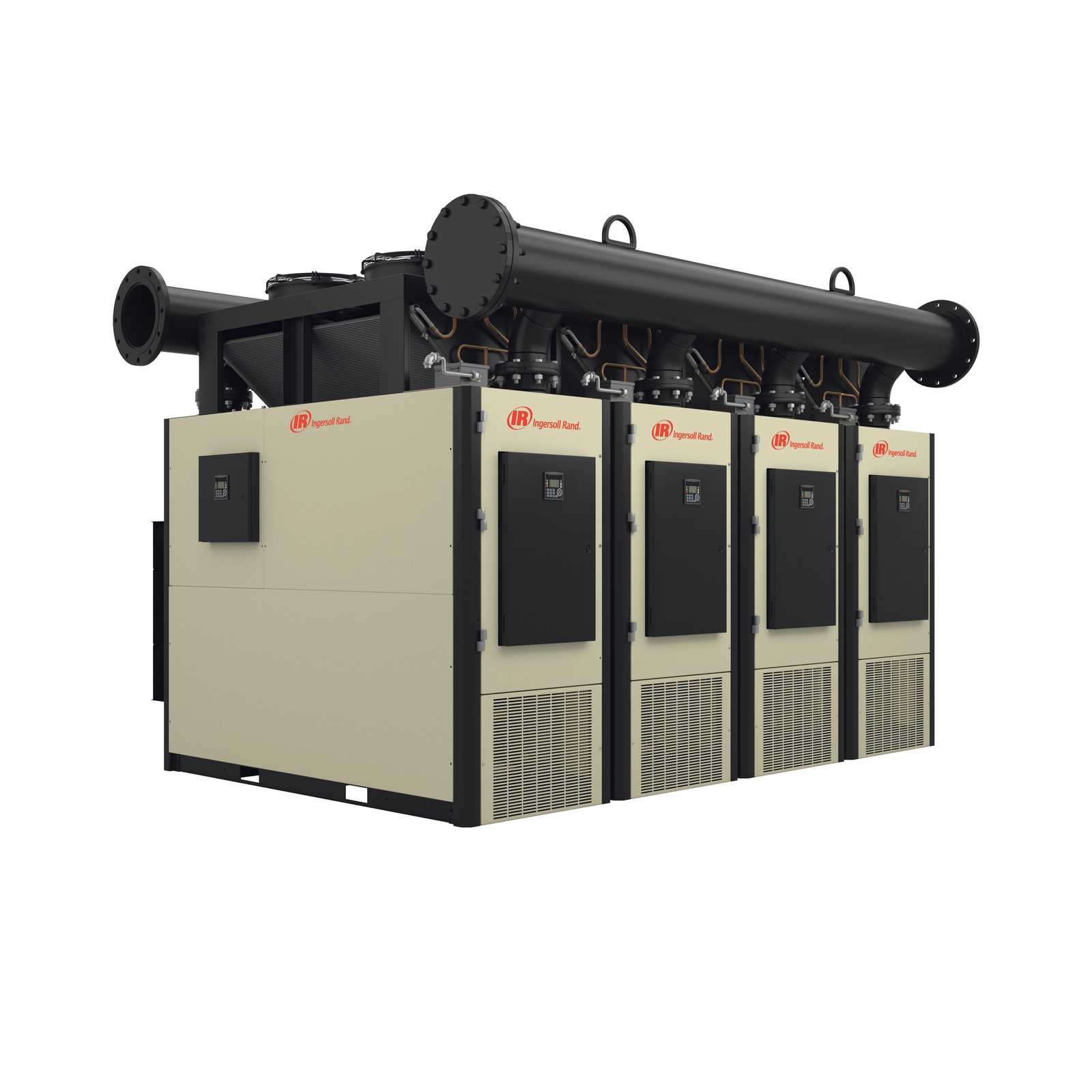

Product Photo Exterior side Large_Capacity_Cycling_Refrigerated_Dryer_Multiplex

Ingersoll Rand large capacity refrigerated dryers deliver outstanding value by providing high-quality compressed air, reliably and efficiently. The innovative design of our large cycling dryers maximize energy savings in systems with fluctuating demand, reduce carbon footprint and save floor space. An optional, high-pressure configuration is also available for demanding applications up to 680 psi.

Driving efficiency and performance - unprecedented performance from patent pending large capacity heat exchanger (LCX) with 18 - 58% energy efficiency improvement, 25% greater flow capacity and over 1,000% improved thermal conductivity
Maximum reliability - ISO Class 2-4-3 protection along with integrated pre-filters and redundant no-loss drains closely monitored by a smart controller
Lower energy costs – up to 50% savings achieved through significant energy gains delivered by the large capacity heat exchanger
Increased sustainability – via advanced refrigeration circuitry requiring over 45% less charge and up to 47% lower Global Warming Potential (GWP) by using R410A refrigerant to replace R404A
Space-saving design – reduced footprint allows to simplify installation and free up valuable floor space in your manufacturing operation
Optional high-pressure configurations – available for demanding applications up to 680 psi
Multiplex modular design - multiple, independent air treatment modules, each with its own controls and refrigeration system for requirements over 3,000 scfm (5,000 m3/hr)

Ingersoll Rand Cycling Refrigerated Dryers 60 Hz Performance

Model	Flow Rate m3/hr	Flow Rate cfm	Connect Size in	Air-Cooled Operating kW	Water-Cooled Operating kW	Dimensions (Width x Depth x Height) mm	Dimensions (Width x Depth x Height) in	Weight kg	Weight lb
DA3000NVC	3000	1800	6	5.1	6.6	864 x 2,324 x 2,362	34 x 91.5 x 93	1363	3006
DA4000NVC	4000	2400	6	13	8.2	864 x 2,324 x 2,362	34 x 91.5 x 93	1432	3156
DA5000NVC	5000	3000	6	14.7	10.1	864 x 2,324 x 2,362	34 x 91.5 x 93	1478	3259
DA6000NVC	6000	3600	8	10.4	13.4	2,057 x 2,515 x 2,845	81 x 99 x 112	2922	6441
DA8000NVC	8000	4800	8	26.3	16.7	2,057 x 2,515 x 2,845	81 x 99 x 112	3058	6741
DA10000NVC	10000	6000	10	29.7	20.5	2,057 x 2,515 x 2,845	81 x 99 x 112	3252	7169
DA12000NVC	12000	7200	10	39.4	25	2,946 x 2,515 x 2,845	116 x 99 x 112	4611	10166
DA15000NVC	15000	9000	12	44.4	30.6	2,946 x 2,515 x 2,845	116 x 99 x 112	5032	11093
DA20000NVC	20000	12000	14	59.1	40.7	3,835 x 2,515 x 2,845	151 x 99 x 112	6821	15037
DA25000NVC	25000	15000	14	73.8	50.8	4,724 x 2,515 x 2,845	186 x 99 x 112	8379	18471
DA30000NVC	30000	18000	16	88.5	60.9	5,613 x 2,515 x 2,845	221 x 99 x 112	10249	22596
DA35000NVC	35000	21000	16	103.2	71	6,502 x 2,515 x 2,845	256 x 99 x 112	12005	26465
DA40000NVC	40000	24000	16	118	81.1	7,391 x 2,515 x 2,845	291 x 99 x 112	13749	30310

Ingersoll Rand High Pressure Cycling Refrigerated Dryers 60 Hz Performance

Model	Flow Rate m3/hr	Flow Rate cfm	Connect Size in	Air-Cooled Operating kW	Water-Cooled Operating kW	Dimensions (Width x Depth x Height) mm	Dimensions (Width x Depth x Height) in	Weight kg	Weight lb
DA5100NVCHP	5100	3000	6	10.4	6.6	915 x 2,236 x 2,363	36 x 88 x 93	1619	3569
DA7000NVCHP	7000	4000	6	13	8.3	916 x 2,236 x 2,363	36 x 88 x 93	1624	3579
DA10200NVCHP	10200	6000	8	20.8	13.2	2,071 x 2,532 x 2,487	82 x 100 x 98	3357	7399
DA14000NVCHP	14000	8000	8	26	16.6	2,071 x 2,532 x 2,487	82 x 100 x 98	3366	7419
