- Driving efficiency and performance - unprecedented performance from patent pending large capacity heat exchanger (LCX) with 18 - 58% energy efficiency improvement, 25% greater flow capacity and over 1,000% improved thermal conductivity
- Maximum reliability - ISO Class 2-4-3 protection along with integrated pre-filters and redundant no-loss drains closely monitored by a smart controller
- Lower energy costs – up to 50% savings achieved through significant energy gains delivered by the large capacity heat exchanger
- Increased sustainability – via advanced refrigeration circuitry requiring over 45% less charge and up to 47% lower Global Warming Potential (GWP) by using R410A refrigerant to replace R404A
- Space-saving design – reduced footprint allows to simplify installation and free up valuable floor space in your manufacturing operation

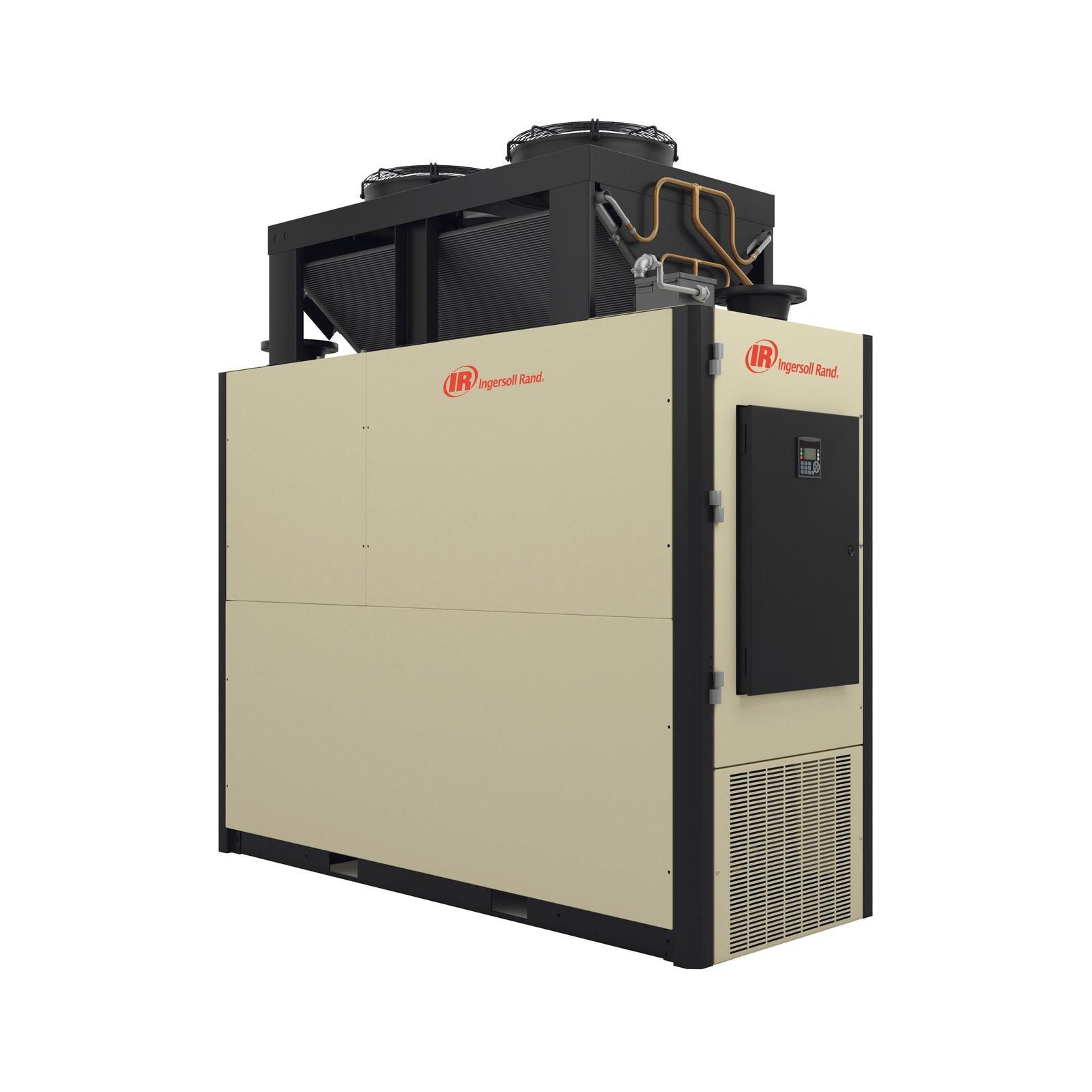

Ingersoll Rand large capacity refrigerated dryers deliver outstanding value by providing high-quality compressed air, reliably and efficiently. The innovative design of our large non-cycling dryers maximize energy savings in systems with constant demand, reduce carbon footprint and save floor space.
Model | Flow Rate m3/hr | Flow Rate cfm | Connect Size in | Air-Cooled Operating kW | Water-Cooled Operating kW | Dimensions (Width x Depth x Height) mm | Dimensions (Width x Depth x Height) in | Weight kg | Weight lb |
DA3000IN | 3,000 | 1,800 | 6 | 8 | 5.8 | 864 x 2,324 x 2,362 | 34 x 91.5 x 93 | 1,227 | 2,706 |
DA4000IN | 4,000 | 2,400 | 6 | 10 | 6.98 | 864 x 2,324 x 2,362 | 34 x 91.5 x 93 | 1,295 | 2,856 |
DA5000IN | 5,000 | 3,000 | 6 | 13.9 | 9.2 | 864 x 2,324 x 2,362 | 34 x 91.5 x 93 | 1,342 | 2,959 |
DA6000IN | 6,000 | 3,600 | 8 | 16.3 | 11.9 | 2,057 x 2,515 x 2,845 | 81 x 99 x 112 | 2,748 | 6,058 |
DA8000IN | 8,000 | 4,800 | 8 | 20.3 | 14.2 | 2,057 x 2,515 x 2,845 | 81 x 99 x 112 | 2,884 | 6,358 |
DA10000IN | 10,000 | 6,000 | 10 | 28.1 | 18.7 | 2,057 x 2,515 x 2,845 | 81 x 99 x 112 | 3,063 | 6,754 |
DA12000IN | 12,000 | 7,200 | 10 | 30.4 | 21.2 | 2,946 x 2,515 x 2,845 | 116 x 99 x 112 | 4,400 | 9,701 |
DA15000IN | 15,000 | 9,000 | 12 | 42 | 27.9 | 2,946 x 2,515 x 2,845 | 116 x 99 x 112 | 4,666 | 10,287 |
DA20000IN | 20,000 | 12,000 | 14 | 55.9 | 37.1 | 3,835 x 2,515 x 2,845 | 151 x 99 x 112 | 6,297 | 13,882 |
DA25000IN | 25,000 | 15,000 | 14 | 69.8 | 46.3 | 4,724 x 2,515 x 2,845 | 186 x 99 x 112 | 7,827 | 17,257 |
DA30000IN | 30,000 | 18,000 | 16 | 83.7 | 55.5 | 5,613 x 2,515 x 2,845 | 221 x 99 x 112 | 9,671 | 21,322 |
DA35000IN | 35,000 | 21,000 | 16 | 97.6 | 64.7 | 6,502 x 2,515 x 2,845 | 256 x 99 x 112 | 11,259 | 24,822 |
DA40000IN | 40,000 | 24,000 | 16 | 111.5 | 73.9 | 7,391 x 2,515 x 2,845 | 291 x 99 x 112 | 12,840 | 28,308 |
