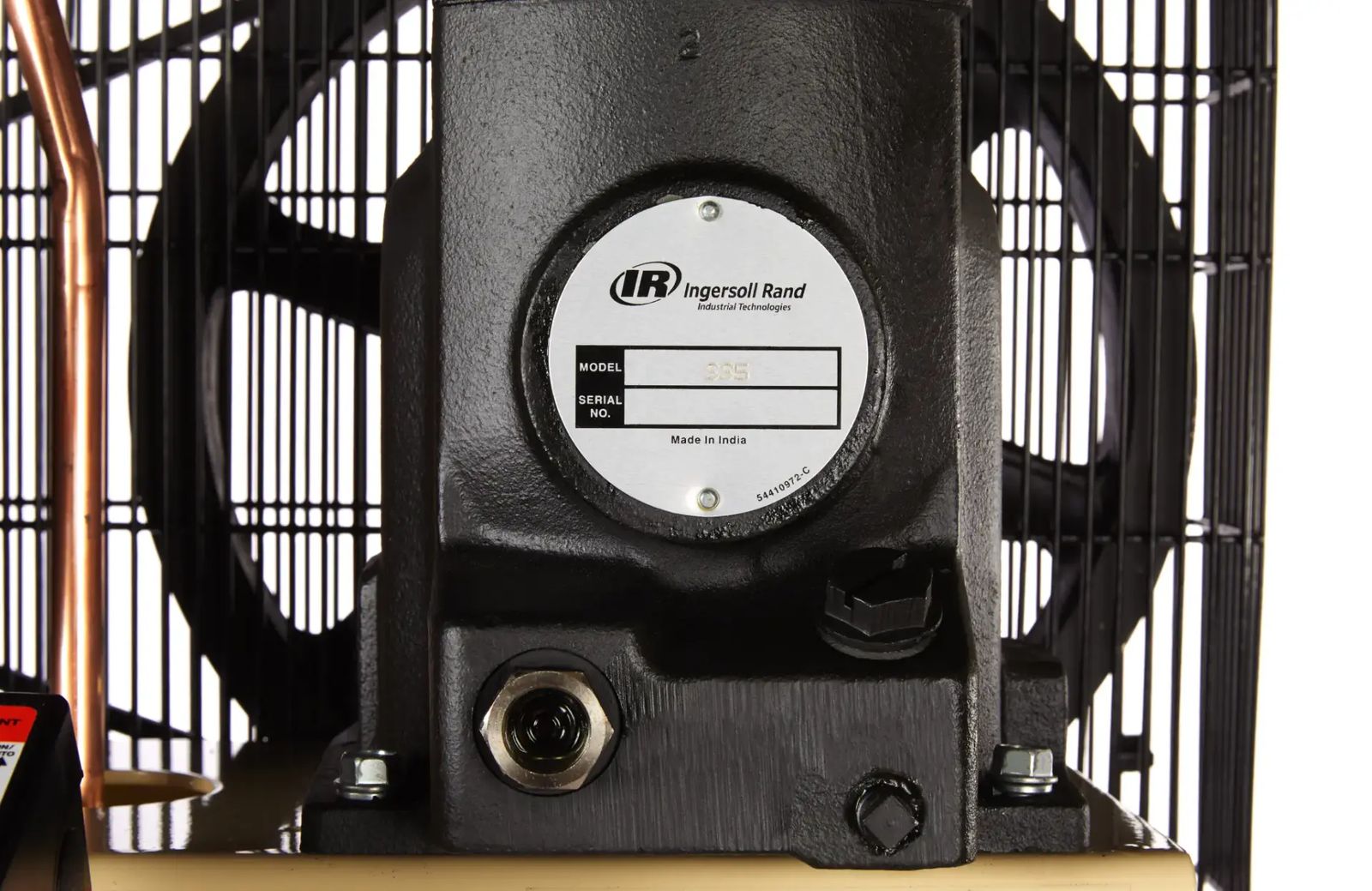

Long-Life: Durable cast iron construction, long-lasting extended pump life designed for over 5,000 hours of trouble-free use

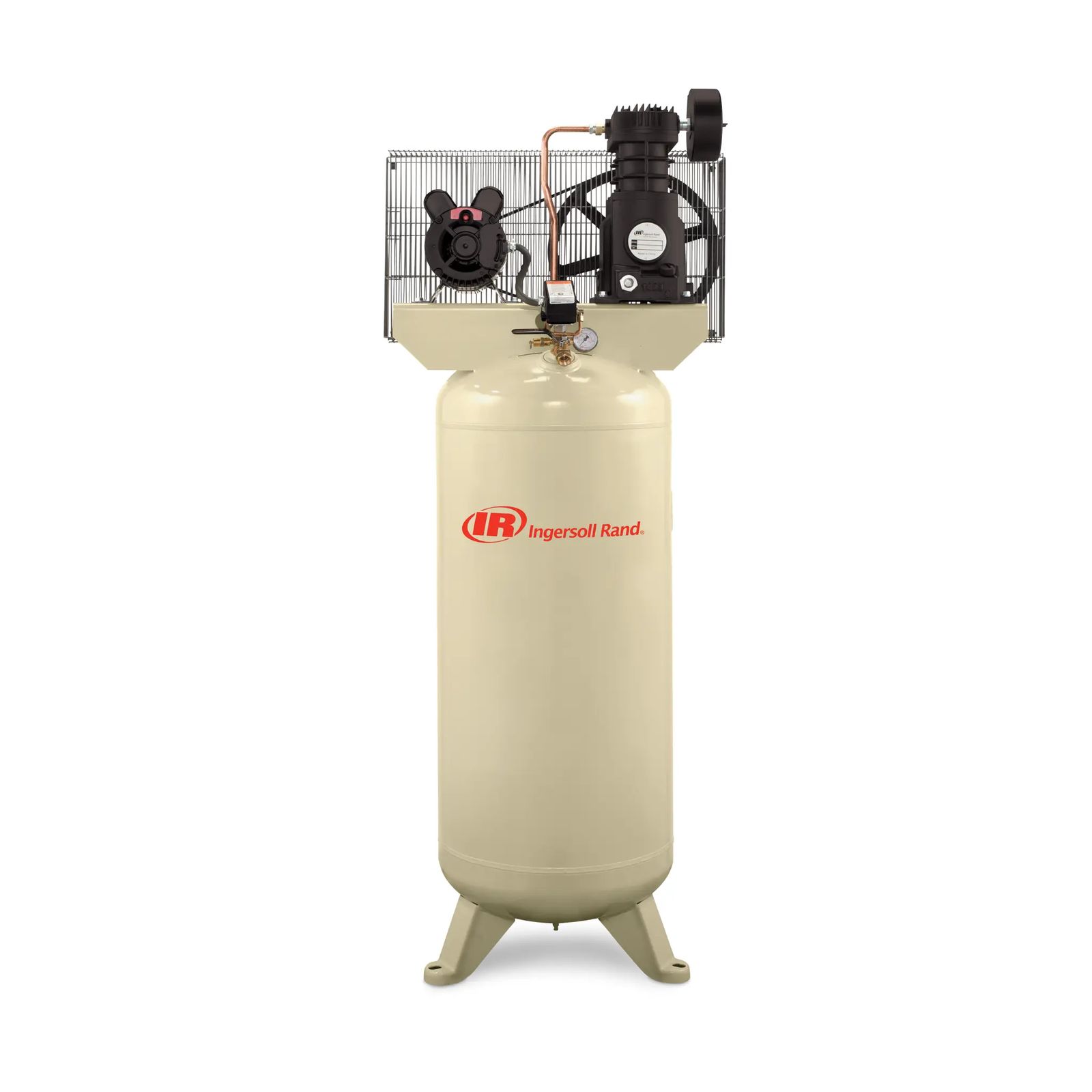

Maximum Power and Flexibility: 100% continuous duty, high pressure operation up to 135 psig and a 60 gallon vertical ASME receiver tank provide plenty of punch for the most demanding applications
Designed for any environment, our 3 and 5 hp single stage compressors are ideal for almost anyone, from individuals that thrive on do-it-yourself projects to the professional air compressor user. When performance is defined by maximum operating pressure, increased air flow and extended duty cycles, Ingersoll Rand is the product of choice. You will get a compressor that features maximum air power, reliable precision engineered components and a durable design that is built to last.

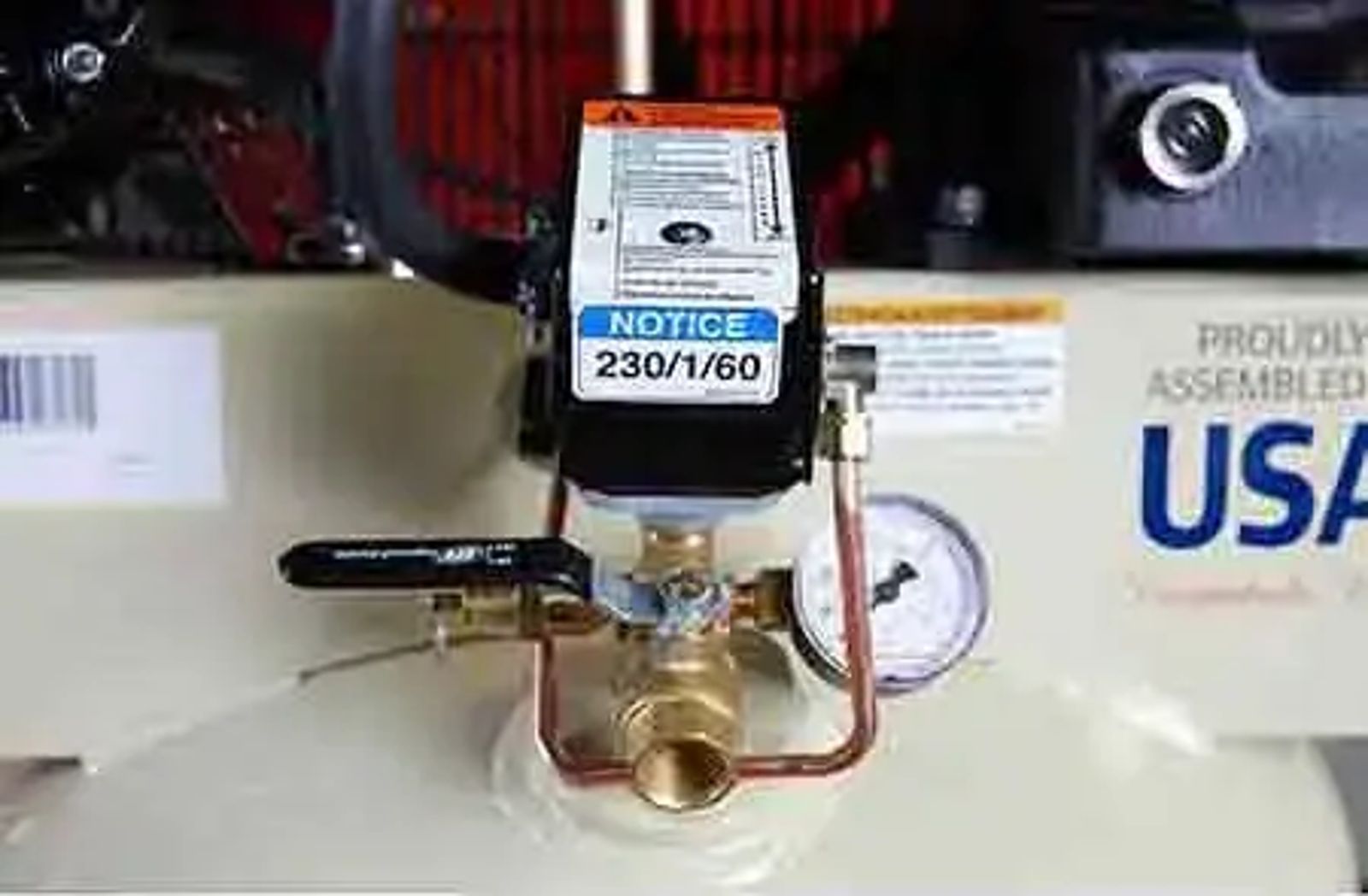

- Easy Operation: Automatic start/stop pressure switch control, fully assembled and pre-wired delivery, easy to change filter, oil site gauge and easy to fill oil port simplify operation and maintenance
- Advanced Safety Features: Manual thermal overload protection of the motor and a totally enclosed belt guard provide constant protection

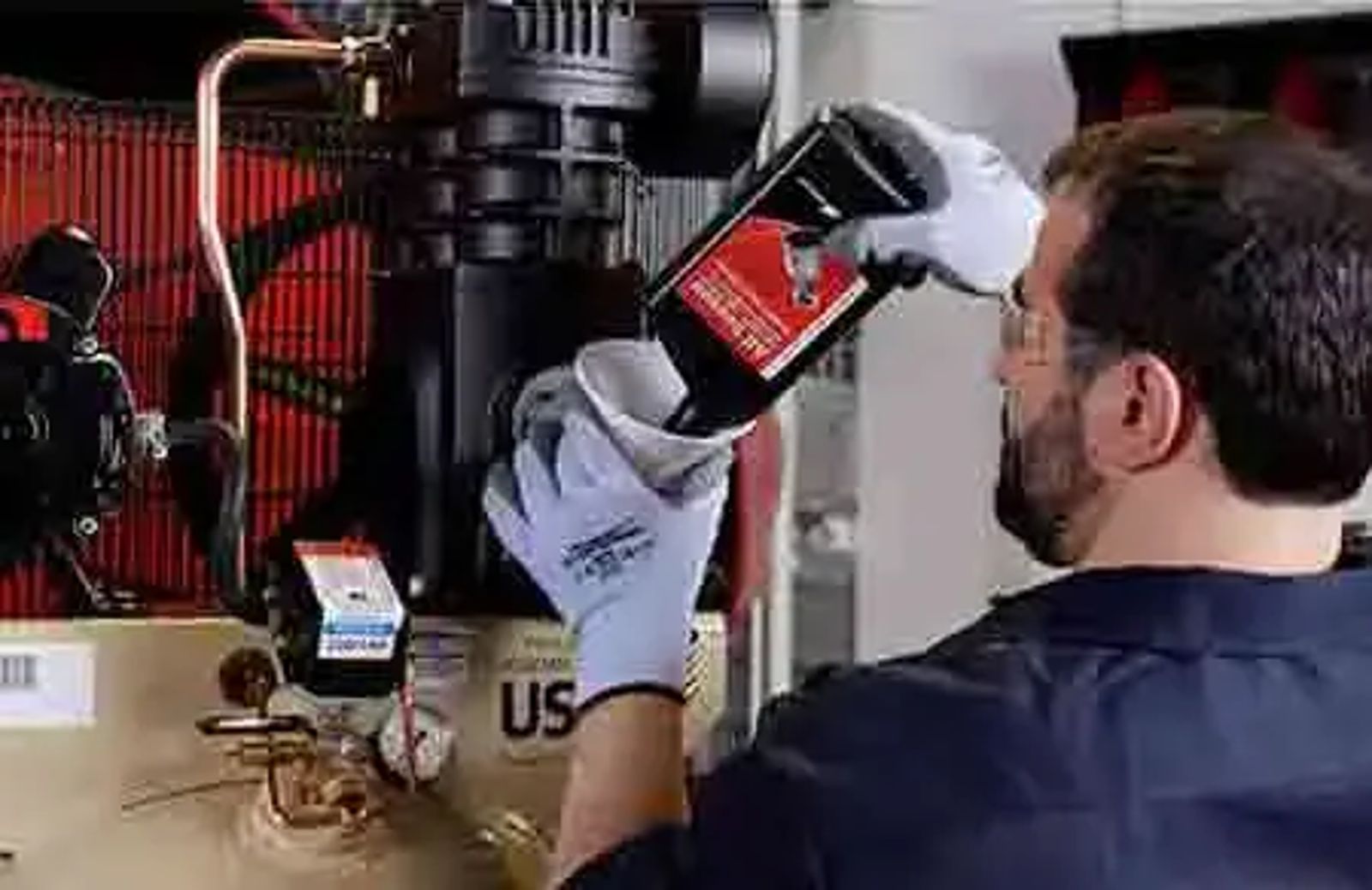

- Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between changeouts, it performs four times longer than petroleum-based lubricants
- Two-Year Warranty Available: Purchase an All-Season Select lubricant start-up kit, and receive all the parts you need for start-up and the first year of maintenance, along with an extended pump warranty
Model | SS3L3 | SS4L5 | SS5L5 |
Flow at 90 psi (cfm) | 11.3 | 14 | 18.1 |
Max Pressure (psig) | 135 | 135 | 135 |
Nominal Power (hp) | 3 | 5 | 5 |
Flow at Max Pressure (cfm) | 10.3 | 10.8 | 15.5 |
Base Length (in) | 24 | 24 | 24 |
Base Width (in) | 25 | 25 | 30 |
Base Height (in) | 67 | 67 | 73 |
NPT Outlet (in) | 0.5 | 0.5 | 0.5 |
Voltage/Engine | 230/1/60 | 230/1/60 | 230/1/60 |
Tank (gal) | 60 Gallon Vertical | 60 Gallon Vertical | 60 Gallon Vertical |
Weight (lbs) | 300 | 300 | 310 |
