Non-Cycling Refrigerated Dryers 0. 2-8 m3/min, 7-212 cfm

Non-cycling refrigerated dryers deliver reliability with virtually no maintenance. Each dryer features a refrigeration system and heat exchanger that combines cool compressed air as it passes through it. These dryers integrate a unique combination of components and features that ensure maximum productivity and longest service life at an affordable cost.

  • Reduced Energy Use: Efficient heat exchangers, a built-in stainless steel demister that removes all moisture and a fully adjustable programmable electronic drain valve reduce energy use and minimize air loss
  • Built-in Reliability: Corrosion-resistant heat exchangers, an enhanced control-system and high-efficiency moisture-separation ensure a steady long-term supply of dry air
  • Smart Control: Easy to use, advanced microprocessor control that lets you easily adjust and manage system parameters
  • Equipment Protection: Built-in coalescing filter stops contamination by separating water and oil from the compressed air
  • Consistent Clean, Dry Air: Variable-speed fans reduce power consumption when units operate at less than maximum cooling capacity, while ensuring a consistent dew point

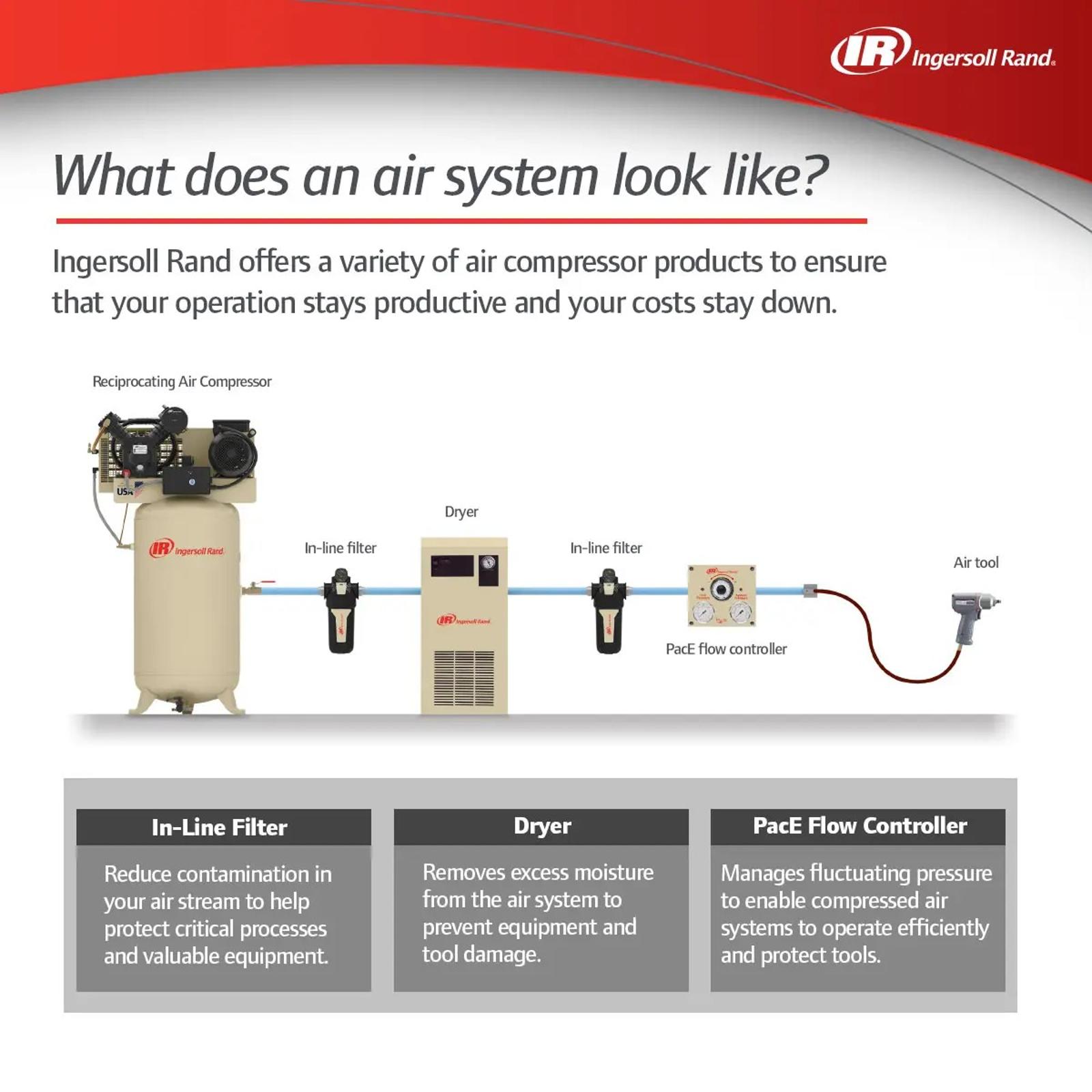

Application Photo Exterior non cycling refrigerated dryer d42in air system

Model

Capacity m3/hr (scfm)

Operating Power kW

Length x Width x Height mm (in)

Weight kg (lb)

Connection Air In/Out

D12IN

12 (7)

0.16

390 (16.0) x 305 (12.0) x 408 (16.0)

18 (40)

3/8" NPT

D18IN

18 (11)

0.16

390 (16.0) x 305 (12.0) x 408 (16.0)

18 (40)

3/8" NPT

D25IN

25 (15)

0.16

390 (16.0) x 305 (12.0) x 408 (16.0)

18 (40)

3/8" NPT

D42IN

42 (25)

0.21

452 (18.0) x 390 (16.0) x 453 (18.0)

27 (60)

1/2" NPT

D54IN

54 (32)

0.37

452 (18.0) x 390 (16.0) x 453 (18.0)

28 (62)

1/2" NPT

D72IN

72 (42)

0.37

452 (18.0) x 390 (16.0) x 453 (18.0)

28 (62)

1/2" NPT

D108IN

108 (64)

0.48

541 (21.5) x 420 (16.5) x 563 (22.5)

35 (77)

3/4" NPT

D144IN

144 (85)

0.57

541 (21.5) x 420 (16.5) x 563 (22.5)

37 (82)

3/4" NPT

D180IN

180 (106)

0.71

541 (21.5) x 420 (16.5) x 563 (22.5)

47 (104)

3/4" NPT

D300IN

300 (176)

1.25

664 (25.5) x 503 (20.0) x 980 (38.5)

87 (192)

1 1/2" NPT

D360IN

360 (212)

1.25

664 (25.5) x 503 (20.0) x 980 (38.5)

87 (192)

1 1/2" NPT
