LS Series Onsite Nitrogen Generators

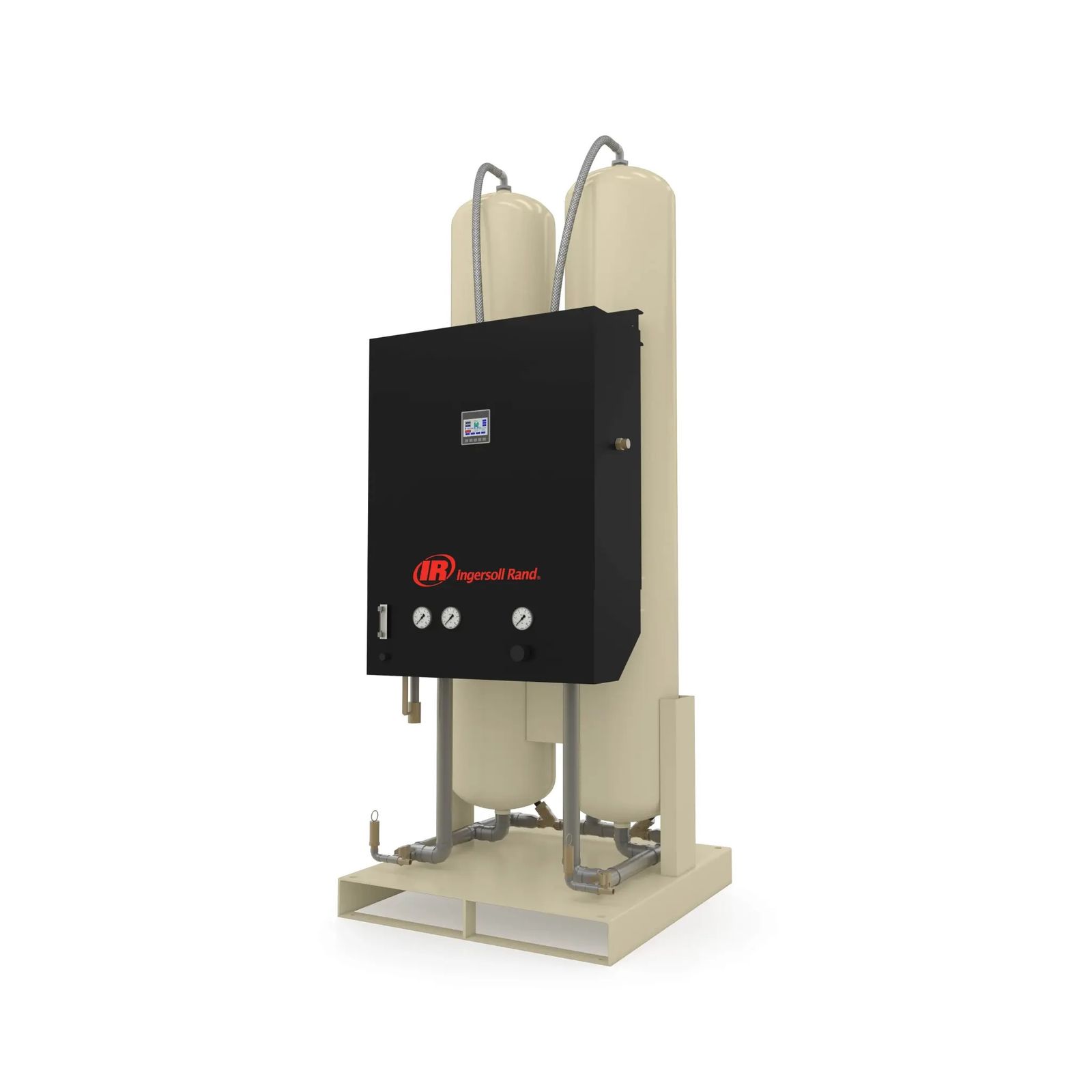

Product Photo Exterior left LS Nitrogen Generator

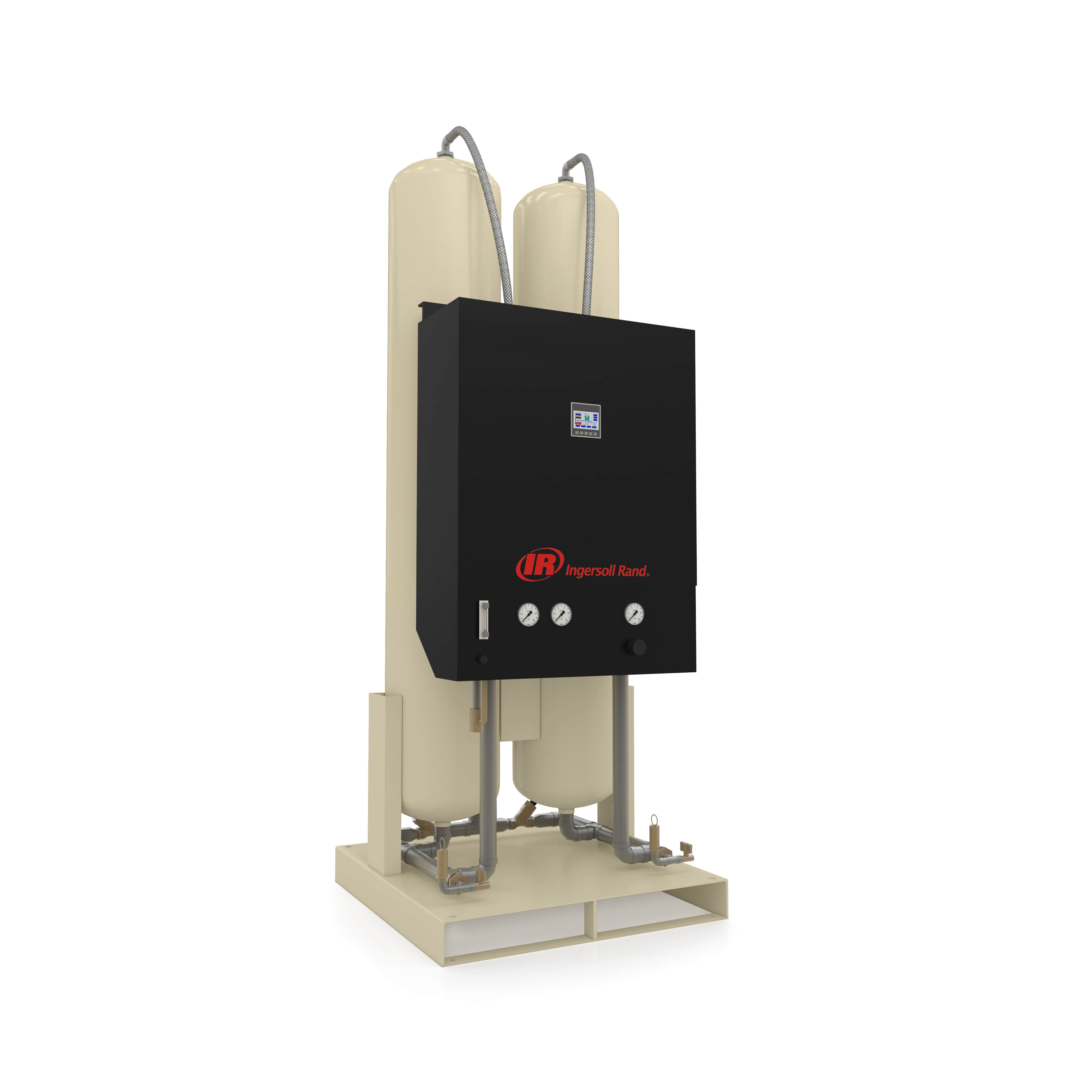

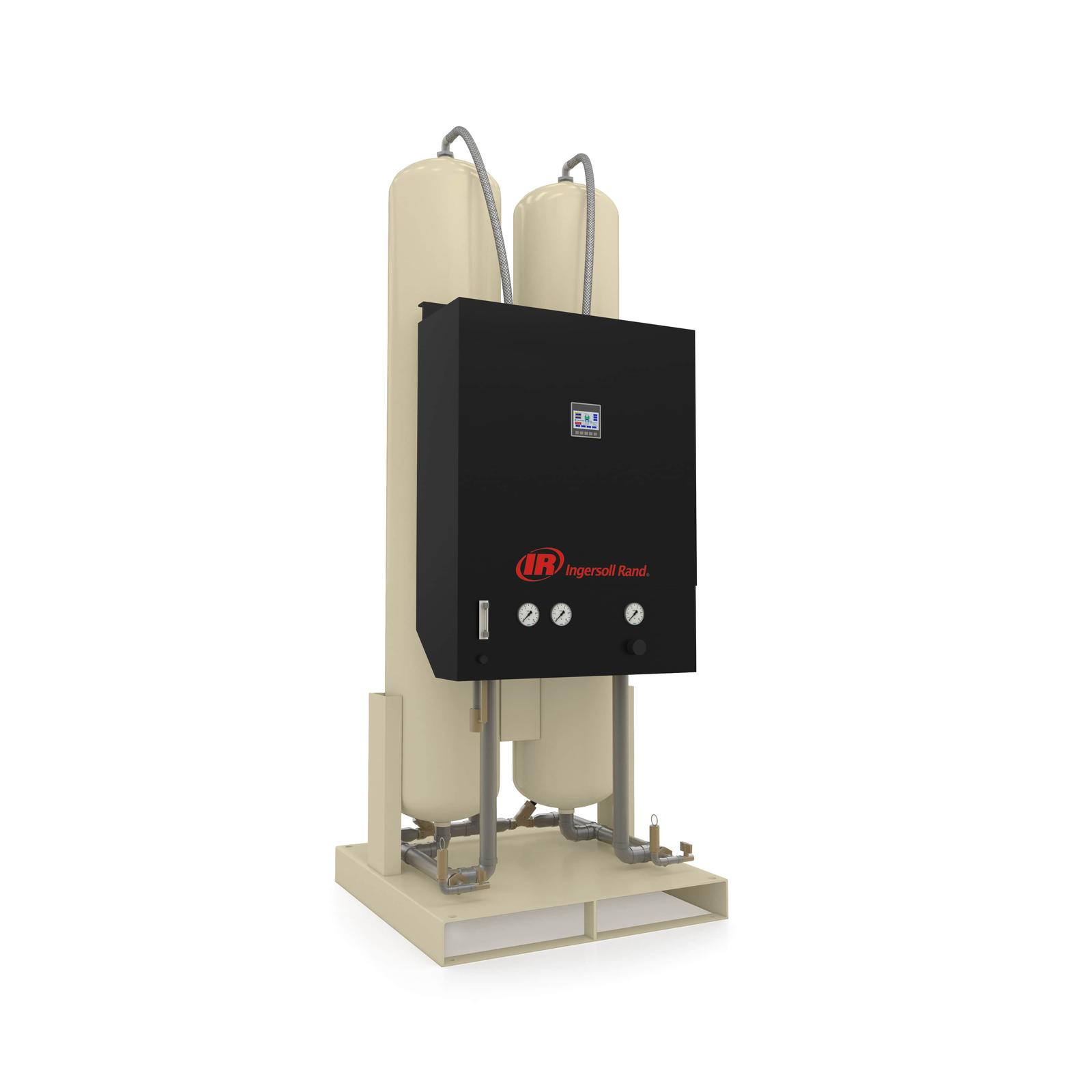

Product Photo Exterior right LS Nitrogen Generator

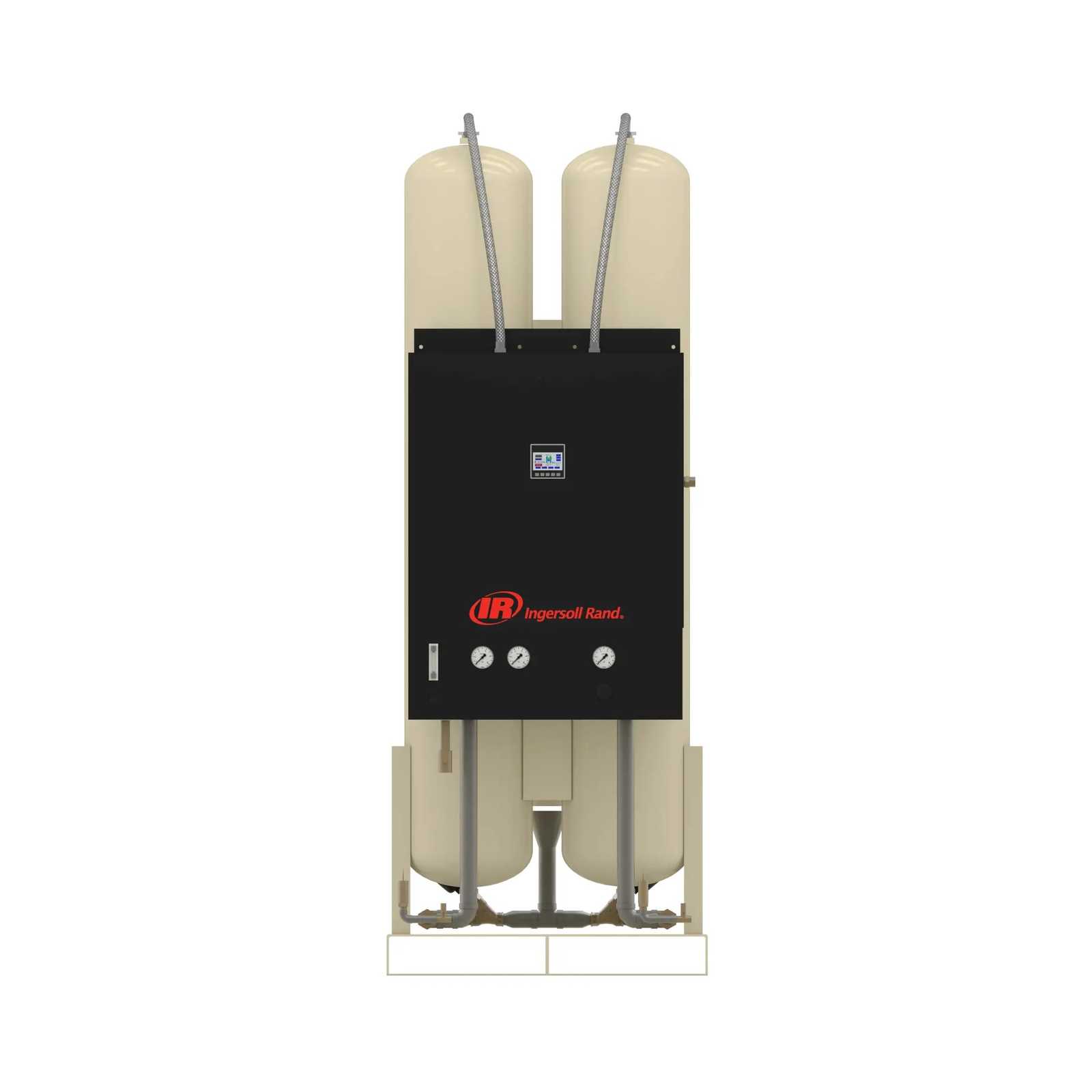

Product Photo Exterior front LS Nitrogen Generator

Ingersoll Rand's on-site nitrogen generators offer quality and reliability built-in, so that you can focus on maximizing the productivity of your operations. Our efficient designs generate nitrogen from freely available air and allow you forgo traditional nitrogen delivery to simplify your business processes. Combined with our line of complementary products, you get that peace of mind that your entire nitrogen production process is backed by a trusted partner from start to finish.

Efficient Design: Precision long-life valves, intelligent controls and high efficiency CMS packing provide industry-leading air-to-nitrogen utilization and maximize efficiency
Flexible Performance: Tailor nitrogen production to meet your precise needs with purities ranging from 95% to 99.999%
Enhanced Reliability: Superior quality CMS media extends product life, simplifies maintenance requirements and reduces replacement costs
Trouble-Free Operation: One-touch operation and plug-and-play design ensure out of the box operation to simplify installation and commissioning and maximize productivity
Advanced Safety: ASME-certified pressure vessels ensure safe operation
Extended Warranty: Standard extended warranty keeps you protected for 24 months

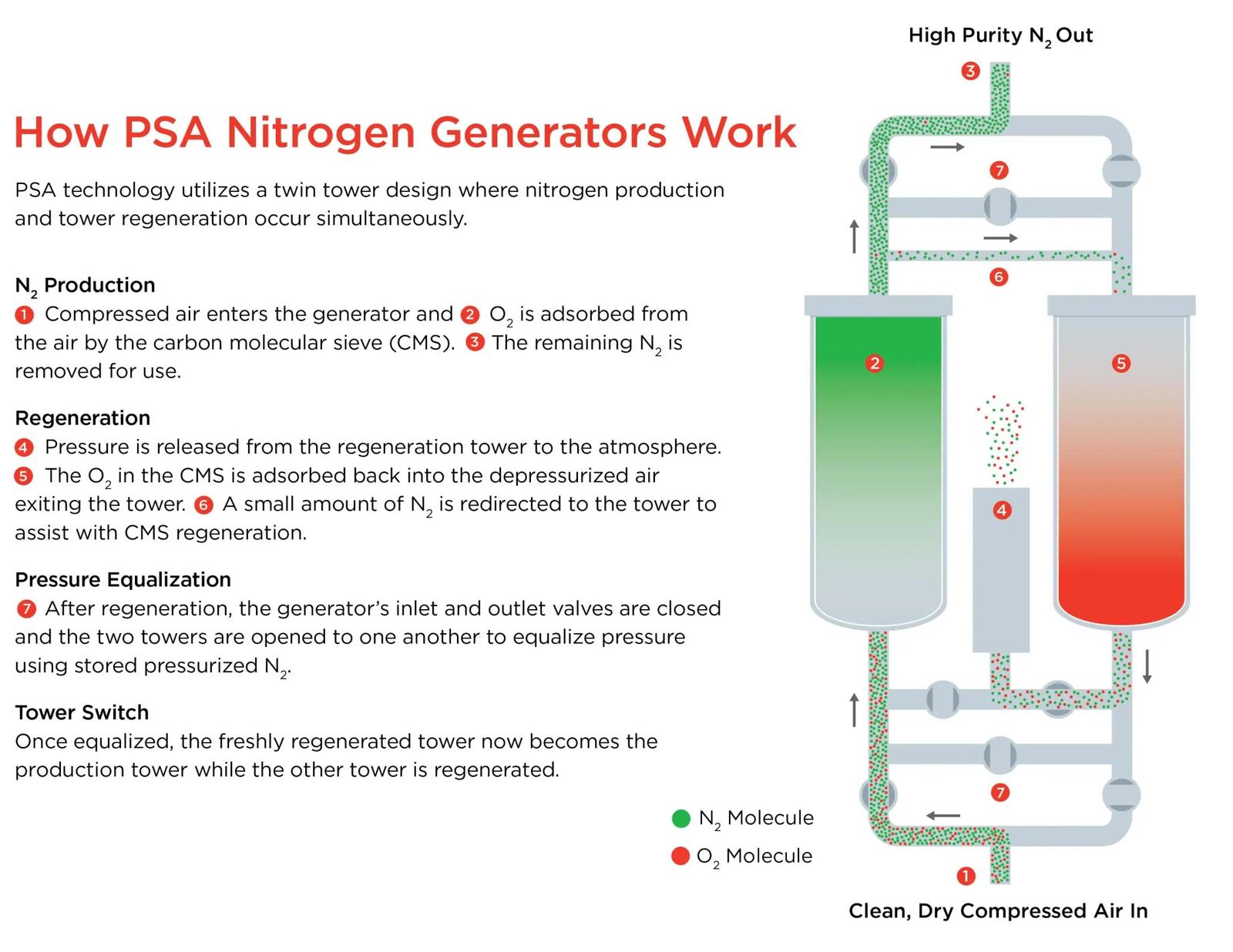

Product Drawing Interior LS Nitrogen Generator

Model	95%	99%	99.50%	99.90%	99.95%	99.99%	99.999%	Inlet NPT	Outlet NPT	Dimensions (LxWxH) in	Weight lb
NG14LS	11.2	6.3	5.5	4.6	3.6	2.7	1.7	3/4"	1/2"	35 x 26 x 80	702
NG21LS	14.8	8.2	7.3	6.0	4.7	3.6	2.3	3/4"	1/2"	35 x 26 x 80	738
NG26LS	21.6	12.1	10.6	8.8	6.9	5.2	3.3	3/4"	1/2"	35 x 26 x 100	866
NG32LS	26.7	14.9	13.1	10.8	8.6	6.4	4.1	3/4"	1/2"	35 x 26 x 100	998
NG41LS	33.0	18.4	16.2	13.4	10.6	8.0	5.0	1"	3/4"	35 x 30 x 80	1060
NG47LS	39.7	22.2	19.5	16.1	12.7	9.6	6.1	1"	3/4"	35 x 30 x 80	1194
NG59LS	46.6	26	22.9	18.9	14.9	11.2	7.1	1"	3/4"	35 x 30 x 80	1292
NG68LS	54.8	30.6	26.9	22.2	17.6	13.2	8.4	1"	3/4"	35 x 30 x 91	1443
NG76LS	60.8	34.0	29.9	24.7	19.5	14.7	9.3	1"	3/4"	35 x 37 x 85	1500
NG88LS	71.5	40.0	35.1	29.0	22.9	17.2	10.9	1"	3/4"	35 x 37 x 96	1630
NG100LS	83.6	46.7	41.0	33.9	26.8	20.2	12.8	1-1/2"	1"	35 x 39 x 85	1850
NG118LS	94.7	52.9	46.5	38.5	30.4	22.8	14.5	1-1/2"	1"	35 x 39 x 99	2025
NG132HS	112.1	62.6	55.1	45.5	35.9	27.0	17.1	1-1/2"	1"	64 x 34 x 116	3450
NG144HS	121.7	67.9	59.7	47.3	39.0	29.2	18.5	1-1/2"	1"	64 x 34 x 124	3610
NG159HS	134.1	74.8	65.7	48.8	43.0	32.1	20.4	1-1/2"	1"	64 x 34 x 134	3810
NG174HS	140.0	78.1	68.6	51.0	44.9	33.5	21.3	2"	1-1/2"	76 x 48 x 110	4330
NG191HS	153.3	85.5	75.1	55.8	48.2	36.7	23.3	2"	1-1/2"	76 x 48 x 110	4520
NG212HS	170.5	95.1	83.6	62.1	54.7	40.9	25.9	2"	1-1/2"	76 x 48 x 126	4750
NG232HS	187.7	104.7	92.0	68.4	60.2	45.0	28.6	2"	1-1/2"	76 x 48 x 135	4990
NG259HS	208.8	116.4	102.3	76.0	66.9	50.0	31.8	2"	1-1/2"	76 x 48 x 146	5280
NG285HS	229.3	127.9	112.4	83.5	73.5	54.9	34.9	2"	1-1/2"	76 x 48 x 119	6120
NG315HS	254.4	141.9	124.7	92.6	81.6	60.9	38.7	2"	1-1/2"	76 x 48 x 128	6430
NG347HS	279.5	155.9	137.0	101.7	89.6	67.0	42.5	2"	1-1/2"	76 x 48 x 137	6760
Air/N2 Ratio	1.9	2.4	2.6	3.1	3.4	4.2	5.6	--	--	--	--
