- Improved Efficiency and Air Flow: Airend features optimized rotor profile that delivers up to 8% improved efficiency and 13% greater airflow capacity.
- Remote Intelligent Control: XS-Series controller delivers increased control functionality through an intuitive user interface. The status of the compressor is continuously monitored and immediate action is taken if an abnormal operating condition occurs.
- Leak-free Design: V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals.
- Reduced Downtime: Progressive Adaptive Control (PAC™) monitors key operating parameters and continuously adapts to prevent unexpected downtime.
- Decrease Energy Use: NEMA Premium® efficiency motor delivers significant energy savings, and the variable speed drive (VSD) further decreases energy demand.
- Flexible Design Options: Air-cooled, water-cooled, and harsh environment options (low and high ambient, outside operation) are available to best match your operating requirements.
- Intelligent Uptime: With the On-board IoT Platform, experience the latest technology that delivers continuous real-time monitoring to enable maximum operational uptime.

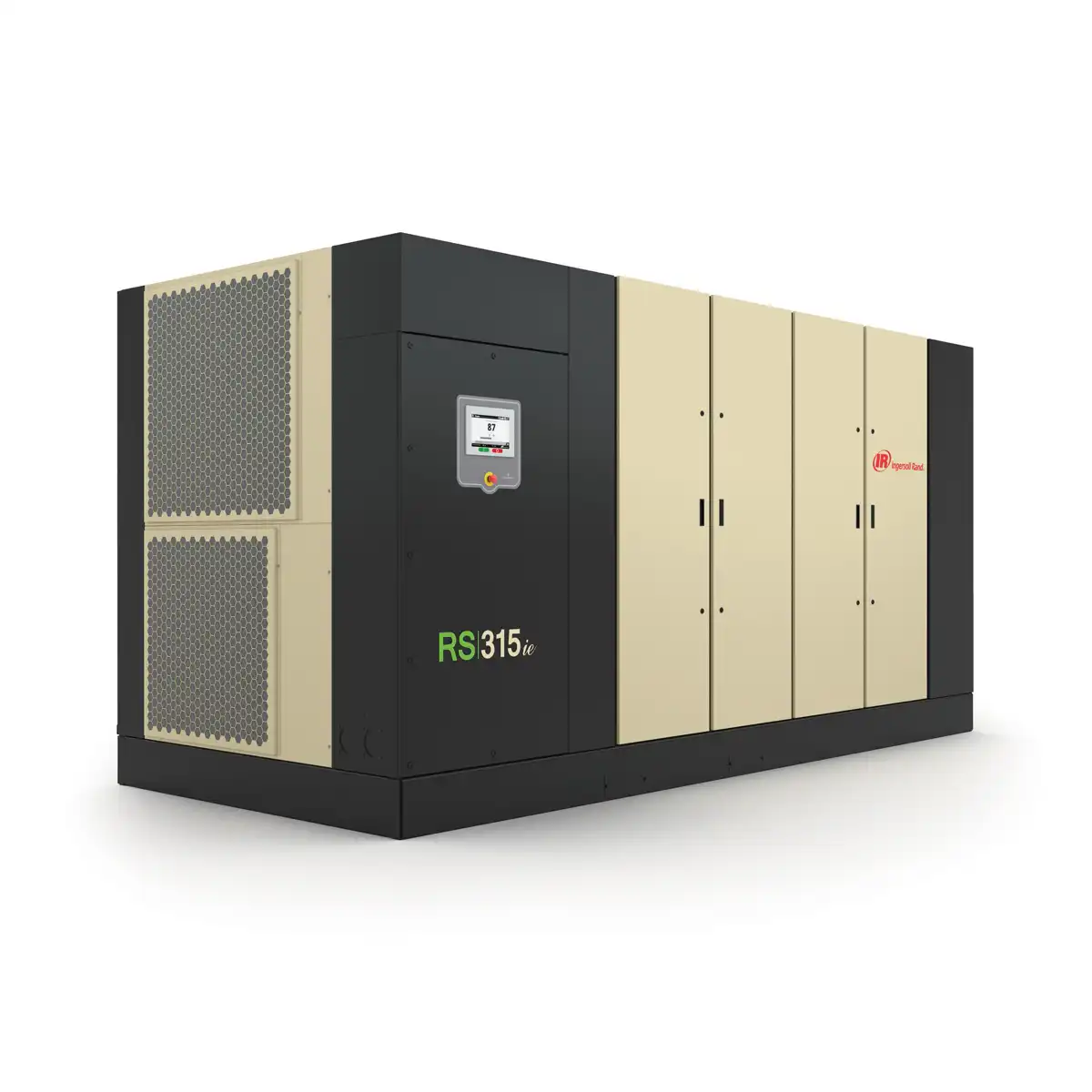

Engineered for efficiency and built for longevity, the Ingersoll Rand Next Generation RS Series 300-375 kW oil-flooded rotary screw air compressors are your reliable partner in maximizing productivity. Designed with both fixed and variable speed options, these compressors provide adaptable, energy-efficient performance tailored to your needs.
Explore the future of air compression with the Ingersoll Rand RS Series—where innovation meets reliability, and your business thrives.
Model | Nominal Power kW (HP) | Flow m3/min (cfm) | Max Pressure barg (psig) | Dimensions mm (LxWxH) (in) | Weight kg (lb) |
RS300IE-A125 | 298 (400) | 59.0 (2083) | 8.6 (125) | 5000, 2150, 2505 (196.8, 84.6, 98.6) | 8760 (19312) |
RS300IE-W125 | 298 (400) | 59.0 (2083) | 8.6 (125) | 5000, 2150, 2505 (196.8, 84.6, 98.6) | 8670 (19114) |
RS335IE-A125 | 336 (450) | 67.8 (2395) | 8.6 (125) | 5000, 2150, 2505 (196.8, 84.6, 98.6) | 8760 (19312) |
RS355IE-W125 | 336 (450) | 67.8 (2395) | 8.6 (125) | 5000, 2150, 2505 (196.8, 84.6, 98.6) | 8670 (19114) |
RS375IE-A125 | 373 (500) | 68.4 (2414) | 8.6 (125) | 5000, 2150, 2505 (196.8, 84.6, 98.6) | 8760 (19312) |
RS375IE-W125 | 373 (500) | 68.4 (2414) | 8.6 (125) | 5000, 2150, 2505 (196.8, 84.6, 98.6) | 8670 (19114) |
RS315NE-A | 315 (422) | 18.3-64.8 (646-2289) | 10.0 (145) | 5000, 2150, 2505 (196.8, 84.6, 98.6) | 9360 (20635) |
RS315NE-W | 315 (422) | 18.3-64.8 (646-2288) | 10.0 (145) | 5000, 2150, 2505 (196.8, 84.6, 98.6) | 9270 (20437) |
RS355NE-A | 355 (476) | 18.3-70.5 (646-2490) | 10.0 (145) | 5000, 2150, 2505 (196.8, 84.6, 98.6) | 9360 (20635) |
RS355NE-W | 355 (476) | 18.3-70.5 (646-2490) | 10.0 (145) | 5000, 2150, 2505 (196.8, 84.6, 98.6) | 9270 (20437) |
