- Efficient Design: Time-proven airends, a sequential cooling system, and an optional Energy Recovery System (ERS) significantly improves efficiency.
- Remote Intelligent Control: Xe-Series controller delivers increased control functionality through an intuitive user interface and remote access with any common, current web browser.
- Leak-free Design: V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals.
- Reduced Downtime: Progressive Adaptive Control (PAC™) monitors key operating parameters and continuously adapts to prevent unexpected downtime.
- Decrease Energy Use: NEMA Premium® efficiency motor delivers significant energy savings, and the variable speed drive (VSD) further decreases energy demand.
- Flexible Design Options: Air-cooled, water-cooled, and harsh environment options (low and high ambient, outside operation) are available to best match your operating requirements.
- Intelligent Uptime: Integrated with Helix™ Connected Platform, a state-of-the-art system that gives you real-time insights and data to keep your compressor operating at peak performance and reduce the risk of downtime.

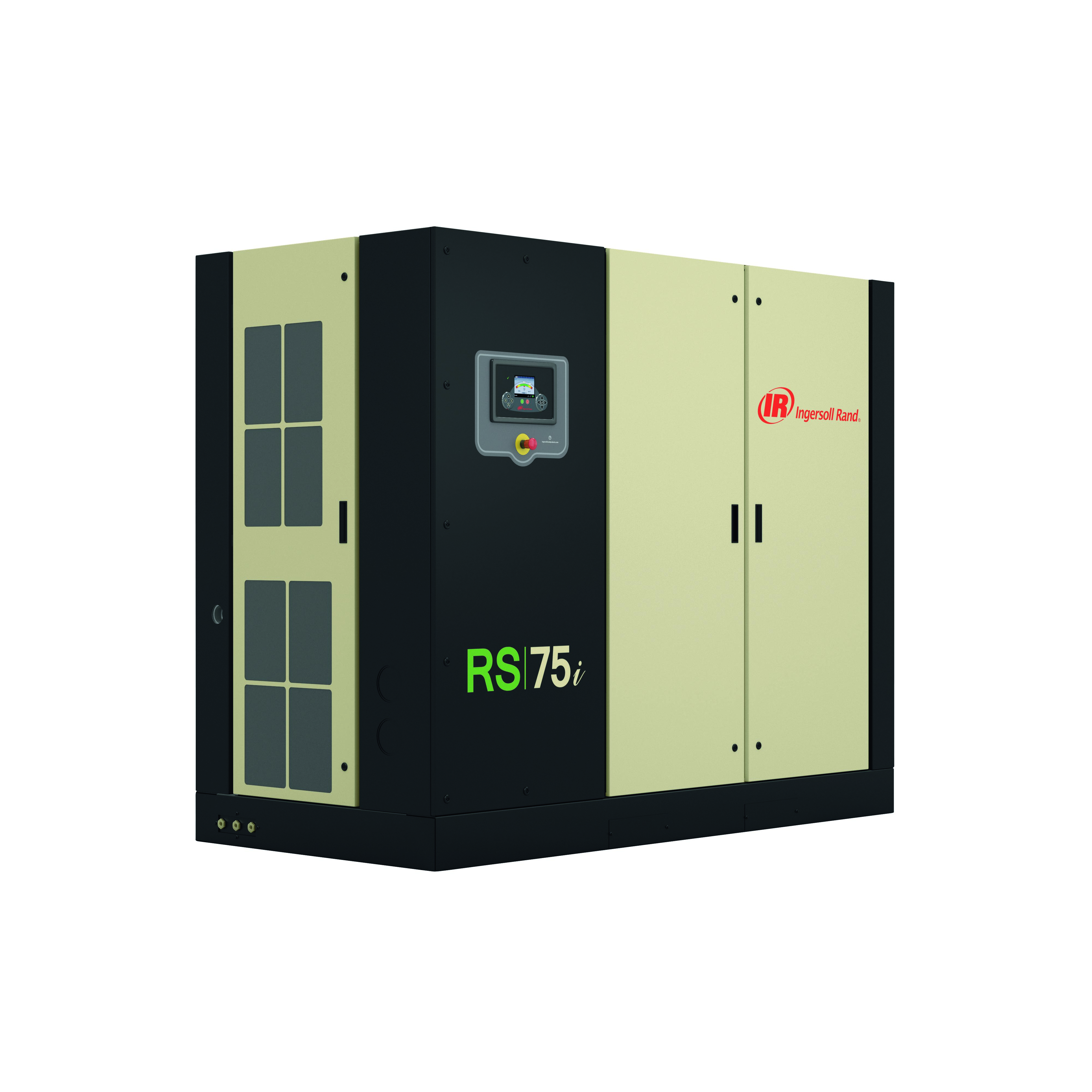

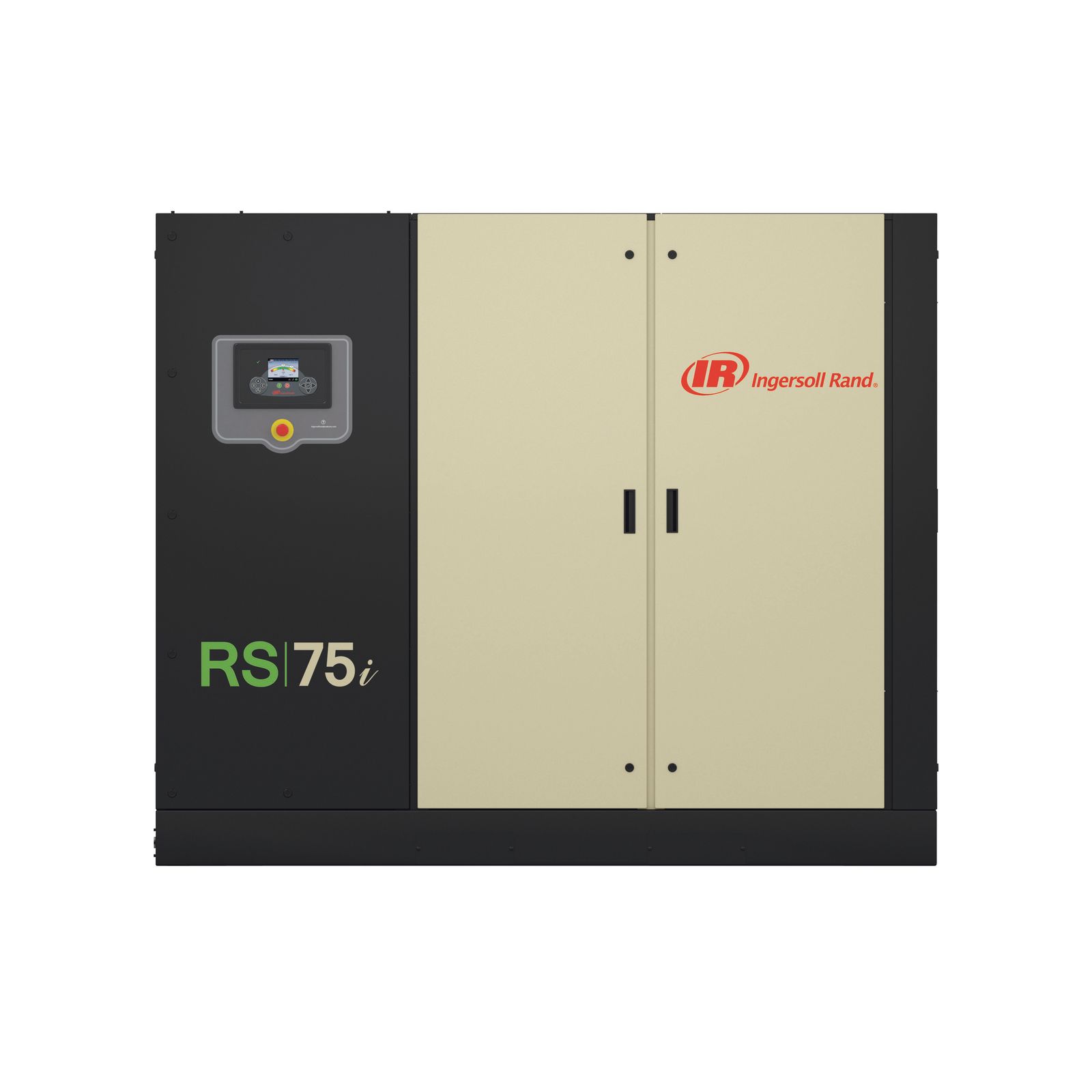

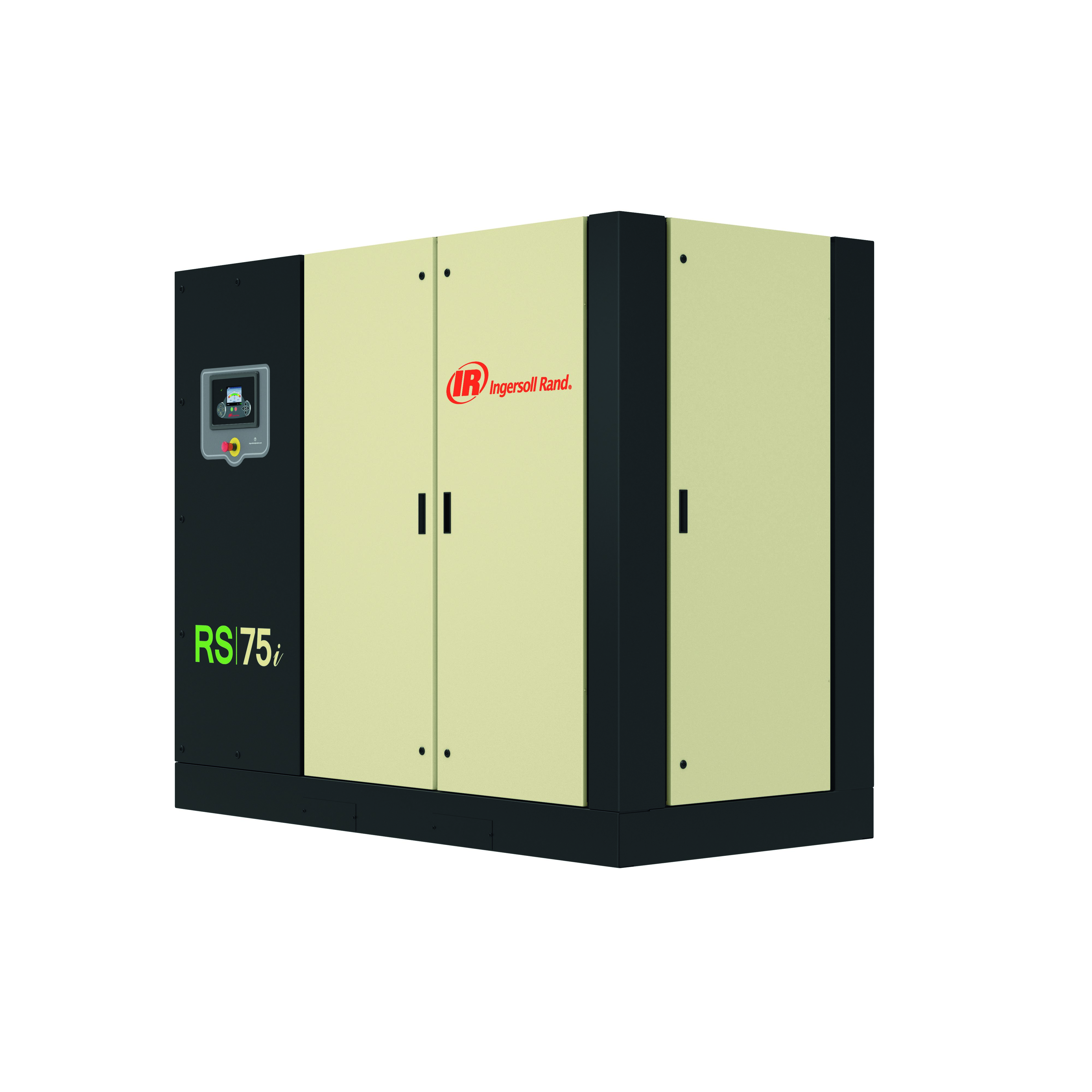

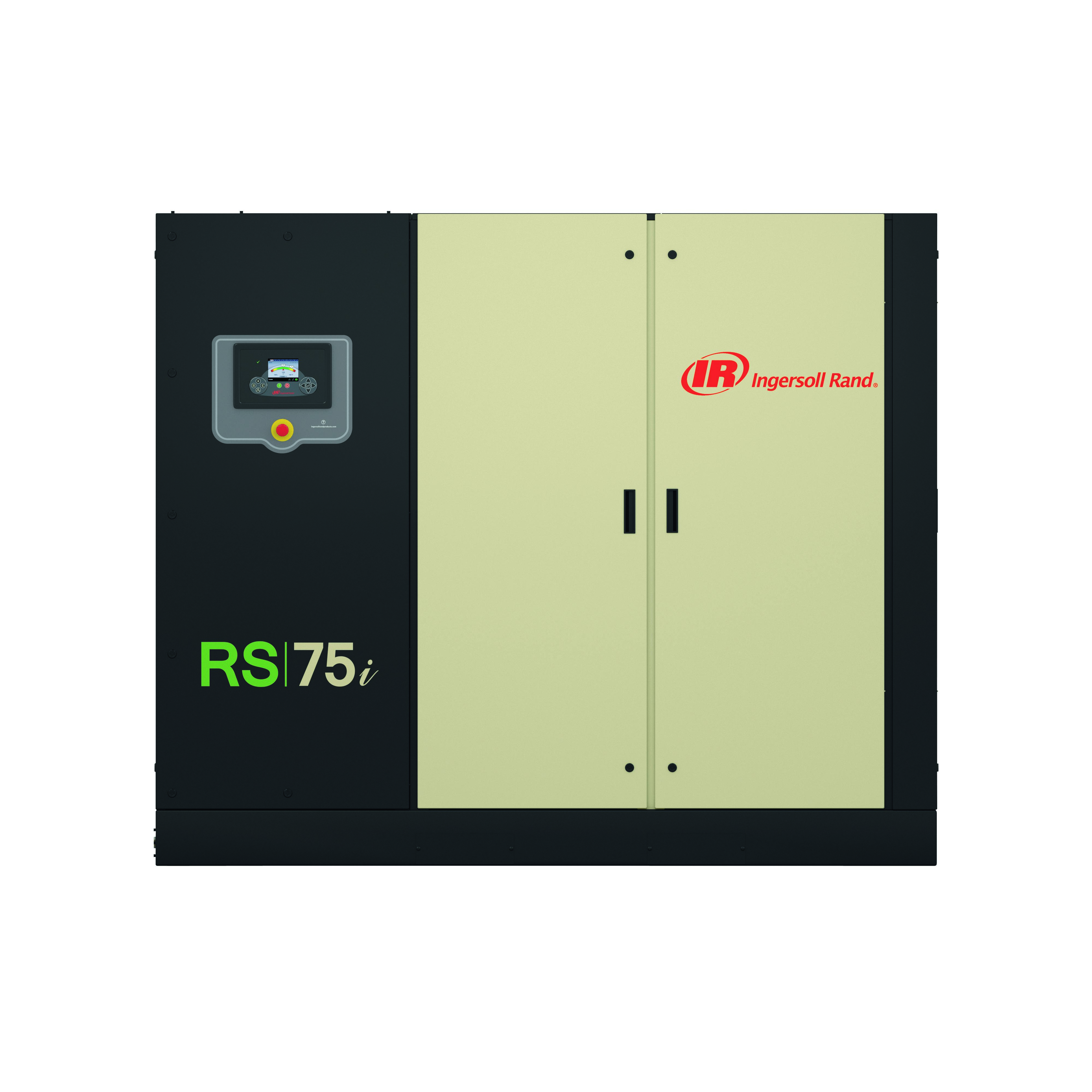

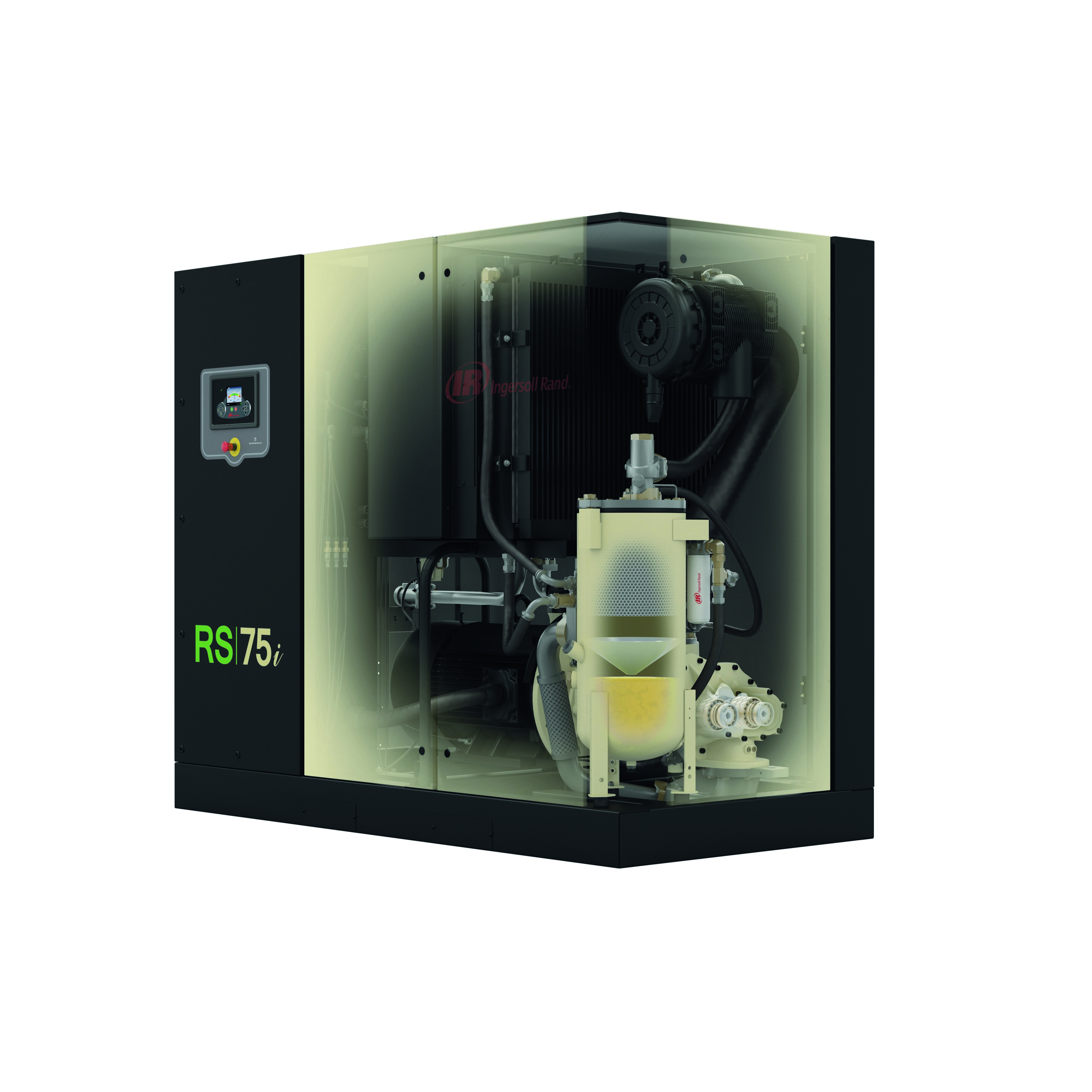

Engineered for efficiency and built for longevity, the Ingersoll Rand Next Generation RS Series 45-75 kW oil-flooded rotary screw air compressors are your reliable partner in maximizing productivity. These compressors are available in both fixed and variable speed and can be equipped with a Total Air System (TAS) for delivering clean, dry air in a single, integrated package.
Explore the future of air compression with the Ingersoll Rand RS Series—where innovation meets reliability, and your business thrives.
Model | Nominal Power kW (HP) | Flow m3/min (cfm) | Max Pressure barg (psig) | Dimensions mm (LxWxH) (in) | Weight kg (lb) |
RS45I-A125 | 45 (60) | 8.4 (298) | 8.6 (125) | 2433, 1250, 2032 (95.8, 49.2, 80) | 1841 (4059) |
RS45I-A118 TAS | 45 (60) | 8.4 (298) | 8.1 (118) | 2433, 1250, 2032 (95.8, 49.2, 80) | 1994 (4396) |
RS45N-A145 | 45 (60) | 2.0-8.5 (70-302) | 10.0 (145) | 2433, 1250, 2032 (95.8, 49.2, 80) | 1304 (2875) |
RS45N-A118 TAS | 45 (60) | 2.0-8.5 (71-302) | 9.3 (135) | 2433, 1250, 2032 (95.8, 49.2, 80) | 1457 (3212) |
RS55I-A125 | 56 (75) | 10.2 (360) | 8.6 (125) | 2433, 1250, 2032 (95.8, 49.2, 80) | 1936 (4268) |
RS55I-A118TAS | 56 (75) | 10.2 (360) | 8.1 (118) | 2433, 1250, 2032 (95.8, 49.2, 80) | 2089 (4605) |
RS55N-A125 | 56 (75) | 4.5-11.3 (160-400) | 10.0 (145) | 2433, 1250, 2032 (95.8, 49.2, 80) | 1700 (3748) |
RS55N-A118TAS | 56 (75) | 4.5-11.3 (161-400) | 9.3 (135) | 2433, 1250, 2032 (95.8, 49.2, 80) | 1853 (4085) |
RS75I-A125 | 75 (100) | 14.1 (499) | 8.6 (125) | 2433, 1250, 2032 (95.8, 49.2, 80) | 1962 (4325) |
RS75I-A118 TAS | 75 (100) | 14.1 (499) | 8.1 (118) | 2433, 1250, 2032 (95.8, 49.2, 80) | 2115 (4663) |
RS75N-A125 | 75 (100) | 4.5-14.9 (158-527) | 10.0 (145) | 2433, 1250, 2032 (95.8, 49.2, 80) | 1726 (3805) |
RS75N-A118 TAS | 75 (100) | 4.5-14.9 (160-527) | 9.3 (135) | 2433, 1250, 2032 (95.8, 49.2, 80) | 1879 (4142) |
