- Efficient Equipment Protection: High-efficiency and coalescing filters with particulate filtration to 0.5 ppm, > 3 microns at 100%, between 0.1 to 3 microns at 99.98% . Class 2: effective oil removal – 2 ppm in = 0.01 ppm out – 10 ppm in = 0.05 ppm out
- Lower Energy Use: Low pressure drop (around 35mb compare to convetional filters average of 448mb) design saves on energy costs and provides an economical drying solution for your compressed air needs
- Application Versatility: Effective on all common mineral and synthetic lubricants
- Class 2: effective oil removal – 2 ppm in = 0.01 ppm out – 10 ppm in = 0.05 ppm out
- Maximize Uptime: Enhanced process security that reduces the effects of catastrophic air/oil separator failures
- Extend Equipment Life: High-quality, maintenance-free filters extend element life up to 10 years
- Real Savings: Near Zero pressure drop and low-maintenance resulting in low energy costs

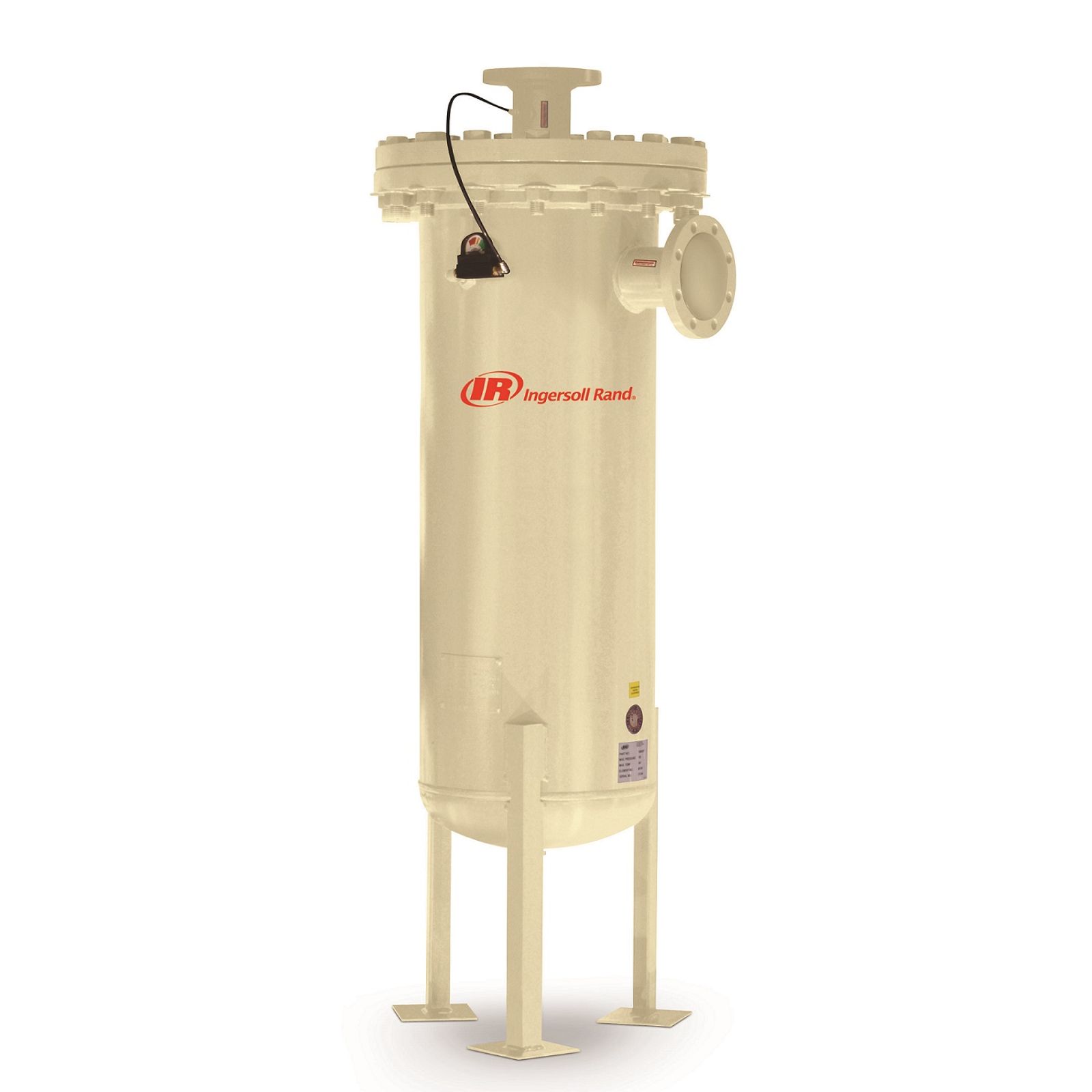

Ingersoll Rand’s NL Module high efficiency and coalescing filters provide compressed air with minimal pressure drop of 35mb for long-term cost savings. Superior air quality is achieved by effectively removing damaging oil and water aerosols before they flow through air system piping, process equipment and pneumatic valves and tools. These maintenance-free filters feature a high-quality design that extends element life up to 10 years and helps eliminate system downtime by reducing the effects of a catastrophic failure of the compressor’s air/oil separator.
HOW IT WORKS
Air contaminated with mineral or synthetic lubricant and water aerosols enters the NL Module housing...

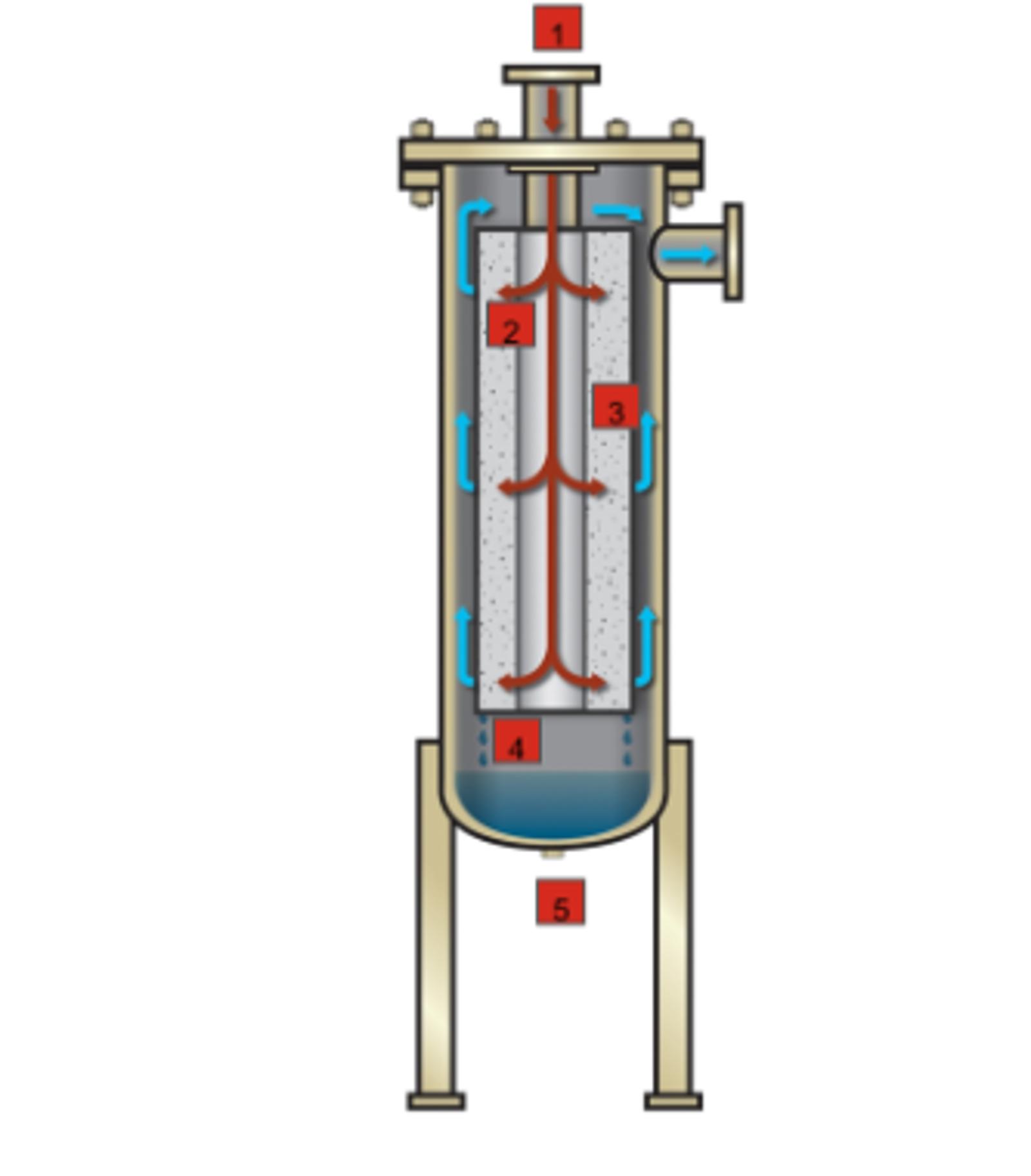

1 - Air flows horizontally through a deep filter bed
2 - Sub-micron particles collect on individual bed fibers and coalesce to form droplets
3 - As the droplets move through the filter bed, they become larger and their resulting weight forces them to drop to the bottom of the housing
4 - Low internal velocity prevents oil re-entrainment, while the large surface area keeps the pressure drop very low over the life of the element. The long residence time through the deep filter bed ensures the highest coalescing efficiency. Automatic or manual drains can be used to discharge lubricant and water that accumulate in the bottom of the housing
5 - Compressed air and drain hookups are all that’s required to integrate an NL Module into your compressed air system — no electricity is used. No loss drains are included with each model.
Model | Filter Model number (EMEIA) (CCN) | Flow capacity (Nm3/h) | Flow capacity (m3/min) | Connection Size (A),(B) (in) | Drain Port (C) (in) | Weight (kg) | Dimension (D) (mm) | Dimension (E) (mm) | Dimension (F) (mm) | Dimension (G) (mm) | Dimension (H) (mm) | Dimension Volume (i) |
F210INLM | 17933082 | 210 | 3.5 | 2" BSPP | 1" BSPP | 205 | 353 | 370 | 1075 | 330 | 180 | 57 |
F430INLM | 17933083 | 430 | 7.2 | 2" BSPP | 1" BSPP | 205 | 353 | 370 | 1075 | 330 | 180 | 57 |
F850INLM | 17933084 | 850 | 14.2 | DN 80 PN16 | 1" BSPP | 234 | 353 | 367 | 1736 | 330 | 180 | 114 |
F1360INLM | 17933085 | 1360 | 22.7 | DN 80 PN16 | 1" BSPP | 239 | 353 | 367 | 1736 | 330 | 180 | 114 |
F1870INLM | 17933087 | 1870 | 31.2 | DN 80 PN16 | 1" BSPP | 297 | 397 | 394 | 1837 | 355 | 185 | 160 |
F2550INLM | 17933088 | 2550 | 42.5 | DN 100 PN16 | 1" BSPP | 349 | 448 | 394 | 1840 | 381 | 190 | 205 |
F3220INLM | 17933089 | 3220 | 53.7 | DN 100 PN16 | 1" BSPP | 551 | 601 | 434 | 1924 | 457 | 210 | 380 |
F4070INLM | 17933090 | 4070 | 67.8 | DN 100 PN16 | 1" BSPP | 560 | 601 | 434 | 1924 | 457 | 210 | 380 |
