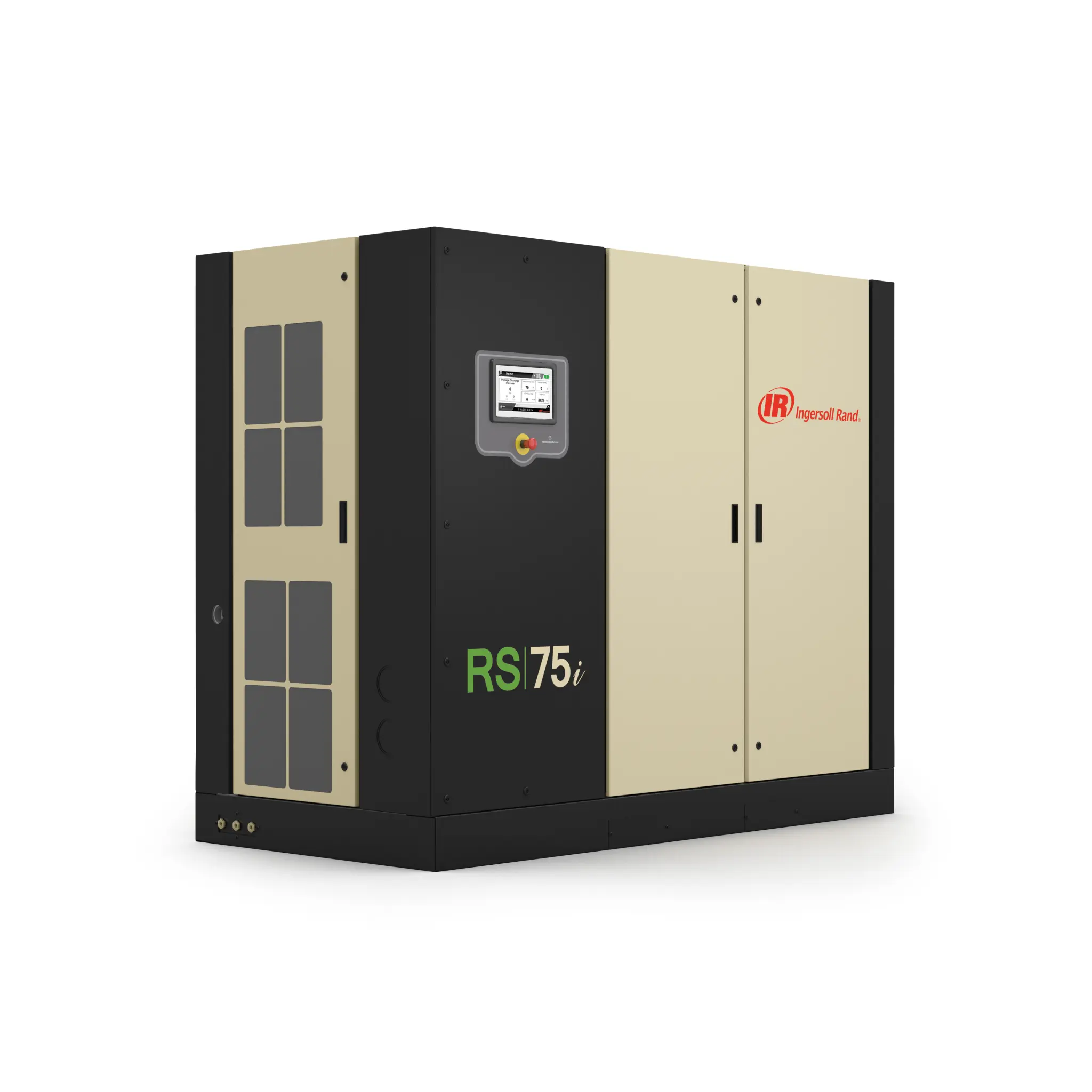

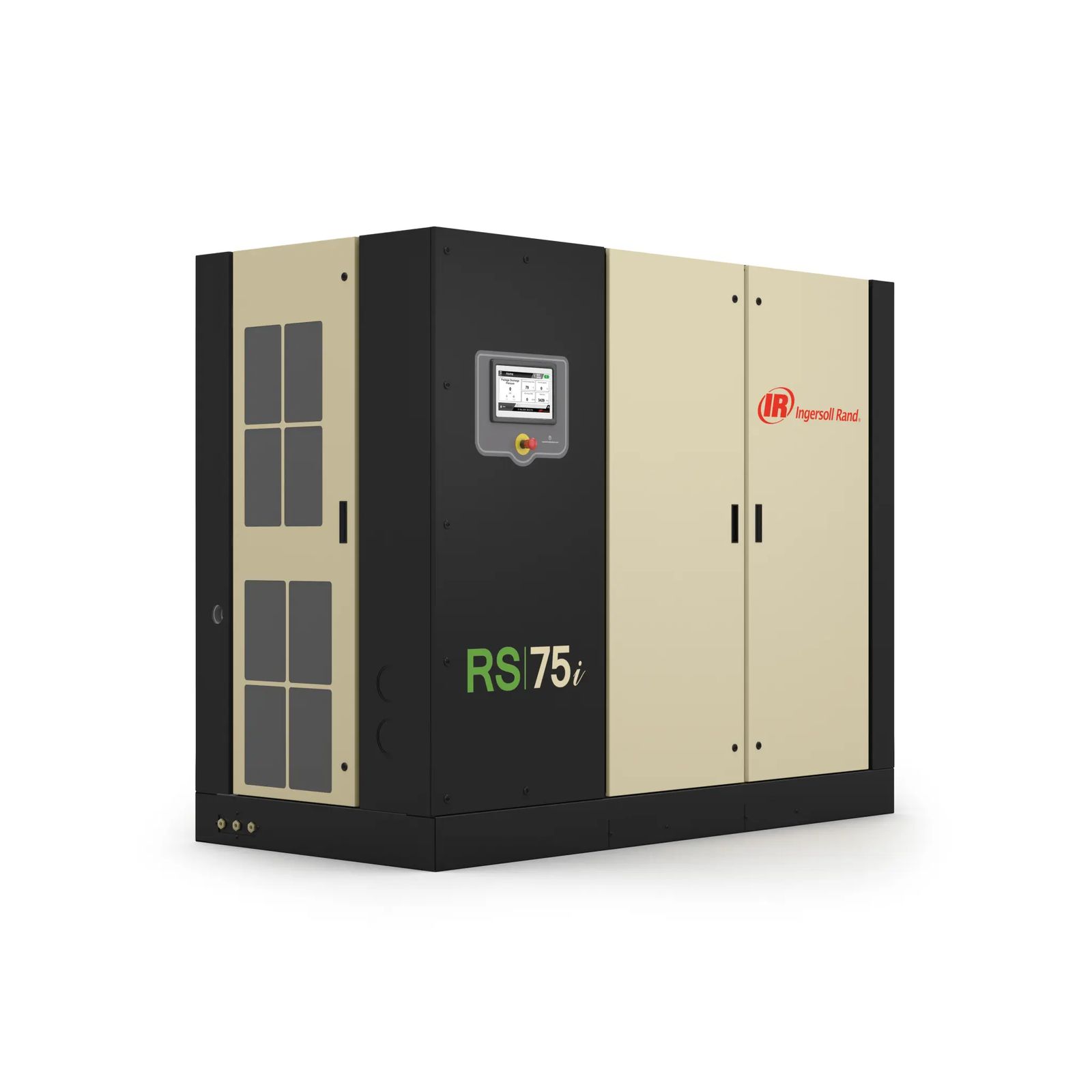

Next Generation R-Series 45–75 kW VSD

Ingersoll Rand works to keep you ahead of your competition with Next Generation R-Series air compressors that boost productivity, lower operating expenses and extend equipment life. And with a variable speed drive (VSD), the compressor automatically adjusts its compressed air output to achieve the highest efficiency for your operation, minimizing energy use at any load. Next Generation R-Series air compressors. The intelligence you need—to win.

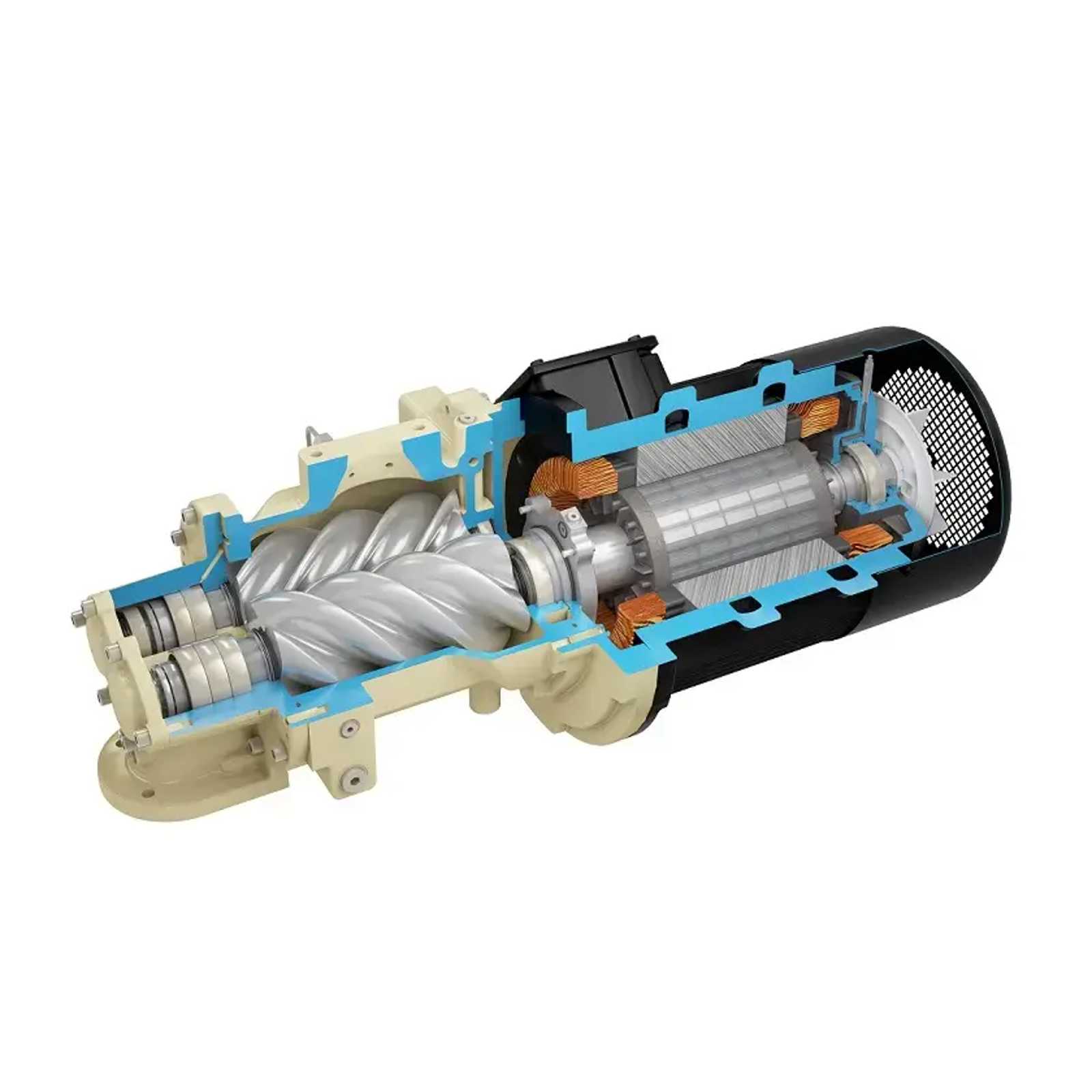

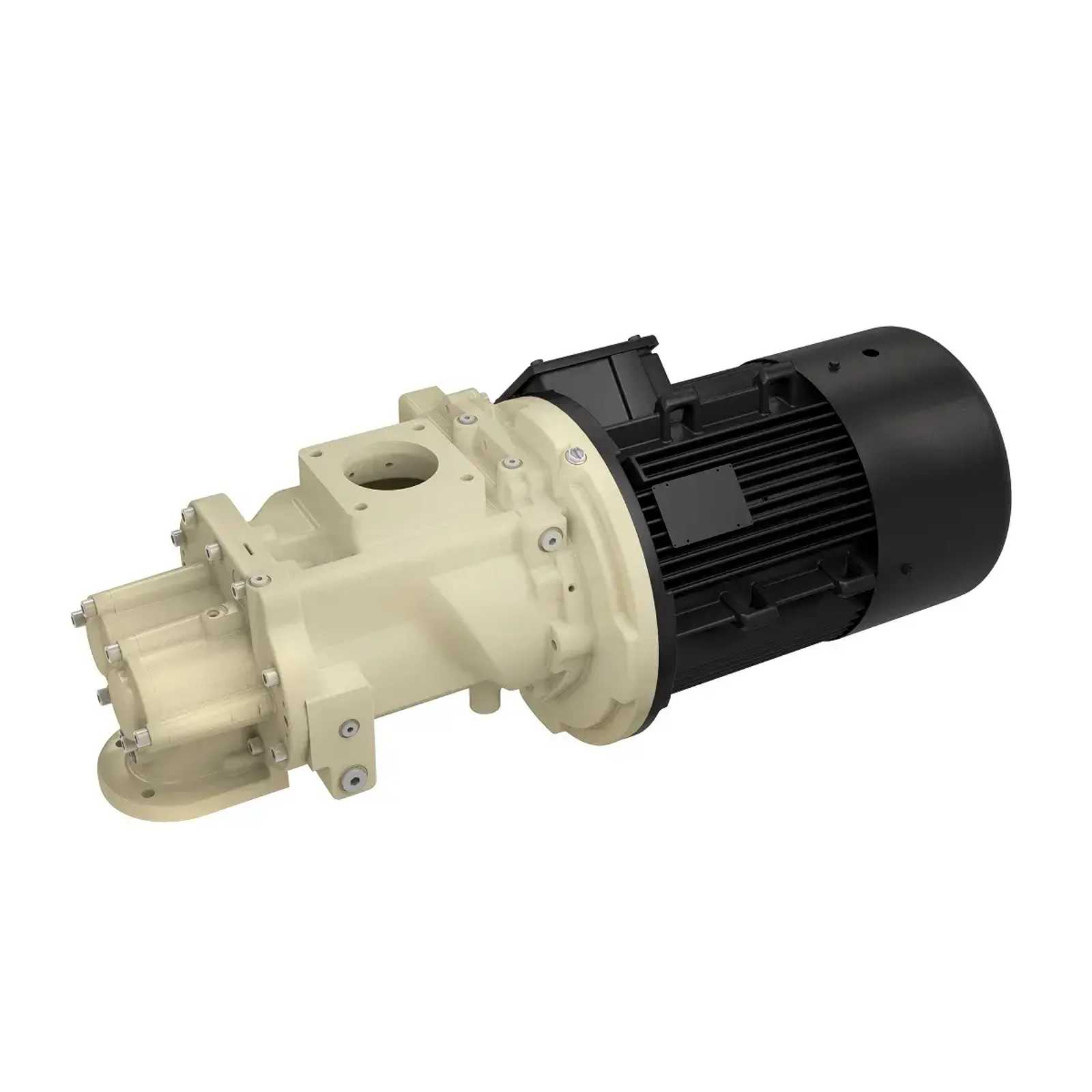

Improved Efficiency and Air Flow: State-of-the-art airend features optimized rotor profile that delivers up to 16% improved efficiency and 15% greater airflow capacity

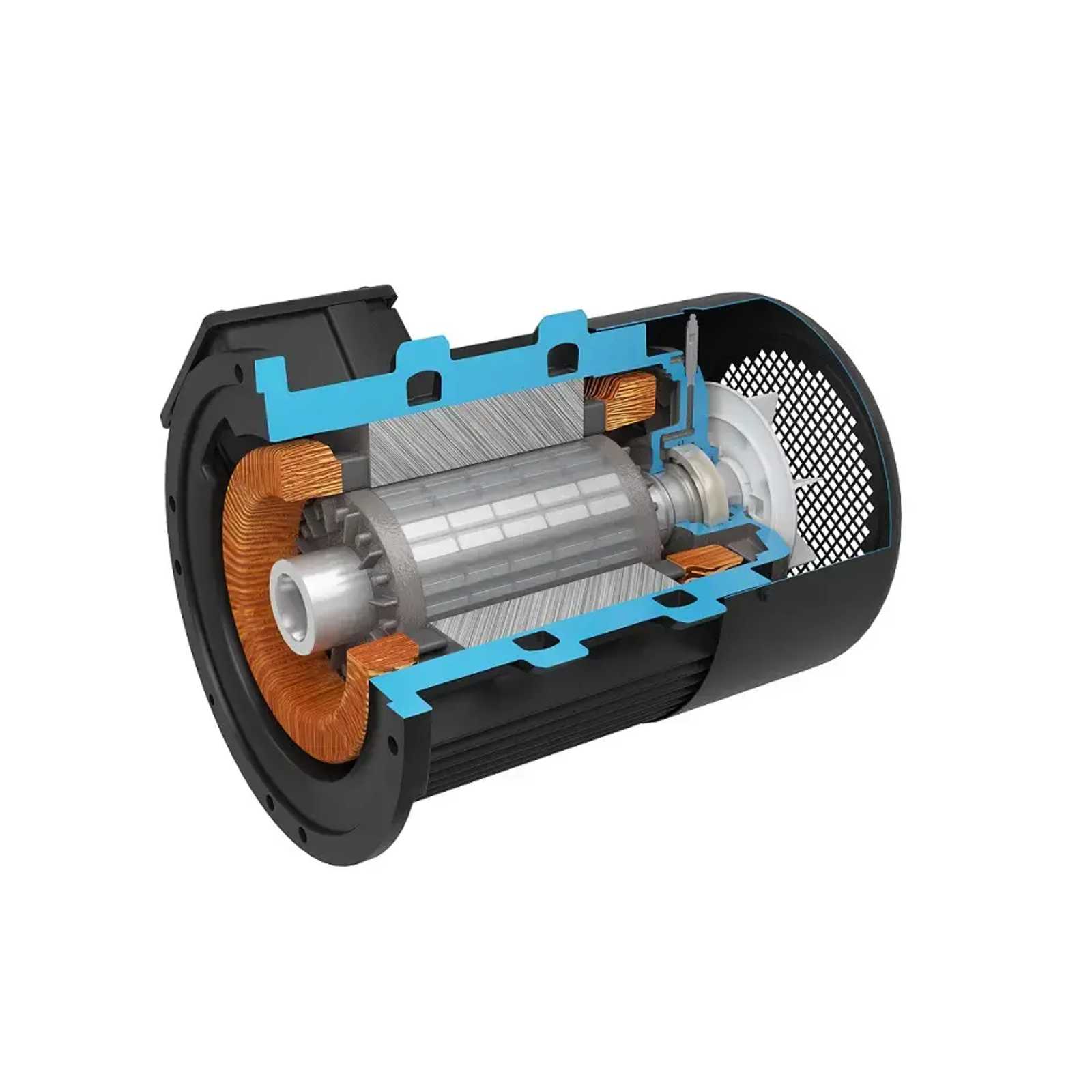

Decreased Energy Use: IE5 Ultra Premium® efficiency motor with Hybrid Reluctance Motor (HRM) technology paired with a variable speed drive (VSD) to deliver significant energy savings

Remote Intelligent Control: XS-Series controllers deliver increased control functionality through an intuitive user interface, as well as remote access with any common, current web browser

Leak-free Design: V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals

Reduced Downtime: Progressive Adaptive Control (PAC™) monitors key operating parameters and continuously adapts to prevent unexpected downtime

Optional Total Air System (TAS): Clean, dry air in a single package that minimizes installation costs, space and features improved ISO air quality

Intelligent Uptime: Integrated with Helix™ Connected Platform, a state-of-the-art system that gives you real-time insights and data to keep your compressor operating at peak performance and reduce the risk of downtime.





Model

MAX PRESSURE PSIG (BARG)

NOMINAL POWER KW (HP)

CAPACITY-FAD M3/MIN (CFM)

L X W X H MM (IN)

WEIGHT KG (LB) AIR-COOLED

WEIGHT KG (LB) WATER-COOLED

RS45n

145 (10)

45 (60)

8.5 (302)

2433 X 1250 X 2032 (95.8X49.2X80)

1304 (2875)

1209 (2665)

RS55n

145 (10)

55 (75)

11.2 (397)

2433 X 1250 X 2032 (95.8X49.2X80)

1700 (3748)

1631 (3596)

RS75n

145 (10)

75 (100)

14.9 (531)

2433 X 1250 X 2032 (95.8X49.2X80)

1726 (3805)

1631 (3596)

RS45n TAS

138 (9.5)

45 (60)

8.5 (302)

2433 X 1250 X 2032 (95.8X49.2X80)

1457 (3212)

1362 (3003)

RS55n TAS

138 (9.5)

55 (75)

11.2 (397)

2433 X 1250 X 2032 (95.8X49.2X80)

1853 (4085)

1784 (3933)

RS75n TAS

138 (9.5)

75 (100)

14.9 (531)

2433 X 1250 X 2032 (95.8X49.2X80)

1879 (4142)

1784 (3933)

RS45nx

145 (10)

45 (60)

7.6 (268)

1947 X 1152 X 1609 (76.7X45.4X63.3)

1060 (2337)

N/A

RS45nx TAS

138 (9.5)

45 (60)

7.6 (268)

1947 X 1152 X 1609 (76.7X45.4X63.3)

1156 (2549)

N/A
