Air / Water-Cooled Shell & Tube Aftercoolers

Air / Water-Cooled Shell & Tube Aftercoolers

Quality Heat Exchangers for Compressed Air and Gas

WA Series

Flow rate: 2.7-633.3 m3/min

Air/Water-Cooled Aftercoolers

Water-cooled shell and tube aftercoolers can be used to cool compressed air easily and effectively. The counter-current heat exchanger allows the compressed air temperature to be reduced to the required conditions, optimising the downstream process. This is the case for adsorption dryers which prefer moderate inlet temperatures achievable with the WA. The air temperature obtained is slightly higher than the water temperature. Cooling compressed air, which is in most cases humid, leads to the formation of condensate, which can be separated by a condensate separator installed at the heat exchanger outlet. Separators included in aftercoolers up to WA350, have an aluminium body and cyclone cartridge and are equipped with an automatic floatcontrolled condensate drain. Separators from A450 onwards have a carbon steel body and a cyclone separator with manual drain. Reductions for connection to the compressed air system are optional.

Design Conditions

  • Maximum compressed air inlet temperature: 200°C
  • Maximum compressed air pressure: 16 bar
  • Maximum water inlet temperature: 90°C
  • Maximum water pressure: 10 bar
  • Minimum ambient temperature: 1°C

Operating principle

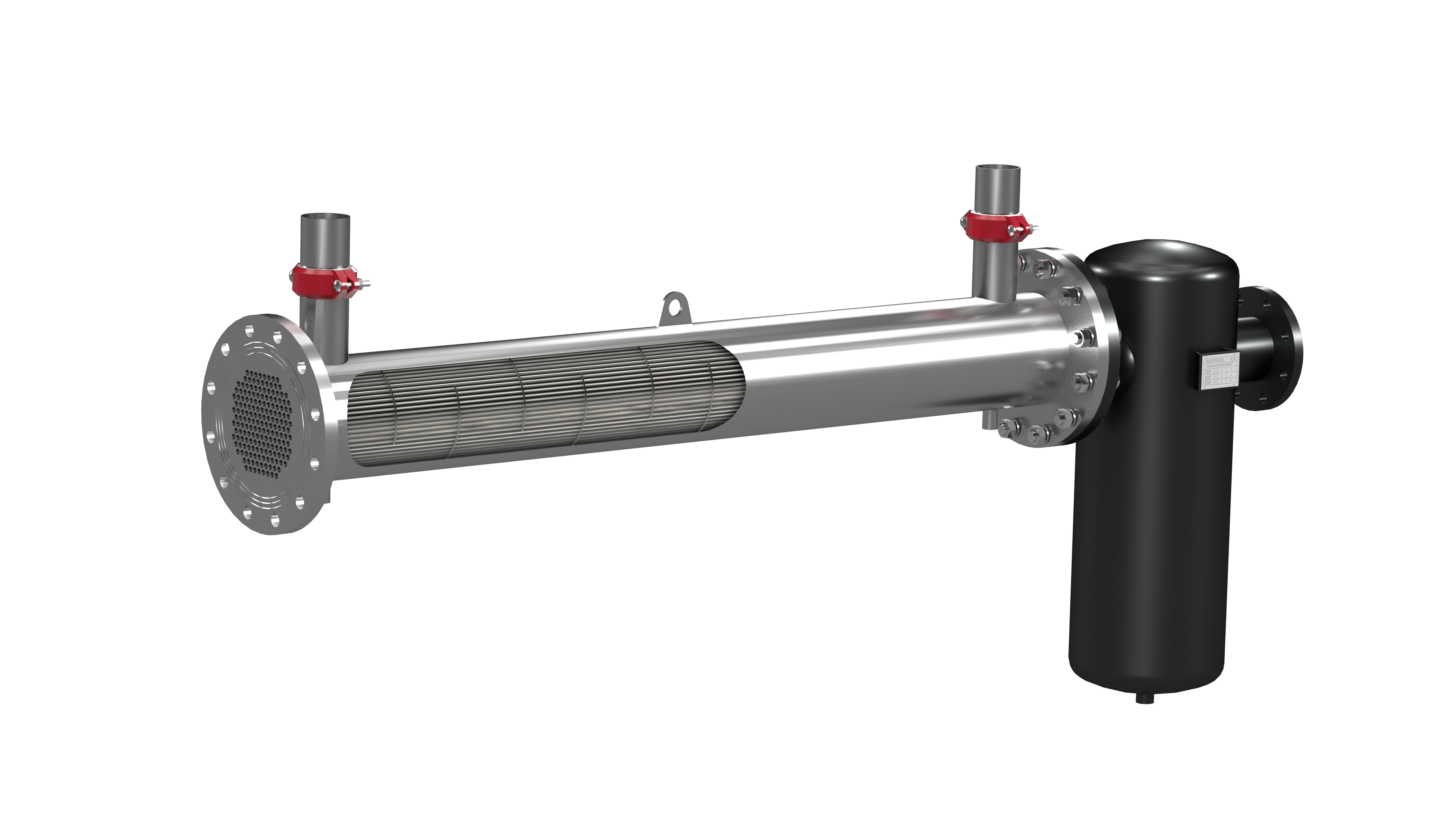

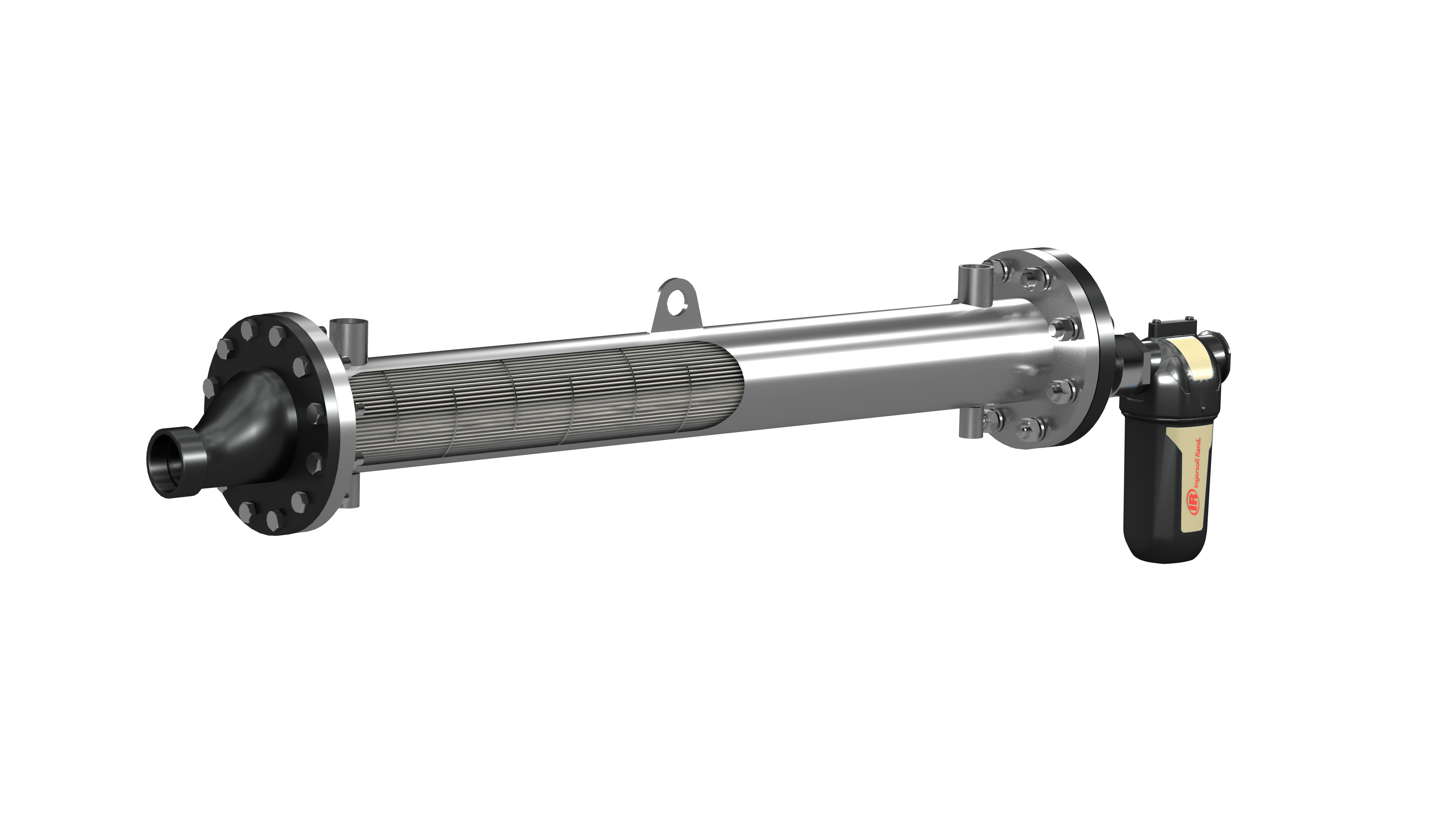

In the heat exchanger, the compressed air flow passes through stainless steel pipes immersed in cold water, on the shell side. The cold water flow proceeds in countercurrent and is diverted by the diaphragms used to increase the heat exchange coefficient. The WA range, with an appropriate exchanger sizing, has limited pressure drops on the compressed air side, and simultaneous excellent thermal performance. The cyclone separator, installed at the tube outlet, provides a swirling motion that separates the condensate from the compressed air, conveying it by gravity towards the drain.

WA27 to WA350

Models

Max Air Flow
m3/h

Air Inlet Connections
BSP / DN

Air Outlet Connections
BSP / DN

Water Connections
BSP / DN

Drain Connection
BSP

Dimensions [mm]

Weight [kg]

A

A1

A2

B

D

E

L

H

WA

WAV

WA_S

WAV_S

WA27

160

DN100

1"1/2 BSPT

1" BSP

1/4" BSP

85

915

1000

356

114,3

548

1278

1555

34

52

34

52

WA42

250

DN100

1"1/2 BSPT

1" BSP

1/4" BSP

85

1065

1150

356

114,3

548

1433

1715

40

55

40

55

WA75

450

DN100

1"1/2 BSPT

1" BSP

1/4" BSP

85

1215

1300

357

114,3

548

1583

1865

45

58

45

58

WA125

750

DN100

2" BSPT

DN40

1/4" BSP

92

1300

1500

474

114,3

595

1831

2164

47

60

47

60

WA160

1000

DN125

3" BSPT

DN40

1/4" BSP

100

1400

1500

700

139,7

730

1929

2413

65

85

65

85

WA270

1600

DN125

3" BSPT

DN50

1/4" BSP

105

1445

1550

700

139,7

730

1979

2463

71

88

71

88

WA350

2100

DN150

3" BSPT

DN65

1/4" BSP

112

1488

1600

700

168,3

816

2044

2571

95

120

95

120

WA450 to WA6300

Models

Max Air Flow
m3/h

Air Inlet Connections
BSP / DN

Air Outlet Connections
BSP / DN

Water Connections
BSP / DN

Drain Connection
BSP

Dimensions [mm]

Weight [kg]

A

A1

A2

B

D

E

L

H

A

AV

A_S

AV_S

A450

2700

DN200

DN100

DN65

3/4" BSP

112

1488

1600

840

193,7

1005

2120

2620

105

145

105

145

A560

3400

DN200

DN100

DN80

3/4" BSP

112

1475

1600

840

219,1

1005

2120

2620

170

210

170

210

A800

4800

DN250

DN150

DN100

3/4" BSP

137

1263

1400

995

273

1169

1975

2650

250

310

250

310

A1000

6200

DN250

DN150

DN100

3/4" BSP

137

1262

1400

1014

273

1239

2045

2665

270

330

270

330

A1250

7500

DN250

DN150

DN100

1" BSP

138

1513

1650

1049

273

1169

2365

2900

310

370

310

370

A1830

11000

DN300

DN200

DN125

1" BSP

150

1500

1650

1258

323,9

1462

2415

3175

445

535

445

535

A2500

15000

DN400

DN250

DN150

1-1/2" BSP

200

1350

1553

1463

403,4

1895

2540

3400

650

820

650

820

A3800

23000

DN450

DN250

DN200

1-1/2" BSP

250

1350

1600

1689

457,2

2131

2720

3725

875

1100

875

1100

A5100

31000

DN500

DN300

DN200

2" BSP

250

1500

1750

1961

508

2477

3100

4155

1510

1825

1510

1825

A6300

38000

DN600

DN350

DN200

2" BSP

250

1500

1750

2041

609,6

2834

3235

4415

1625

2120

1625

2120

Performances & specifications: +/- 5%

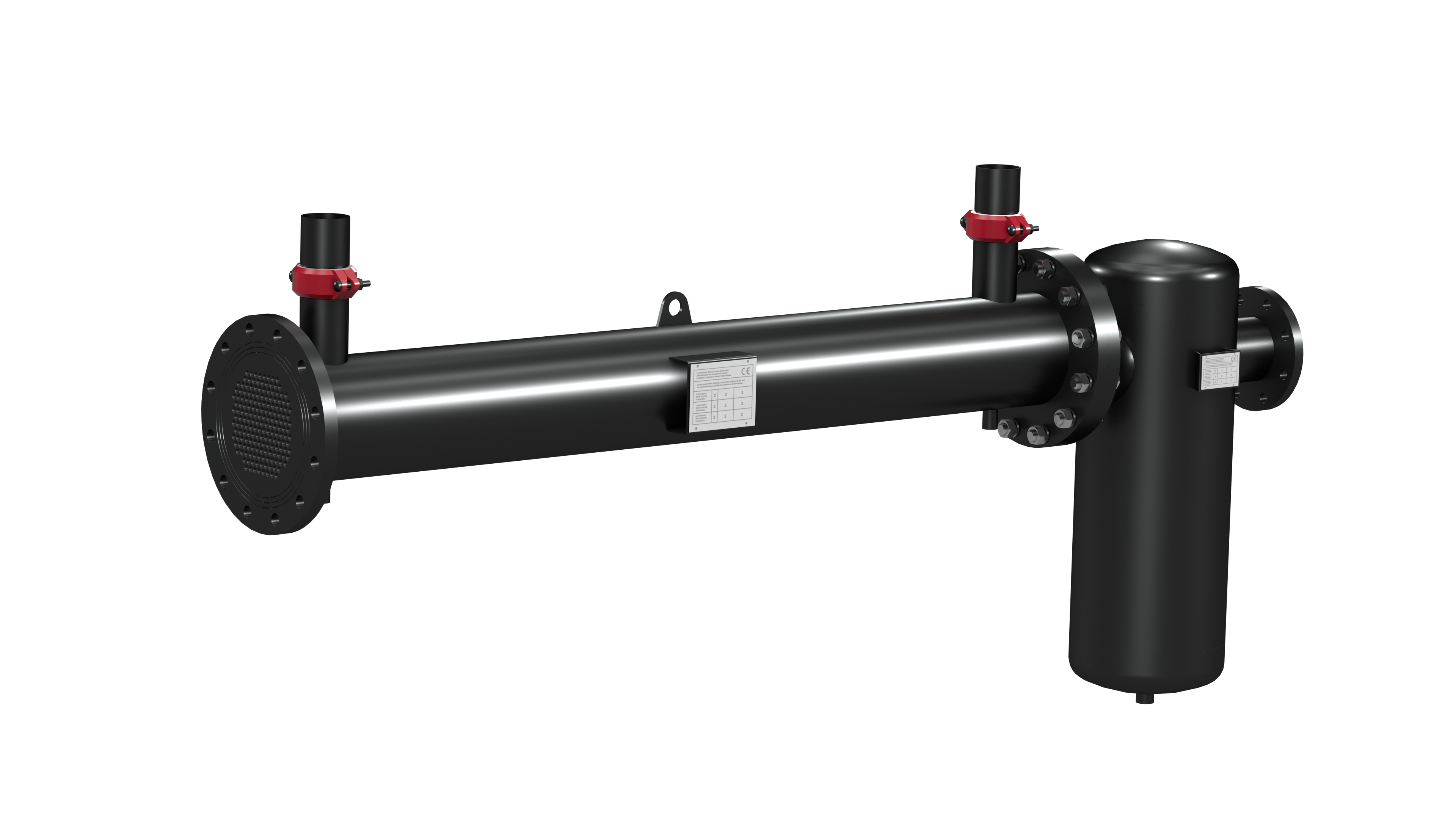

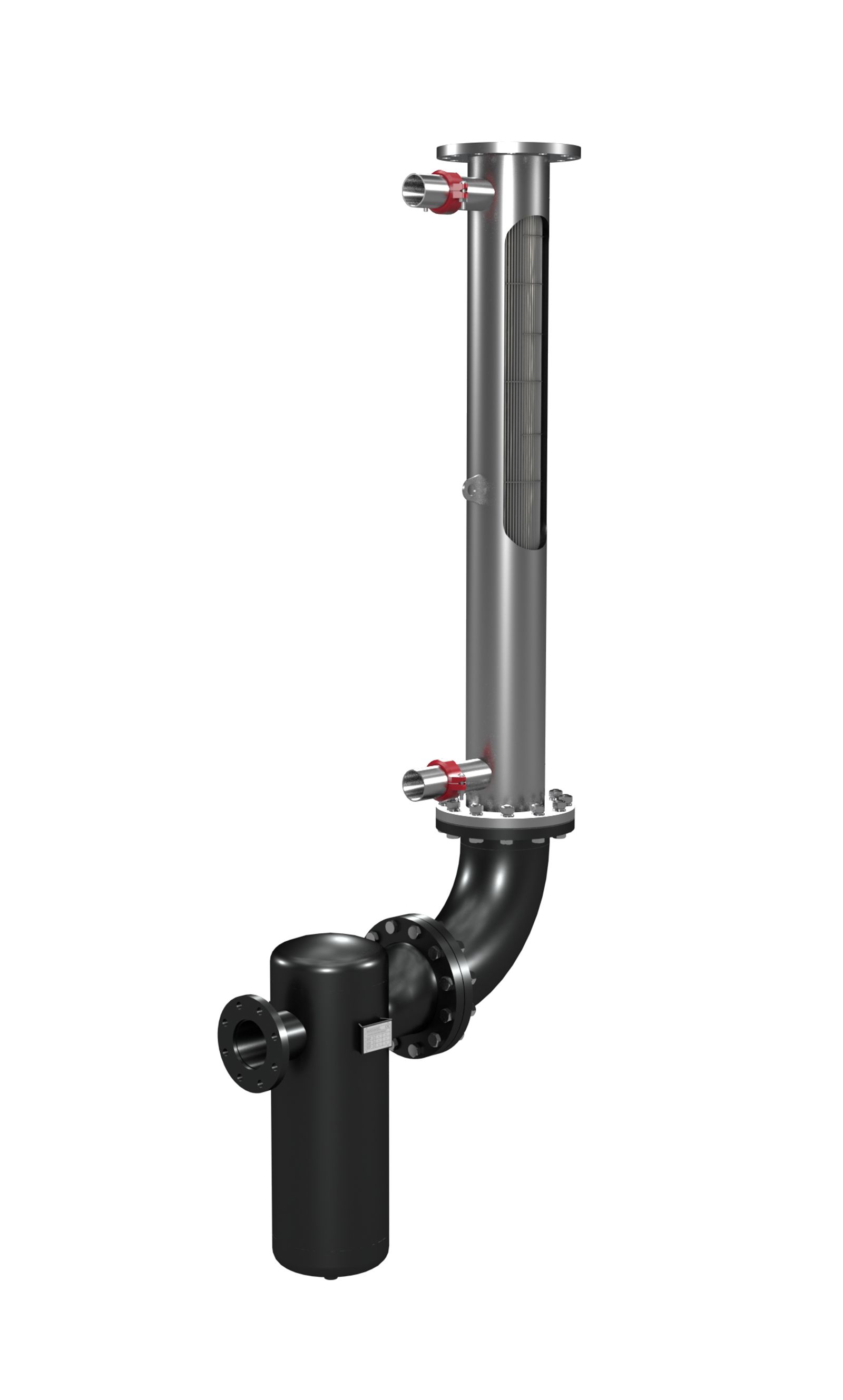

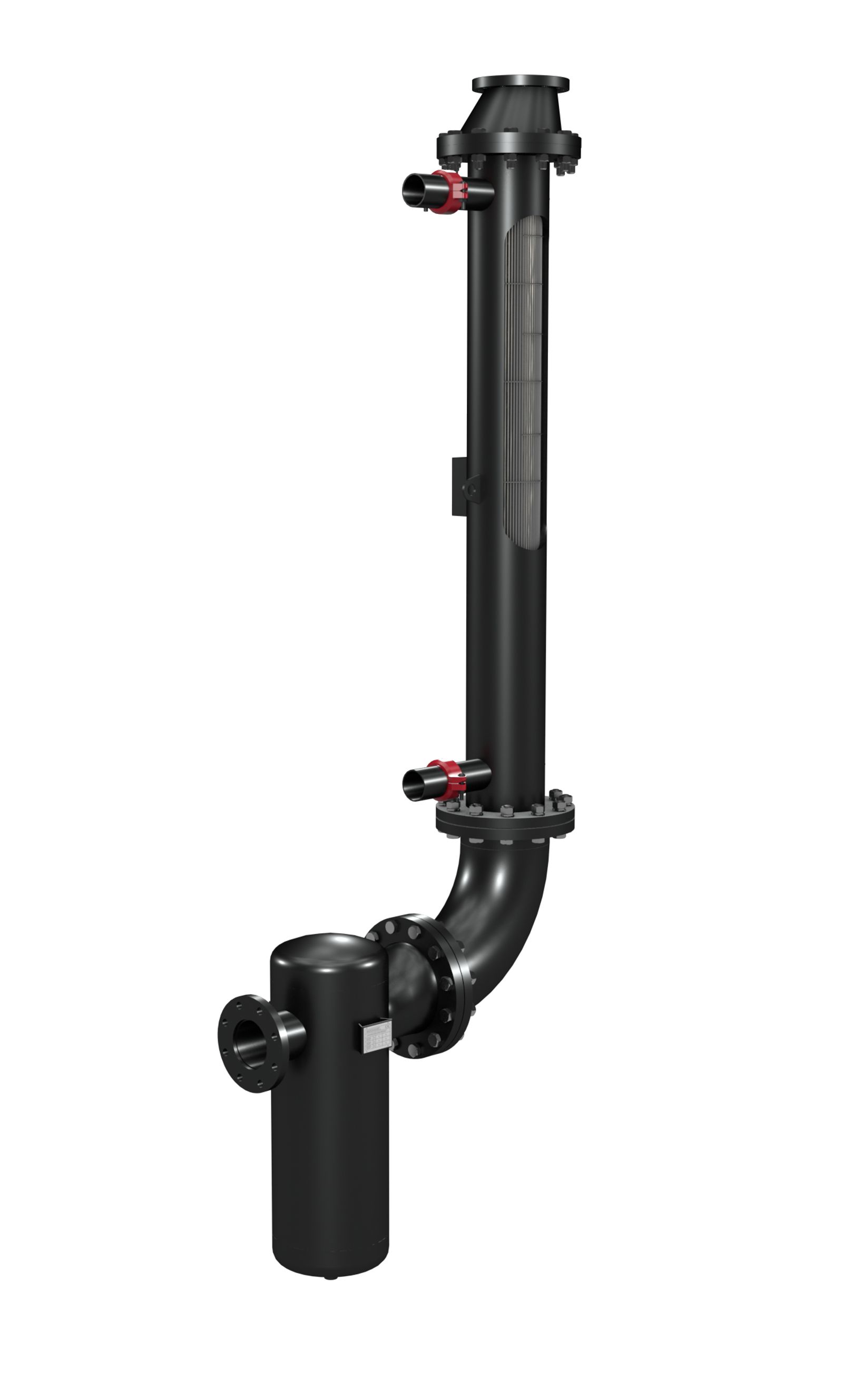

WA = Horizontal – Painted. WAV = Vertical – Painted. WA_S = Horizontal – Stainless Steel. WAV_S = Vertical – Stainless Steel.

Performance referred to: Compressed air inlet temperature 120°C; compressed air inlet pressure 7 barg; water inlet temperature 15°C; compressed air outlet temperature 35°C.

Design conditions: maximum compressed air inlet temperature 200°C maximum compressed air pressure 16 barg; maximum water inlet temperature 90°C; maximum water pressure 10 bar; minimum ambient temperature 1°C.
