- Long-Life: Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use
- Maximum Power and Flexibility: 100% continuous duty, up to 5 hp two-stage air compressor, 175 psig maximum operating pressure and a 60 or 80 gallon ASME receiver tank provide plenty of punch for the most demanding applications
- Easy to Service: Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service
- Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between changeouts, it performs four times longer than petroleum-based lubricants

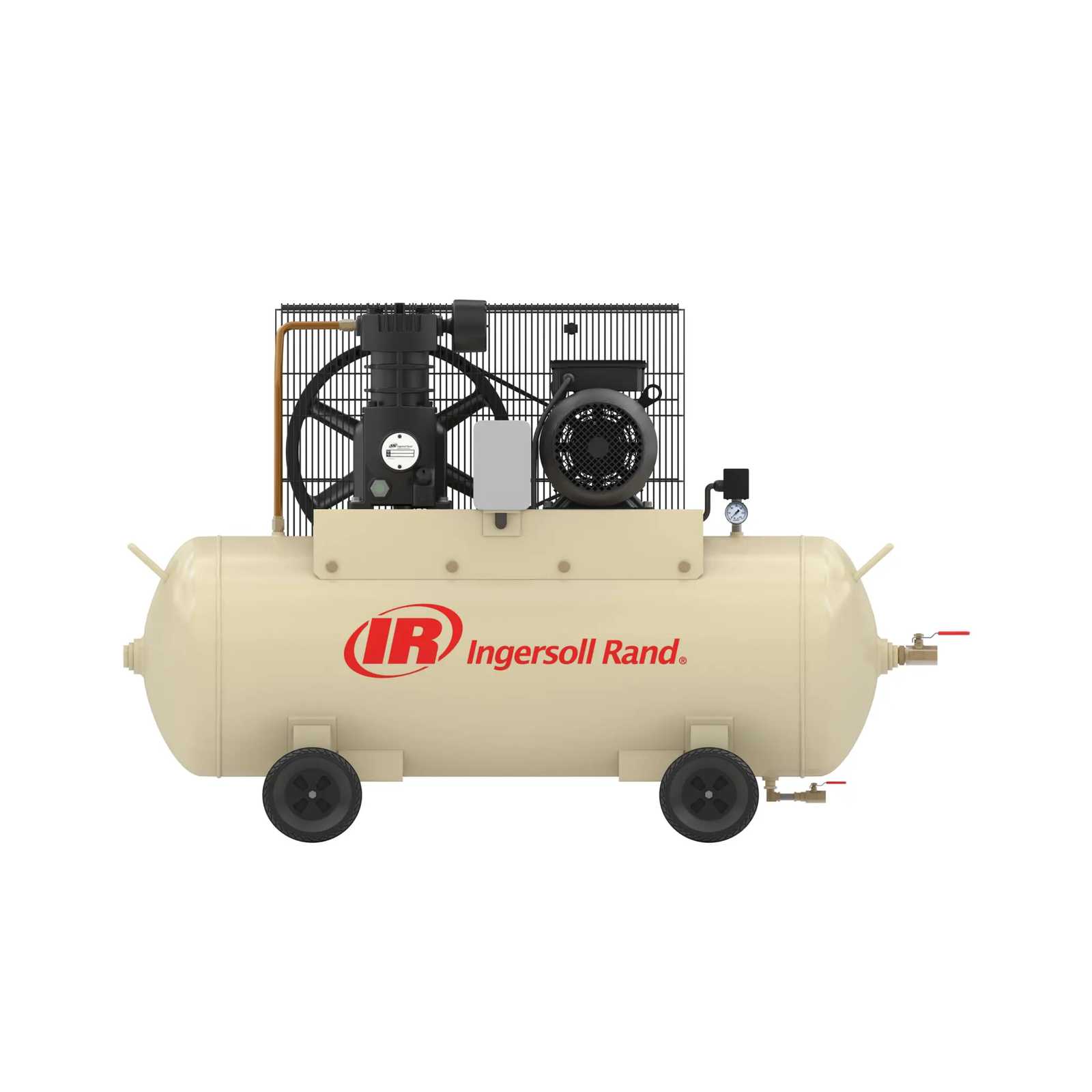

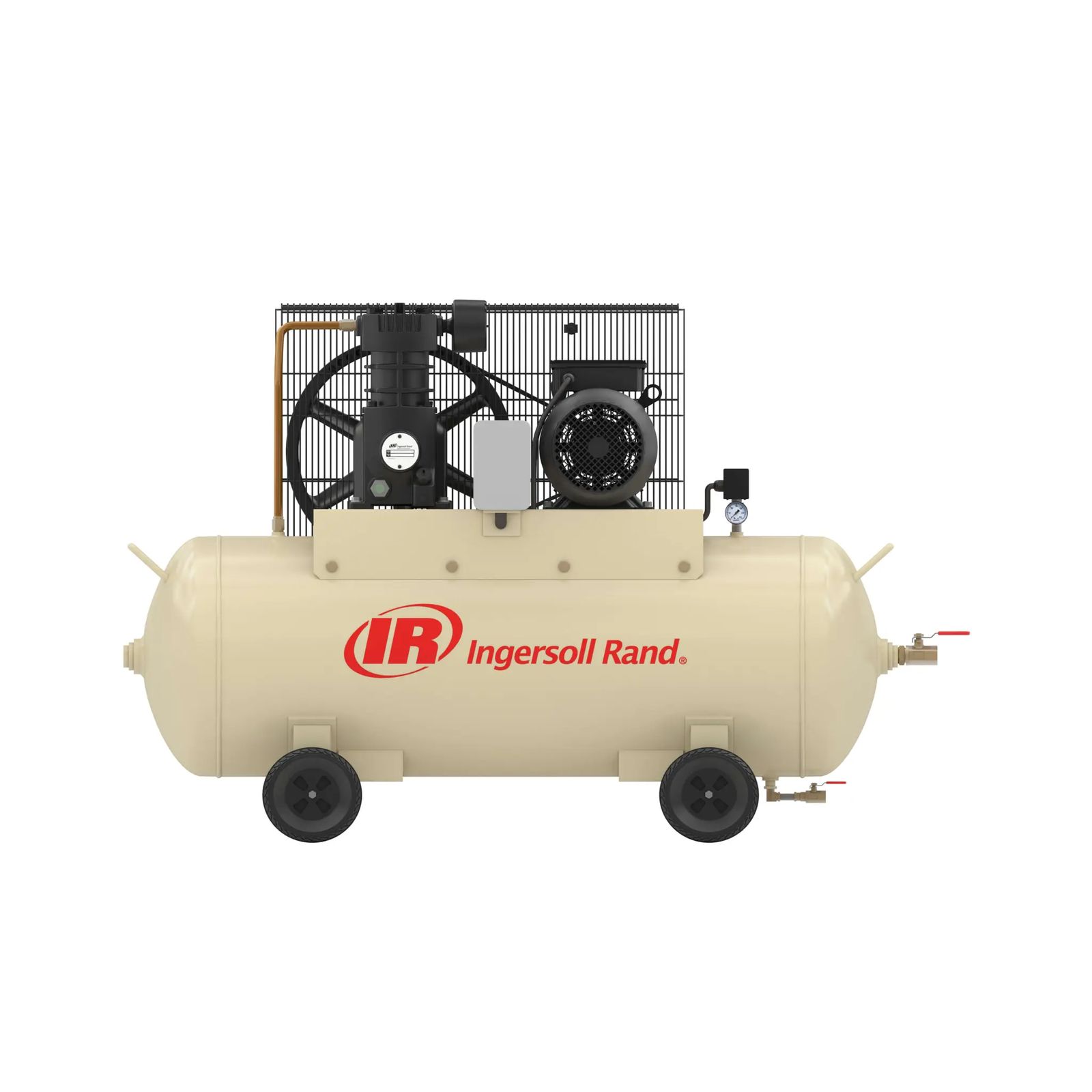

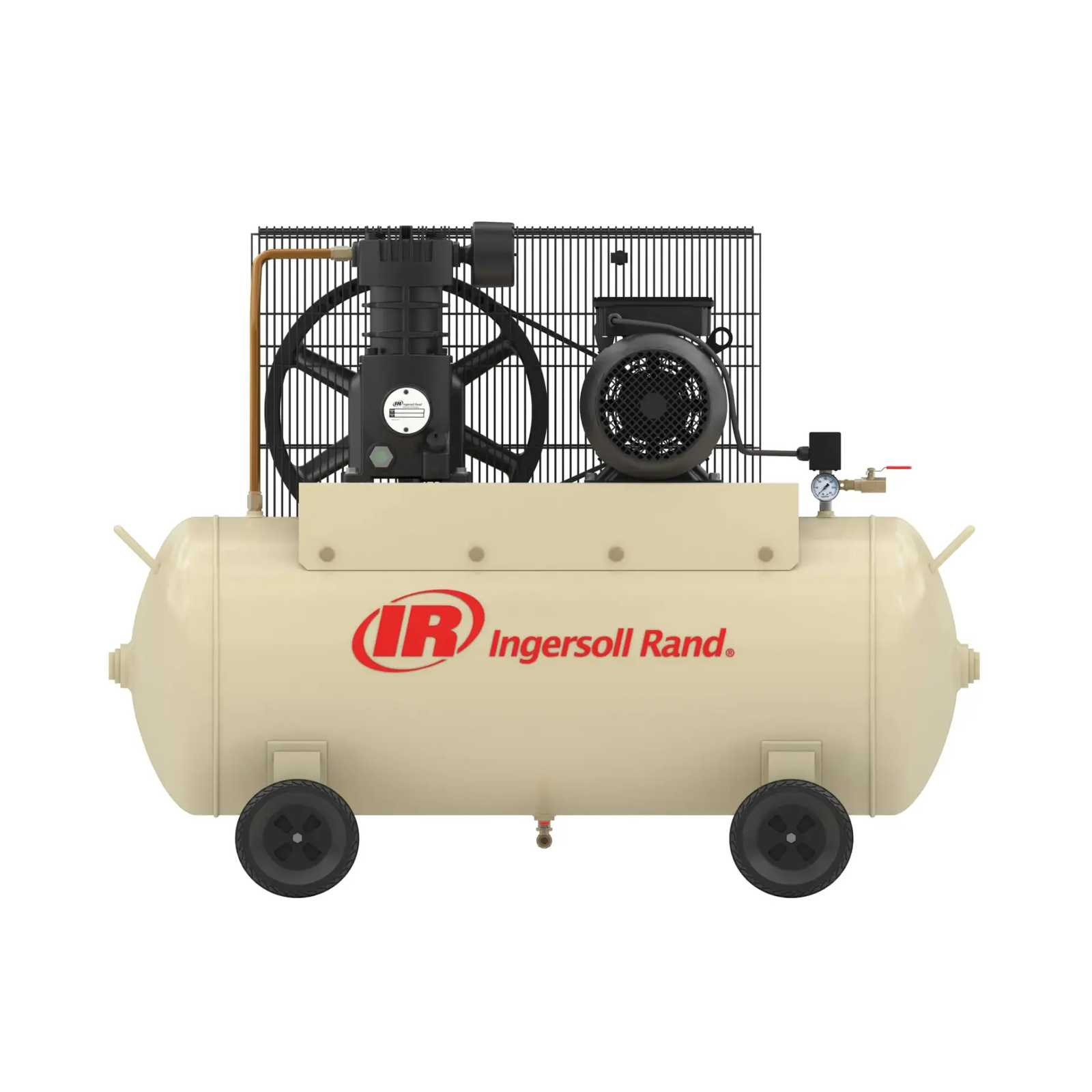

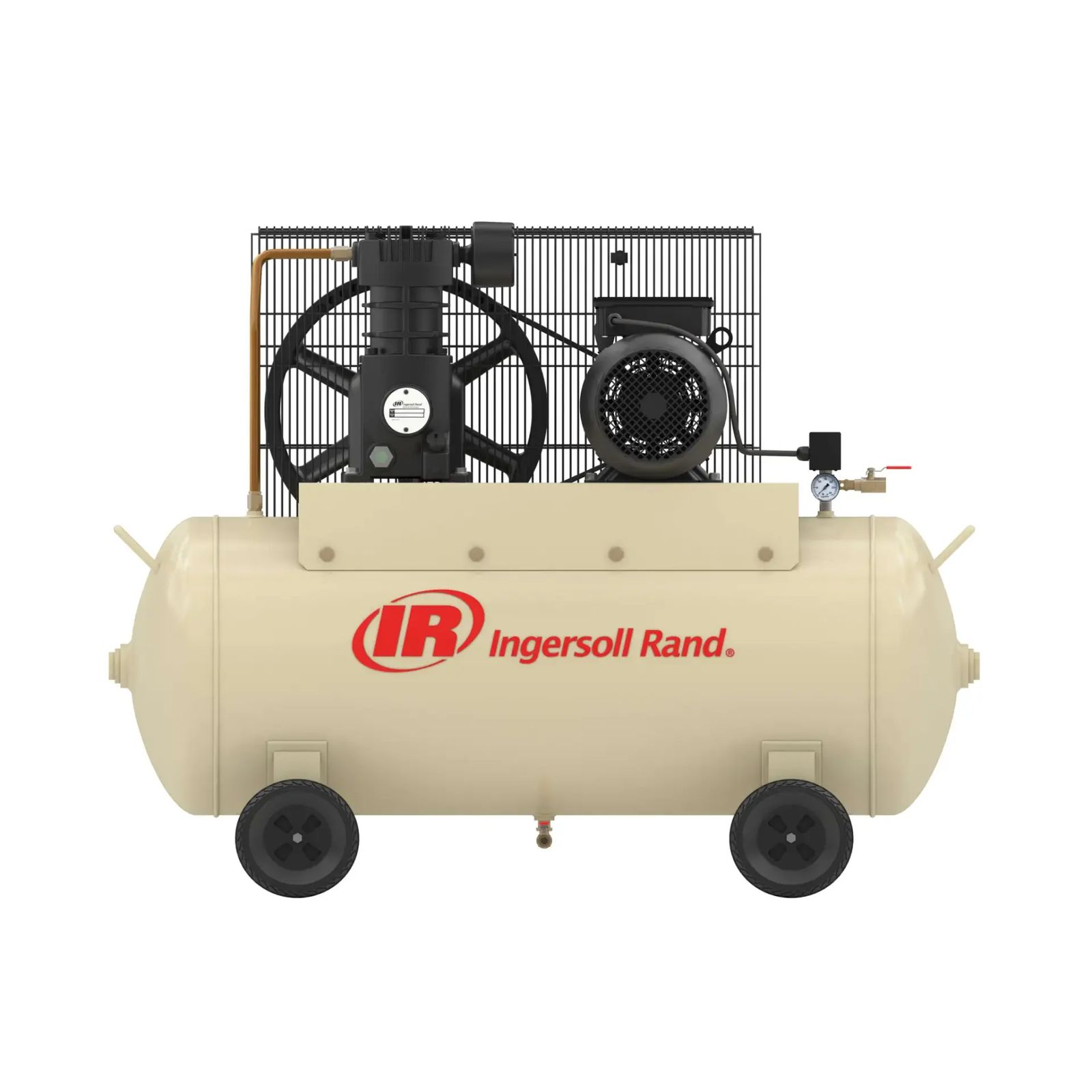

Our 0.75-7.5kW single-stage compressed air compressor is designed for the public. Anyone can have their own air compressor, from individuals who are keen to do it themselves to professional air compressor users. When you require air compressor performance to achieve greater working pressure, higher displacement and longer service life, Ingersoll Rand becomes the product of choice. You will have an air compressor with maximum aerodynamics, accurate design and reliable components, and a durable design with long life.
Model | Power (HP) | Power (KW) | Air volume(0.86Mpa)m3/min | Power Supply (V/Ph/Hz/Pole) | Gas Tank (L) | Dimensions (MM) | Weight (KG) |
|---|---|---|---|---|---|---|---|
S1A1S | 1 | 0.75 | 0.085 | 220V/1ph/50Hz/2P | 50 | 866x392x731 | 100 |
S1A1 | 1 | 0.75 | 0.085 | 380V/3ph/50Hz/4P | 50 | 866x392x731 | 100 |
S3A2S | 2.2 | 1.64 | 0.18 | 220V/1ph/50Hz/2P | 50 | 866x392x731 | 120 |
S3A2 | 2.2 | 1.64 | 0.19 | 380V/3ph/50Hz/4P | 50 | 866x392x731 | 120 |
S3A3S | 3 | 2.24 | 0.26 | 220V/1ph/50Hz/2P | 50 | 866x392x731 | 125 |
S3A3 | 3 | 2.24 | 0.29 | 380V/3ph/50Hz/2P | 50 | 866x392x731 | 125 |
S5B5 | 5-Jan | 4.1 | 0.47 | 380V/3ph/50Hz/4P | 80 | 1220X560X920 | 160 |
S10K7 | 7.5 | 5.6 | 0.72 | 380-415V/3ph/50Hz/4P | 150 | 1320x600x1000 | 230 |
S10K10 | 10 | 7.46 | 0.96 | 380-415V/3ph/50Hz/4P | 150 | 1320x600x1000 | 230 |
S10K10-AC | 10 | 7.46 | 0.96 | 380-415V/3ph/50Hz/4P | 150 | 1320x650x1000 | 230 |
S10K10-AC-DL | 10 | 7.46 | 0.96 | 380-415V/3ph/50Hz/4P | 150 | 1320x600x1050 | 230 |
S10K10-DL | 10 | 7.46 | 0.96 | 380-415V/3ph/50Hz/4P | 150 | 1320x600x1050 | 230 |
Parts and Accessories
Small Reciprocating Air Filter Elements
OEM replacement air filter elements improve the performance and reliability of your Reciprocating Air Compressor.

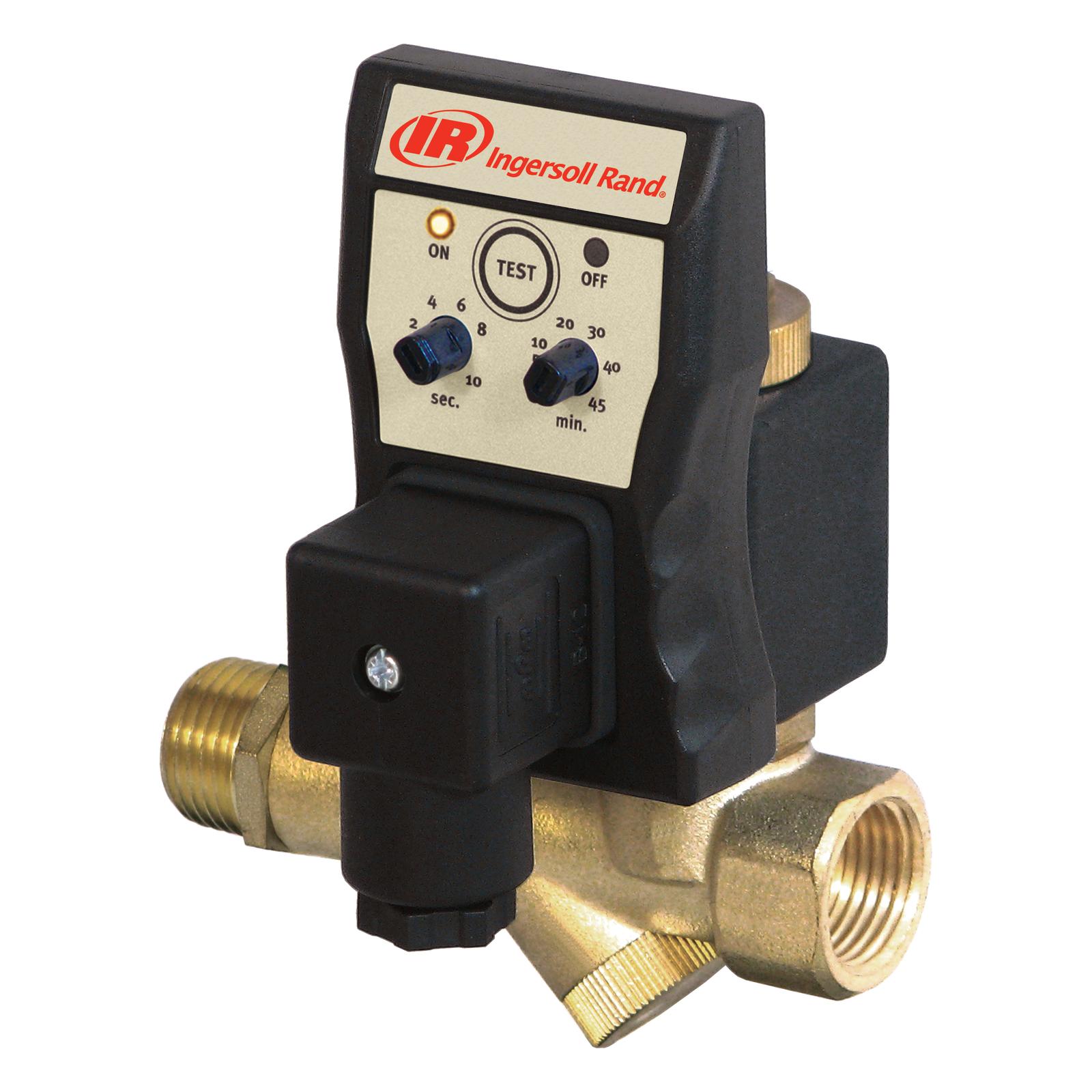

Timer Drain Valves
Our Timer Drains are electronic controlled valves that offer reliability and easy installation to ensure clean, dry compressed air
SimplAir Fusion Compressed Air Piping
Ingersoll Rand’s new SimplAir Piping uses marine-grade aluminum pipes to efficiently distribute leak-free, high-flow compressed air
F-Series Filters For Air Compressors
Ingersoll Rand F-Series advanced Compressed Air Filters reduce contamination in the air stream to help protect critical processes & valuable equipment.
