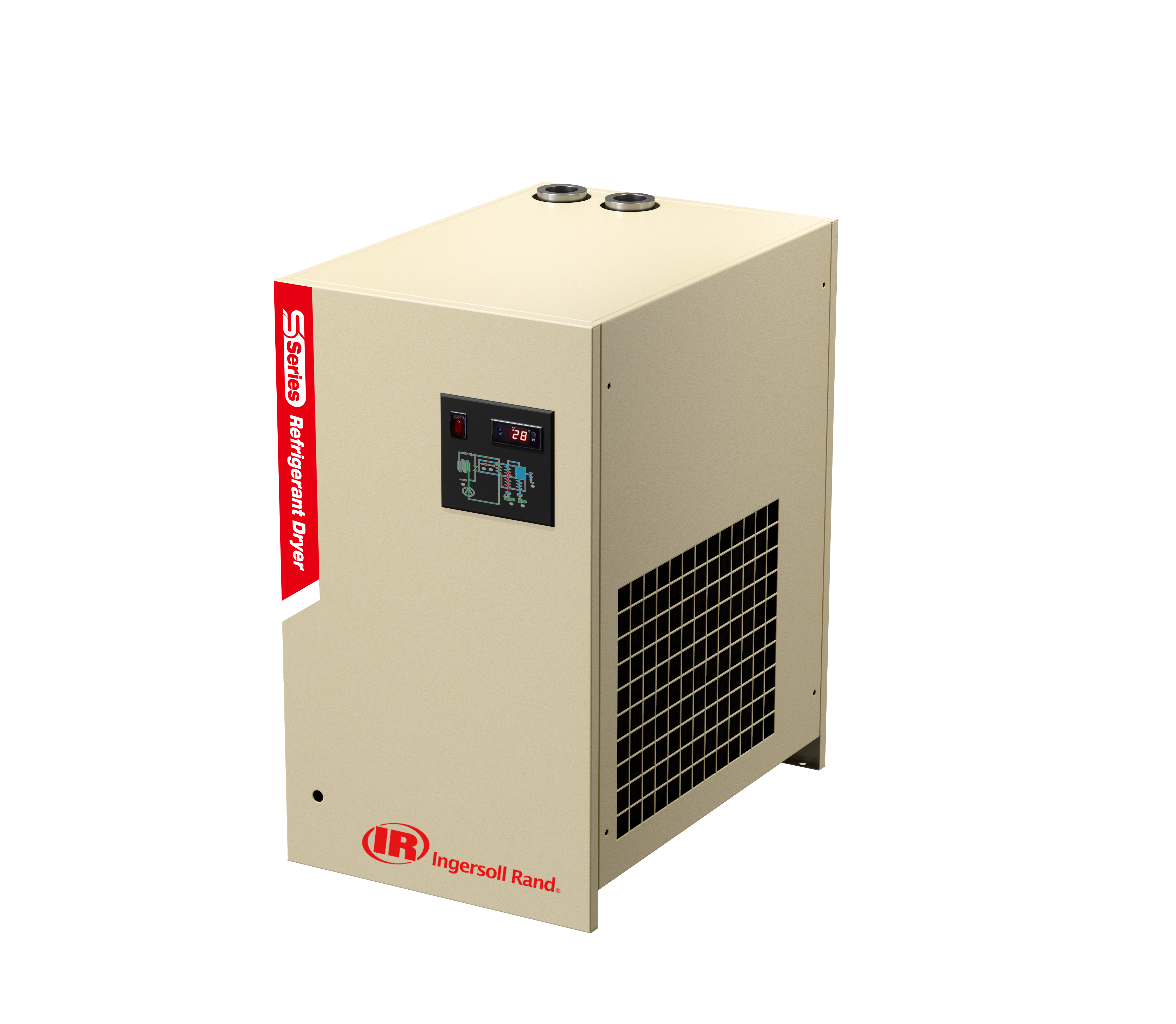

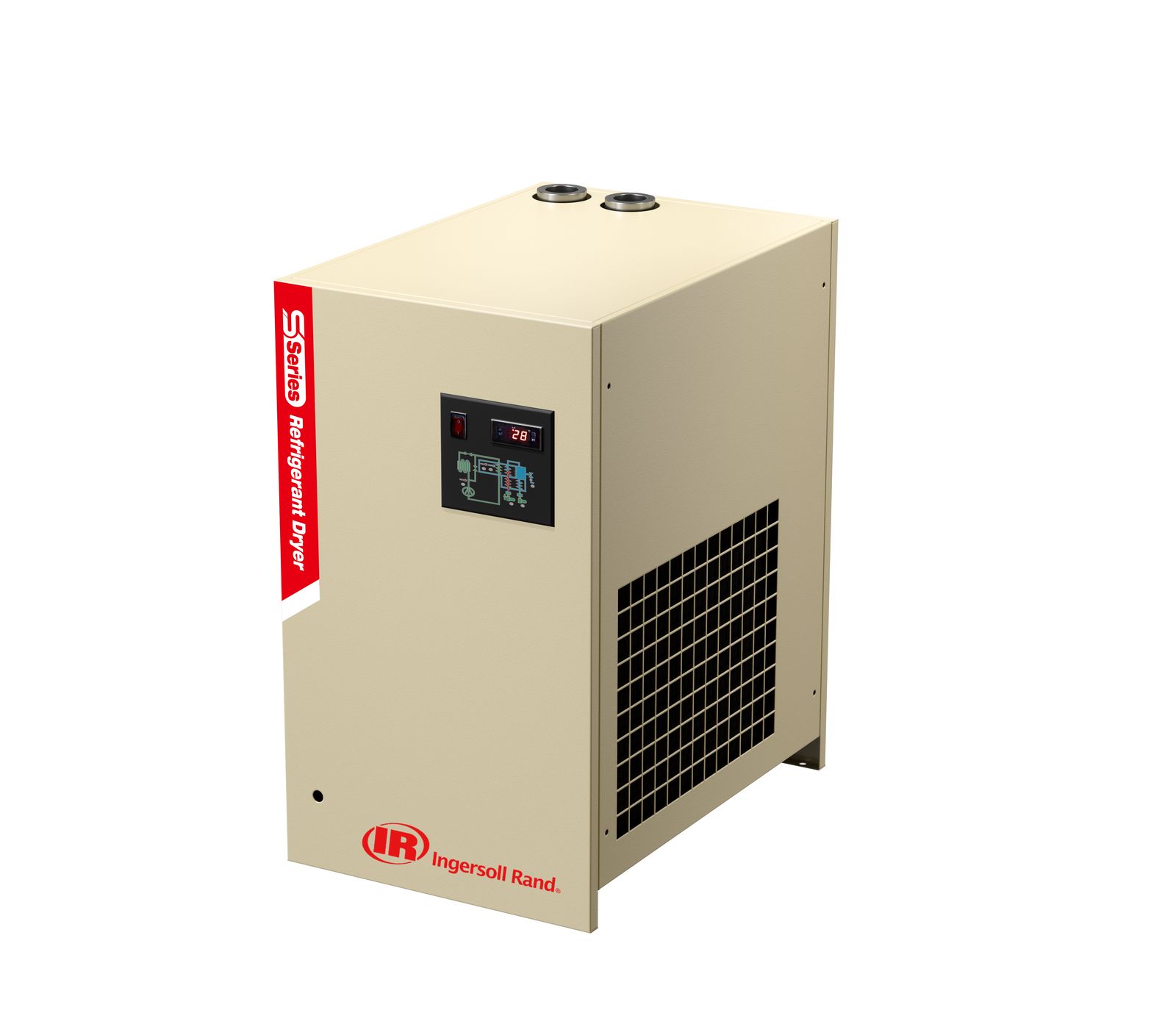

S-Series Refrigerated Dryers

As one of the core equipment of the compressed air system, the refrigerated dryer effectively reduces the temperature of the compressed air through a cooling medium, causing water vapor to condense and separate before being discharged, achieving air drying. The Ingersoll Rand S series refrigerated dryer is equipped with high-efficiency rotary compressors, high-efficiency refrigerants, and a newly designed three in one heat exchanger, ensuring stable operation of the unit under high temperature conditions and safeguarding customer safety production
Adaptability to extreme working conditions: Specially designed for summer environments, it can operate stably under extreme conditions of 45 °C ambient temperature/60 °C inlet temperature, demonstrating excellent weather resistance.
Efficient rotary compressor: The entire series of HIGHLY rotary compressors are equipped with high-efficiency R404A refrigerant to improve refrigeration efficiency and ensure dew point stability.
Innovative 3 in 1 heat exchanger: The newly designed 3 in 1 heat exchanger is equipped with a large pre cooler module to reduce energy consumption and improve system stability.
Intelligent controller module: Equipped with an intelligent controller module, standard with delayed startup and low-temperature shutdown protection functions, easy to operate, and efficient management.



Model

Capacity m3/min

Power Supply V/Ph/hz

Air Interface Diameter

Nominal Power kW

Dimensions (mm) (Length)

Dimensions (mm) (Width)

Dimensions (mm) (Height)

Weight kg

D42Rs-A

0.7

220/1/50

0.75"

0.45

470

360

680

42

D72Rs-A

1.2

220/1/50

0.75"

0.45

470

360

680

48

D108Rs-A

1.8

220/1/50

1"

0.51

550

380

690

63

D216Rs-A

3.6

220/1/50

1.5"

0.67

650

450

780

81

D294Rs-A

4.9

220/1/50

1.5"

0.8

760

500

780

95

D342Rs-A

5.7

220/1/50

1.5"

0.93

760

500

850

102

D390Rs-A

6.5

220/1/50

1.5"

0.99

760

500

850

118

D444Rs-A

7.4

220/1/50

1.5"

1.06

760

500

850

124

D540Rs-A

9

220/1/50

1.5"

1.16

850

520

875

185

D690Rs-A

11.5

220/1/50

2"

1.88

900

600

1100

246

D810Rs-A

13.5

220/1/50

2"

2.04

900

600

1100

254

D990Rs-A

16.5

380/3/50

2.5"

2.9

1100

650

1200

276
