- Heavy duty cast iron cylinder
- Efficient electric motor -Built-in thermal relay (single phase) -1.15 S.F, TEFC, IP54 protection, Class F insulation (three phase)
- Highly reliable magnetic starter -Direct start (3hp-10hp)
- Durable parts & components
- Enclosed mesh belt guard
- Air tank with national standard certification

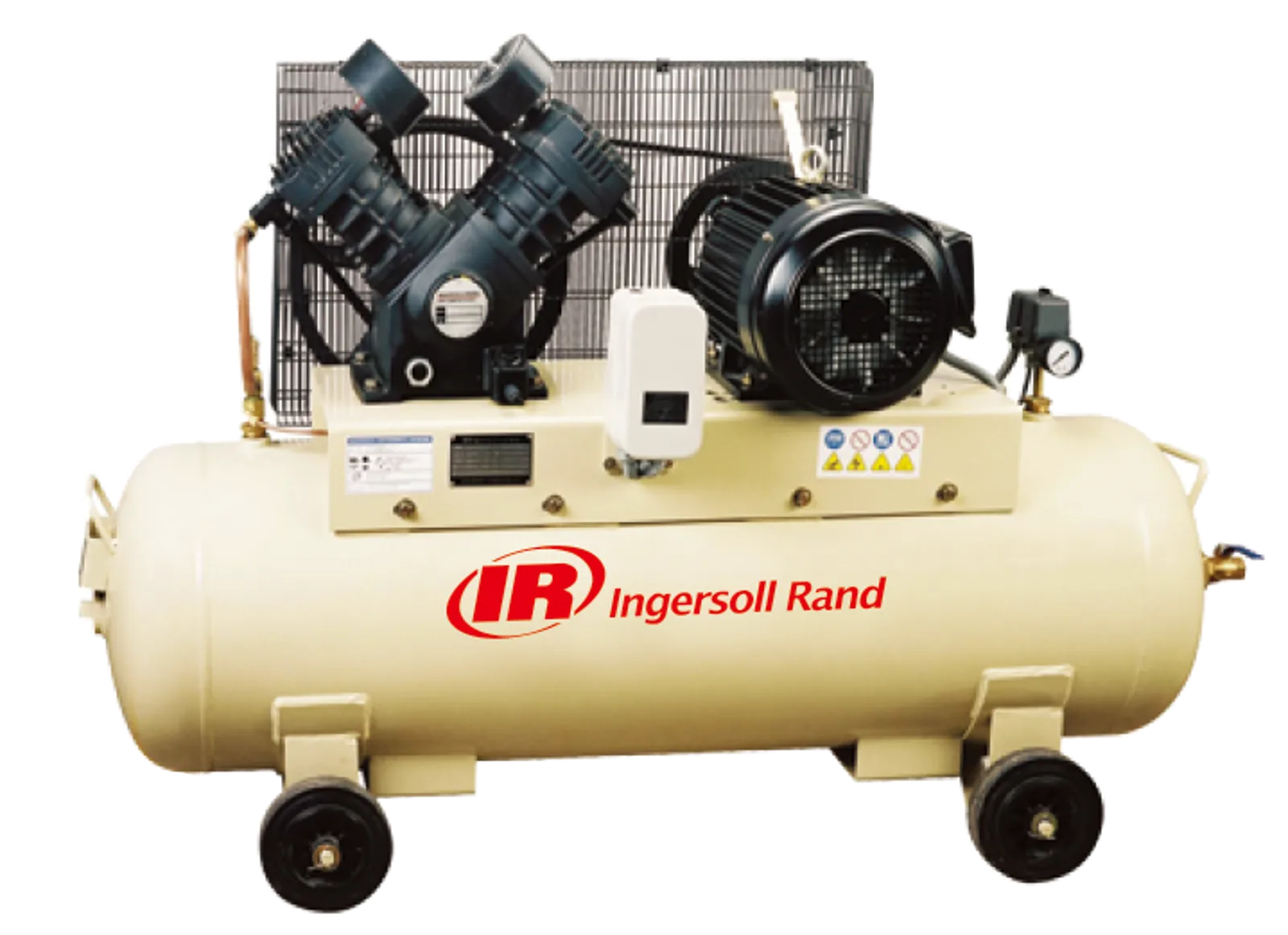

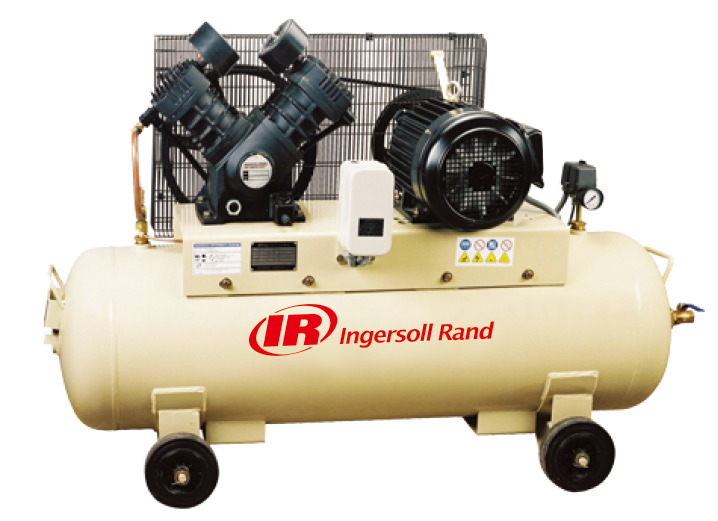

Ingersoll Rand’s piston air compressors are highly reliable and efficient, which are flexible in use, robust in structure, and easy to maintain. By choosing Ingersoll Rand’s piston air compressor, you choose high quality and reliability renowned worldwide. Our piston air compressors are designed for excellent performance, high reliability and efficiency, as well as ease of operation and maintenance.
Model | Power | Power | Capacity (0.86Mpa) | Rotation Speed | Air Tank | Dimensions | Weight |
S1A1S | 1 | 0.75 | 0.085 | 650 | 50 | 866 x 392x 731 | 100 |
S1A1 | 1 | 0.75 | 0.085 | 650 | 50 | 866 x392x731 | 100 |
S3A2S | 2.2 | 1.64 | 0.18 | 740 | 50 | 866 x 392 x 731 | 120 |
S3A2 | 2.2 | 1.64 | 0.19 | 765 | 50 | 866 x 392 x 731 | 120 |
S3A3S | 3 | 2.24 | 0.26 | 1060 | 50 | 866 x 392 x 731 | 125 |
S3A3 | 3 | 2.24 | 0.29 | 1160 | 50 | 866 x 392 x 731 | 125 |
S5B5 | 5.5 | 4.1 | 0.47 | 985 | 80 | 1220 x 560 x 920 | 160 |
S10K7 | 7.5 | 5.6 | 0.7 | 730 | 150 | 1550 x 600 x 900 | 230 |
S10K10 | 10 | 7.46 | 0.94 | 960 | 150 | 1550x600x900 | 230 |
S10K10-AC | 10 | 7.46 | 0.94 | 960 | 150 | 1550x600x900 | 230 |
