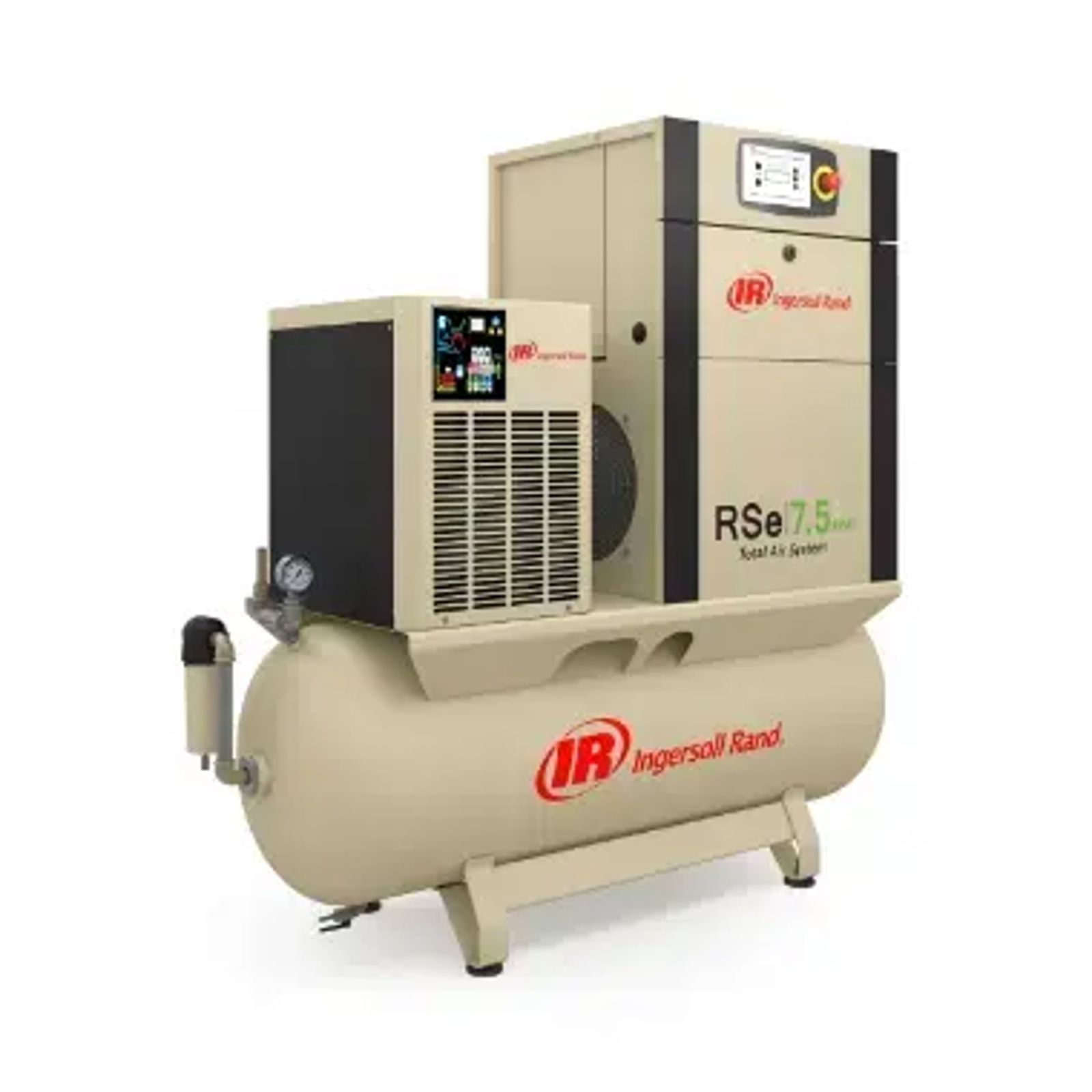

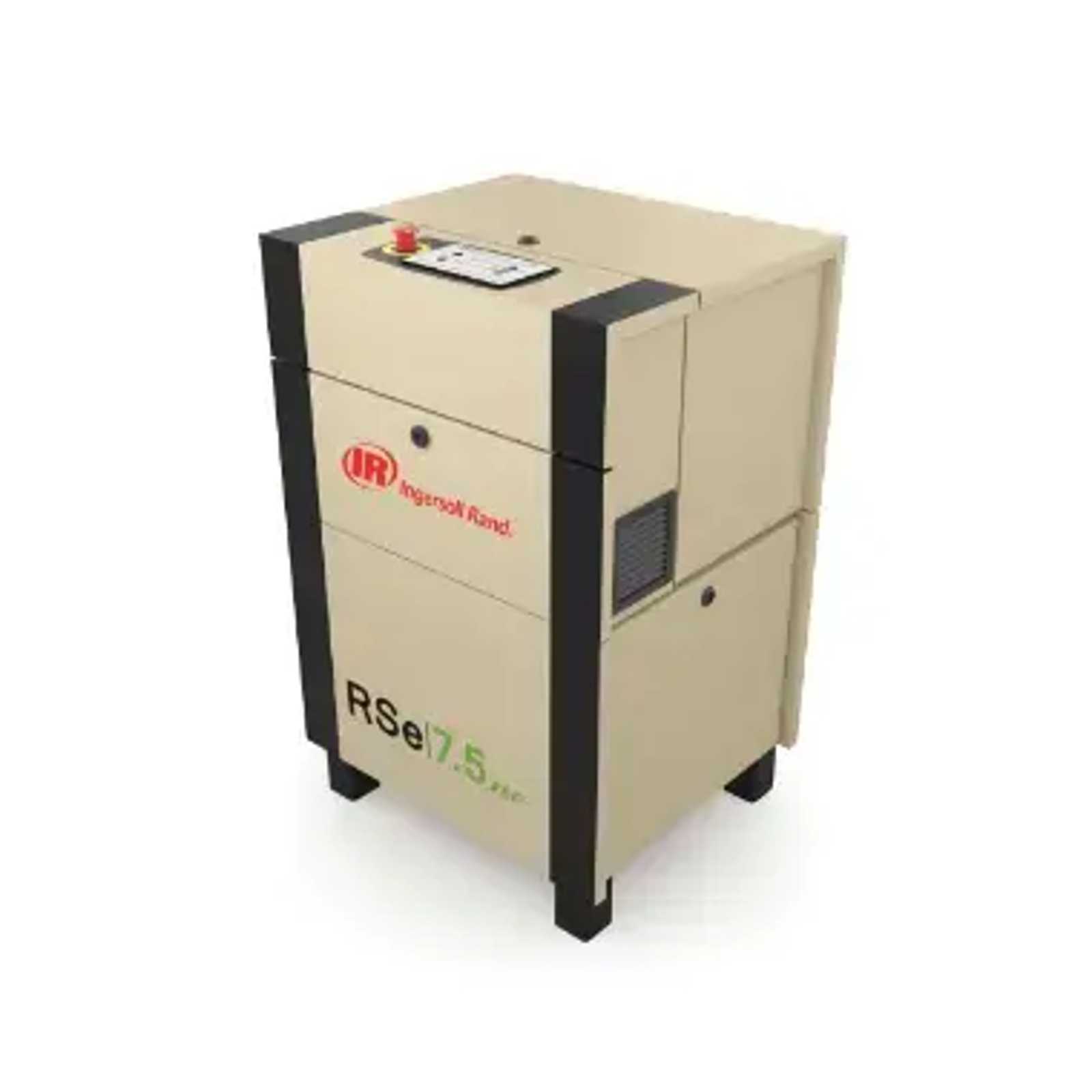

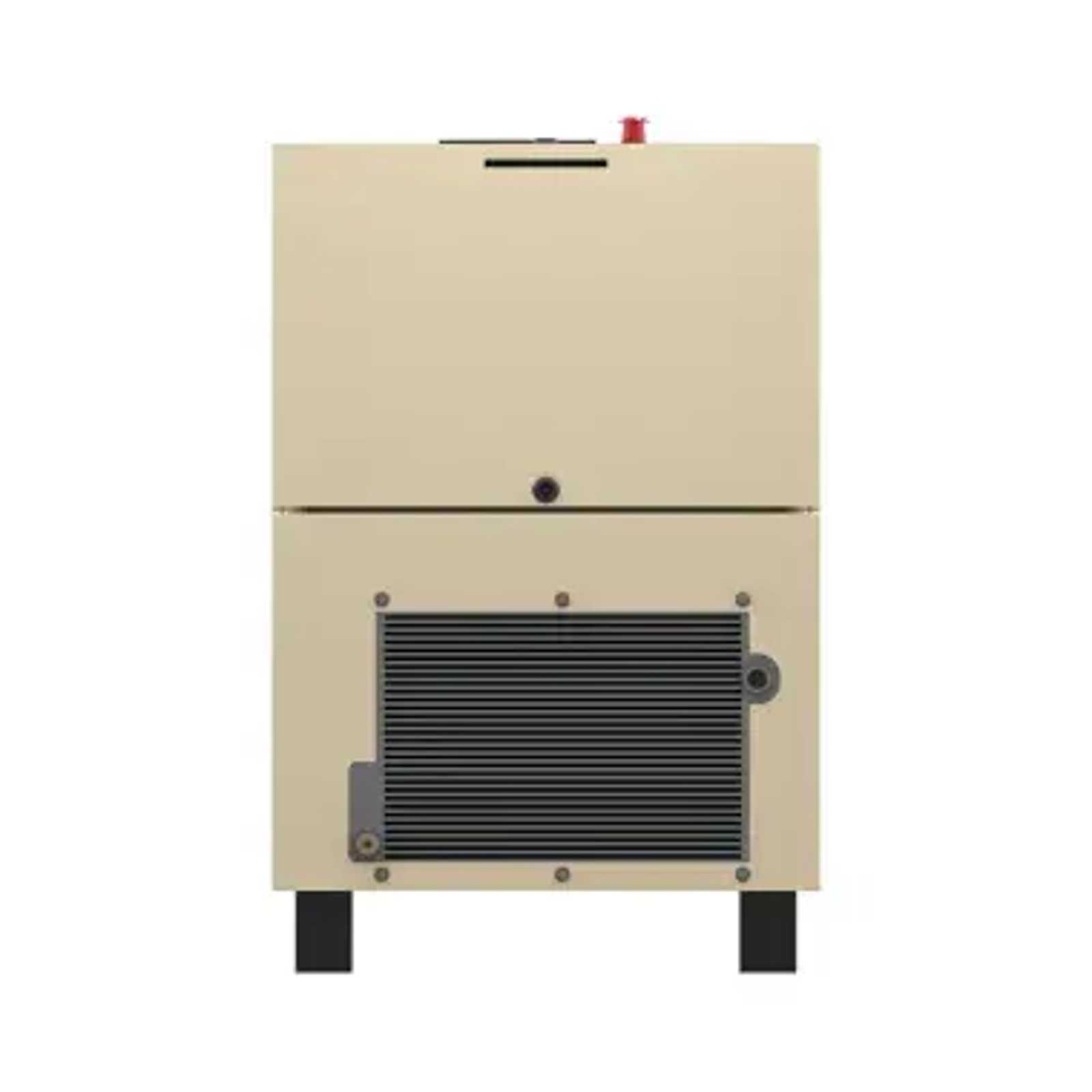

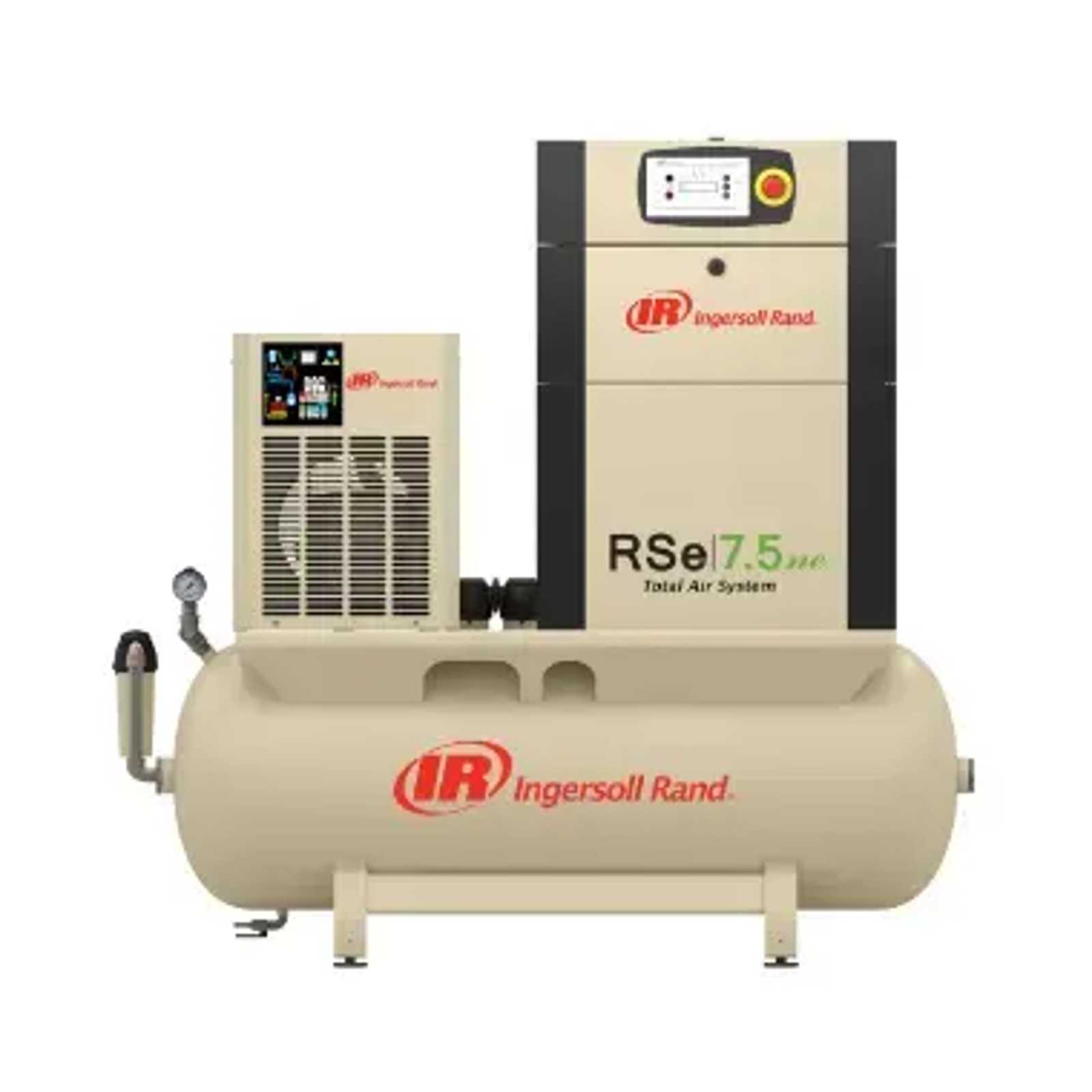

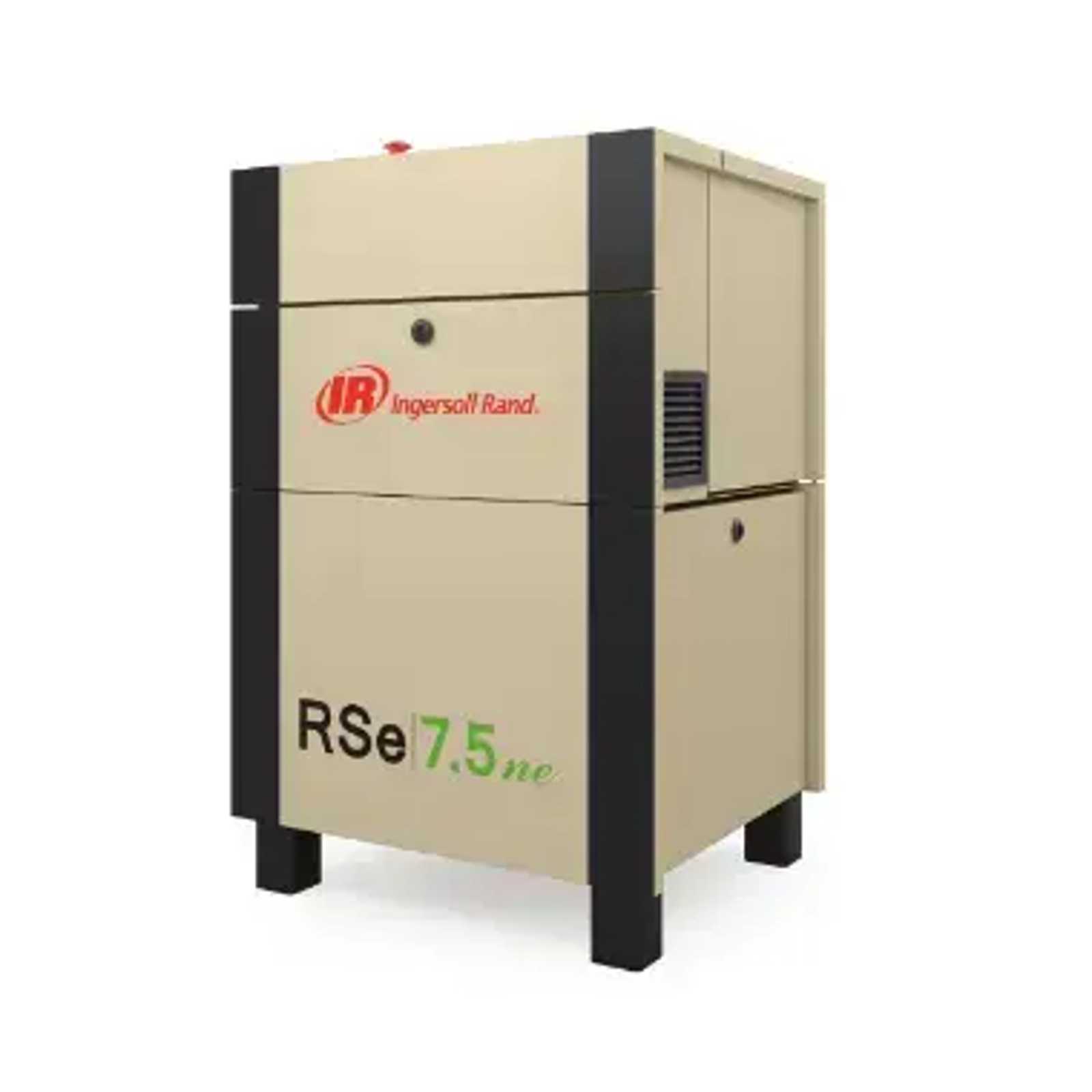

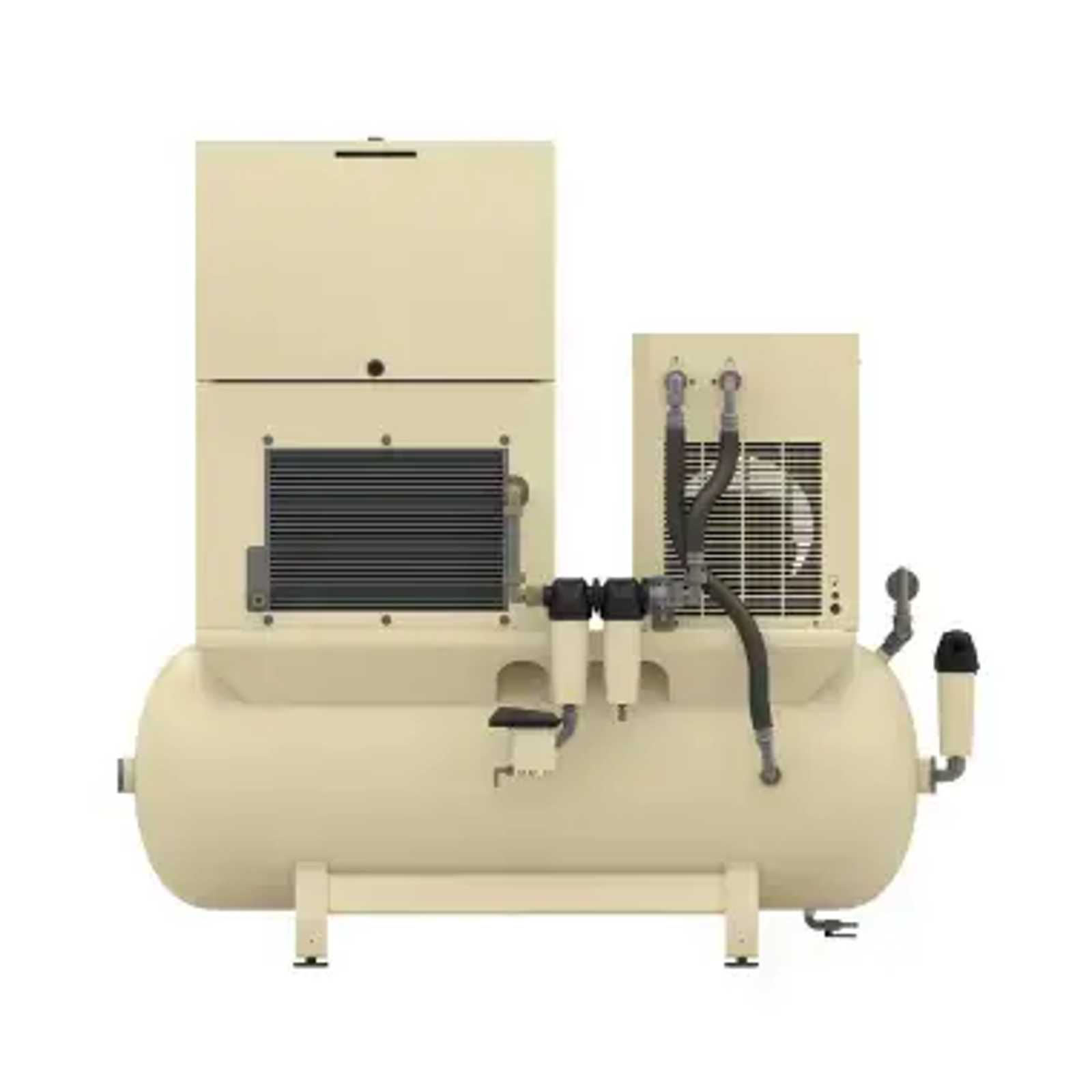

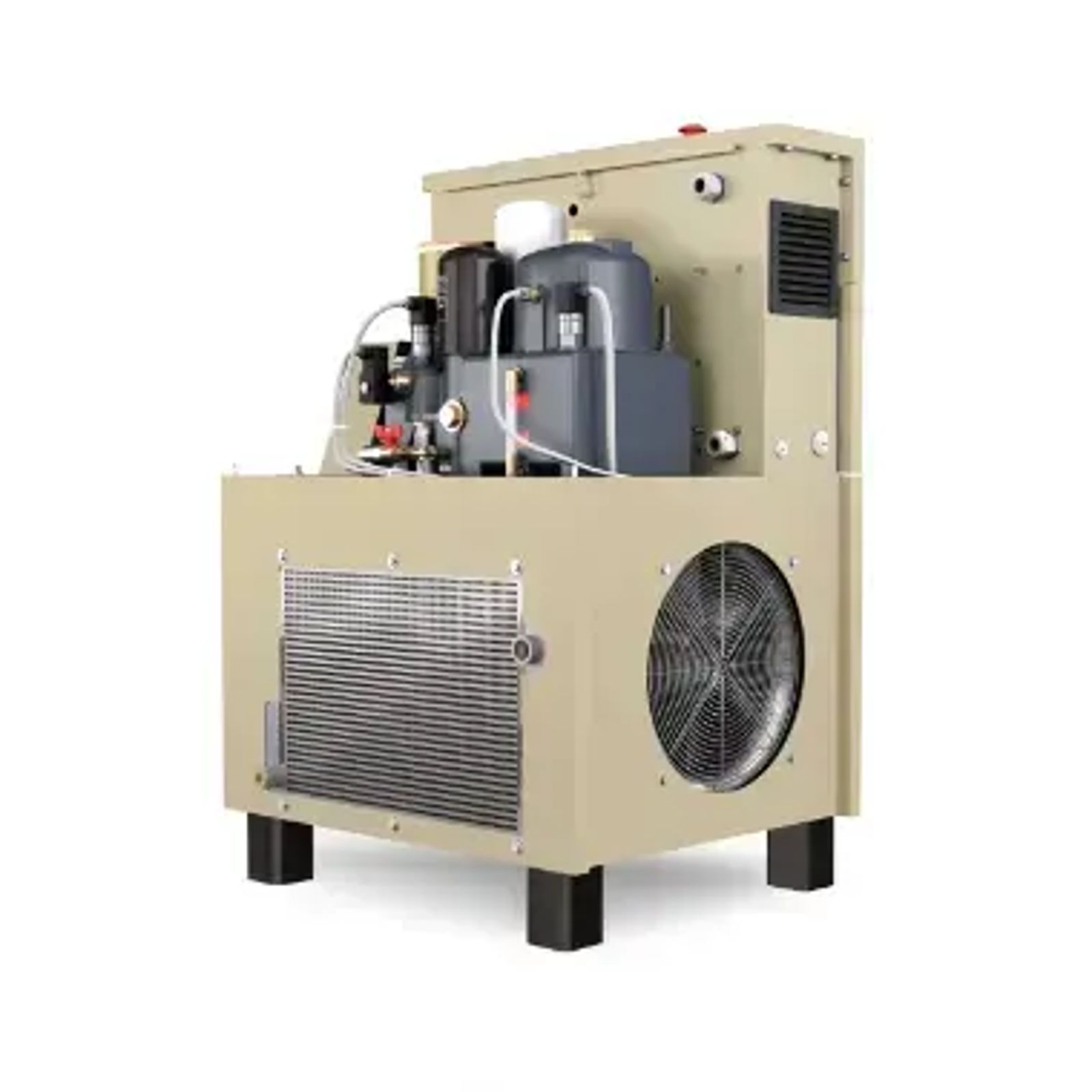

Next Generation R-Series 7,5–11 kW VSD

Ingersoll Rand works to keep you ahead of your competition with Next Generation R-Series air compressors that boost productivity, lower operating expenses and extend equipment life. And with a variable speed drive (VSD), the compressor automatically adjusts its compressed air output to achieve the highest efficiency for your operation, minimizing energy use at any load. Next Generation R-Series air compressors. The intelligence you need—to win.
Improved Efficiency: State-of-the-art, fully integrated airend delivers the efficiency and reliability you need

Decreased Energy Use: Premium efficiency IP55 motor delivers significant energy savings, and the optional integrated variable speed drive (VSD) further decreases energy consumption

Enhanced serviceability: Easy access to all user-maintainable components, auto-tensioning V-Belt, and Ingersoll Rand extended life, premium grade coolant ensures increased uptime

Remote Intelligent Control: Xe-Series controllers deliver increased functionality through an intuitive user interface, as well as remote access with any common, current web browser

Optional Total Air System (TAS): Clean, dry air in a single package that minimizes installation costs, space and features improved ISO air quality

IES2 Advantage: Meets or exceeds IES2 standards for power drive efficiency


MODEL

Max pressure (barg)

Nominal power (kW)

Capacity (FAD)* (m3/min)

Dimensions (L x W x H) (mm)

Weight (kg)

RSe7.5ne-A7.5

7.5

7.5

1.26

667 x 630 x 1050

225

RSe7.5ne-A10

10.0

7.5

1.01

667 x 630 x 1050

225

RSe7.5ne-A13

13.0

7.5

0.83

667 x 630 x 1050

225

RSe11ne-A7.5

7.5

11.0

1.81

667 x 630 x 1050

235

RSe11ne-A10

10.0

11.0

1.56

667 x 630 x 1050

235

RSe11ne-A13

13.0

11.0

1.26

667 x 630 x 1050

235

RSe7.5ne-A7.5-TAS

7.5

7.5

1.26

1610 x 705 x 1543

353

RSe7.5ne-A10-TAS

10.0

7.5

1.01

1610 x 705 x 1543

353

RSe11ne-A7.5-TAS

7.5

11.0

1.81

1610 x 705 x 1543

362

RSe11ne-A10-TAS

10.0

11.0

1.56

1610 x 705 x 1543

362
