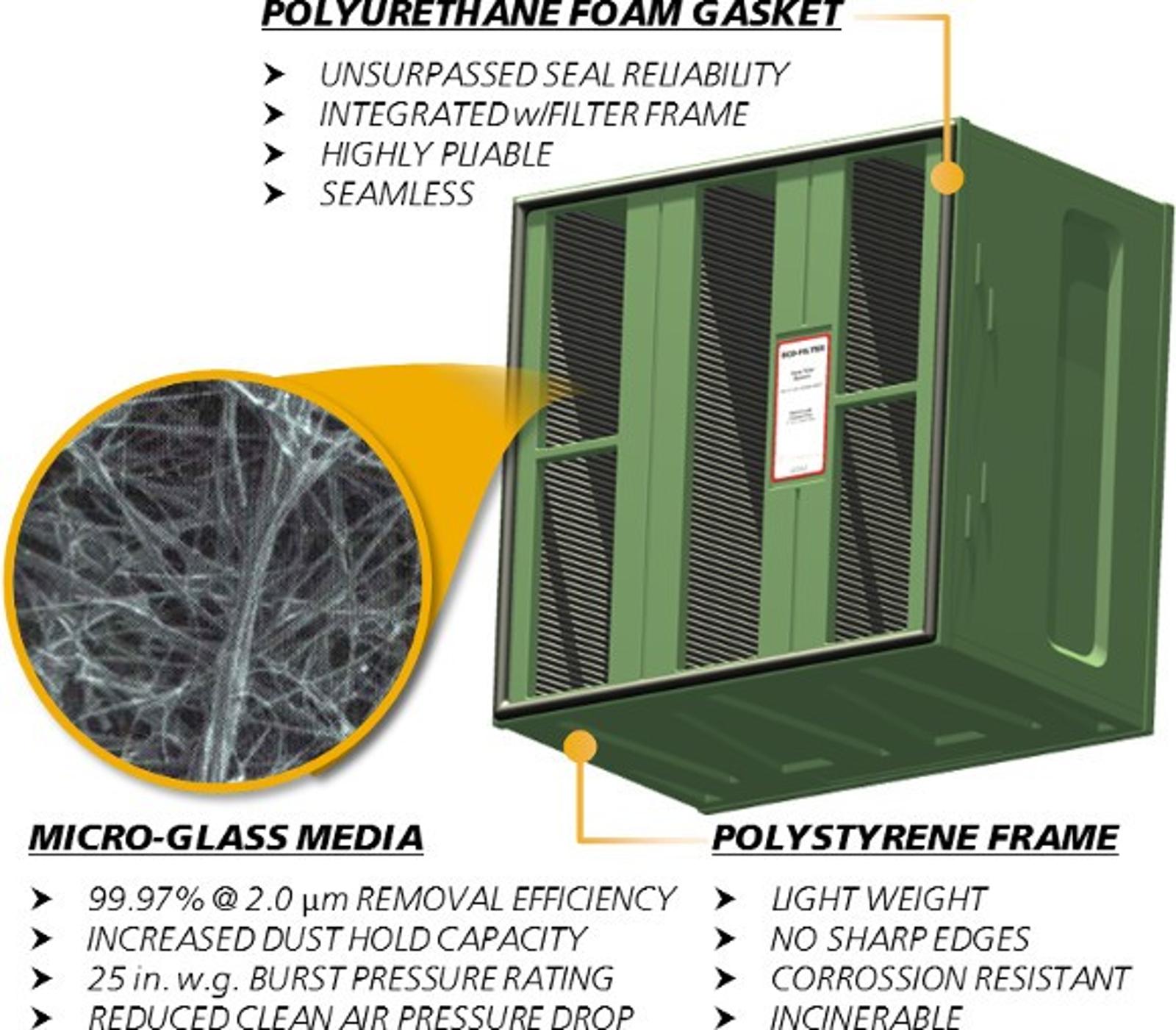

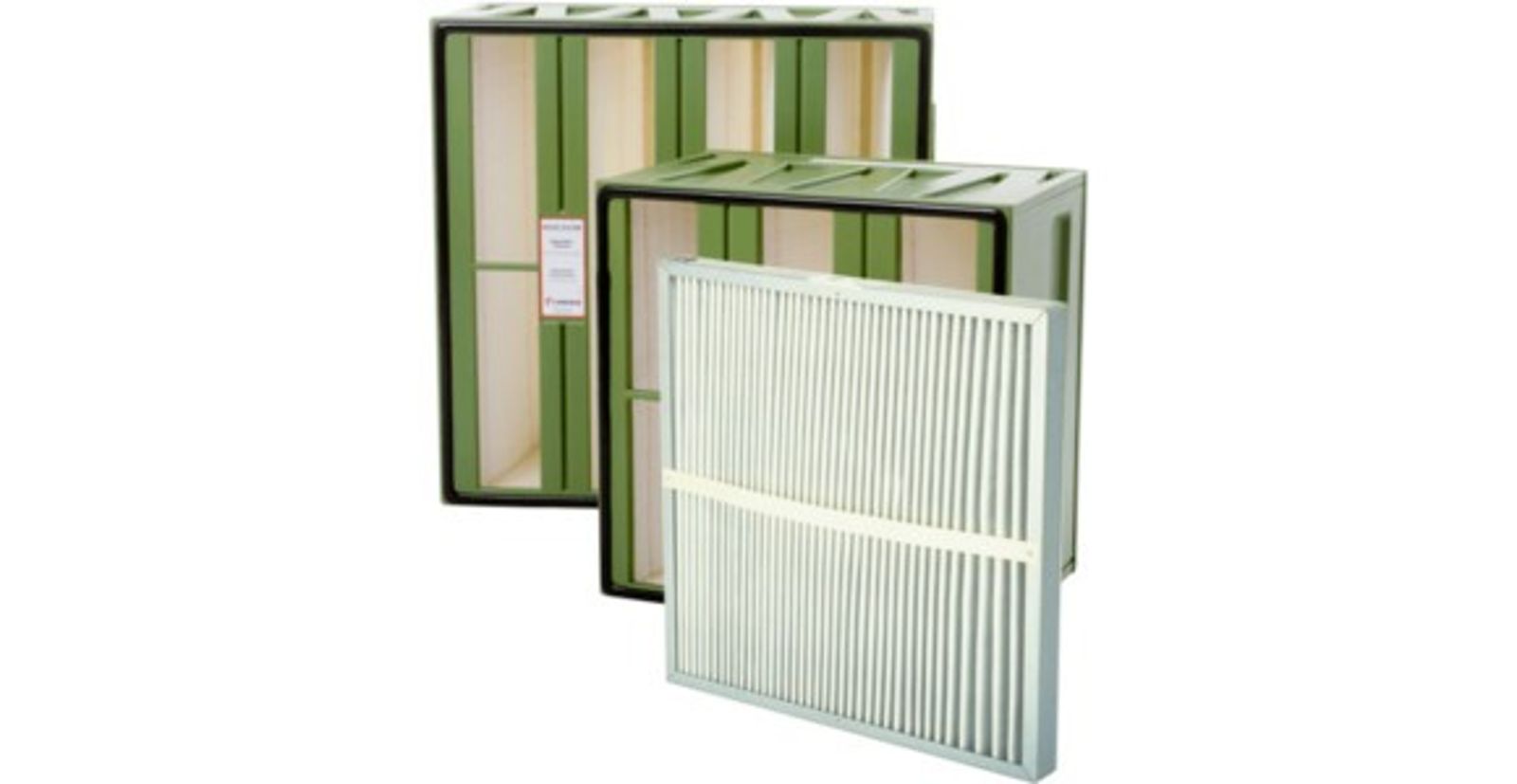

The ECO-FILTER™ filtration system utilizes high-quality primary and secondary filter elements to reduce energy costs and extend flow life more efficiently than replacements. The installation kit is available in 24" x 24" and 18" x 18" configurations. The secondary element has 40% lower pressure drop than replacement products and 89% greater dust holding capacity.
Part Number | Size | Weight | Clean Pressure Drop | Dust Holding Capacity | Temperature Rating |
|---|---|---|---|---|---|
AAP1400009-00871 | 18" x 18" | 20 lb | 0.64" wg @ 1500 cfm; 0.36" wg @ 1000 cfm | 483 g @ 1500 cfm; 774 g @ 1000 cfm | 200 F |
AAP0540009-00873 | 24" x 24" | 28 lb | 0.76" wg @ 3000 cfm; 0.42" wg @ 2000 cfm | 900 g @ 3000 cfm; 1200 g @ 2000 cfm | 200F |
