- Reliable Clean, Dry Air: Patented stainless steel heat exchangers are corrosion resistant and permit optimal heat transfer, resulting in a consistent pressure dew point
- Lower Energy Costs: Low pressure drop design saves on energy costs and provides an economical drying solution for your compressed air needs
- Smart Control: Easy to use, advanced microprocessor automatically managers dryer operation for optimum air treatment and maximum energy efficiency
- Superior Equipment Protection: Moisture and contamination are removed from the air stream via a high efficiency separator reducing downstream equipment problems
- Eco-friendly Refrigerant: Environmentally friendly R404A refrigerant meets all regulations and standards

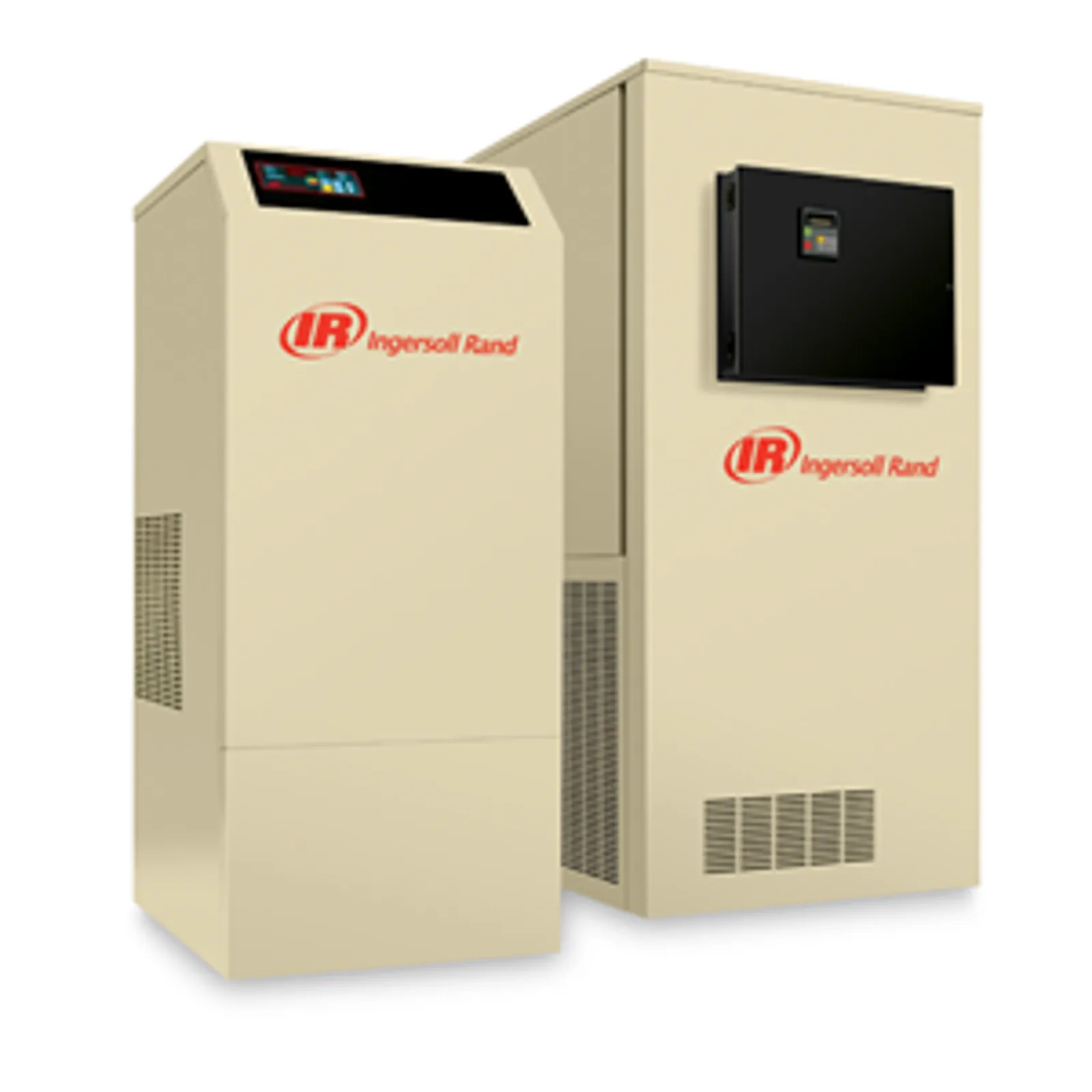

Non-cycling refrigerated dryers deliver reliability with virtually no maintenance. Each dryer features a refrigeration system and heat exchanger that combines cool compressed air as it passes through it. These dryers integrate a unique combination of components and features that ensure maximum productivity and longest service life at an affordable cost.
Model Specifications
Model | Capacity m3/hr (scfm) | Operating Power kW | Length x Width x Height mm (in) | Weight kg (lb) | Connection Air In/Out |
D12IN | 12 (7) | 0.16 | 390 (16.0) x 305 (12.0) x 408 (16.0) | 18 (40) | 3/8" NPT |
D18IN | 18 (11) | 0.16 | 390 (16.0) x 305 (12.0) x 408 (16.0) | 18 (40) | 3/8" NPT |
D25IN | 25 (15) | 0.16 | 390 (16.0) x 305 (12.0) x 408 (16.0) | 18 (40) | 3/8" NPT |
D42IN | 42 (25) | 0.21 | 452 (18.0) x 390 (16.0) x 453 (18.0) | 27 (60) | 1/2" NPT |
D54IN | 54 (32) | 0.37 | 452 (18.0) x 390 (16.0) x 453 (18.0) | 28 (62) | 1/2" NPT |
D72IN | 72 (42) | 0.37 | 452 (18.0) x 390 (16.0) x 453 (18.0) | 28 (62) | 1/2" NPT |
D108IN | 108 (64) | 0.48 | 541 (21.5) x 420 (16.5) x 563 (22.5) | 35 (77) | 3/4" NPT |
D144IN | 144 (85) | 0.57 | 541 (21.5) x 420 (16.5) x 563 (22.5) | 37 (82) | 3/4" NPT |
D180IN | 180 (106) | 0.71 | 541 (21.5) x 420 (16.5) x 563 (22.5) | 47 (104) | 3/4" NPT |
D300IN | 300 (176) | 1.25 | 664 (25.5) x 503 (20.0) x 980 (38.5) | 87 (192) | 1 1/2" NPT |
D360IN | 360 (212) | 1.25 | 664 (25.5) x 503 (20.0) x 980 (38.5) | 87 (192) | 1 1/2" NPT |
