- Durable cast-iron with two, three and four stage design.
- Intermediate duty applications.
- Extended pump life for years of trouble-free service.
- V - sheave (compressor pulley).
- Dry type intake filter.
- Air cooled inter-stage cooler with condensate drain leg.
- Inter-stage pressure gauge.
- Inter-stage safety valve.
- Air-cooled after-cooler.

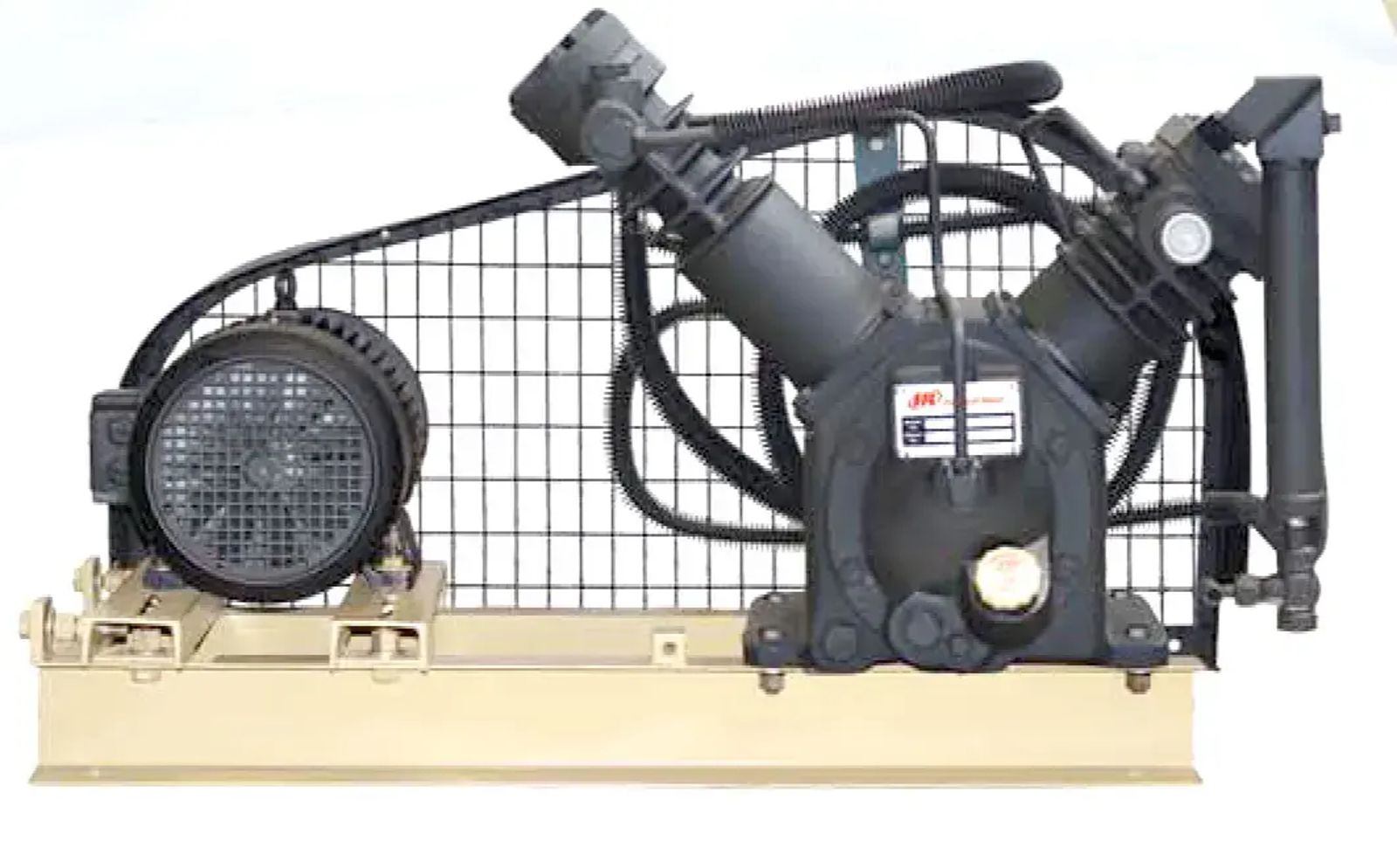

Ingersoll Rand multi-stage high-pressure air compressors are designed for high-pressure applications. These compressors have extra heavy-duty components and are designed for minimum maintenance and maximum performance. High-pressure air compressors are widely used in power generation plant, PET blow molding industry, military, diving and component testing.
Model | Nominal Power kW (hp) | Max Pressure barg (psig) | FAD L/min (CFM) | L x W x H MM (IN) | Weight KG (LB) |
231X30 | 2.2 (3) | 35 (500) | 140 (4.9) | 867 x 515 x 510 (34 x 20 x 20) | 100 (220) |
7T4X55 | 4 (5.5) | 70 (1000) | 180 (6.4) | 1219 x 720 x 813 (48 x 28 x 32) | 240 (529) |
7T4X55 LOL | 4 (5.5) | 70 (1000) | 180 (6.4) | 1219 x 720 x 813 (48 x 28 x 32) | 240 (529) |
7T2X100 S/D | 8.5 (12) | 35 (500) | 630 (22.2) | 1238 x 670 x 840 (49 x 26 x 33) | 275 (606) |
15T2X200-35 | 15 (20) | 35 (500) | 1120 (39.5) | 1432 x 840 x 868 (56 x 33 x 34) | 406 (895) |
15T2X200-35 S/D | 15 (20) | 35 (500) | 1120 (39.5) | 1432 x 840 x 868 (56 x 33 x 34) | 406 (895) |
15T2X200-35 S/D LOL | 15 (20) | 35 (500) | 1120 (39.5) | 1432 x 840 x 868 (56 x 33 x 34) | 406 (895) |
15T2X200-35 S/D LOL Auto Drain | 15 (20) | 35 (500) | 1120 (39.5) | 1432 x 840 x 868 (56 x 33 x 34) | 406 (895) |
15T2X200-70 | 15 (20) | 70 (1000) | 920 (32.5) | 1432 x 840 x 868 (56 x 33 x 34) | 415 (915) |
15T2X200-70 S/D LOL | 15 (20) | 70 (1000) | 920 (32.5) | 1432 x 840 x 868 (56 x 33 x 34) | 415 (915) |

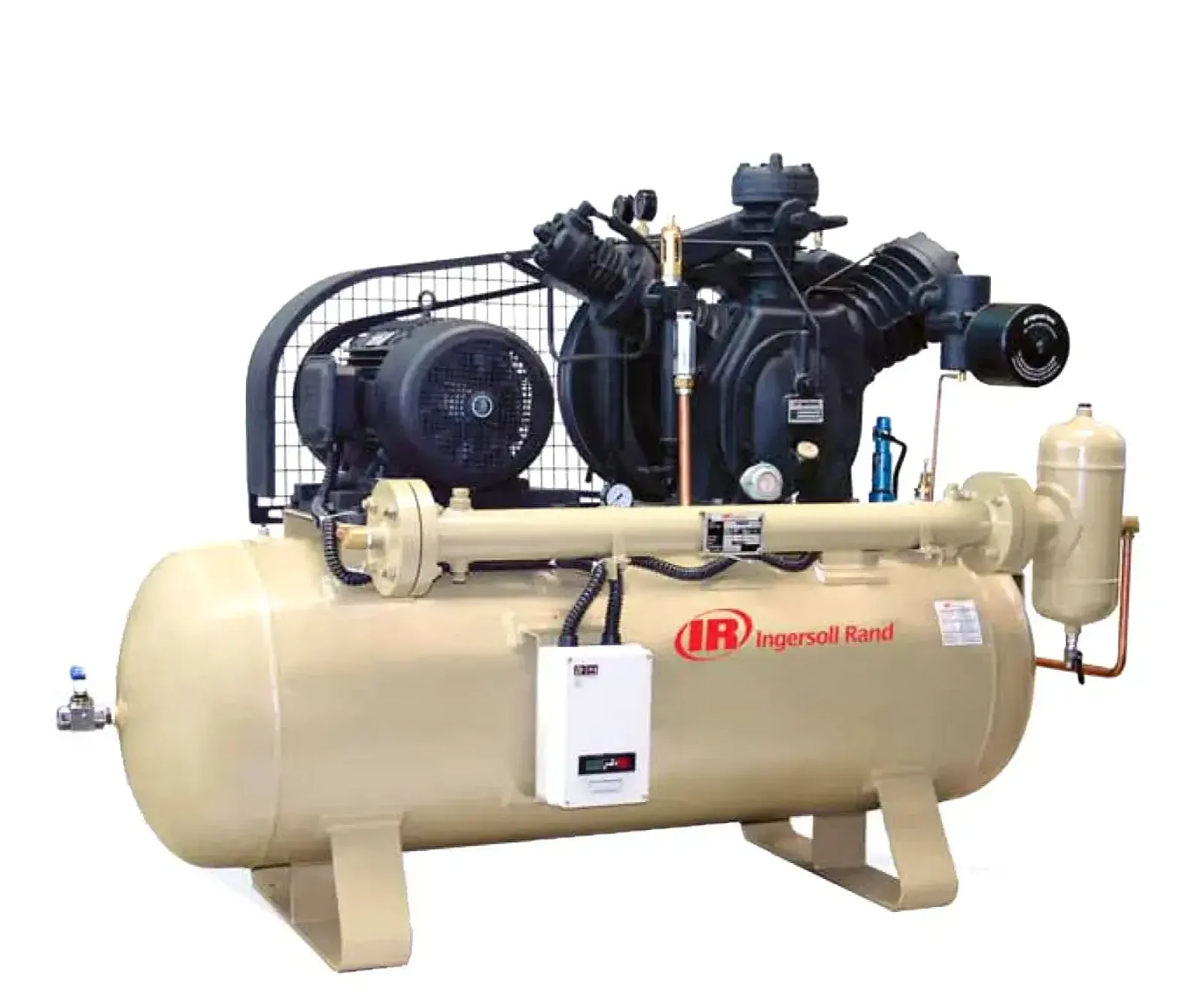

High Pressure Receiver Mounted Package
Model | Motor HP | Free Air Delivery cfm At Working Pressure (35.1 kg/cm²g) |
251 Package | 5 | 6.45 |
7T2 Package | 10-12.5 | 21.60 |
15T2 Package | 20 | 37.70 |
15T2 Duplex Package | 40 | 75.40 |
For high pressure operation, adequate care must be taken for proper selection. Our distributors would be happy to assist you in correct selection of model.
Models are also available for higher working pressures upto 351 kg/cm² g. Details available on request.
