- Advanced microprocessor controller
- Dew point level, high/low temperature
- Inlet temperature display
- Outlet temperature display
- Multi-level menu, allowing users to program - Reliable design
Scroll compressor with anti-corrosion material provides economical and excellent performance, reduces the use of non-fixed installation parts, all use instrument monitoring, electrical protection level reaches IP54 - Refrigerant with environmental protection function
Equipped with energy-saving mode, which can automatically shut down the dryer when it is under load

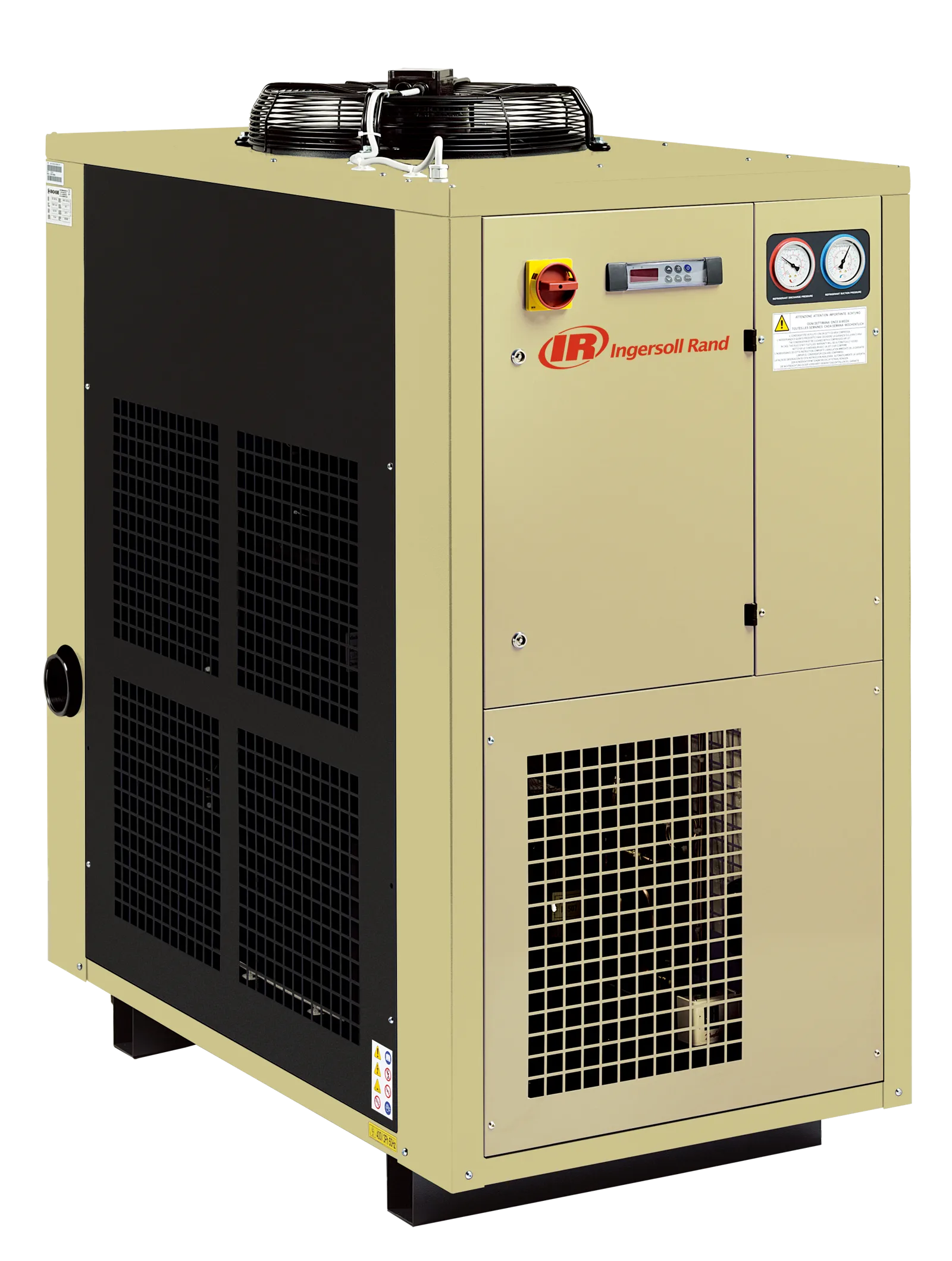

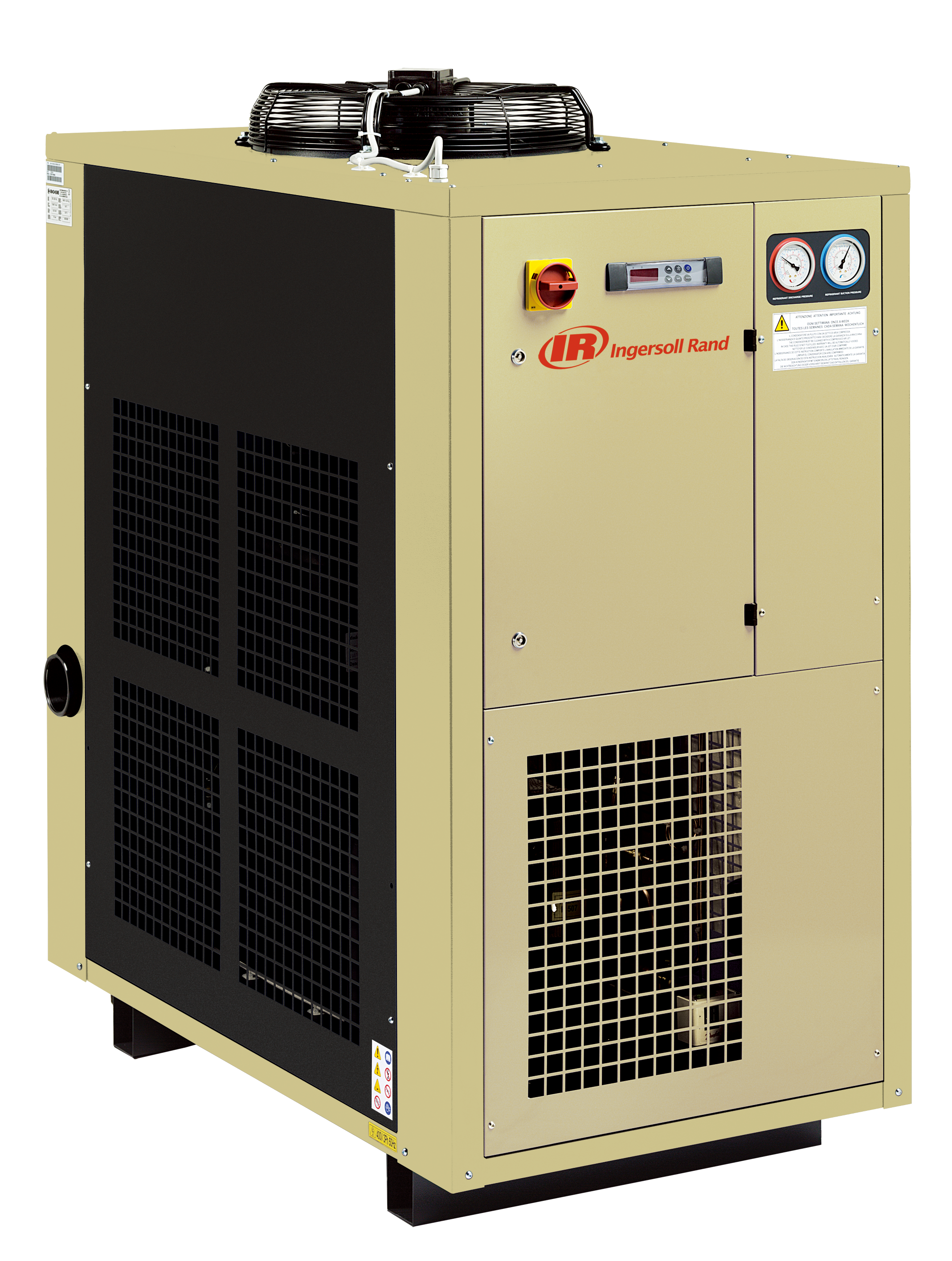

"D" Series Refrigerated Dryers - Meet all your needs. This series of models, compact in size, can provide comprehensive and economical compressed air solutions for dry cleaners to auto repair shops, from light processing to manufacturing. The large flow products are designed for large-scale industry, the automotive industry and the petrochemical industry.
Model (Air cooling) | 7℃ pressure flow rate at dew point (m³/m) | 7℃ pressure flow rate at dew point(m³/hr) | 3℃ pressure flow rate at dew point (m³/m) | 3℃ pressure flow rate at dew point (m³/hr) | Maximum working pressure (barg) | Voltage (V/Ph/Hz) | Nominal power (kW) | Air interface diameter (inlet, outlet) | Dimensions (L× W×H) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
D12IN-A | 0.2 | 12 | 0.2 | 9.6 | 14 | 230/1/50 | 0.12 | 3/8"BSP | 305×360×408 | 17 |
D25IN-A | 0.4 | 25 | 0.3 | 20 | 14 | 230/1/50 | 0.12 | 3/8"BSP | 305×360×480 | 23 |
D42IN-A | 0.7 | 42 | 0.6 | 33.6 | 14 | 230/1/50 | 0.18 | 1/2"BSP | 390×432×453 | 25 |
D54IN-A | 0.9 | 54 | 0.7 | 43.2 | 14 | 230/1/50 | 0.18 | 1/2"BSP | 390×432×453 | 26 |
D72IN-A | 1.2 | 72 | 1 | 57.6 | 14 | 230/1/50 | 0.2 | 1/2"BSP | 390×432×453 | 26 |
D108IN-A | 1.8 | 108 | 1.4 | 86.4 | 14 | 230/1/50 | 0.41 | 3/4"BSP | 420×516×563 | 33 |
D144IN-A | 2.4 | 144 | 1.9 | 115.2 | 14 | 230/1/50 | 0.47 | 3/4"BSP | 420×516×563 | 38 |
D180IN-A | 3 | 180 | 2.4 | 144 | 14 | 230/1/50 | 0.61 | 3/4"BSP | 420×516×563 | 43 |
D240IN-A | 4 | 240 | 3.2 | 192 | 14 | 230/1/50 | 0.68 | 1-1/2"BSP | 503×604×980 | 76 |
D300IN-A | 5 | 300 | 4 | 240 | 14 | 230/1/50 | 1.04 | 1-1/2"BSP | 503×604×980 | 87 |
D360IN-A | 6 | 360 | 4.8 | 288 | 14 | 230/1/50 | 1.04 | 1-1/2"BSP | 503×604×980 | 87 |
D480IN-A | 8 | 480 | 6.4 | 384 | 14 | 230/1/50 | 1.4 | 1-1/2"BSP | 503×604×980 | 110 |
D600IN-A | 12 | 720 | 10 | 600 | 14 | 230/1/50 | 1.85 | 2"BSP | 720×779×1340 | 120 |
D780IN-A | 15.6 | 936 | 13 | 780 | 12 | 400/3/50 | 1.98 | 2"BSP | 720×779×1340 | 130 |
D950IN-A | 19 | 1140 | 15.8 | 950 | 12 | 400/3/50 | 2.58 | 2"BSP | 720×779×1340 | 150 |
D1140IN-A | 21.7 | 1300 | 19 | 1140 | 12 | 400/3/50 | 3.4 | 3"BSP | 785×1365×1554 | 260 |
D1300IN-A | 26 | 1560 | 21.7 | 1302 | 12 | 400/3/50 | 3.4 | 3"BSP | 785×1365×1554 | 260 |
D141OIN-A | 28.2 | 1692 | 23.5 | 1410 | 12 | 400/3/50 | 3.4 | 3"BSP | 785×1365×1554 | 270 |
D1620IN-A | 31.5 | 1890 | 27 | 1620 | 12 | 400/3/50 | 5.3 | 3"BSP | 785×1365×1554 | 300 |
D1890IN-A | 37.8 | 2268 | 31.5 | 1890 | 12 | 400/3/50 | 5.3 | 3"BSP | 785×1365×1554 | 300 |
D2520IN-A | 50.4 | 3024 | 42 | 2520 | 12 | 400/3/50 | 6.88 | DN100 | 901×1390×1554 | 330 |
D3000IN-A | 60 | 3600 | 50 | 3000 | 12 | 400/3/50 | 7.81 | DN125 | 1500×1510×1554 | 420 |
D3600IN-A | 70 | 4200 | 60 | 3600 | 12 | 400/3/50 | 11.29 | DN125 | 1500×1510×1554 | 520 |
D4200IN-A | 84 | 5040 | 70 | 4200 | 12 | 400/3/50 | 11.29 | DN125 | 1500×1510×1554 | 520 |
D4800IN-A | 96 | 5760 | 80 | 4800 | 12 | 400/3/50 | 12.91 | DN150 | 1500×1510×1554 | 620 |
D5400IN-A | 108 | 6480 | 90 | 5400 | 12 | 400/3/50 | 12.91 | DN150 | 1500×1510×1554 | 720 |
