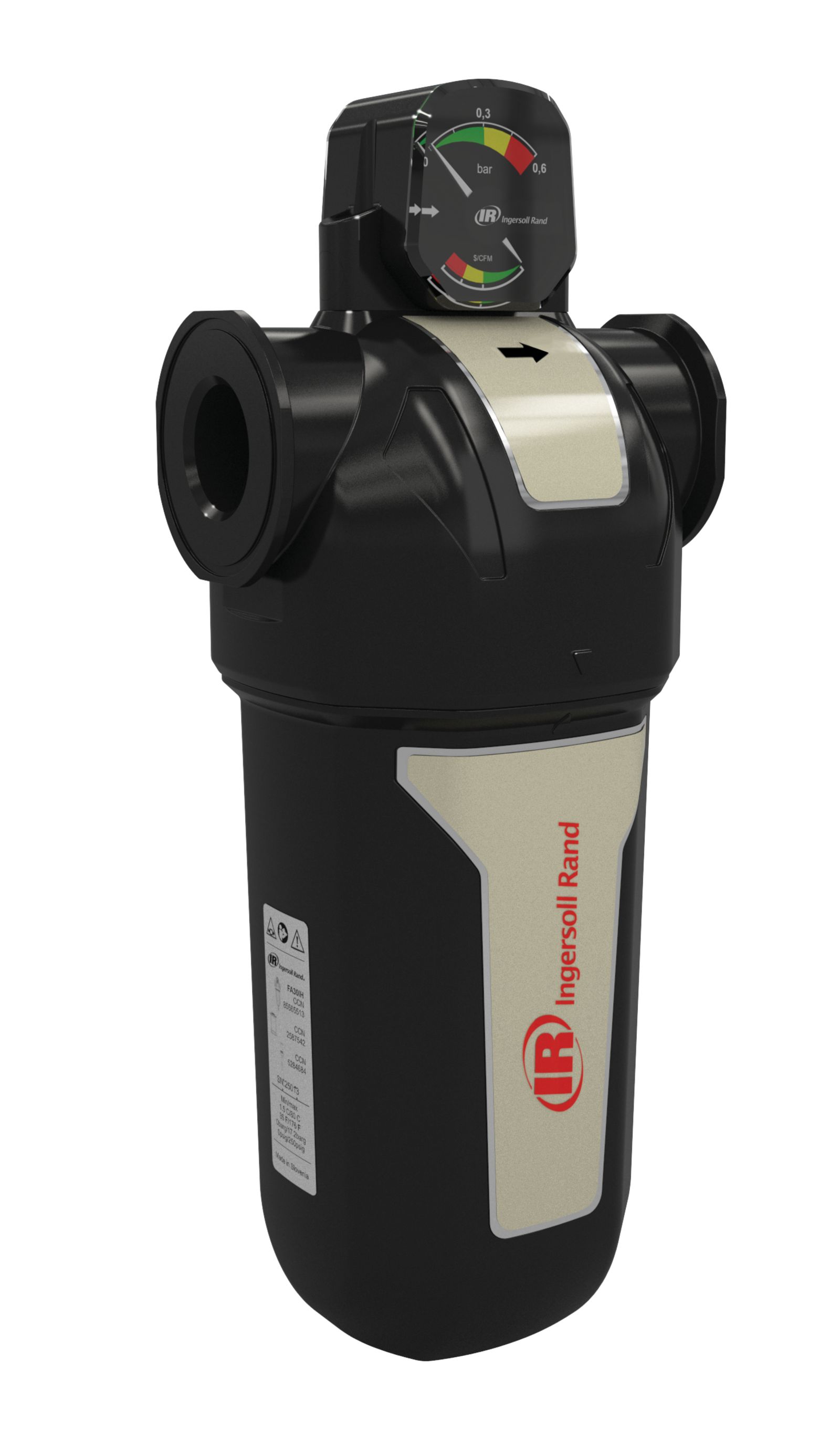

F-Series Universal Filters

Ingersoll Rand’s advanced F series compressed air filters effectively reduce contaminants in the air system to protect critical processes and precious instruments & equipment. Through rigorous testing and by integrating excellent components, F series filters can provide high quality compressed air in a long-lasting way.
  • Superior quality

    Without effective filtration, various problems, such as a higher scrap rate, inferior quality products and additional maintenance costs, may occur in the manufacturing and processes of those products relying on compressed air. Our brand new F series filters are designed to solve these problems and ensure that the compressed air system provides high-quality clean compressed air for your equipment.

  • Higher efficiency

    Maintaining a low pressure difference across all compressed air components is crucial for highly-efficient energy systems. Our new F series filters adopts a rigorous engineering design to ensure low pressure difference throughout the available lifetime of the filter element, and are equipped with a differential pressure indicator, which can directly display the cost consumption caused by the pressure difference in the system.

  • Optimal choice

    As every compressed air system has its unique filtration requirements, our all-new F series filters are available in four different filtration grades to provide comprehensive filtration solutions for compressed air in all critical processes.


F series threaded filters

Model

Flow
m³/min

Flow m³/hr

Air interface pipe diameter
(mm)

Dimensions (mm)
(H×W)

Weight
kg

F42*-E

0.7

42

0.5″ BSPT

266×90

1.1

F72*-E

1.2

72

0.5″ BSPT

266×90

1.1

F108*-E

1.8

108

0.75″ BSPT

300×90

1.4

F216*-E

3.6

216

1″ BSPT

420×120

3.2

F294*-E

4.9

294

1.5″ BSPT

520×120

5.2

F342*-E

5.7

342

1.5″ BSPT

520×120

5.2

F390*-E

6.5

390

1.5" BSPT

520×120

5.2

F444*-E

7.4

444

1.5" BSPT

520×120

5.2

F540*-E

9

540

2″ BSPT

730×160

7.6

F690*-E

11.5

690

2″ BSPT

730×160

7.6

FB10*-E

13.5

810

2″ BSPT

730×160

7.6

F990*-E

16.5

990

2.5″ BSPT

1010×160

9.5

F1050*-E

17.5

1050

2.5″ BSPT

1010×160

9.5

F1170*-E

19.5

1170

2.5″ BSPT

1010×160

9.5

F1380*-E

23

1380

3″ BSPT

770×200

10.6

F1590*-E

26.5

1590

3″ BSPT

770×200

10.6

F1740*-E

29

1740

3″ BSPT

1035×200

12.8

F2100*-E

35

2100

3″ BSPT

1035×200

12.8

Fseries flanged filters

Model

Flow
m³/min

Flow m³/hr

Air interface pipe diameter
(mm)

Dimensions (mm)
(H×W)

Weight
kg

F2340*-E

39

2340

3″ FLG

1140×440

76

F2700*-E

45

2700

4″ FLG

900×500

91

F3090*-E

51.5

3090

5″ FLG

930×500

98

F3480*-E

58

3480

5″ FLG

930×500

103

F4080*-E

68

4080

5″ FLG

950×540

118

F4200*-E

70

4200

5″ FLG

950×540

120

F4560*-E

76

4560

6″ FLG

990×560

124

F4800*-E

80

4800

6″ FLG

990×560

127

F5520*-E

92

5520

6″ FLG

1040×640

132

F5940*-E

99

5940

6″ FLG

1040×640

136

F7680*-E

128

7680

6″ FLG

1040×640

165

FB700*-E

145

8700

8″ FLG

1140×700

228

F10800*-E

180

10800

8″ FLG

1160×760

295

F12960*-E

216

12960

8″ FLG

1160×760

302

F14400*-E

240

14400

8″ FLG

1200×820

335

F18000*-E

300

18000

10″ FLG

1250×900

428

F21600*-E

360

21600

10″ FLG

1300×940

483

F25200*-E

420

25200

12″ FLG

1360×1000

554

F28800*-E

480

28800

14″ FLG

1550×1100

766

Notes:
1.Rated working pressure:7Barg, max. working pressure:16Barg,working temperature:<80°C,with a differential pressure indicator.
2. "*" refers to the filter grades: G, D, H & A
- G: 1µ for moisture removal at an efficiency over 95%, filtering out of water & oil mist above 1µm
- D: 1µ for dust removal, filtering out dust particles above 1 µm
- H: 0.01µ/0.01ppm for oil removal, filtering out particles above 0.01 µm, water & oil mist, and with residual oil content of 0.01ppm@7barg
- A: 0.01µ/0.001ppm for precise oil removal, filtering out particles above 0.01µm, water & oil mist, and with residual oil content of 0.001ppm@7barg
