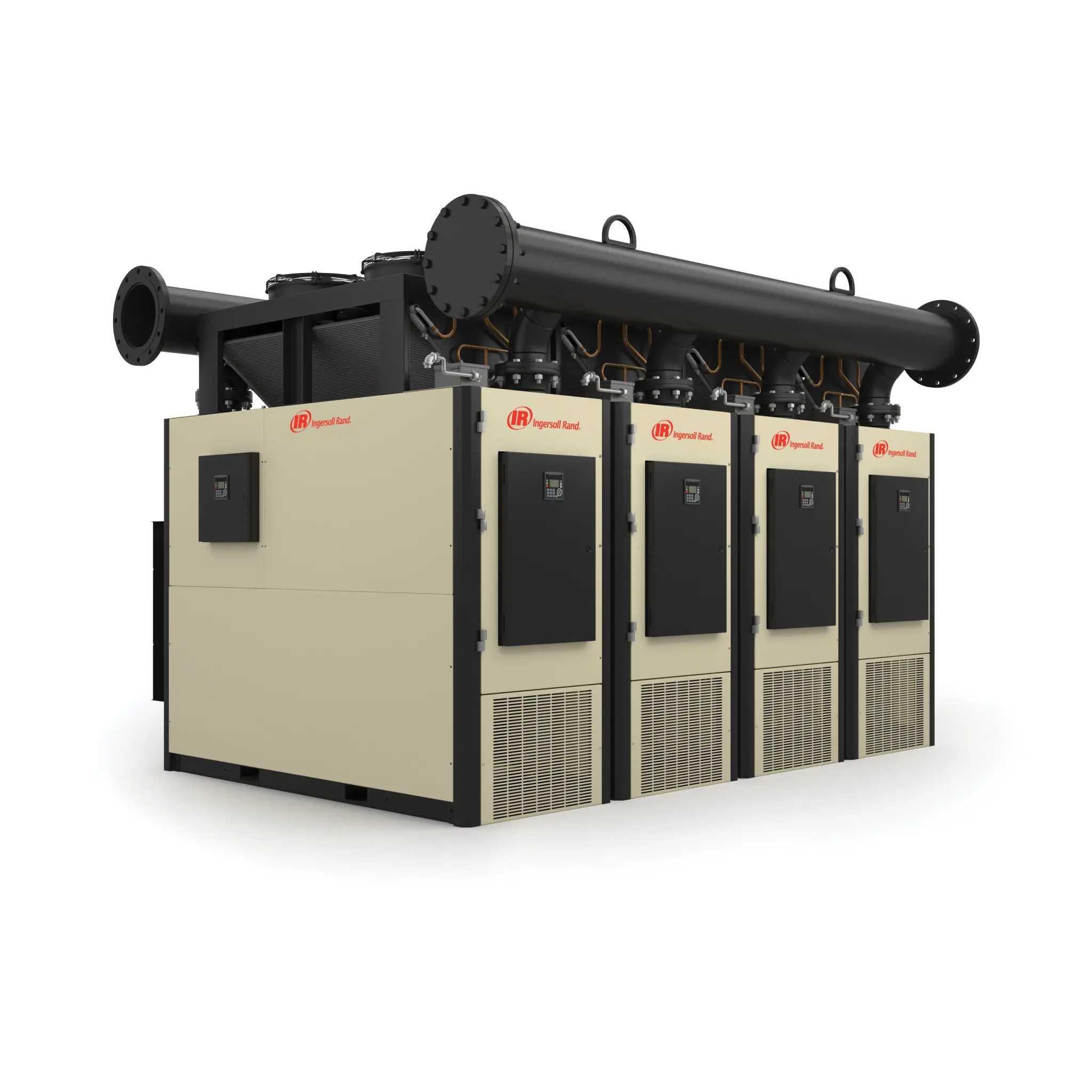

Non-Cycling Refrigerated Dryers

Minimize lifecycle costs with our next-generation non-cycling refrigerated dryers for cleaner, drier compressed air. The DA series refrigerated dryers are extremely efficient and environmentally friendly and support sustainability with low global warming potential (GWP) refrigerant usage. They feature the latest technical advancements from Ingersoll Rand, resulting in high-efficiency with a lower pressure drop, a smaller footprint and significant reduction in the dryer’s specific power.

R513A low GWP refrigerants significantly reduce carbon footprint
ISO Class 4 energy saving non-cycling dryers
Air-cooled and water-cooled configurations cover a wide range of applications
Lower Cost of Ownership: Efficient heat exchangers, a built-in stainless steel demister that removes all moisture and a fully adjustable programmable electronic drain valve reduce energy use and minimize air loss
Built-in Reliability: Corrosion-resistant heat exchangers, an enhanced control-system and high-efficiency moisture-separation ensure a steady long-term supply of dry air
Smart Control: Easy to use, advanced microprocessor control that lets you easily adjust and manage system parameters
Up to 40% reduced footprint provides versatility for any application

Air-Cooled Models

Model	Air Flow 3°C m³/h	Absorbed nominal power kW	Power supply V/ph/Hz	Max pressure barg	Refrigerant	Dimensions (WxDxH) mm	Weight kg (lb)
D12IN-A	12	0.06	230/1/50	16	R513A	305x360x408	19
D25IN-A	25	0.12	230/1/50	16	R513A	305x360x408	19
D42IN-A	42	0.14	230/1/50	16	R513A	390x432x441	26
D54IN-A	54	0.17	230/1/50	16	R513A	390x432x441	28
D72IN-A	72	0.17	230/1/50	16	R513A	390x432x441	28
D108IN-A	108	0.41	230/1/50	16	R513A	420x516x551	36
D144IN-A	144	0.5	230/1/50	16	R513A	420x516x551	42
D180IN-A	180	0.5	230/1/50	16	R513A	420x516x551	44
D225IN-A	225	0.7	230/1/50	16	R513A	500x679x980	48
D260IN-A	260	0.81	230/1/50	16	R513A	500x679x980	49
D300IN-A	300	0.61	230/1/50	16	R513A	500x718x980	79
D360IN-A	360	0.74	230/1/50	16	R513A	500x718x980	79
D480IN-A	480	0.81	230/1/50	16	R513A	500x718x980	85
D600IN-A	600	1.01	230/1/50	16	R513A	720x750x1360	134
D780IN-A	780	1.67	400/3/50	13	R513A	720x750x1361	164
D950IN-A	950	2.03	400/3/50	13	R513A	720x750x1362	168
DA1300IN-A	1300	2.24	400/3/50	13	R513A	806x1012x1539	234
DA1500IN-A	1500	2.58	400/3/50	13	R513A	806x1012x1539	234
DA1800IN-A	1800	3.1	400/3/50	13	R513A	806x1012x1539	234
DA2250IN-A	2250	3.65	400/3/50	13	R513A	806x1012x1539	290
DA2600IN-A	2600	4.22	400/3/50	13	R513A	806x1012x1539	290
DA3200IN-A	3200	6.31	400/3/50	13	R513A	880x1819x1796	417
DA4200IN-A	4200	5.96	400/3/50	13	R513A	880x1819x1796	465
DA4800IN-A	4800	6.81	400/3/50	13	R513A	880x1819x1796	465
D5400IN-A	5400	9.81	400/3/50	13	R513A	1510x1500x1555	780
D6000IN-A	6000	10.9	400/3/50	13	R513A	1510x1500x1555	780
D8800IN-A	8800	13.2	400/3/50	13	R513A	2270x1590x1570	1128
D9600IN-A	9600	13.56	400/3/50	13	R513A	2270x1590x1570	1128
D11500IN-A	11500	16.24	400/3/50	13	R513A	2270x1590x1570	1205
D17600IN-A	17600	26.4	400/3/50	13	R513A	4600x1590x1570	1360
D19200IN-A	19200	27.12	400/3/50	13	R513A	4600x1590x1570	2256
D23000IN-A	23000	32.48	400/3/50	13	R513A	4600x1590x1570	2720
