Rb Series 55-90 kW Oil-Flooded Rotary Screw Compressor

Ingersoll Rand Rb-Series air compressors leverage time-tested technology to provide a consistent supply of compressed air to your critical processes. Developed with reliability and productivity in mind, Rb-Series compressors are designed to provide enhanced serviceability to maximize productivity.

Enhanced serviceability: Designed for serviceability with easy access to user-maintainable parts.

Trusted reliability: Three-stage oil separation and integrated moisture separation ensures a reliable supply of clean air.
High Ambient Operation: Long-life components are designed to withstand 46 ºC maximum ambient temperature

Model No.	Power (kW)	Flow (M3/Min)	Flow (CFM)	Rated Pressure (psig)	Max Pressure (psig)	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
RSb55i-A7	55	10.2	360	100 psig	110 psig	2655	1325	1435	1480
RSb55i-A8	55	9.4	333	115 psig	125 psig	2655	1325	1435	1480
RSb55i-A10	55	8.6	303	135 psig	145 psig	2655	1325	1435	1480
RSb75i-A7	75	14.7	520	100 psig	110 psig	2655	1325	1435	1509
RSb75i-A8	75	13.5	475	115 psig	125 psig	2655	1325	1435	1509
RSb75i-A10	75	12.3	435	135 psig	145 psig	2655	1325	1435	1509

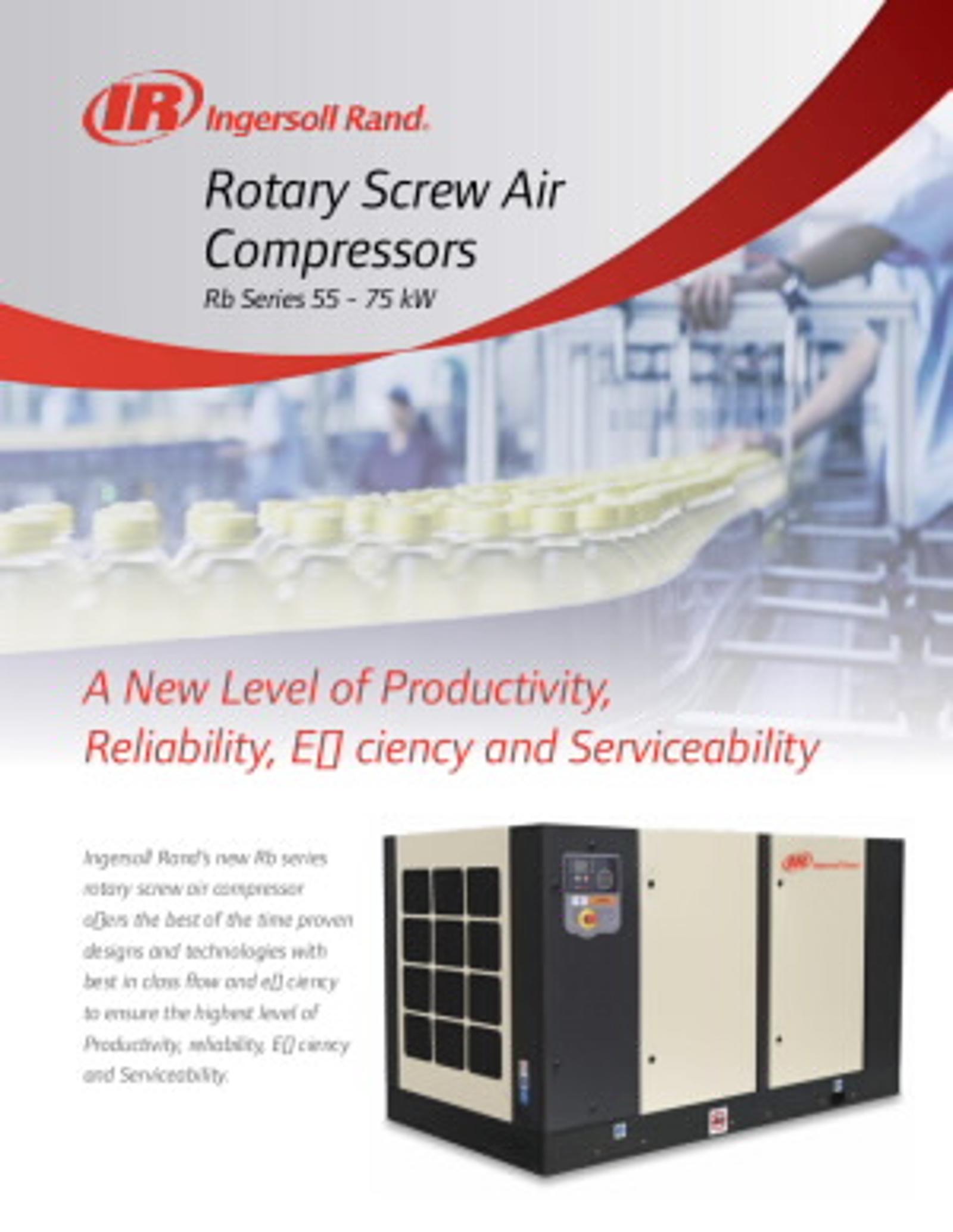

Rotary Screw Air Compressors Rb Series 55 - 75 kW

Brochure, English

Rb-Series 55-90 kW Oil-Flooded Rotary Screw Compressors

Features

Model Specifications
