- Robust Frame & Air End Design: Uniquely suited for high pressure booster services.
- High Complexity customized packages: We can customize multiple range of Booster offerings specific to fit any customer applications.
- Rugged frame designed for long life. Cast iron cylinder design which can accommodate very high operating pressures.
- Air Cooled & Water-Cooled options available based on the customer requirements.
- Non-lubricated 100% oil free, continuous duty cycle rated.
- All internal components and piping are corrosion protected for extended life.
- Type B Distance pieces feature two compartments, ensuring the lubricant is isolated from the cylinders.
- Pre-programmed Logic controller-based control panel, with IP54 protection.
- Auto drain trap with bypass arrangement.
- Support API-618 compliance for air & Nitrogen applications.
- Ingersoll Rand Booster compressors are manufactured using highest standards ensured by ISO 9001-certified Quality Management System.

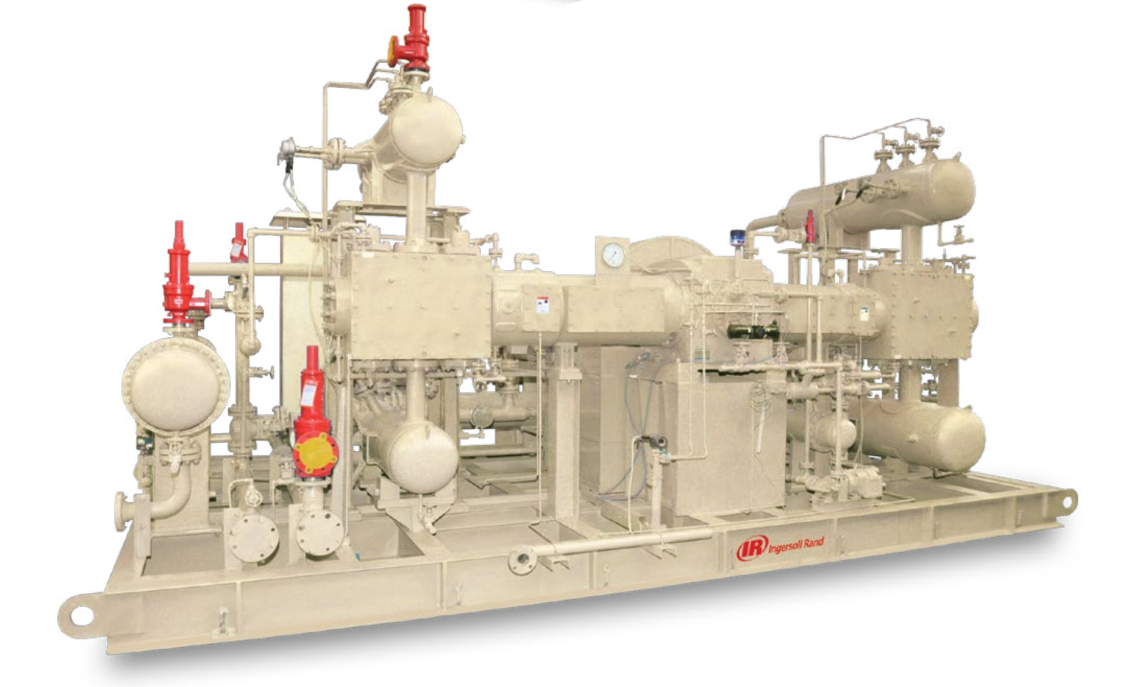

Ingersoll Rand offers an extensive range of high-pressure reciprocating compressors that are tailor made to boost air / nitrogen to higher pressures required for many process applications.

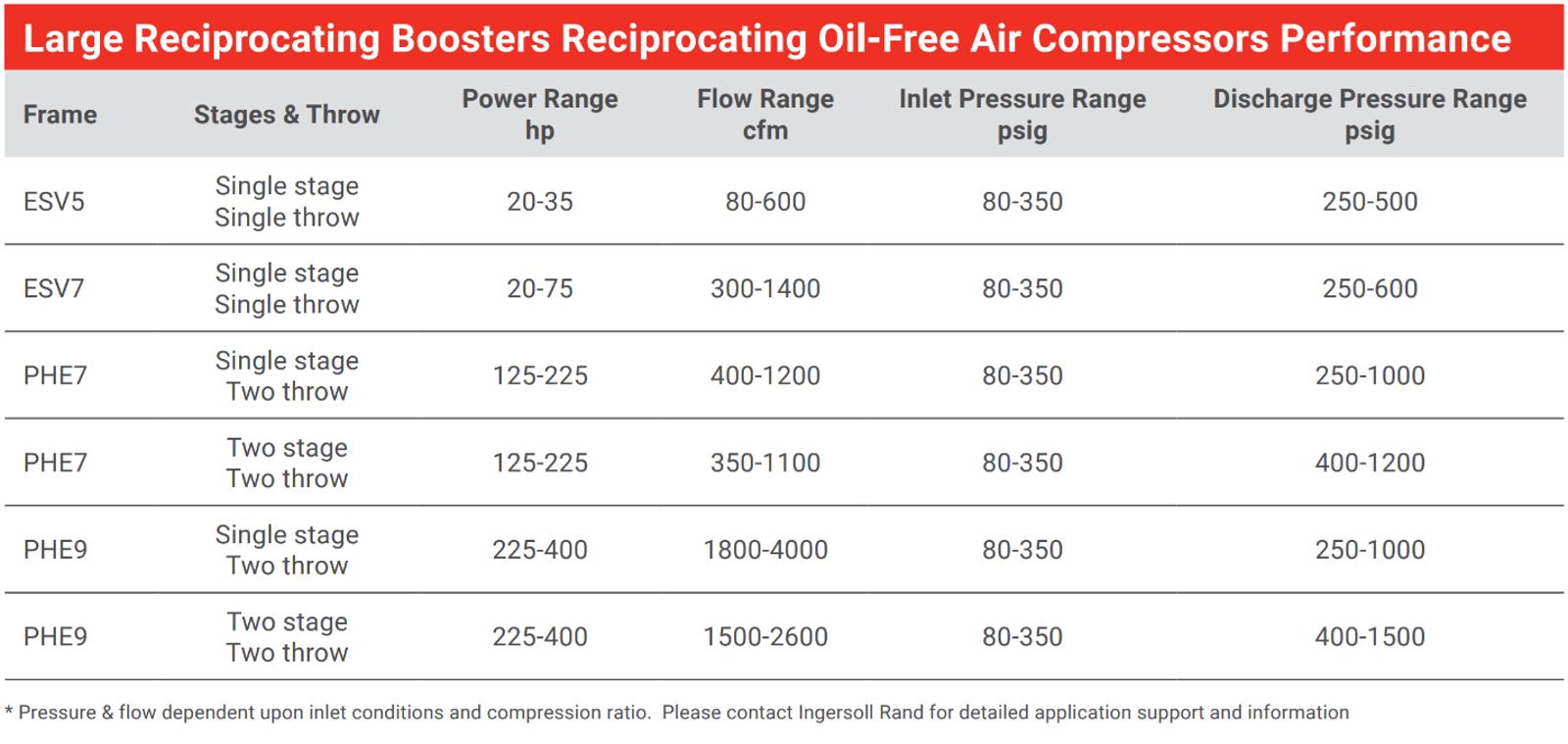

Ingersoll Rand ESV and PHE booster compressors provide coverage of applications in the 20 to 400 hp (15 to 300 kW) range. Discharge pressures as high as 1500 psig (102 barg). Pressure and flow dependent upon Inlet conditions and compression ratio. Whatever the high-pressure needs may be, Ingersoll Rand’s commitment to total quality is reflected in the manufacture of every ESV and PHE compressor.
