- Improved Efficiency: State-of-the-art, fully integrated airend delivers the efficiency and reliability you need
- Decreased Energy Use: Premium efficiency IP55 motor delivers significant energy savings, and the optional integrated variable speed drive (VSD) further decreases energy consumption
- Enhanced serviceability: Easy access to all user-maintainable components, auto-tensioning V-Belt, and Ingersoll Rand extended life, premium grade coolant ensures increased uptime
- High Ambient Operation: Long-life components are designed to operate in up to 45 ºC maximum ambient temperature
- Remote Intelligent Control: Xe-Series controllers deliver increased functionality through an intuitive user interface, as well as remote access with any common, current web browser

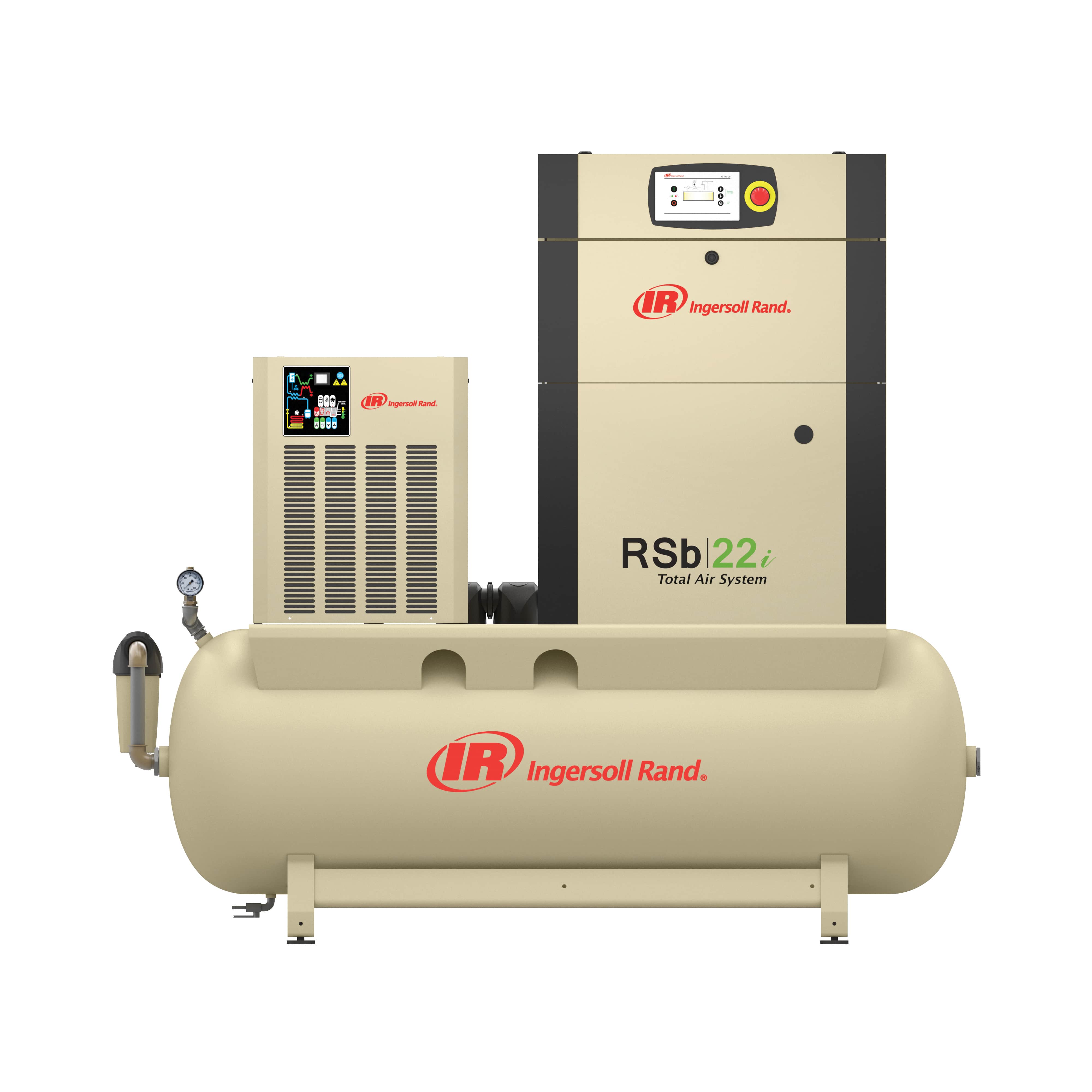

- Optional Total Air System (TAS): Clean, dry air in a single package that minimizes installation costs, reduces footprint and improves ISO air quality
Model | Nominal Power (kW) | Pressure barg (psig) | Air Flow m3/min (cfm) | Dimensions (mm) | Weight (kg) |
RSb15i | 15 | 7.5 (110) | 2.65 (93.5) | 787 x 698 x 1202 | 335 |
RSb15i | 15 | 10 (145) | 2.21 (78) | 787 x 698 x 1202 | 335 |
RSb15i | 15 | 13 (189) | 1.76 (62) | 787 x 698 x 1202 | 335 |
RSb18i | 18.5 | 7.5 (110) | 3.19 (112.5) | 787 x 698 x 1202 | 361 |
RSb18i | 18.5 | 10 (145) | 2.69 (95) | 787 x 698 x 1202 | 361 |
RSb18i | 18.5 | 13 (189) | 2.29 (80.9) | 787 x 698 x 1202 | 361 |
RSb22i | 22 | 7.5 (110) | 3.59 (126.8) | 787 x 698 x 1202 | 367 |
RSb22i | 22 | 10 (145) | 3.14 (111) | 787 x 698 x 1202 | 367 |
RSb22i | 22 | 13 (189) | 2.56 (90.5) | 787 x 698 x 1202 | 367 |
RSb15i-A7.5-TAS-500L | 15 | 7.5 (110) | 2.65 (93.5) | 2001 X 770 X 1783 | 606 |
RSb15i-A10-TAS-500L | 15 | 10 (145) | 2.21 (78) | 2001 X 770 X 1783 | 606 |
RSb15i-A13-TAS-500L | 15 | 13 (189) | 1.76 (62) | 2001 X 770 X 1783 | 606 |
RSb18i-A7.5-TAS-500L | 18.5 | 7.5 (110) | 3.19 (112.5) | 2001 X 784 X 1835 | 665 |
RSb18i-A10-TAS-500L | 18.5 | 10 (145) | 2.69 (95) | 2001 X 784 X 1835 | 665 |
RSb18i-A13-TAS-500L | 18.5 | 13 (189) | 2.29 (80.9) | 2001 X 784 X 1835 | 665 |
RSb22i-A7.5-TAS-500L | 22 | 7.5 (110) | 3.59 (126.8) | 2001 X 784 X 1835 | 671 |
RSb22i-A10-TAS-500L | 22 | 10 (145) | 3.14 (111) | 2001 X 784 X 1835 | 671 |
RSb22i-A13-TAS-500L | 22 | 13 (189) | 2.56 (90.5) | 2001 X 784 X 1835 | 671 |
