- Improved Efficiency: State-of-the-art, fully integrated airend delivers the efficiency and reliability you need.
- Decreased Energy Use: Premium efficiency IP55 motor delivers significant energy savings, and the optional integrated variable speed drive (VSD) further decreases energy consumption.
- Enhanced serviceability: Easy access to all user-maintainable components, auto-tensioning V-Belt, and Ingersoll Rand extended life, premium grade coolant ensures increased uptime.
- Remote Intelligent Control: Xe-Series controllers deliver increased functionality through an intuitive user interface, as well as remote access with any common, current web browser.

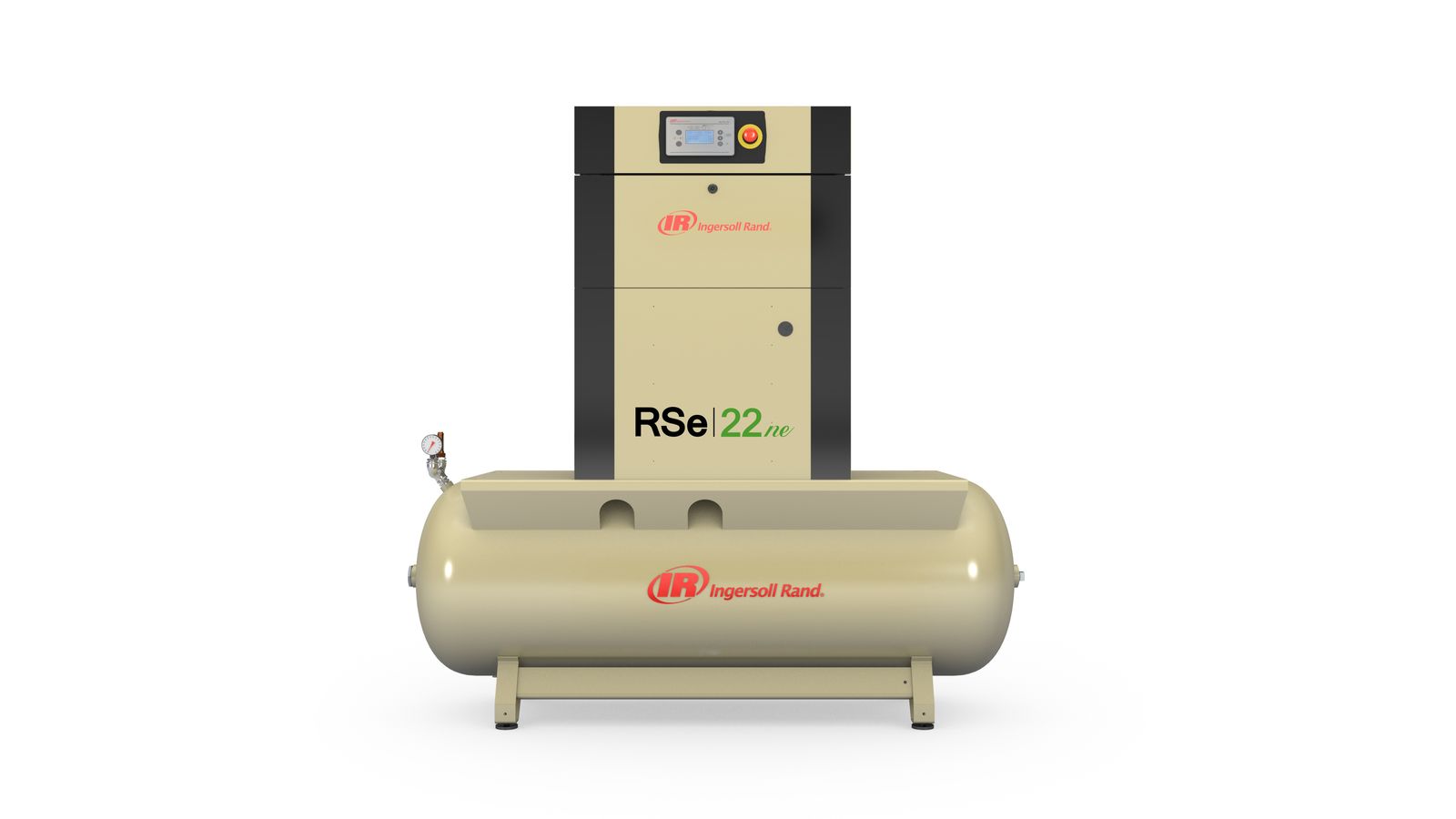

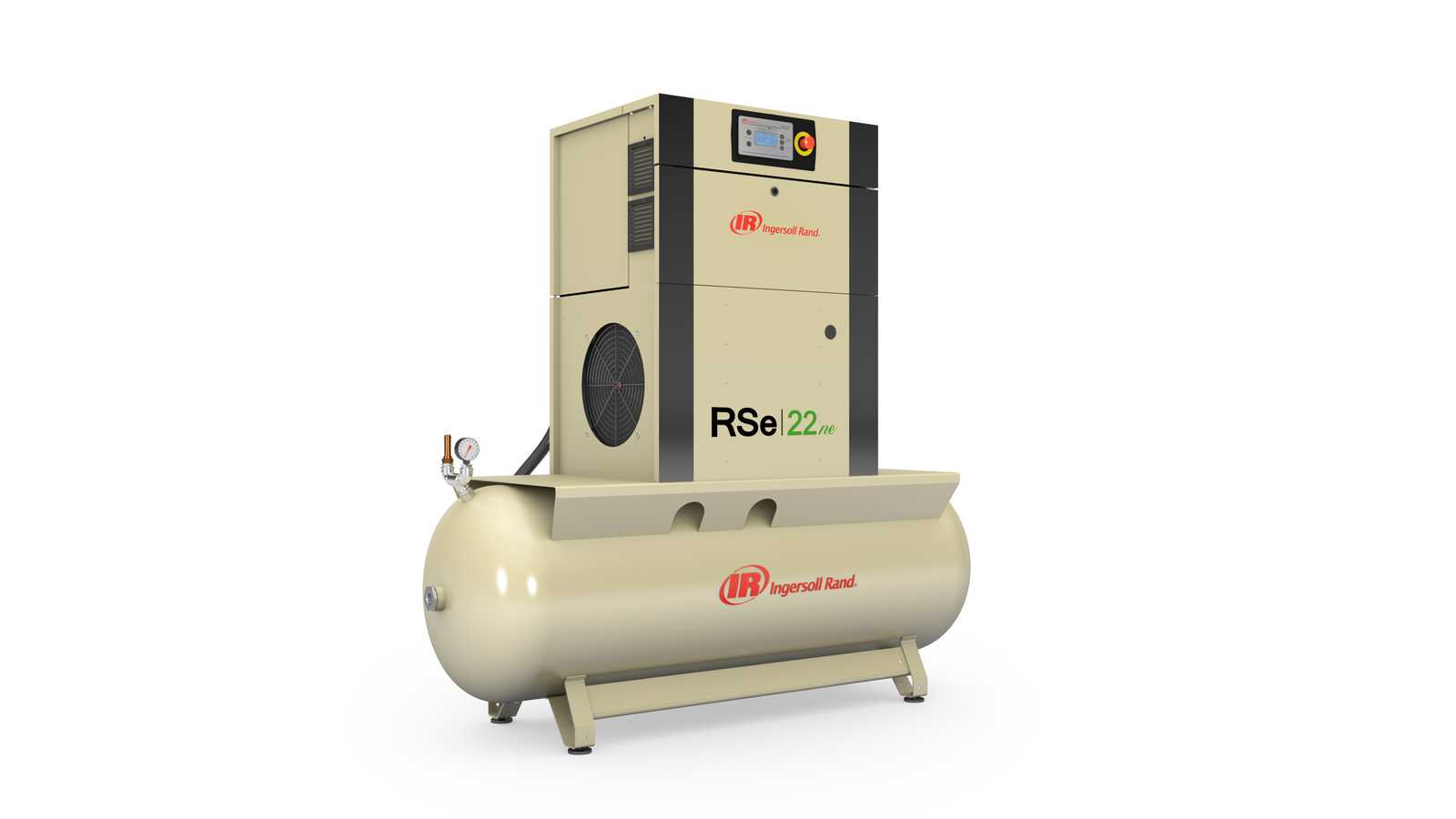

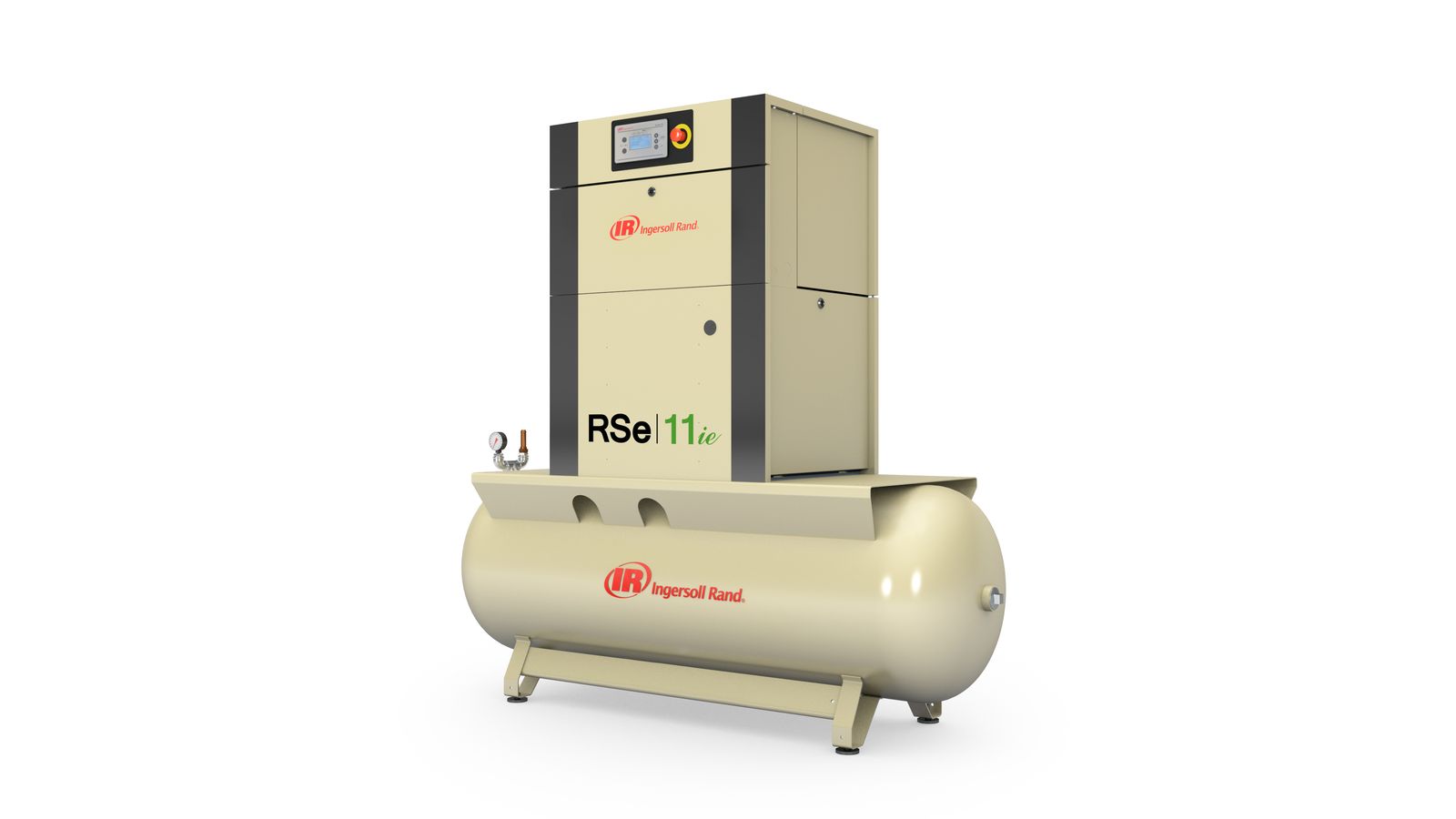

- Minimise your installation costs and save floor space with our configurations mounted directly on the receiver tank, including the Tank Mount (compressor only) and Total Air System (compressor and air dryer) options. All system components are perfectly matched and ready for plug and play operation right out of the box.
Model | Max pressure (barg) | Nominal Power (kW) | Capacity (m³/min) | Dimensions (LxWxH) mm) | Weight |
RSe11ie-A7.5-TM V4 | 7.5 | 11 kW | 1.87 | 1541x693x1543 | 335 |
RSe11ie-A10-TM V4 | 10 | 11 kW | 1.61 | 1541x693x1543 | 335 |
RSe7.5ne-A7.5-TM V4 | 7.5 | 7.5 kW | 1.27 | 1541x693x1543 | 337 |
RSe7.5ne-A10-TM V4 | 10 | 7.5 kW | 1.02 | 1541x693x1543 | 337 |
RSe11ne-A7.5-TM V4 | 7.5 | 11 kW | 1.81 | 1541x693x1543 | 347 |
RSe11ne-A10-TM V4 | 10 | 11 kW | 1.57 | 1541x693x1543 | 347 |
RSe15i-A7.5-TM V3 | 7.5 | 15 kW | 2.7 | 1876x801x1791 | 509 |
RSe15i-A10-TM V3 | 10 | 15 kW | 2.26 | 1876x801x1791 | 509 |
RSe18i-A7.5-TM V3 | 7.5 | 18.5 kW | 3.25 | 1876x801x1791 | 577 |
RSe18i-A10-TM V3 | 10 | 18.5 kW | 2.74 | 1876x801x1791 | 577 |
RSe22i-A7.5-TM V3 | 7.5 | 22 kW | 3.65 | 1876x801x1791 | 582 |
RSe22i-A10-TM V3 | 10 | 22 kW | 3.21 | 1876x801x1791 | 582 |
RSe15n-A7.5-TM V3 | 7.5 | 15 kW | 2.61 | 1876x801x1791 | 539 |
RSe15n-A10-TM V3 | 10 | 15 kW | 2.19 | 1876x801x1791 | 539 |
RSe18n-A7.5-TM V3 | 7.5 | 18.5 kW | 3.06 | 1876x801x1791 | 597 |
RSe18n-A10-TM V3 | 10 | 18.5 kW | 2.64 | 1876x801x1791 | 597 |
RSe22n-A7.5-TM V3 | 7.5 | 22 kW | 3.55 | 1876x801x1791 | 601 |
RSe22n-A10-TM V3 | 10 | 22 kW | 3.16 | 1876x801x1791 | 601 |
